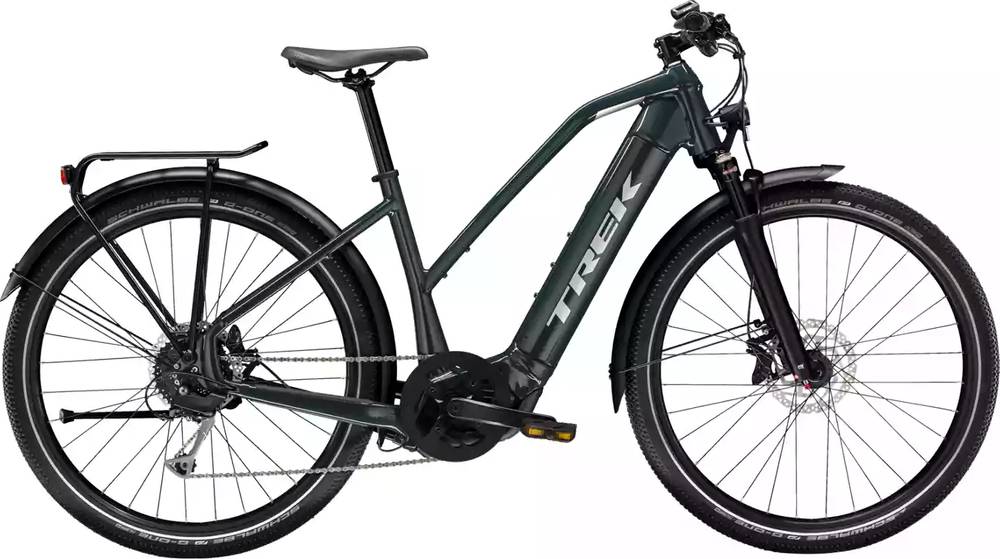

Trek Allant+ 7S Stagger 2020
2020 E-bike
Estimate price |
3,899$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 50mm -
Fork SunTour MOBIE
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, Removable Integrated Battery, Range Boost compatible, internal cable routing, Motor Armor, post-mount disc, 135x5mm QR
Suspension Fork
SR Suntour Mobie25, coil spring, tapered alloy steerer, preload, rebound, lockout, post mount disc, 100x15mm thru-axle, 50mm travel
Drivetrain
Rear Derailleur
Shimano Alivio T4000, long cage
Shift Levers
Shimano Alivio M4000, 9 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Size: S, M, ProWheel alloy, 170mm; Size: L, ProWheel alloy, 175mm
Chain
KMC X9
Wheels
Front Hub
Bontrager Disc, 32-hole, 6-bolt disc, 15mm alloy thru-axle
Rear Hub
Bontrager sealed cartridge bearing rear hub, 32-hole, 6-bolt disc, 5mm QR
Rims
Alex MD35, Tubeless Ready, 32-hole, 35mm width, presta valve
Spokes
J-Bend, 14g, Steel, Black
Tires
Schwalbe G-One, 650Bx57c
Brakes
Brakes
Shimano MT520 4-piston hydraulic disc, post-mount 180mm rotor
Disk Rotors
Shimano RT26, 180mm, 6-bolt
Cockpit
Stem
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Size: S, M, Bontrager alloy, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
Motor & Battery
Motor
Bosch Performance Speed, 75 Nm, 28 mph / 45 kph
Battery
Bosch PowerTube 500
Charger
Bosch standard 4A (100-240V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.6 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 658 mm | 661 mm | 673 mm |
| Rake | 44 mm | 41 mm | 44 mm |
| Trail | 89 mm | 84 mm | 82 mm |
| Stack | 596 mm | 620 mm | 652 mm |
| Reach | 401 mm | 404 mm | 407 mm |
| Top Tube Length | 583 mm | 594 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1138 mm | 1141 mm | 1153 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 705 mm | 709 mm | 755 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
About this model
Allant+ 7S Stagger completes the Trek E Allantplus model. Trek released 60 e-bikes variations of this model so far. Take a sneak peek at all Trek E Allantplus e-bikes models from 2020, by clicking here.
Model range prices
Trek Allant+ 7 Lowstep 2020 is the most affordable e-bike of this model and has a price of 3599$. On the other hand, Trek Allant+ 9.9S 2020, is the most expensive and costs 5999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2020 and its price was 3899$. Comparing this to the average Commuter e-bike price, we see that the price is 51.77% higher.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Allant+ 7S Stagger weighs 24.5 kg (54.01 lbs) and is slightly lighter than the average. In conclusion, the average Commuter e-bike weighs 2.86% more than Allant+ 7S Stagger.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Allant+ 7S Stagger comes factory-installed with the SunTour MOBIE fork. This has a travel range of 50mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Trek Allant+ 7S Stagger 2020, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Allant+ 7S Stagger has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Trek Allant+ 7S Stagger e-bike has 3 sizes, in the range of 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, it won’t take much to find one that’s right for you.
