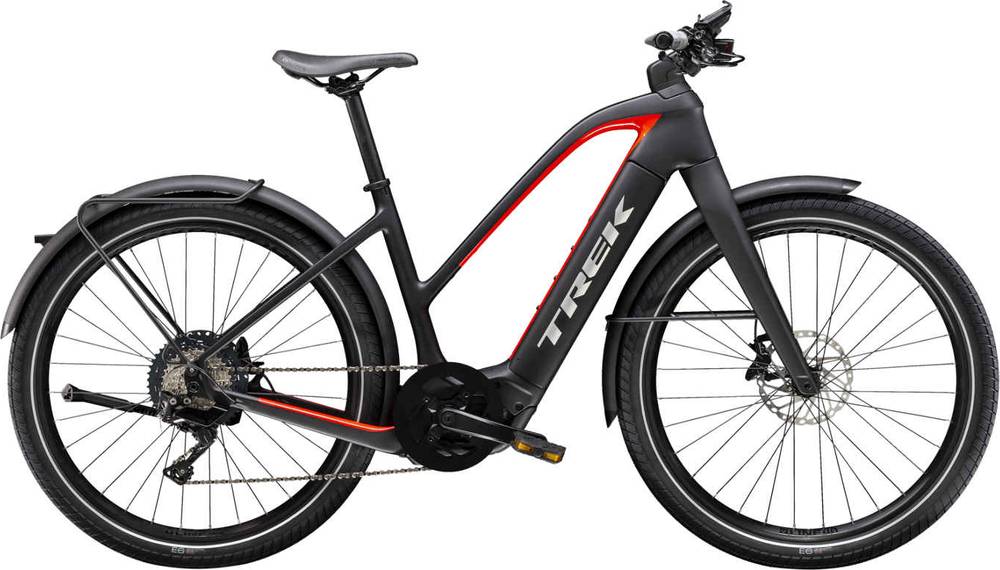

Trek Allant+ 9.9S Stagger 2020
2020 E-bike
Estimate price |
5,999$
Weight | 21.89 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset XT -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 625 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Carbon, Removable Integrated Battery, Range Boost compatible, Motor Armor, internal cable routing, post-mount disc, 12mm thru axle
Suspension Fork
Allant Carbon fork, post mount disc, 100x15mm thru-axle
Drivetrain
Rear Derailleur
Shimano XT M8120, long cage, Shadow Plus design
Shift Levers
Shimano XT M8100, 12 speed
Cassette
Shimano SLX M7100, 10-45T, 12 speed
Crank
Size: S, M, ProWheel alloy, 170mm; Size: L, ProWheel alloy, 175mm
Chain
Shimano SLX M7100, 12 speed
Wheels
Front Hub
Shimano Deore XT M8110, centerlock disc, 15mm thru-axle
Rear Hub
Shimano Deore XT, 32h, centerlock disc, 12mm thru-axle
Rims
Alex MD35, Tubeless Ready, 32-hole, 35mm width, presta valve
Tires
Size: S, M, L, Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.40''; Size: S, M, L, Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4''
Brakes
Brakes
Size: S, M, L, Shimano MT520 4-piston hydraulic disc, post-mount, 180mm rotor; Size: S, M, L, Shimano MT520 4-piston hydraulic disc, 180mm rotor
Disk Rotors
Size: S, M, L, Shimano RT64, 180mm, centerlock; Size: S, M, L, Shimano EM600, 180mm, centerlock
Cockpit
Stem
Size: S, Allant+ forged alloy, integrated cable routing, 45mm length, 31.8mm clamp; Size: M, Allant+ forged alloy, integrated cable routing, 75mm length, 31.8mm clamp; Size: L, Allant+ forged alloy, integrated cable routing, 95mm length, 31.8mm clamp
Handlebar
Size: S, M, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width; Size: L, Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Seat
Saddle
Bontrager Commuter Comp
Seatpost
Bontrager Comp, 6061 alloy, 31.6mm, 8mm offset, 400mm length
Motor & Battery
Motor
Bosch Performance Speed, 75 Nm, 28 mph / 45 kph
Battery
Bosch PowerTube 625
Charger
Bosch standard 4A (100-240V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 658 mm | 661 mm | 671 mm |
| Rake | 45 mm | 41 mm | 44 mm |
| Trail | 89 mm | 84 mm | 83 mm |
| Stack | 585 mm | 620 mm | 632 mm |
| Reach | 404 mm | 404 mm | 411 mm |
| Top Tube Length | 583 mm | 594 mm | 604 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 130 mm | 165 mm | 175 mm |
| Chainstay Length | 469 mm | 486 mm | 469 mm |
| Wheelbase | 1120 mm | 1141 mm | 1133 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 697 mm | 709 mm | 705 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
About this model
Allant+ 9.9S Stagger completes the Trek E Allantplus model. There are 60 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Trek Allant+ 7 Lowstep 2020 is the most affordable e-bike of this model and has a price of 3599$. On the other hand, Trek Allant+ 9.9S 2020, is the most expensive and costs 5999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5999$. If we compare this with the average Commuter e-bike cost we notice that the price is 133.51% higher.
Commuter e-bikes average weight
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 21.89 kg (48.26 lbs), Trek e-bike is much lighter than average. In other words, this model is 15.12% lighter than the average Commuter e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Allant+ 9.9S Stagger model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Allant+ 9.9S Stagger comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, finding one for you shouldn’t be a problem.
