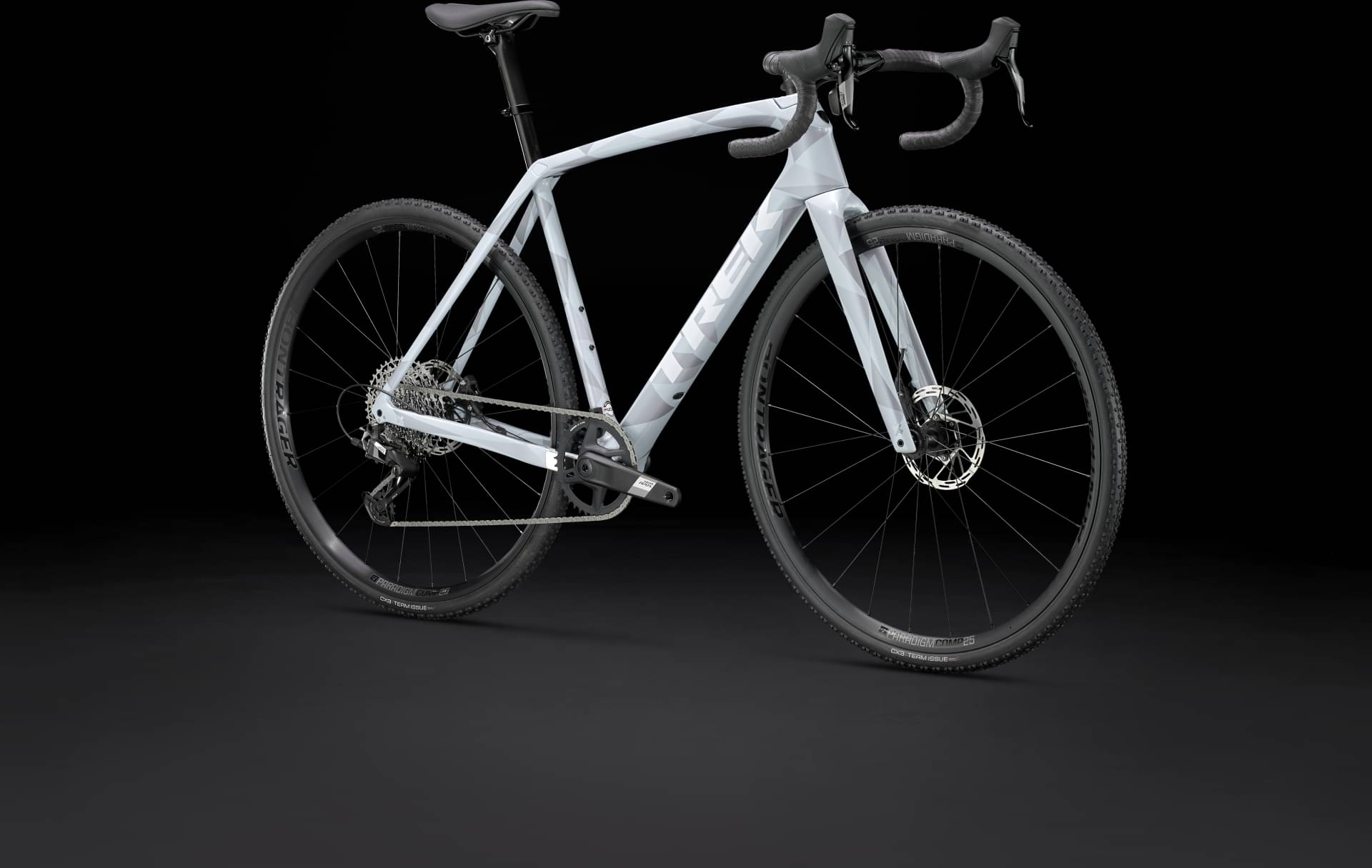

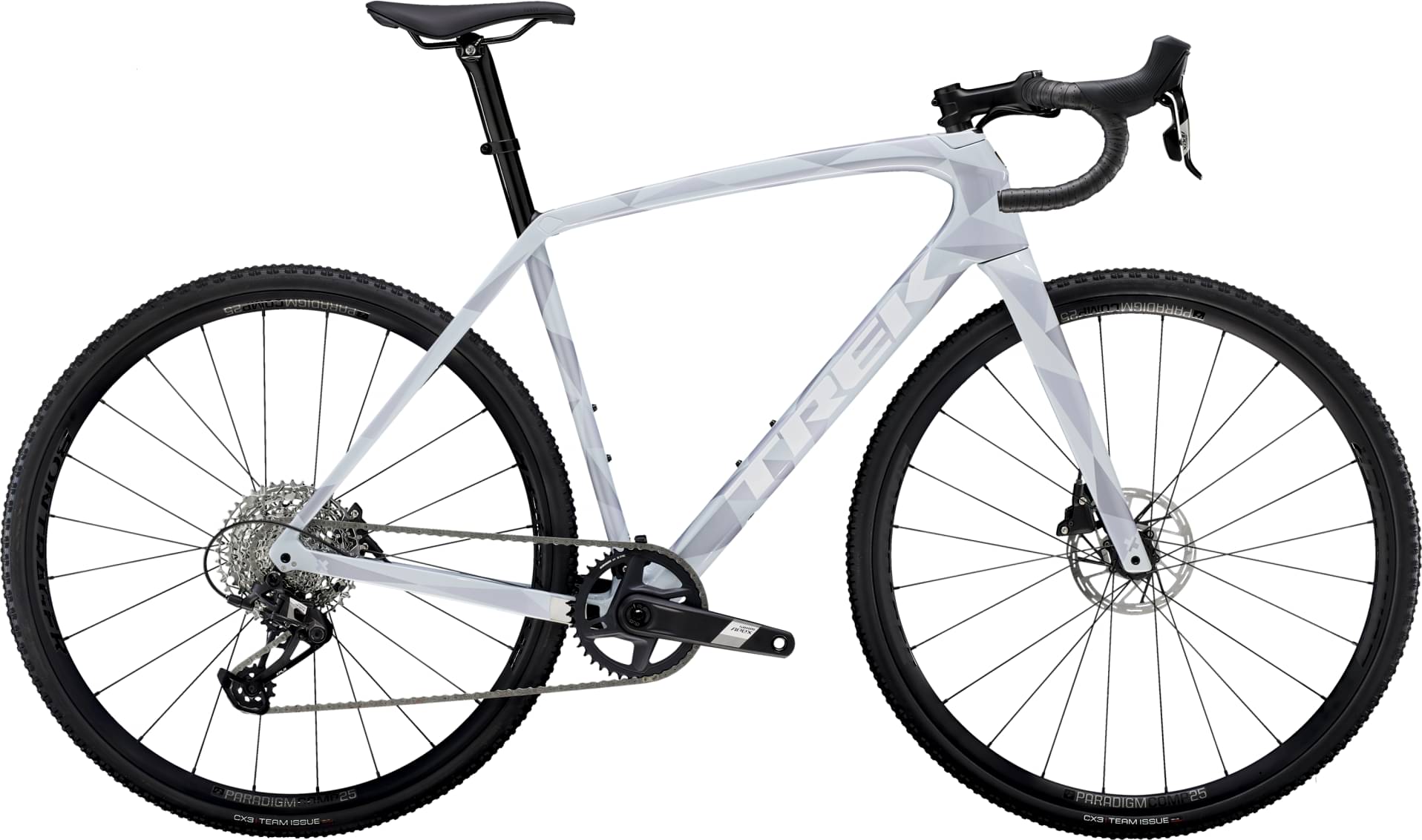

Trek Boone 5 2024
2024 Road
Estimate price |
4,013$
Weight | 8.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Apex XPLR -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
156cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

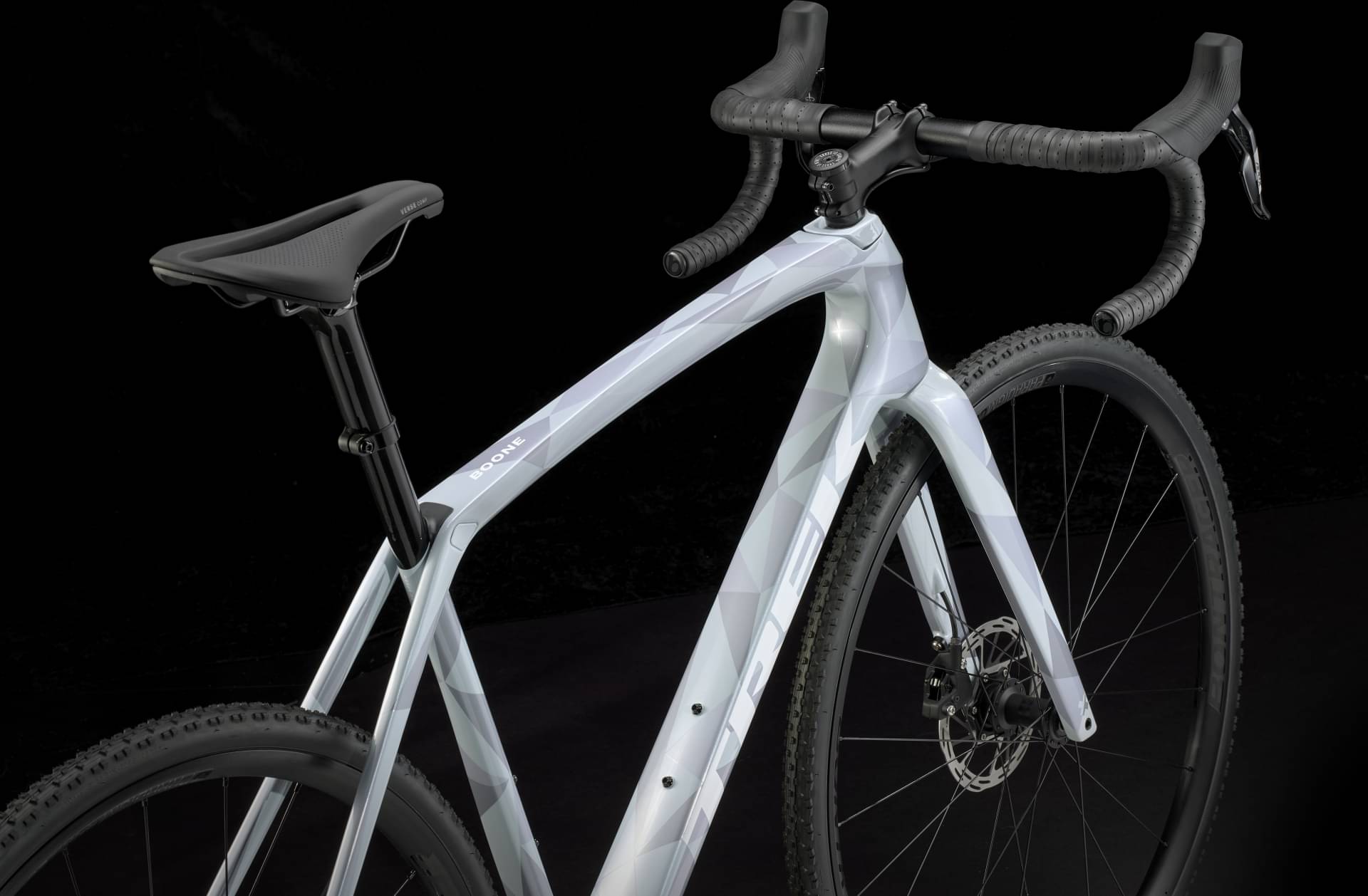

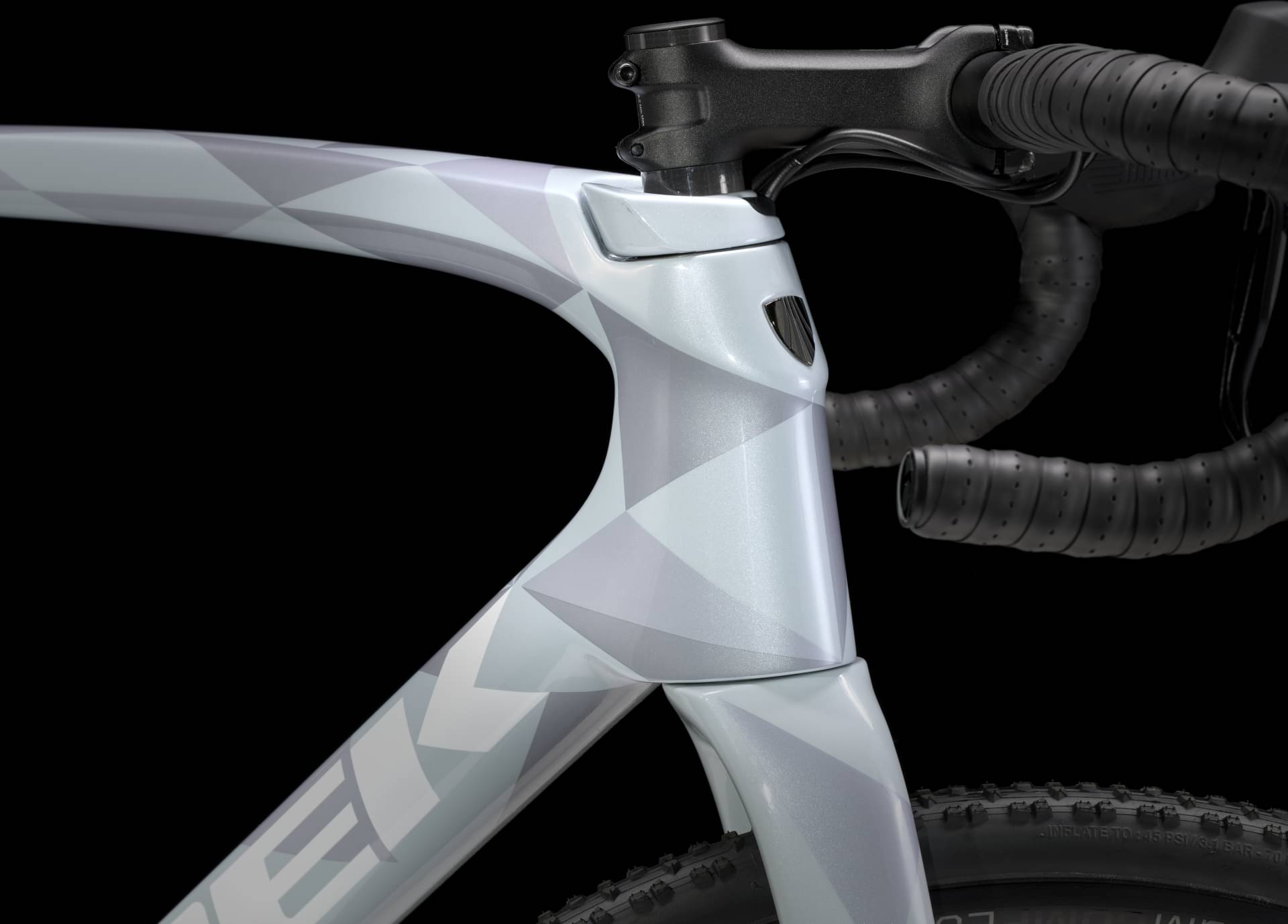

Frame
Frame
600 Series OCLV Carbon, IsoSpeed, tapered head tube, Internal cable routing, Ride Tuned seatmast, 3S chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
Suspension Fork
Trek Cross, full carbon, tapered carbon steerer, flat mount disc, 12x100mm thru axle

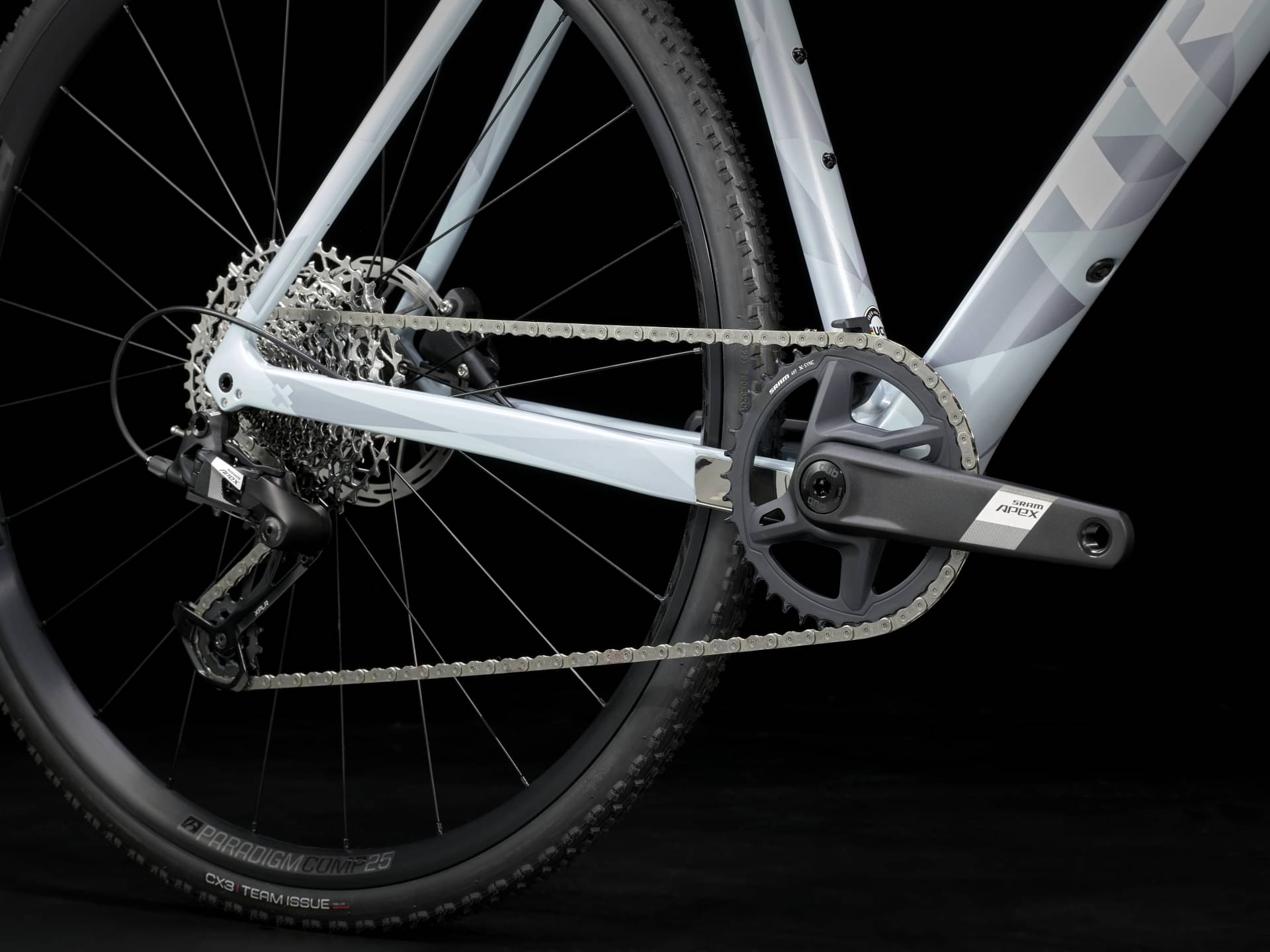

Drivetrain
Rear Derailleur
SRAM Apex XPLR, 44T max cog
Shift Levers
SRAM Apex, 12 speed
Cassette
SRAM PG-1230, 11-44, 12 speed
Crank
Size: 49, SRAM Apex 1, 40T, DUB Wide, 165mm length; Size: 52, SRAM Apex 1, 40T, DUB Wide, 170mm length; Size: 54, 56, SRAM Apex 1, 40T, DUB Wide, 172.5mm length; Size: 58, 61, SRAM Apex 1, 40T, DUB Wide, 175mm length
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chain
SRAM Apex, 12 speed
Wheels
Rims
Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle, Rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
Tires
Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32mm

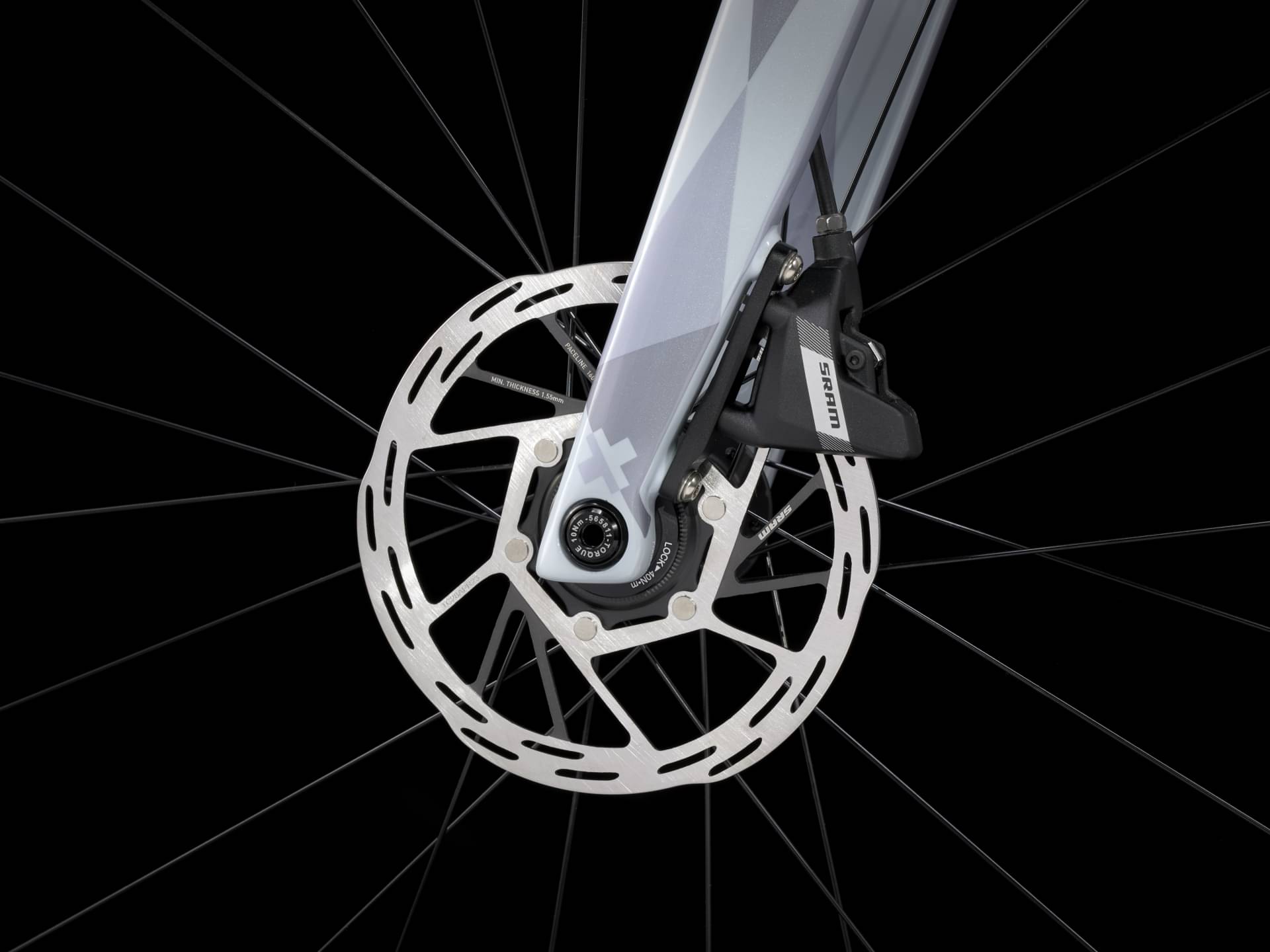

Brakes
Brakes
SRAM Apex hydraulic disc, flat mount
Brake Levers
SRAM Apex, 12 speed

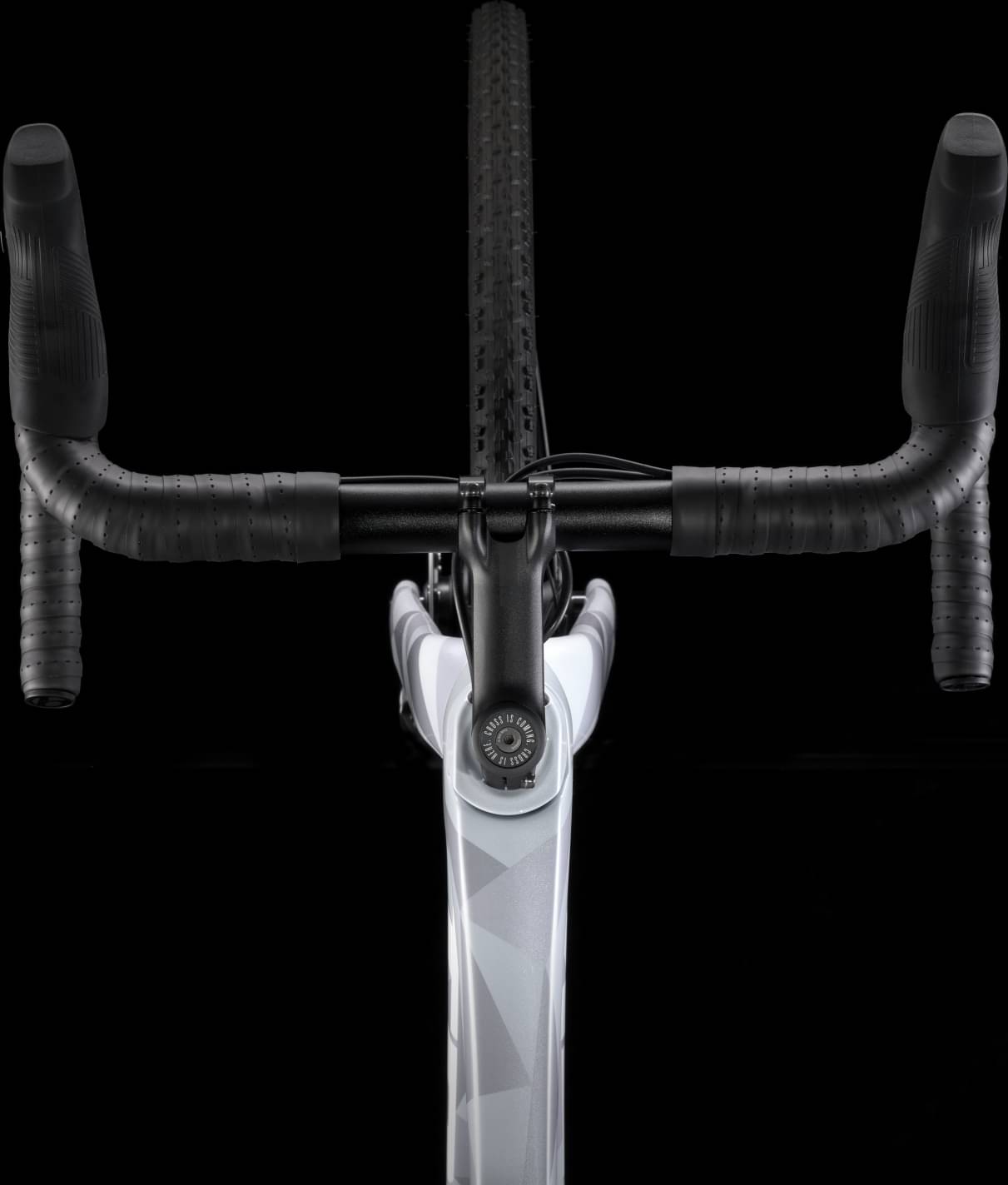

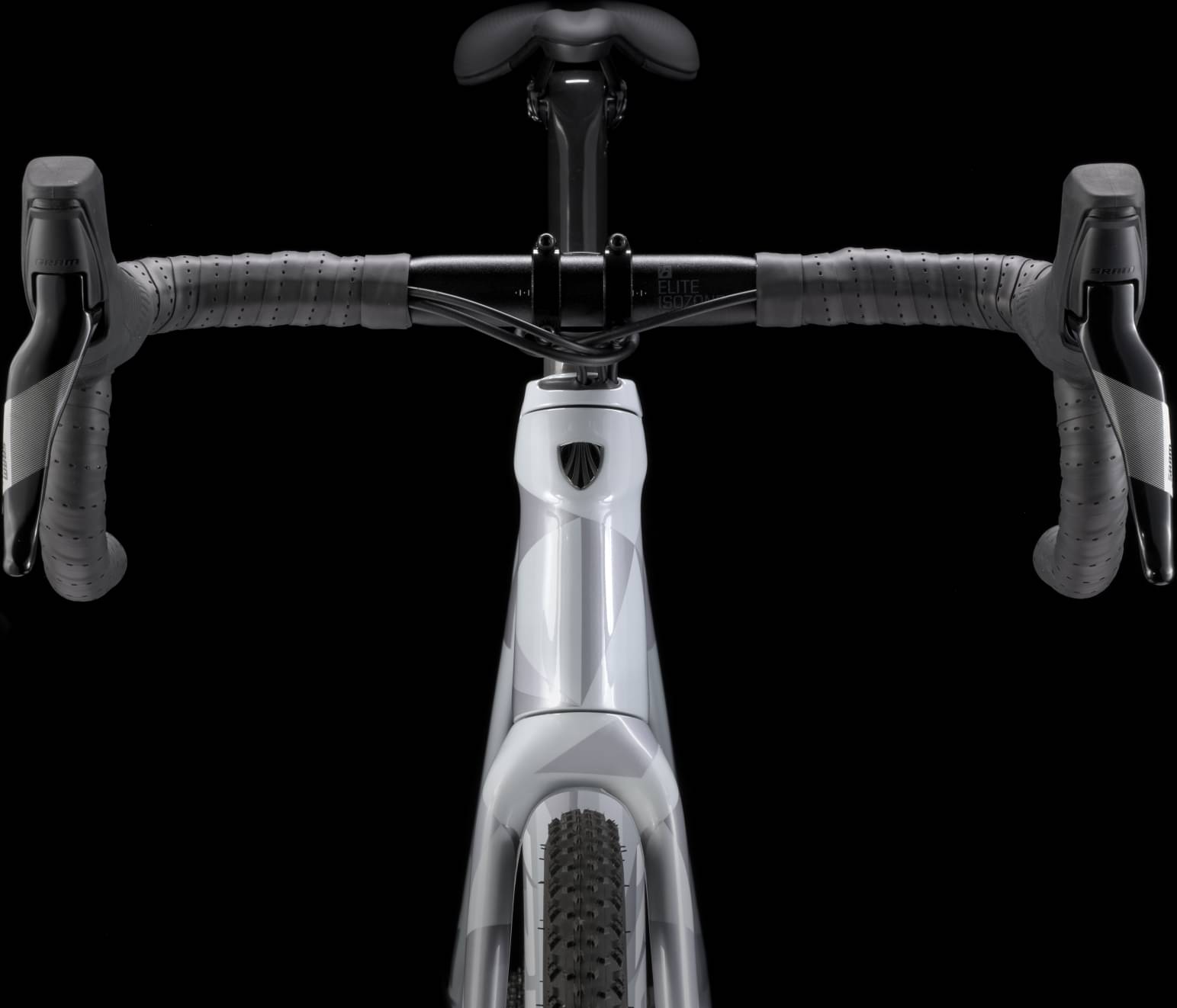

Cockpit

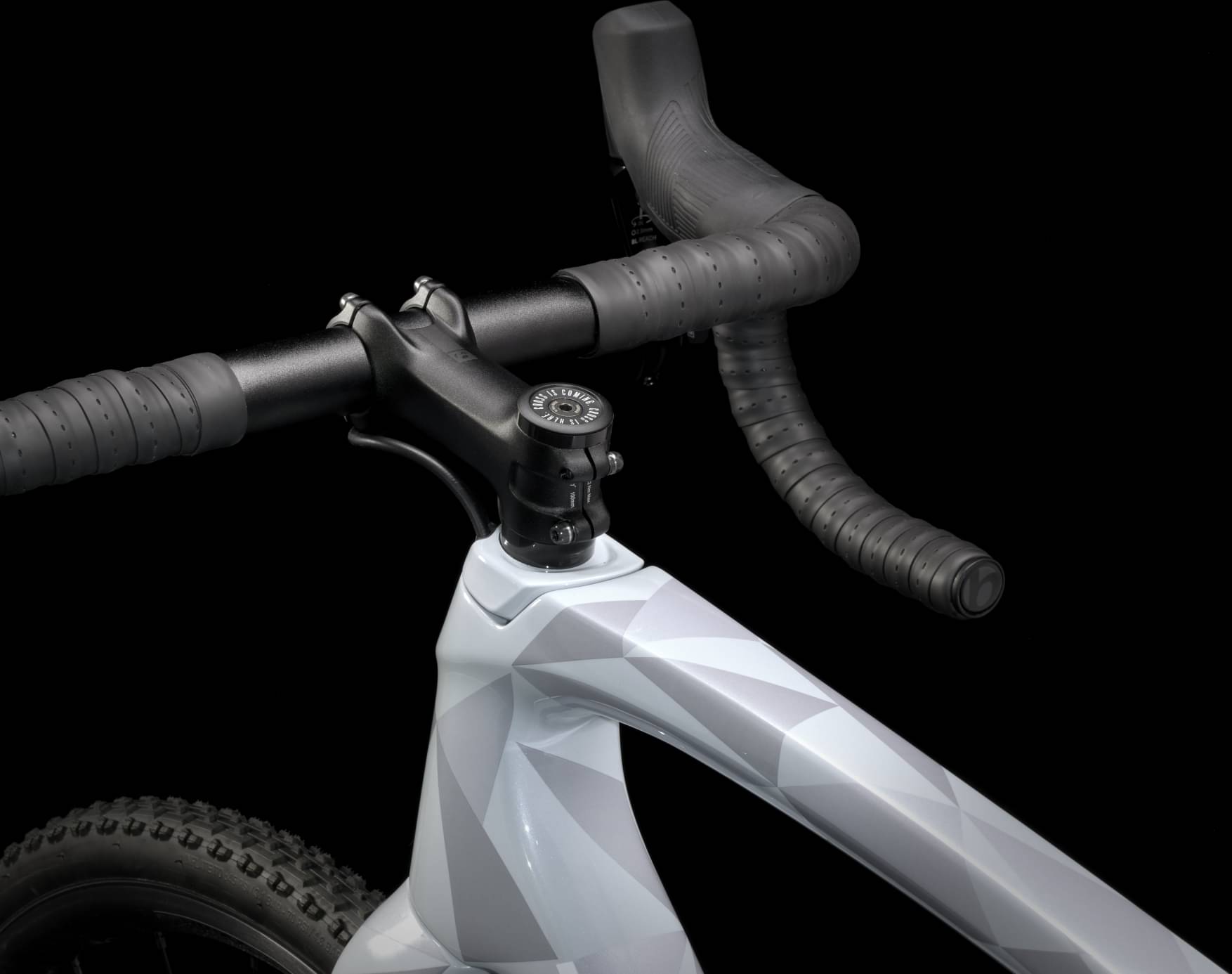

Stem
Size: 49, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 49, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 42cm width; Size: 58, 61, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 44cm width
Seat
Saddle
Size: 49, 52, Verse Short Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Verse Short Comp, steel rails, 145mm width
Seatpost

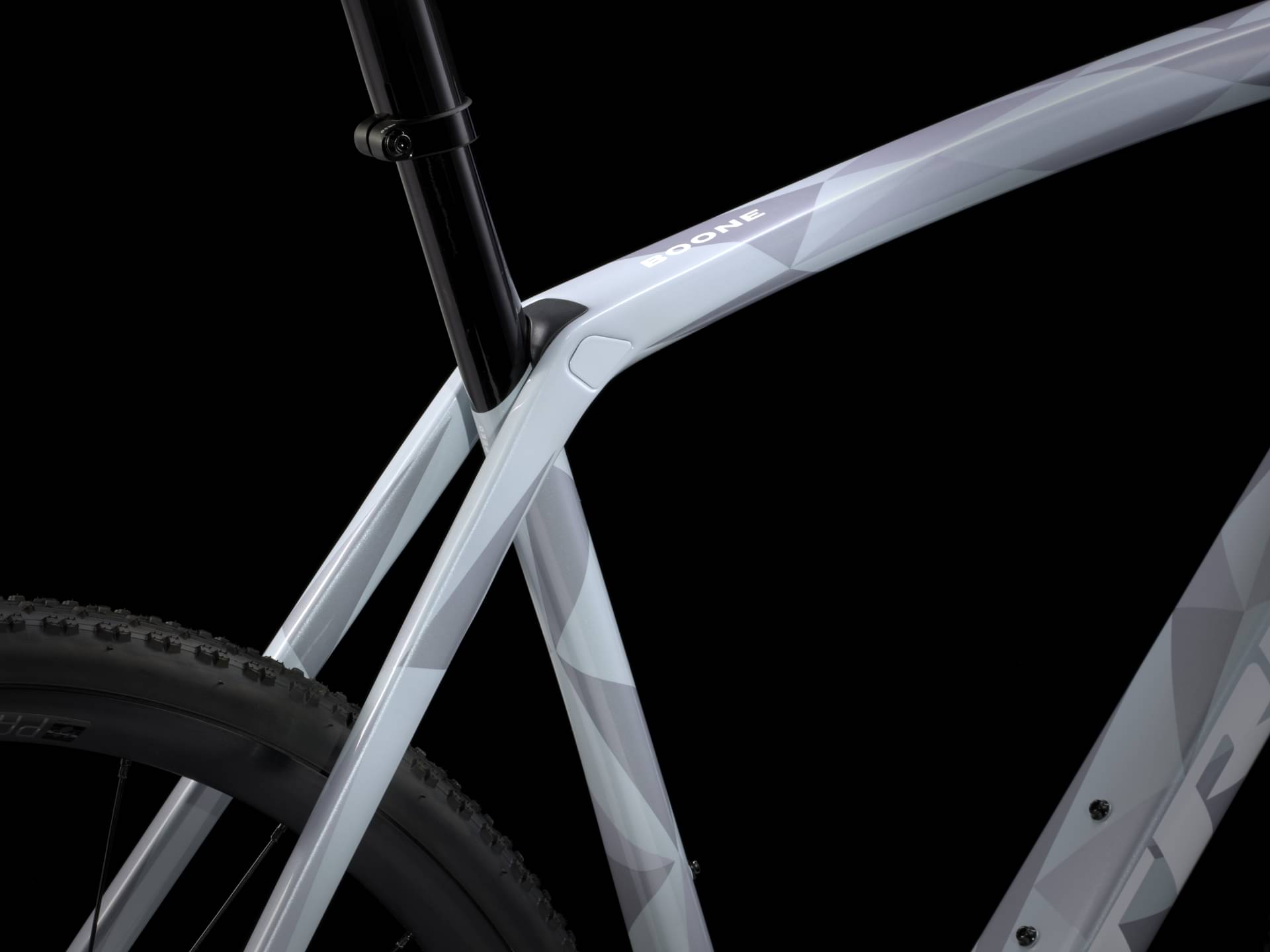

Size: 49, 52, 54, 56, Bontrager carbon seatmast cap, 5mm offset, short length; Size: 58, 61, Bontrager carbon seatmast cap, 5mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.443 mm | 1.467 mm | 1.499 mm | 1.527 mm | 1.572 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 276 mm | 276 mm | 279 mm | 279 mm |
| Front Center | 586 mm | 590 mm | 594 mm | 604 mm | 611 mm | 626 mm |
| Rake | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 71 mm | 67 mm | 67 mm | 66 mm | 66 mm |
| Stack | 534 mm | 547 mm | 562 mm | 580 mm | 597 mm | 624 mm |
| Reach | 375 mm | 379 mm | 383 mm | 387 mm | 391 mm | 397 mm |
| Top Tube Length | 518 mm | 531 mm | 544 mm | 558 mm | 570 mm | 588 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 476 mm | 493 mm | 513 mm | 533 mm | 553 mm | 583 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 110 mm | 123 mm | 138 mm | 157 mm | 176 mm | 205 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1001 mm | 1005 mm | 1010 mm | 1020 mm | 1028 mm | 1043 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 68 mm | 68 mm | 65 mm | 65 mm |
| Standover Height | 747 mm | 761 mm | 779 mm | 796 mm | 816 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Boone 5 is a Trek Boone model. 37 bikes variations carry this model name so far. You can easily view all of the Trek Boone bikes models from 2024, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Cyclocross bikes
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2024 and its price was 3705$. If we compare this with the average Cyclocross bike cost we notice that the price is 84.15% more expensive.
Average weight for Cyclocross bikes
If we make a quick analysis of the average weight of a Cyclocross bike, we get 8.79 kg (19.38 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek Boone 5 it’s weighing 8.5 kg (18.74 lbs). At this weight, is slightly lighter than average. In short, the average Cyclocross bike weight is 3.41% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Boone 5 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Boone 5 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Boone 5 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 156 cm – 191 cm (5.12 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
