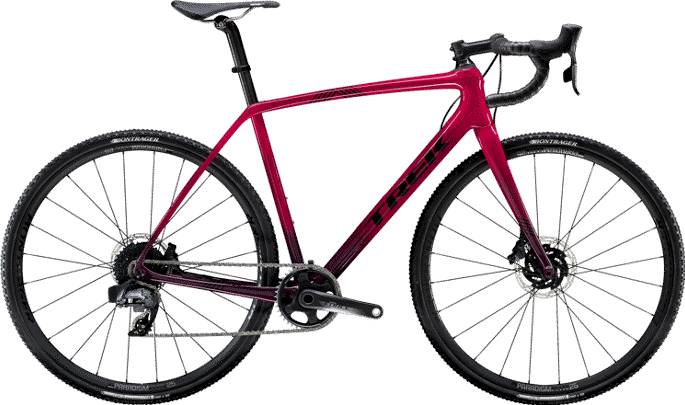

Trek Boone 7 Disc 2020
2020 Road
Estimate price |
4,999$
Weight | 7.92 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, front & rear IsoSpeed, tapered head tube, Control Freak internal routing, Ride Tuned seatmast, 3S chain keeper, flat mount disc, 142x12mm thru axle
Suspension Fork
Trek IsoSpeed Cross full carbon, tapered carbon steerer, flat mount disc, 395mm axle-to-crown, 12x100mm thru axle
Drivetrain
Rear Derailleur
SRAM Force eTap AXS, Orbit chain management, 33T max cog
Shift Levers
SRAM Force eTap AXS, 12 speed
Cassette
SRAM Force XG-1270, 10-33, 12 speed
Crank
SRAM Force, 40T, 24mm spindle, 170mm length
Chain
SRAM Force, 12 speed
Wheels
Rims
Bontrager Paradigm Elite 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Tires
Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32c
Brakes
Brakes
SRAM Force hydraulic disc, flat mount
Cockpit
Stem
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Handlebar
Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, 93mm reach, 123mm drop, 40cm width
Seat
Saddle
Bontrager Montrose Elite, titanium rails, 138mm width
Seatpost
Bontrager carbon seatmast cap, 20mm offset, short length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.45 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 276 mm | 276 mm | 279 mm | 279 mm |
| Front Center | 580 mm | 586 mm | 590 mm | 594 mm | 604 mm | 611 mm | 626 mm |
| Rake | 46 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 75 mm | 74 mm | 71 mm | 67 mm | 67 mm | 66 mm | 66 mm |
| Stack | 512 mm | 527 mm | 540 mm | 555 mm | 573 mm | 590 mm | 617 mm |
| Reach | 364 mm | 368 mm | 372 mm | 376 mm | 380 mm | 384 mm | 390 mm |
| Top Tube Length | 500 mm | 511 mm | 524 mm | 537 mm | 551 mm | 563 mm | 581 mm |
| Seat Tube Angle | 75.3 ° | 75 ° | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 444 mm | 476 mm | 493 mm | 513 mm | 533 mm | 553 mm | 583 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 95 mm | 110 mm | 123 mm | 138 mm | 157 mm | 176 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 988 mm | 994 mm | 998 mm | 1003 mm | 1013 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 65 mm | 65 mm |
| Standover Height | 717 mm | 740 mm | 754 mm | 772 mm | 789 mm | 809 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Boone 7 Disc belongs to the Trek Boone model. Trek launched 36 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Trek Boone 5 Disc 2020 is the most affordable bike of this model and has a price of 3099$. On the other hand, Trek Boone 7 Disc 2020, is the most expensive and costs 4999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Cyclocross bikes average price
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, you could also get a good Cyclocross bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 4999$. If we compare this with the average Cyclocross bike cost we notice that the price is 148.46% higher.
Average weight for Cyclocross bikes
If we make a quick analysis of the average weight of a Cyclocross bike, we get 8.79 kg (19.38 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 7.92 kg (17.46 lbs), the Boone 7 Disc model is considerably lighter than average. In short, the average Cyclocross bike weight is 10.98% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Boone 7 Disc 2020 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Boone 7 Disc is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Boone 7 Disc comes in 7 sizes, that range from 152 cm – 191 cm (4.99 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
