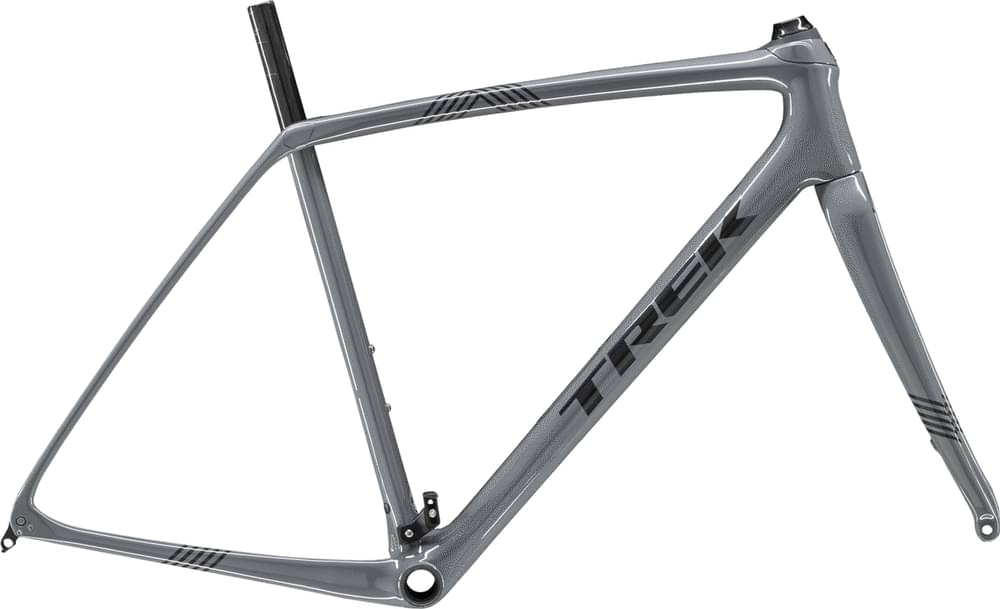

Trek Boone Disc Frame set 2020
2020 Road
Estimate price |
2,752$
Weight | 1.84 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, front & rear IsoSpeed, tapered head tube, Control Freak internal routing, Ride Tuned seatmast, 3S chain keeper, flat-mount disc, 142x12 mm thru axle
Suspension Fork
Trek IsoSpeed Cross full carbon, tapered carbon steerer, flat-mount disc, 395 mm axle-to-crown, 12x100 mm thru axle
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.45 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 276 mm | 276 mm | 279 mm | 279 mm |
| Front Center | 580 mm | 586 mm | 590 mm | 594 mm | 604 mm | 611 mm | 626 mm |
| Rake | 46 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 75 mm | 74 mm | 71 mm | 67 mm | 67 mm | 66 mm | 66 mm |
| Stack | 512 mm | 527 mm | 540 mm | 555 mm | 573 mm | 590 mm | 617 mm |
| Reach | 364 mm | 368 mm | 372 mm | 376 mm | 380 mm | 384 mm | 390 mm |
| Top Tube Length | 500 mm | 511 mm | 524 mm | 537 mm | 551 mm | 563 mm | 581 mm |
| Seat Tube Angle | 75.3 ° | 75 ° | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 444 mm | 476 mm | 493 mm | 513 mm | 533 mm | 553 mm | 583 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 95 mm | 110 mm | 123 mm | 138 mm | 157 mm | 176 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 988 mm | 994 mm | 998 mm | 1003 mm | 1013 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 65 mm | 65 mm |
| Standover Height | 717 mm | 740 mm | 754 mm | 772 mm | 789 mm | 809 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Boone Disc Frame set is a Trek Boone model. There are 36 frames that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Trek Boone Disc Frameset 2020 is the cheapest frame model and costs 2399$. Trek Boone Disc Frame set 2020 is the most expensive one and costs 2547$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Cyclocross frames
According to our calculations, the average cost of a Cyclocross frame that is reliable is 1405$. However, this doesn’t mean that if you spend less money on a Cyclocross frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2547$. If we compare this with the average Cyclocross frame cost we notice that the price is 81.28% higher.
Average weight for Cyclocross frames
If we make a quick analysis of the average weight of a Cyclocross frame, we get 1.8 kg (3.97 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 1.84 kg (4.06 lbs), Trek frame is slightly heavier than average. In other words, this model is 2.22% heavier than the average Cyclocross frame.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Boone Disc Frame set components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
This frame is available in 7 sizes. They vary from 152 cm – 191 cm (4.99 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
