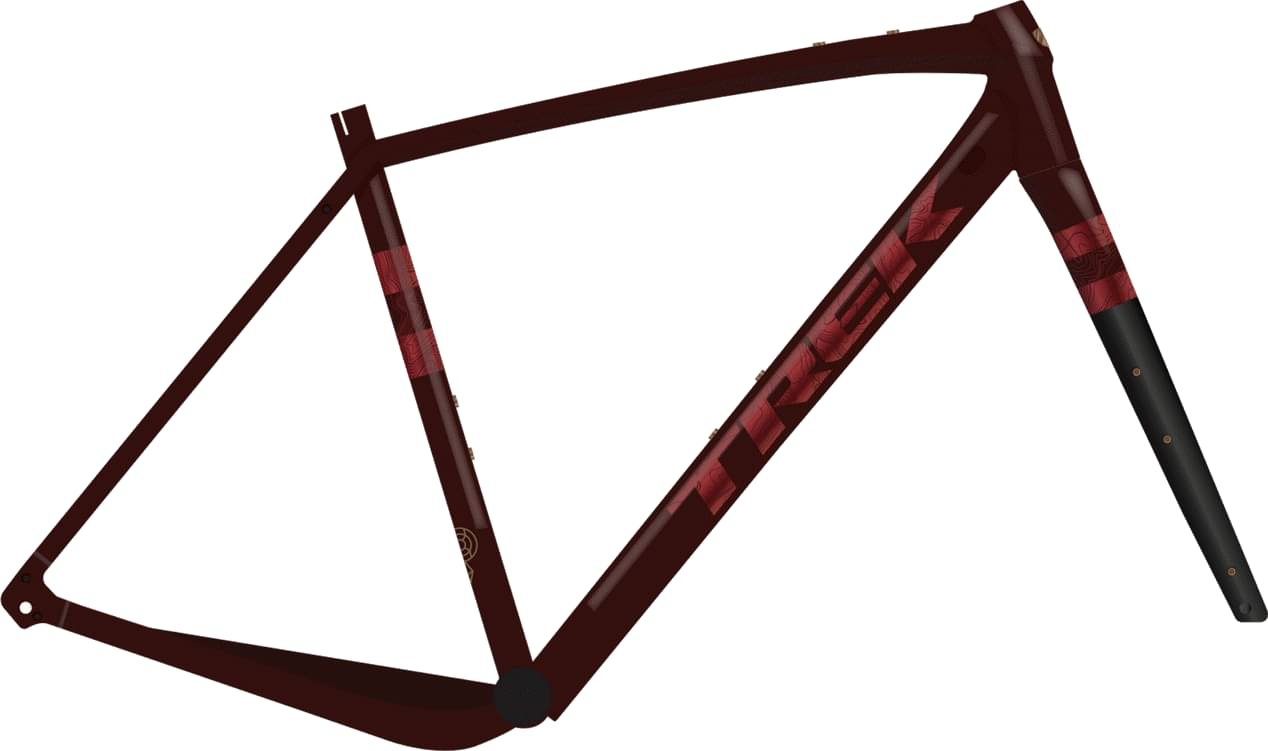

Trek Checkpoint ALR Frameset 2022
2022 Road
Estimate price |
1,219$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame aluminium -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
156cm - 163cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Suspension Fork
Checkpoint, carbon legs, tapered alloy steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Bottom Bracket
T47, threaded
Cockpit
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm |
|---|---|
| Stack Reach Ratio | 1.36 mm |
| Bottom Bracket Height | 271 mm |
| Front Center | 602 mm |
| Rake | 45 mm |
| Trail | 74 mm |
| Stack | 543 mm |
| Reach | 398 mm |
| Top Tube Length | 546 mm |
| Seat Tube Angle | 74.1 ° |
| Seat Tube Length | 490 mm |
| Head Tube Angle | 71.2 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 440 mm |
| Wheelbase | 1030 mm |
| Bottom Bracket Drop | 78 mm |
| Standover Height | 740 mm |
| Wheels | 700 |
| Rider Min Height | 156 cm |
| Rider Max Height | 163 cm |
Model Overview
Checkpoint ALR Frameset belongs to the Trek Checkpoint model. Trek released 70 frames variations of this model so far. Take a sneak peek at all Trek Checkpoint frames models from 2022, by clicking here.
Model range prices
The most economical model, the Trek Checkpoint ALR Frameset 2022 has a starting price of 1219$. Trek Checkpoint SL Frame Set 2022 on the other hand is the most expensive at 2798$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel frames average price
According to our math, the average price for a trustworthy Gravel frame is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Trek Checkpoint ALR Frameset price was 1219$. Comparing the average cost of a Gravel frame to this one, you will see that Checkpoint ALR Frameset price is 23.46% smaller.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Checkpoint ALR Frameset components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
This frame has one size only, so it might not fit you. In conclusion, make sure it fits you, or look for another model.
