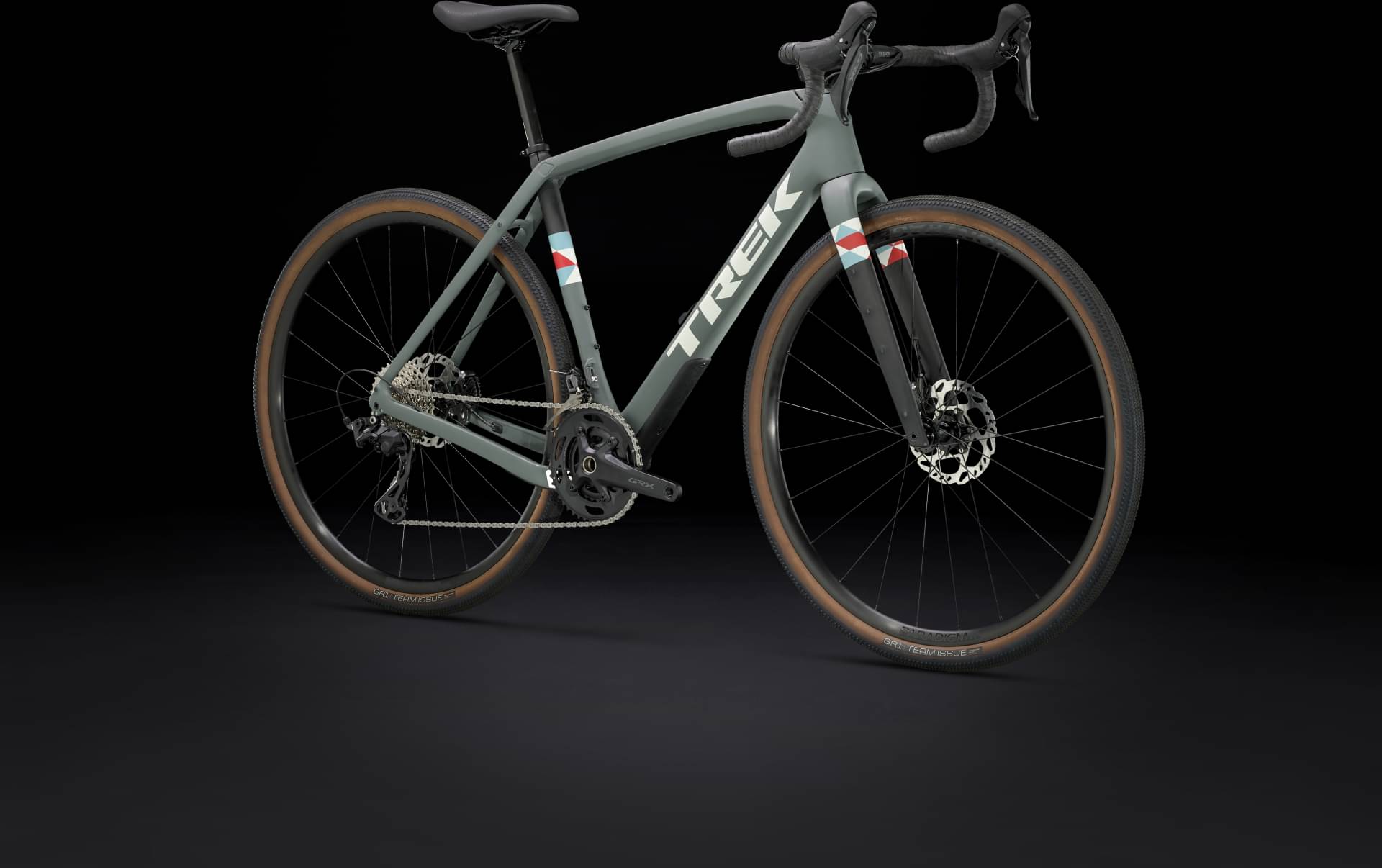

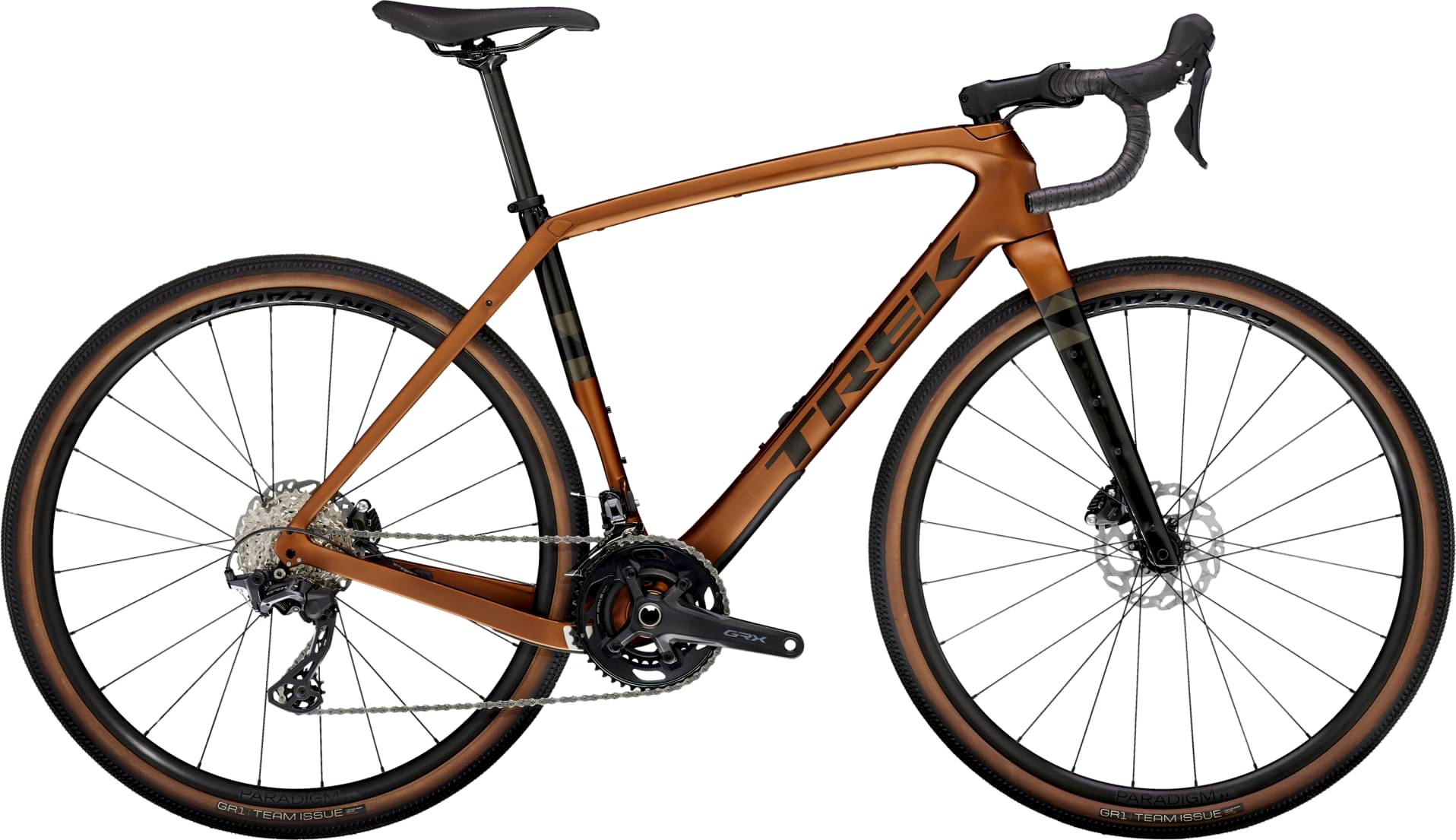

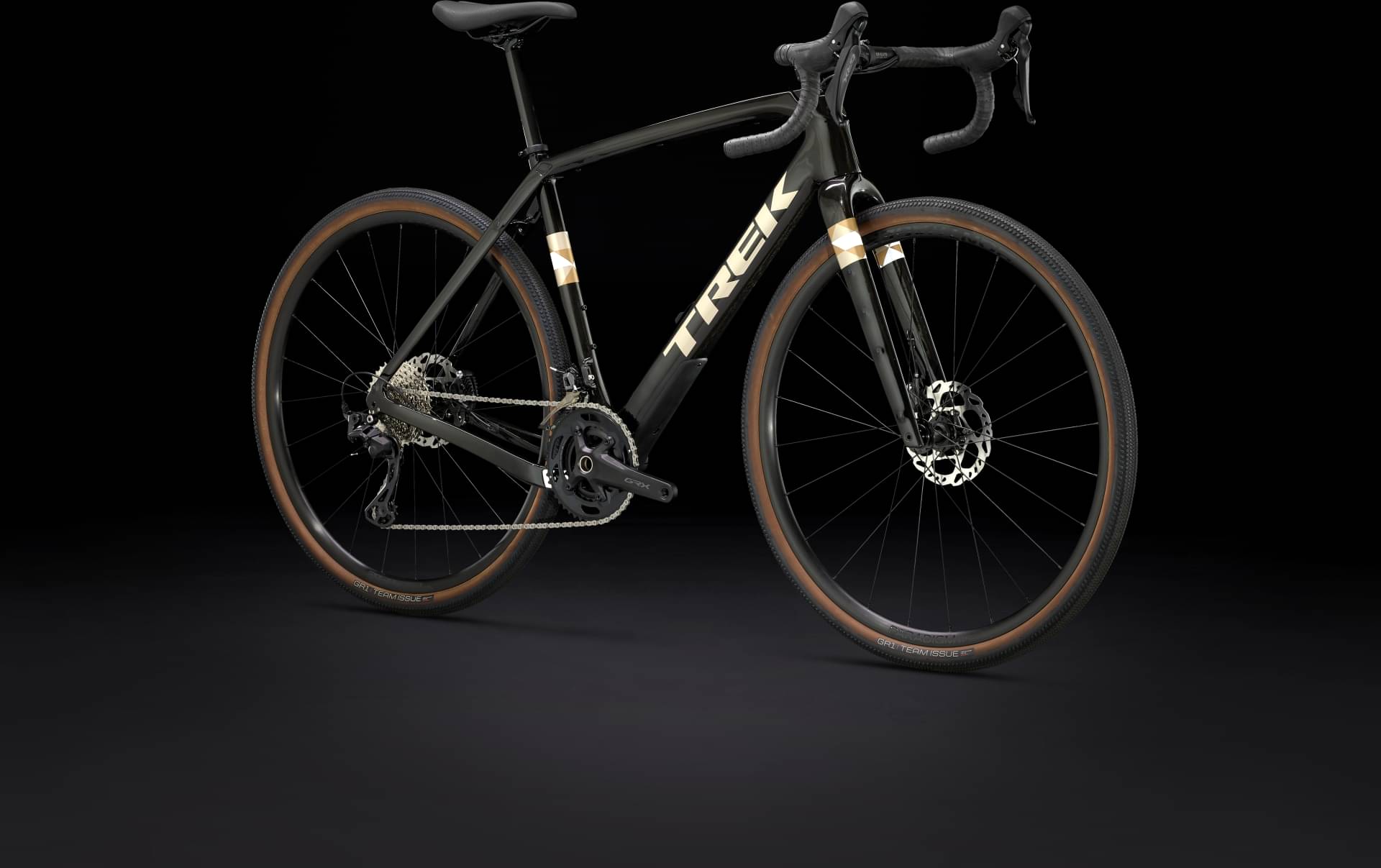

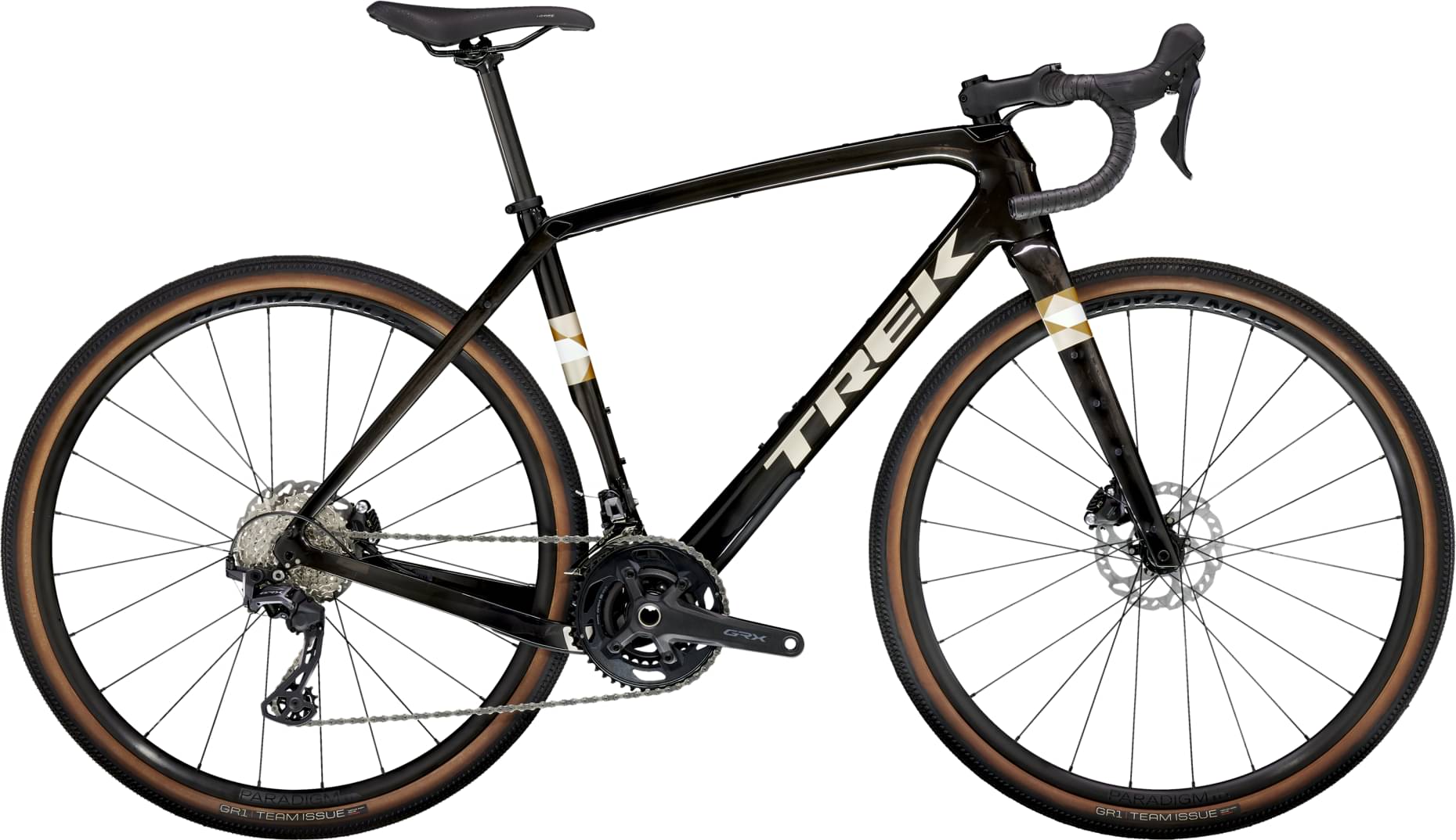

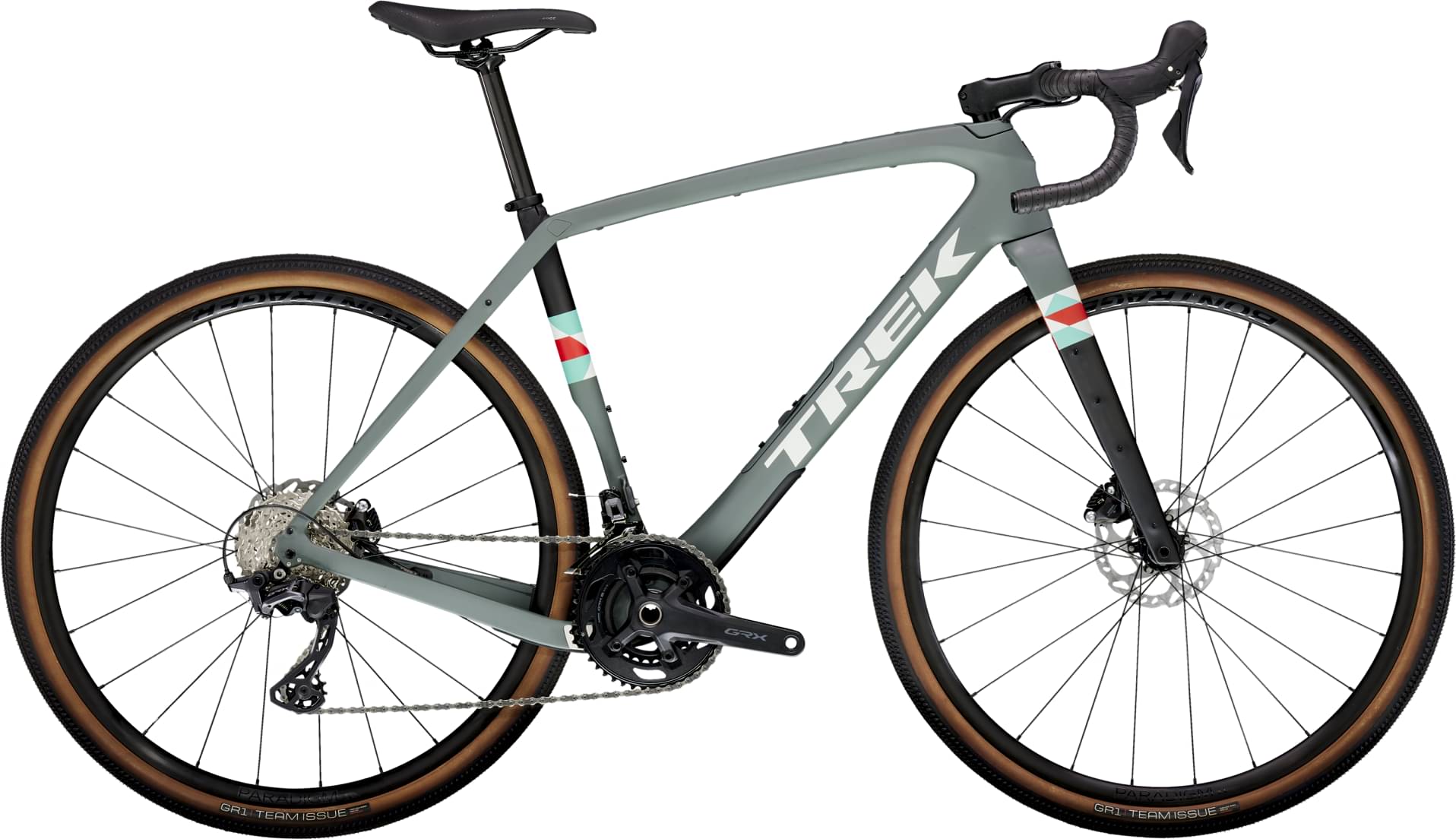

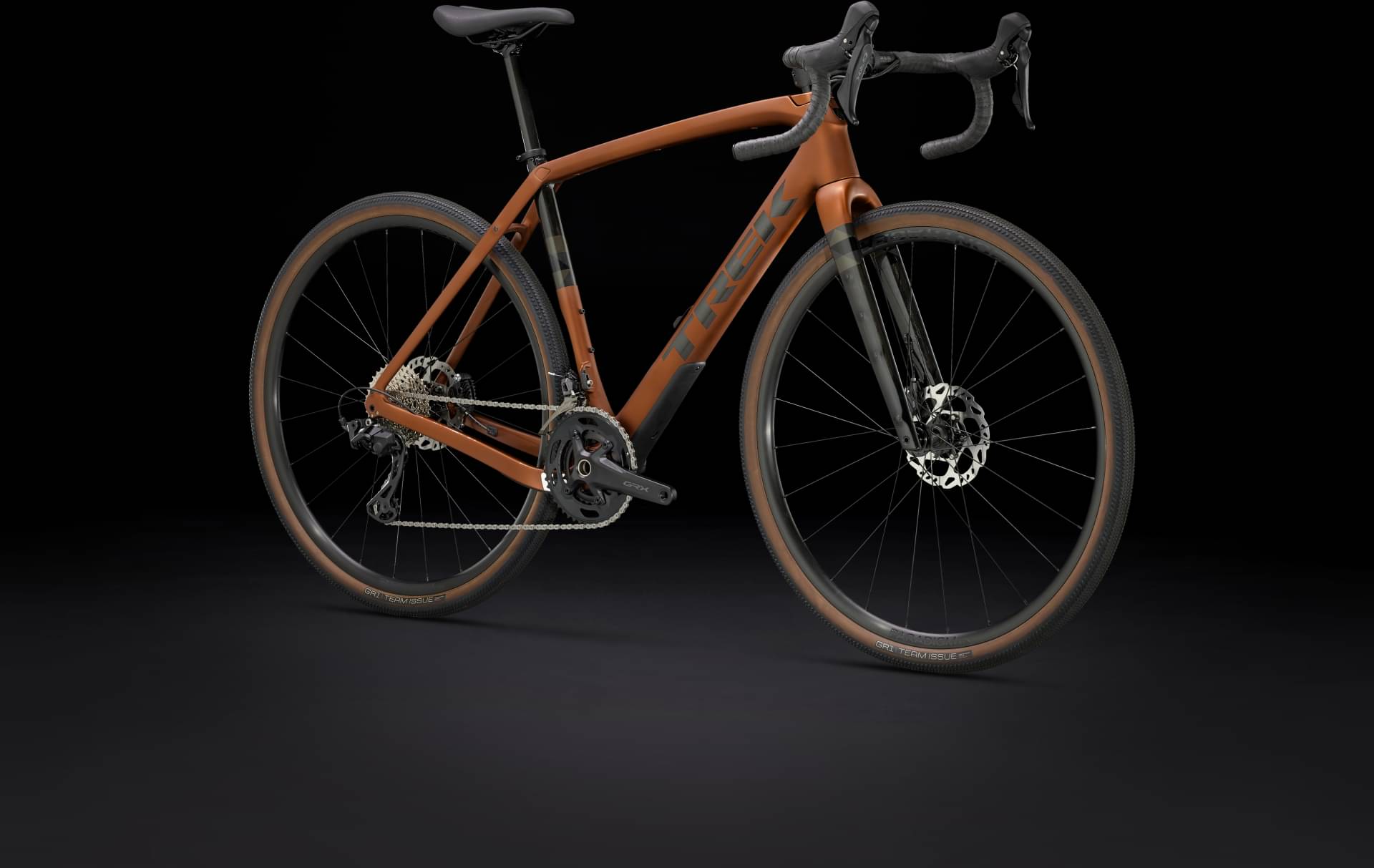

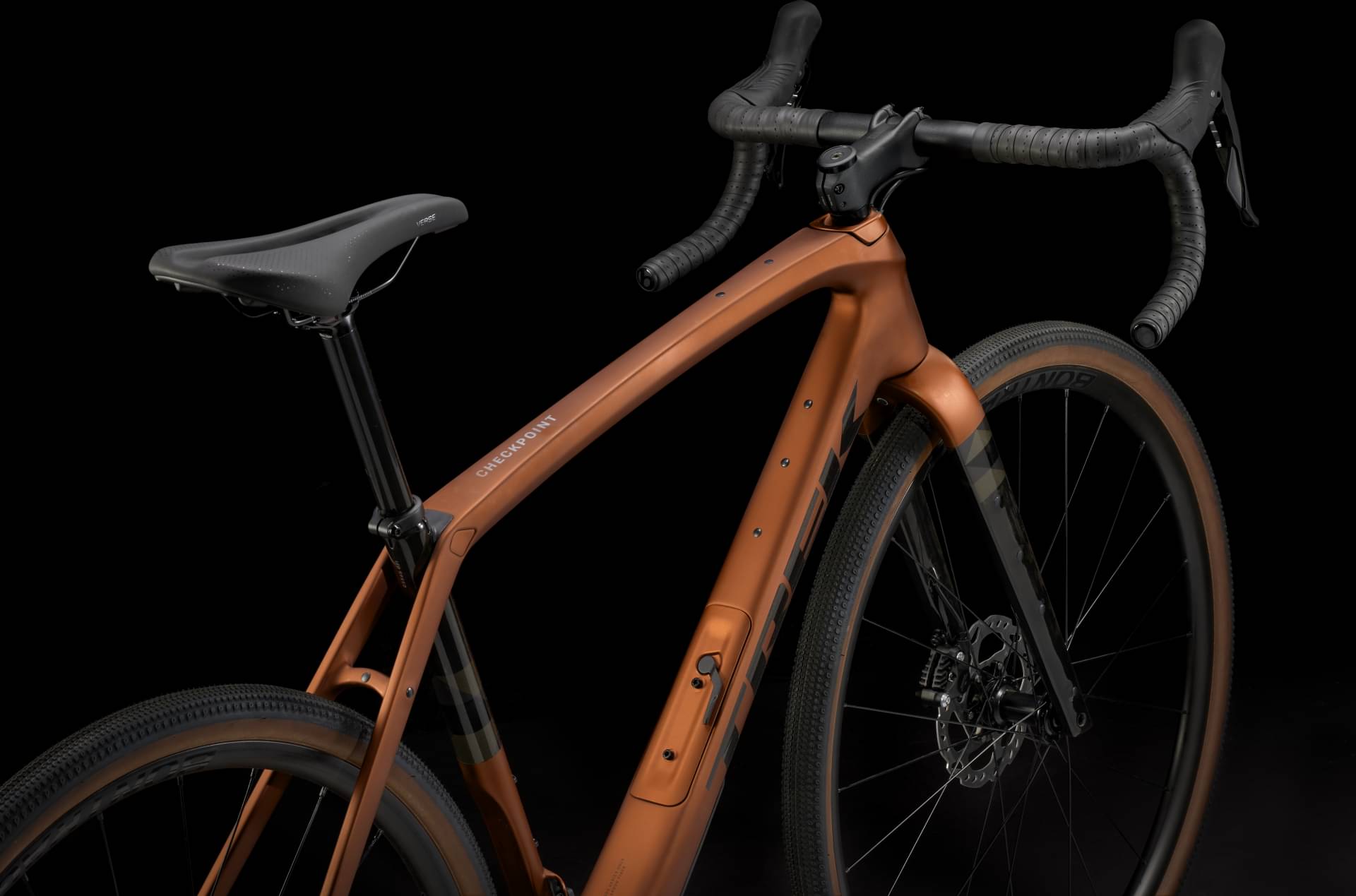

Trek Checkpoint SL 5 2024
2024 Road
Estimate price |
4,243$
Weight | 9.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
156cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

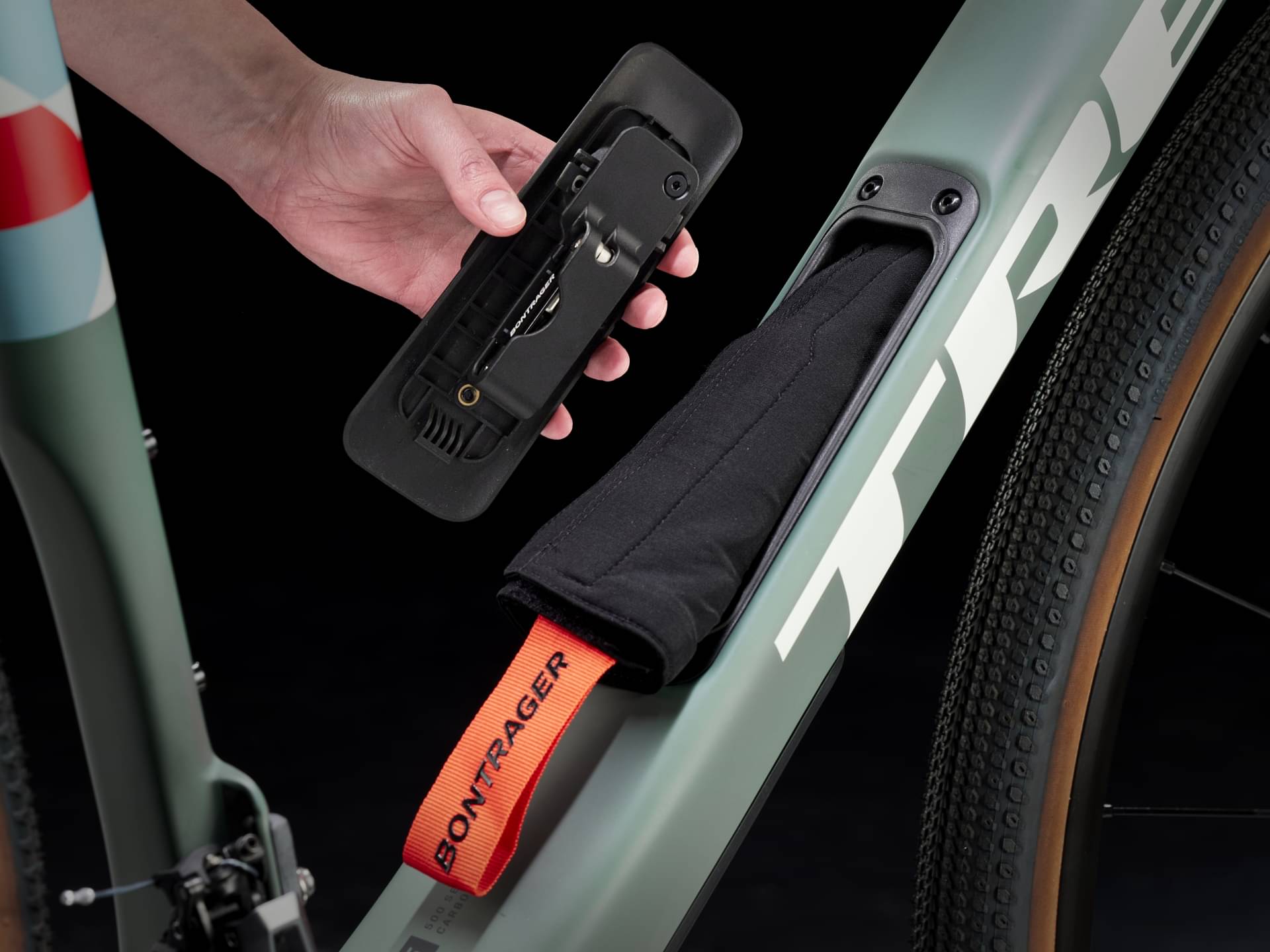

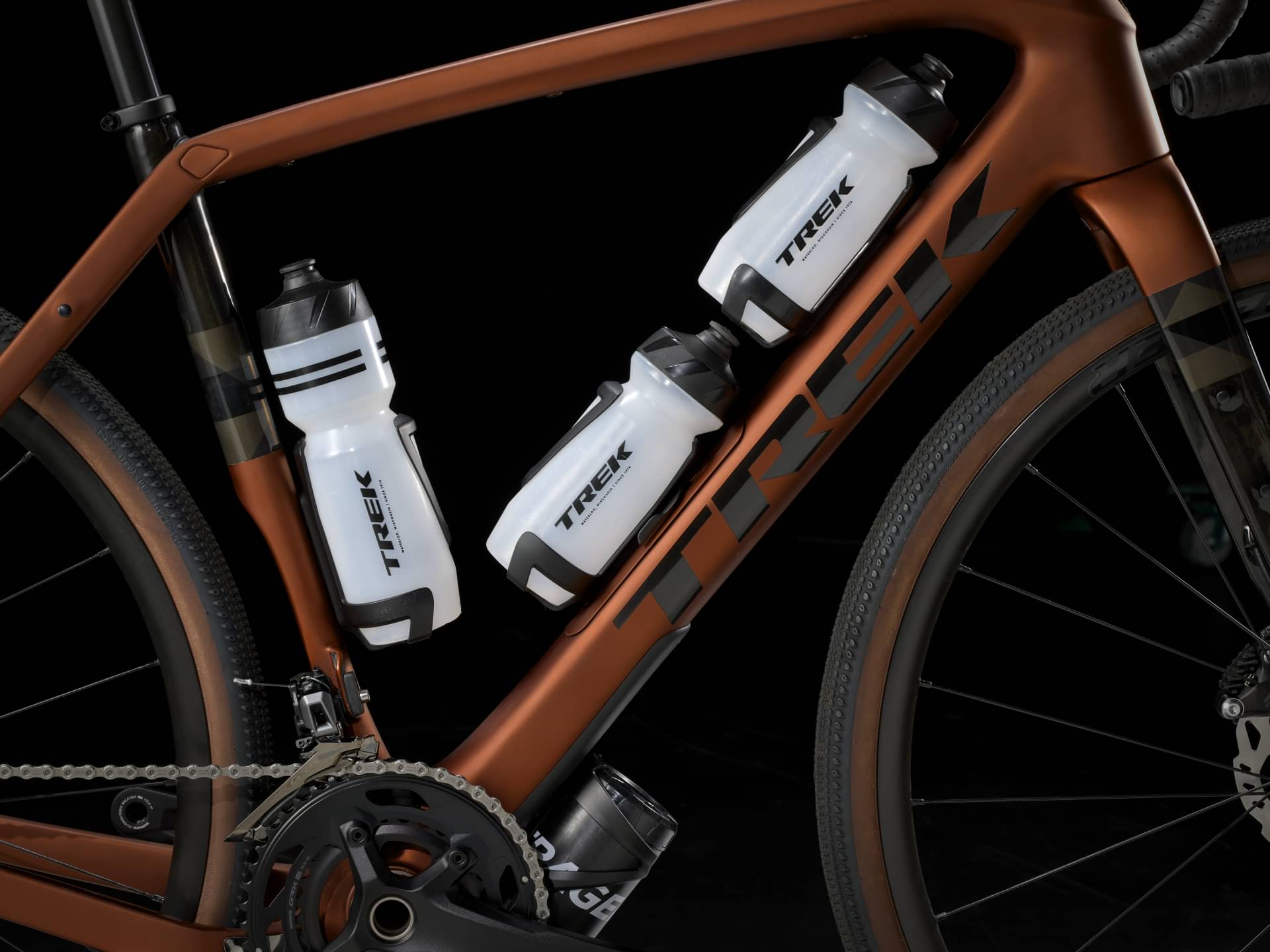

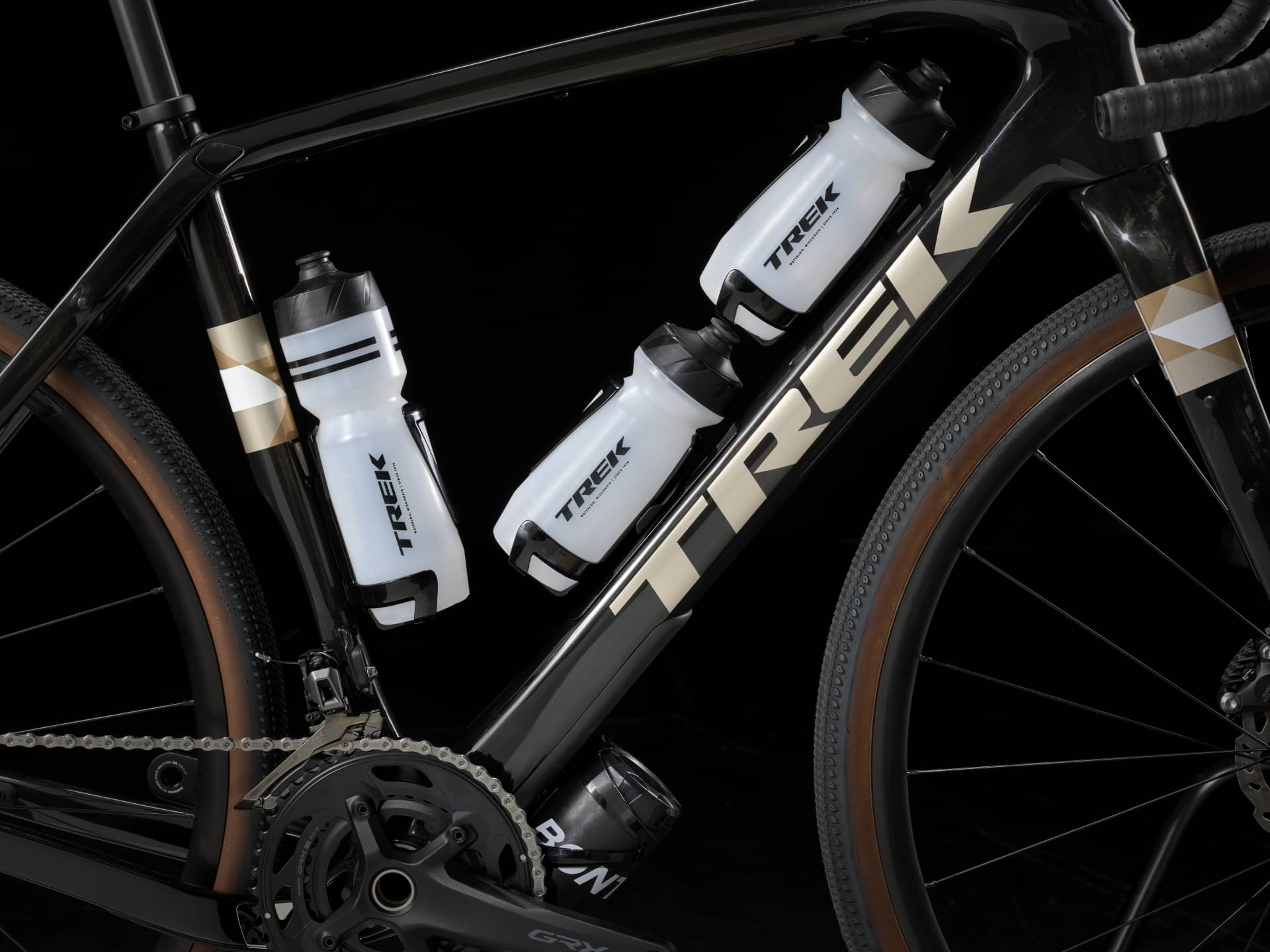

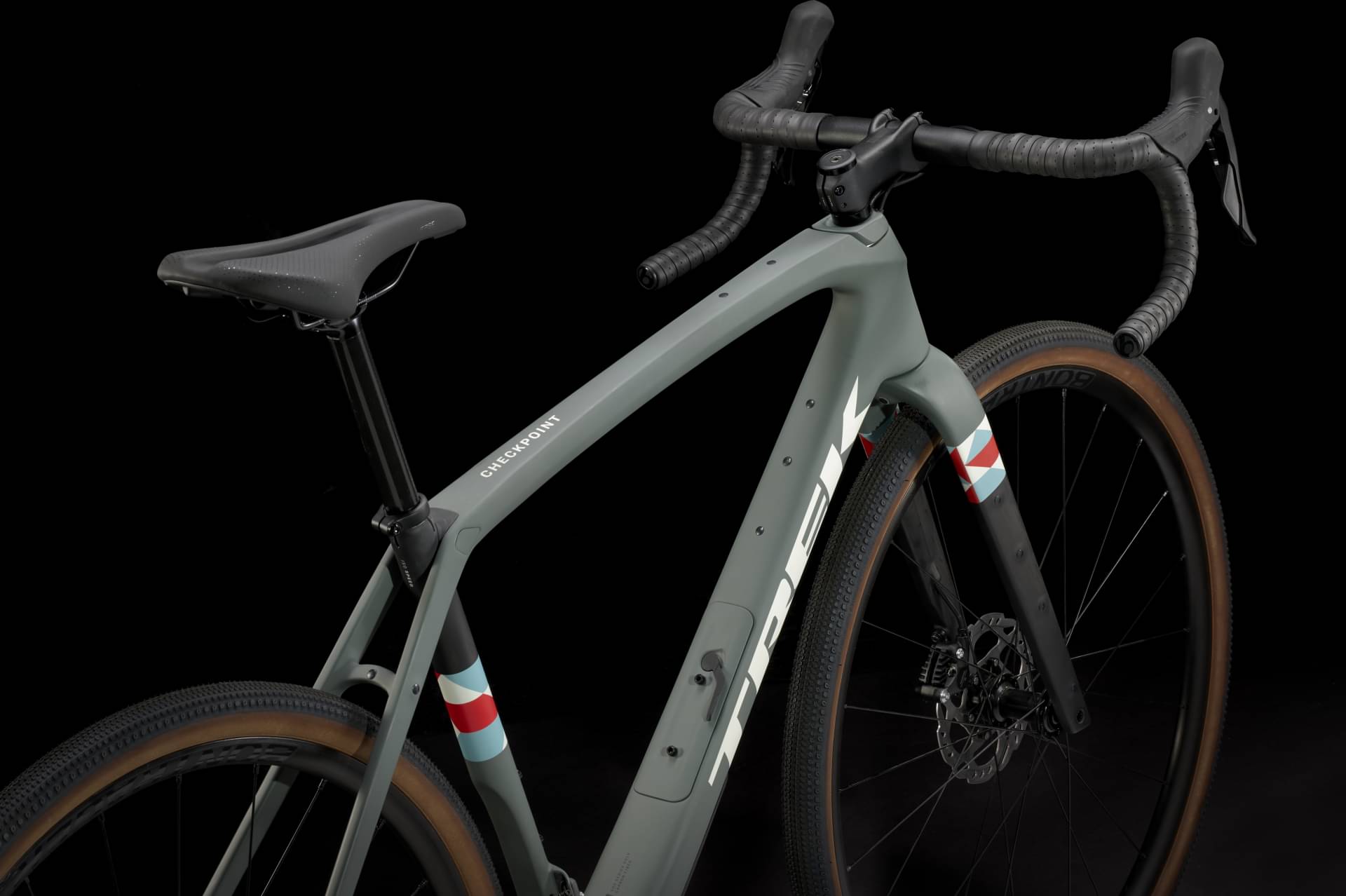

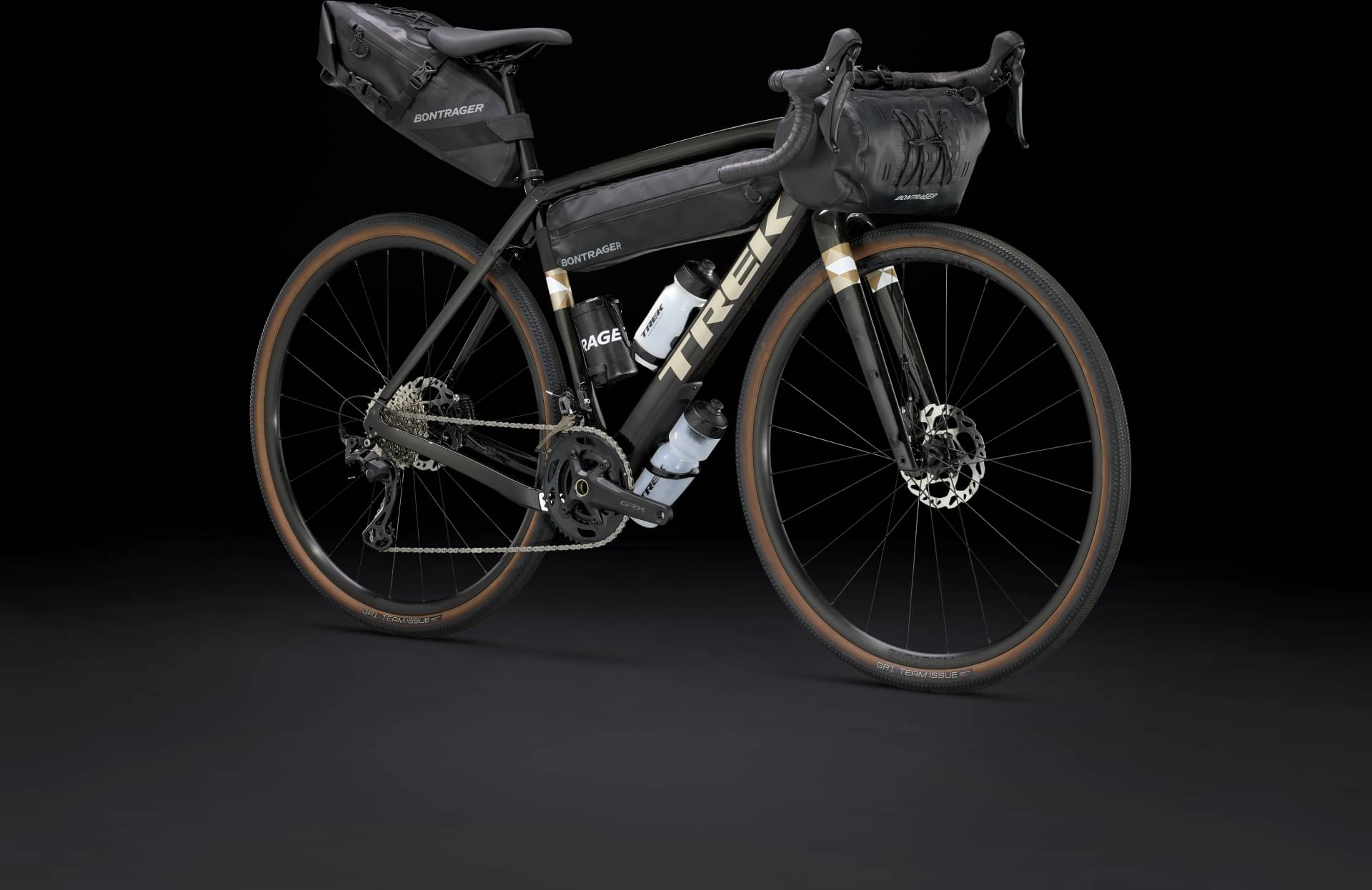

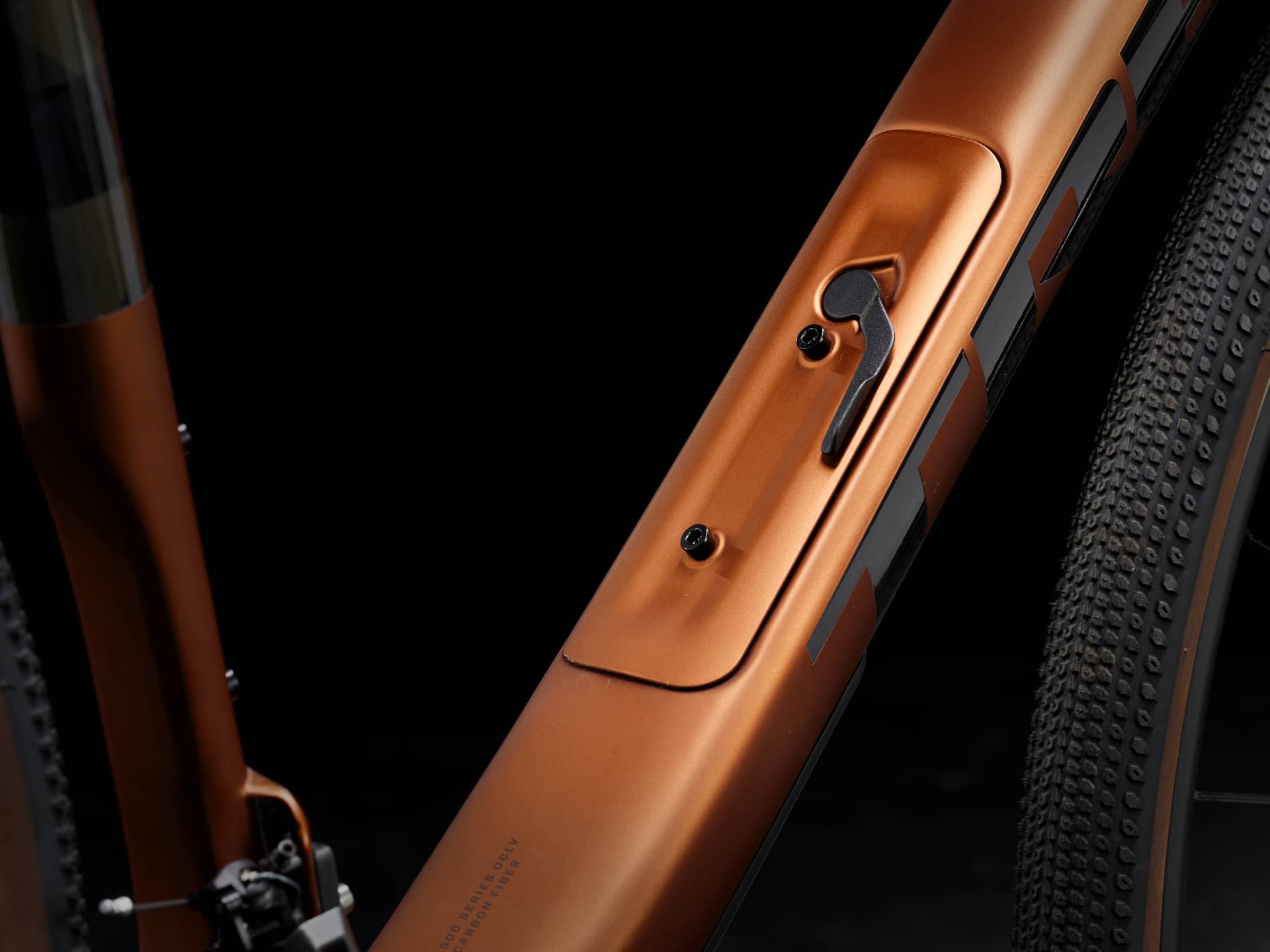

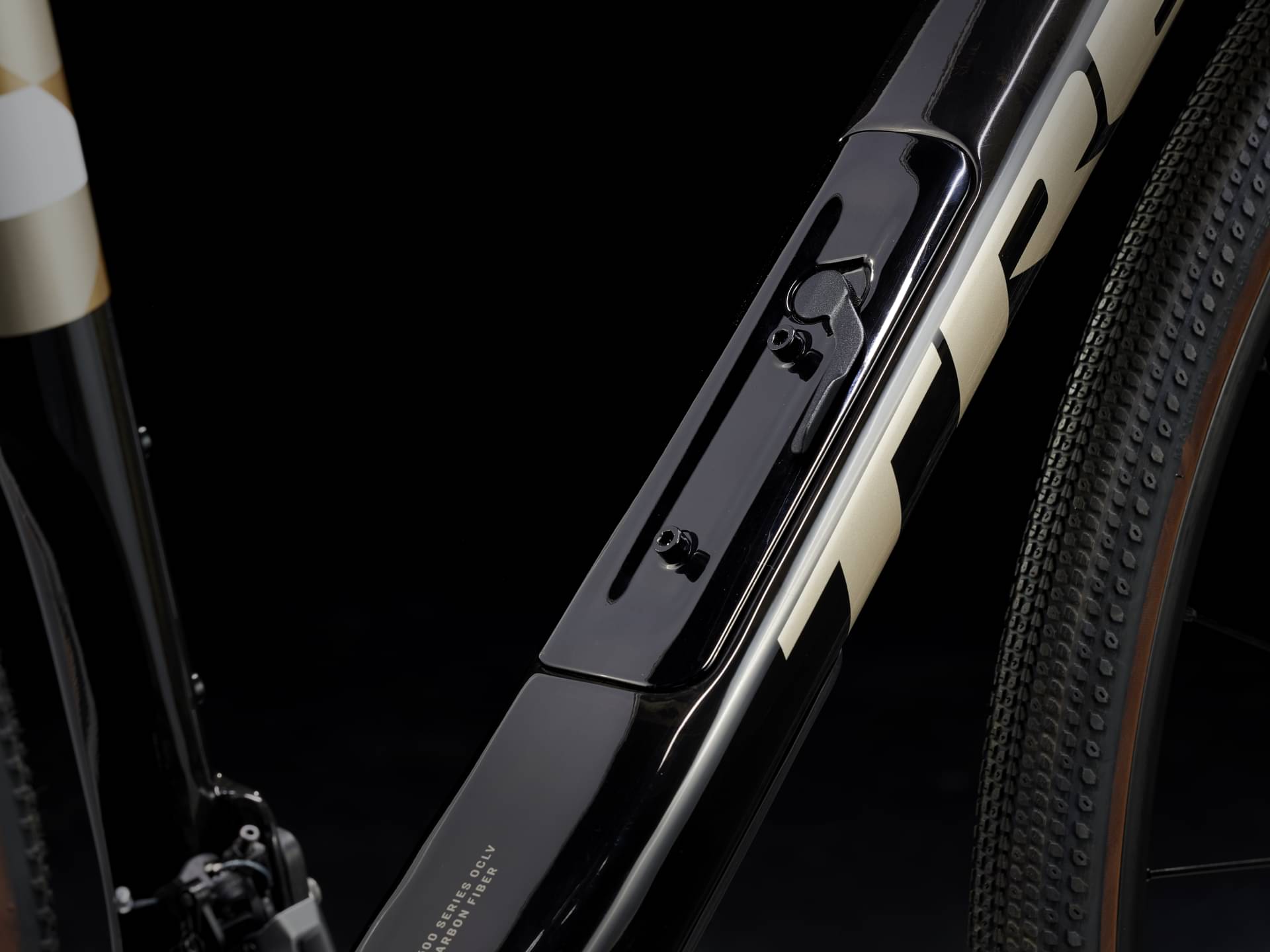

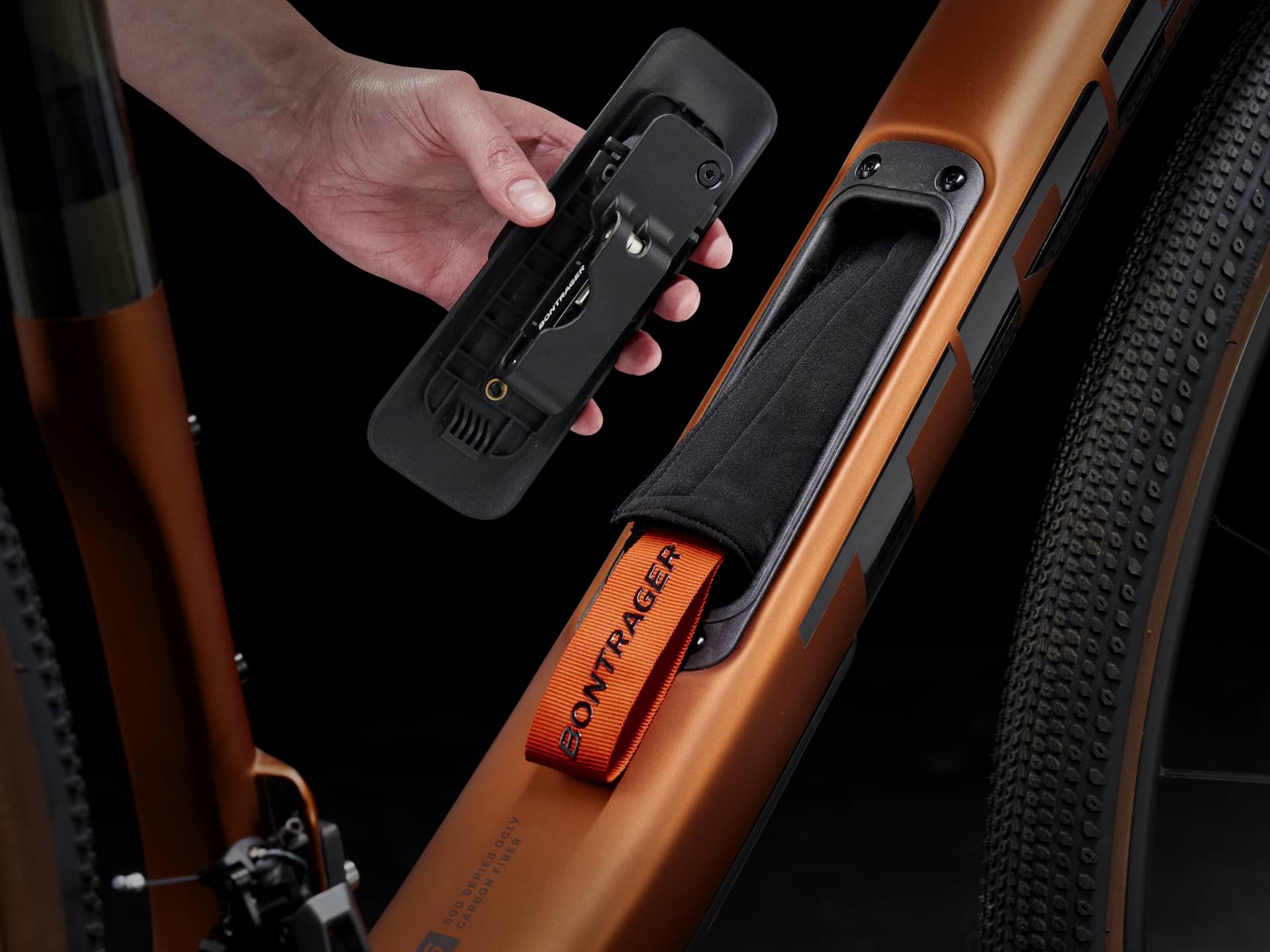

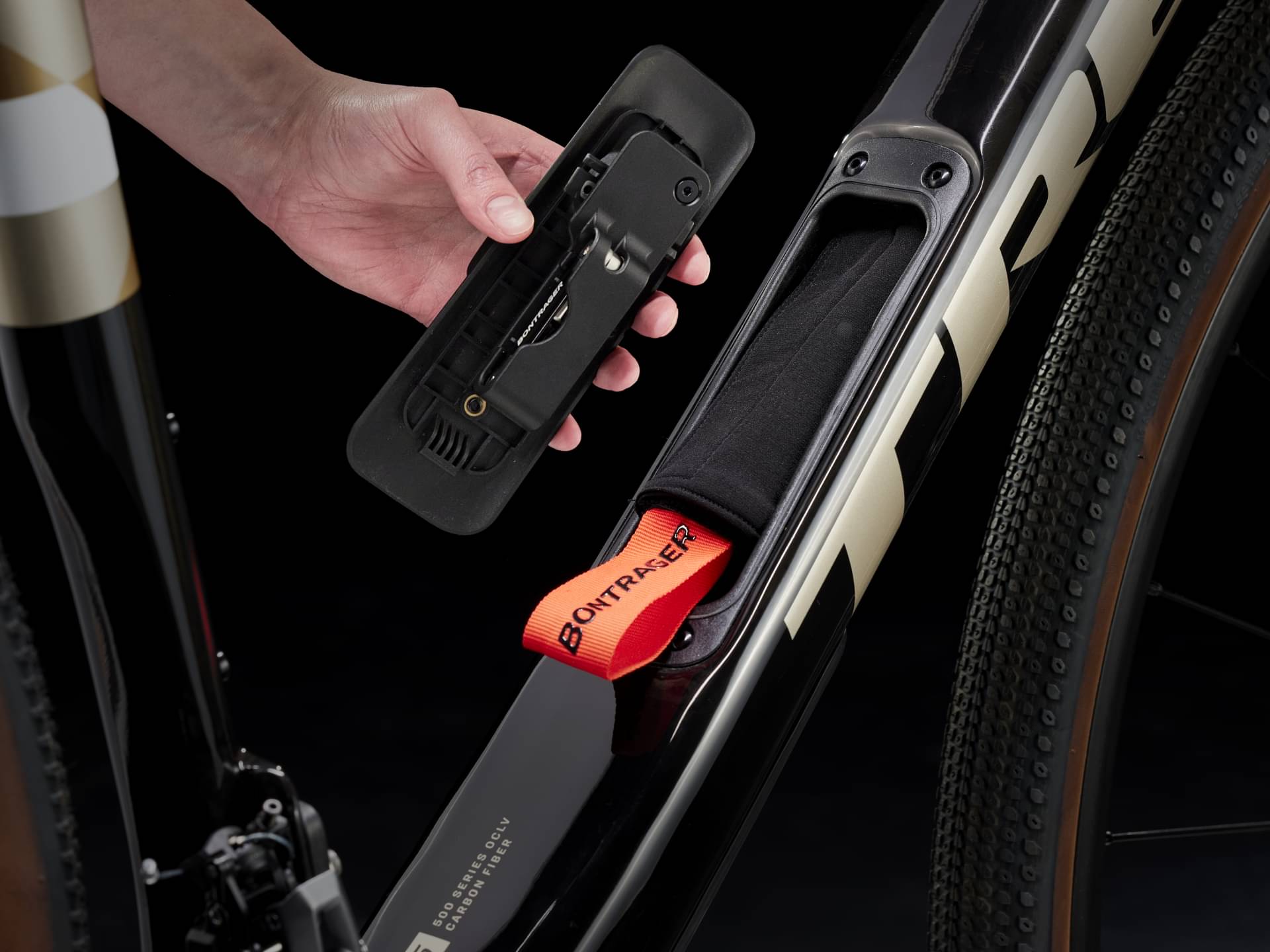

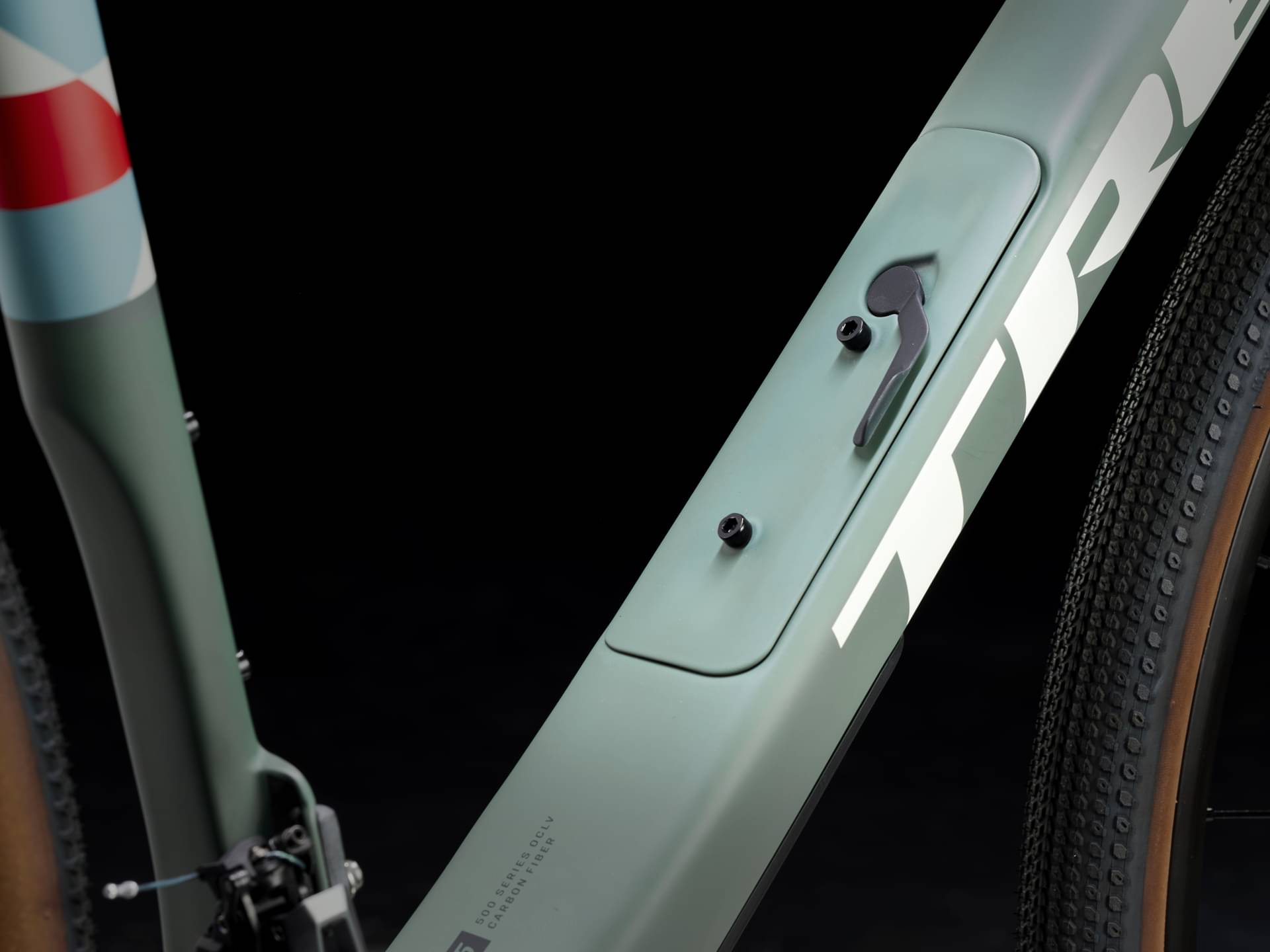

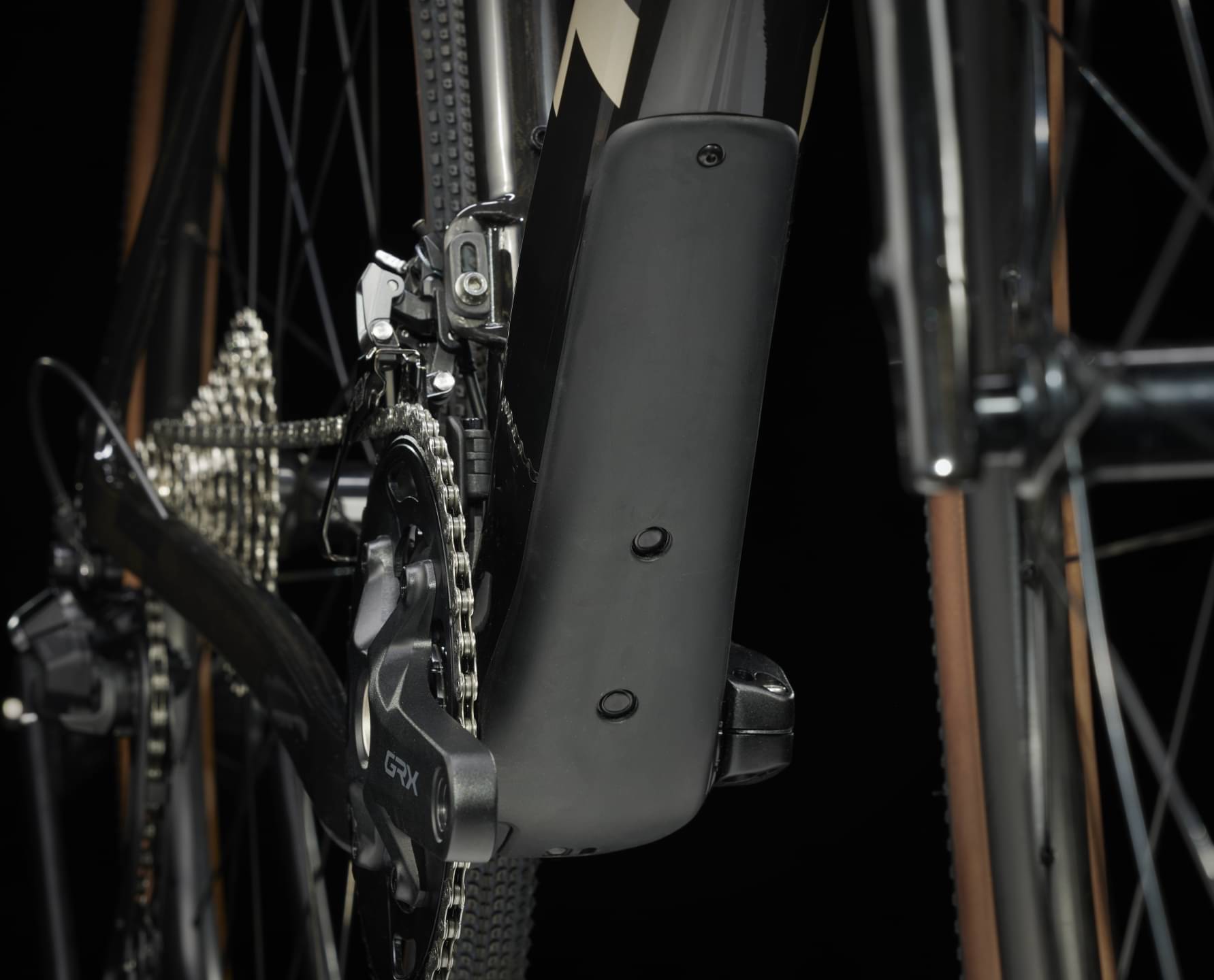

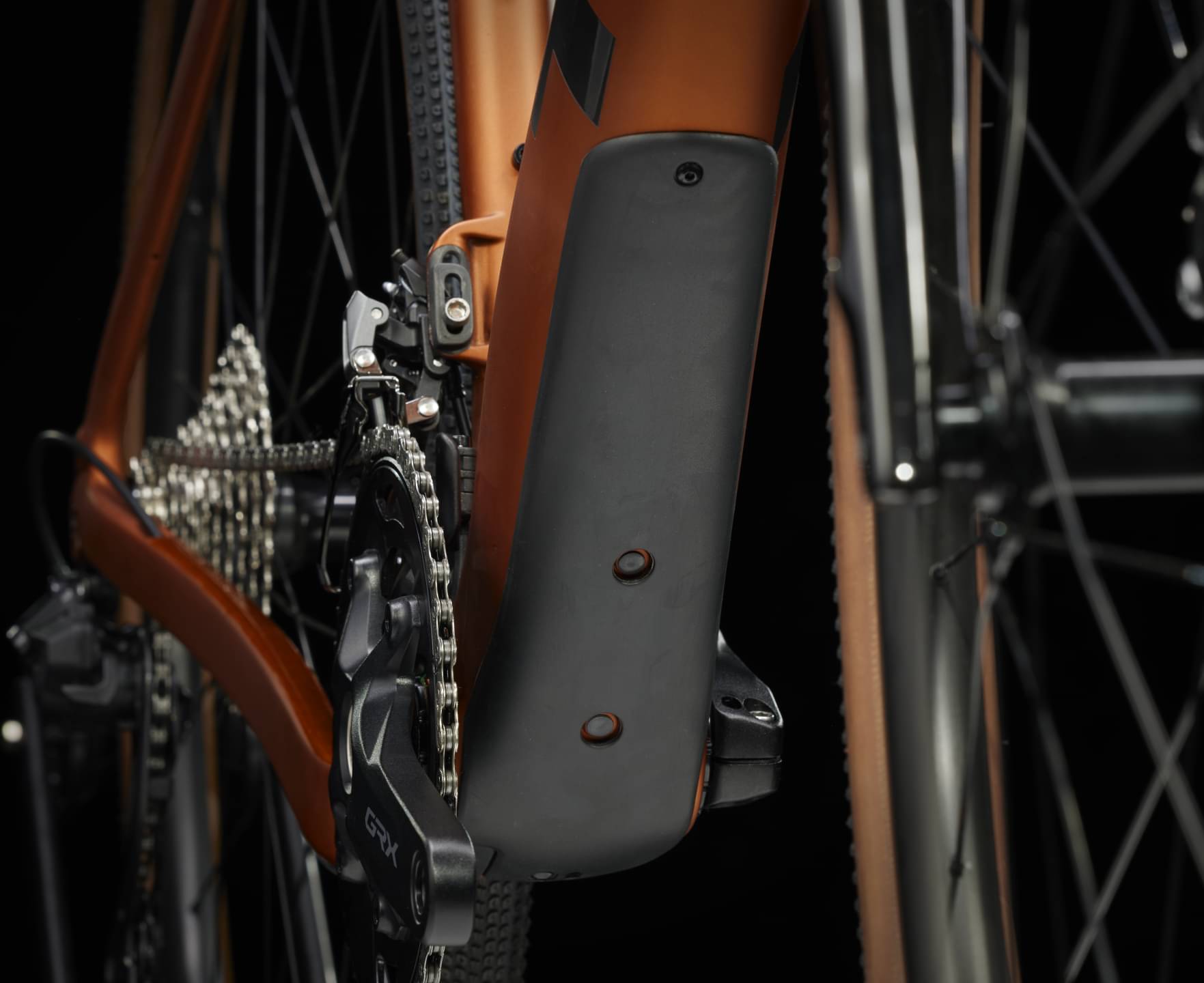

500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
Suspension Fork

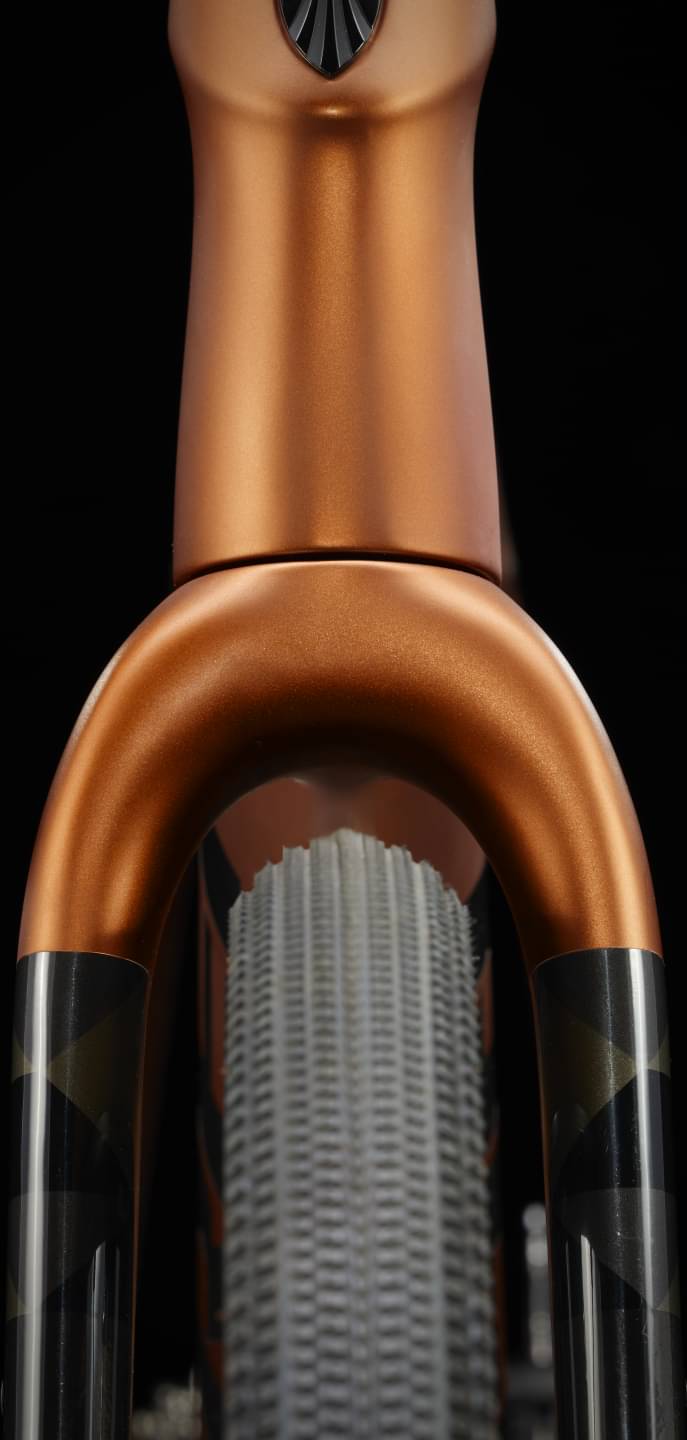

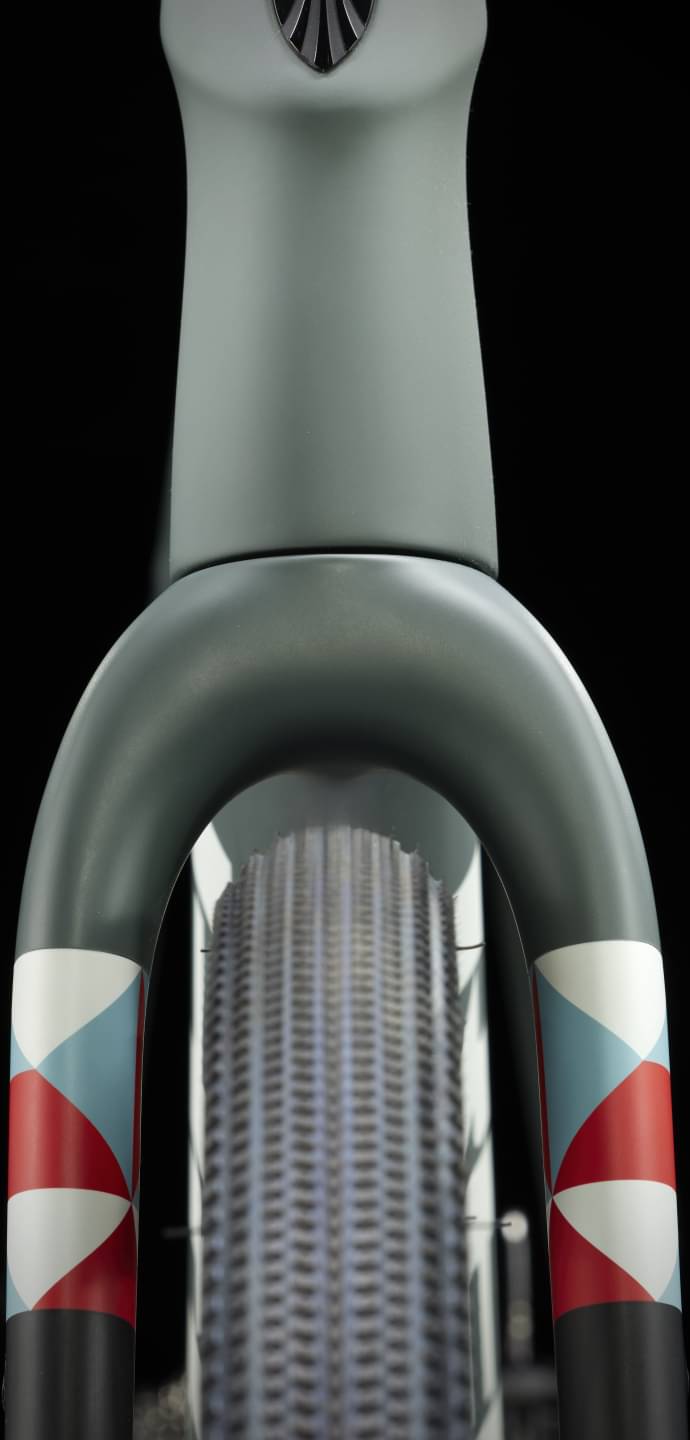

Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

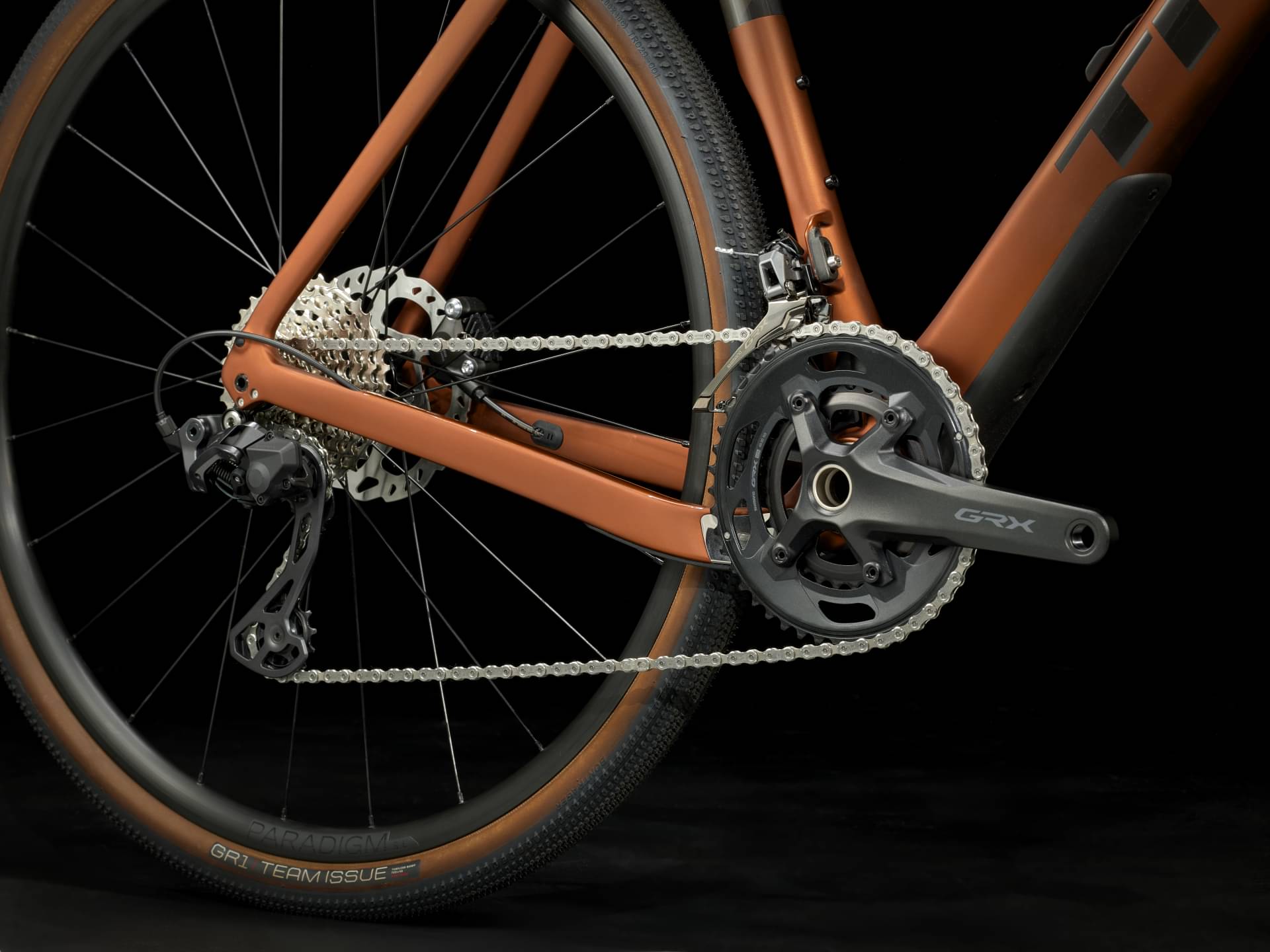

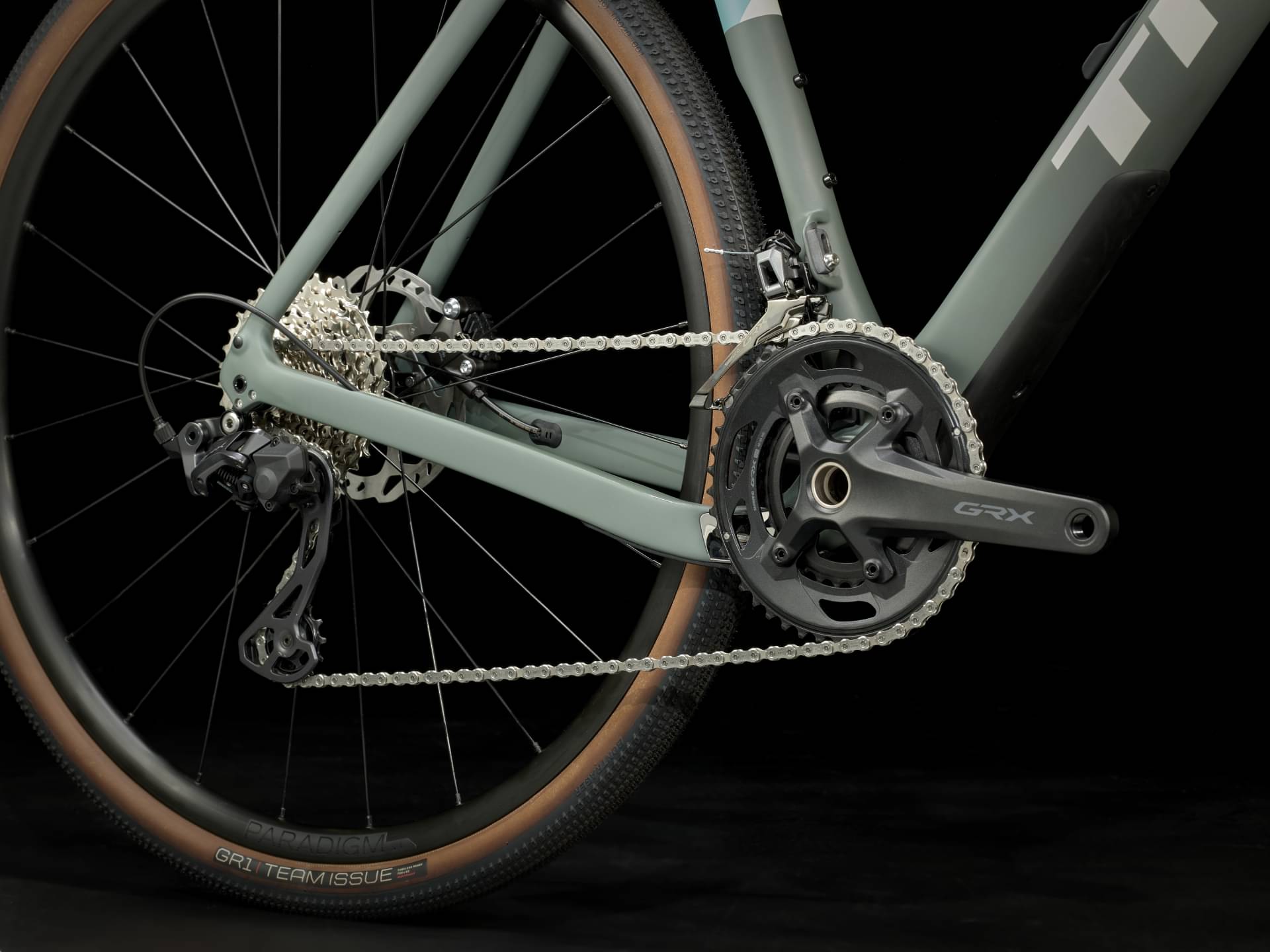

Drivetrain
Rear Derailleur

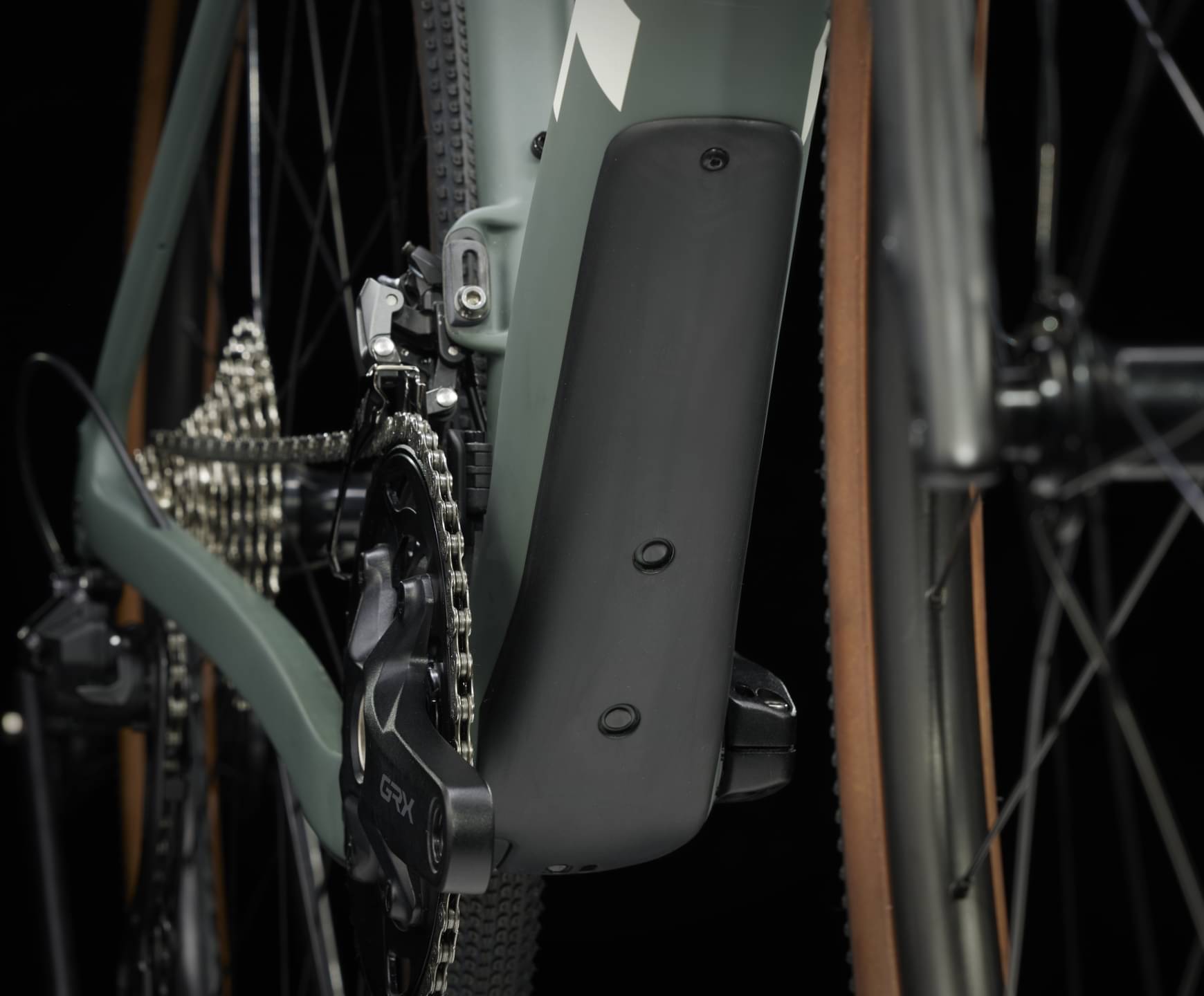

Shimano GRX RX820, 36T max cog
Front Derailleur
Shimano GRX RX820, braze-on, down swing
Shift Levers
Shimano GRX RX610, 12-speed
Cassette
Shimano 105 7100, 11-36, 12-speed

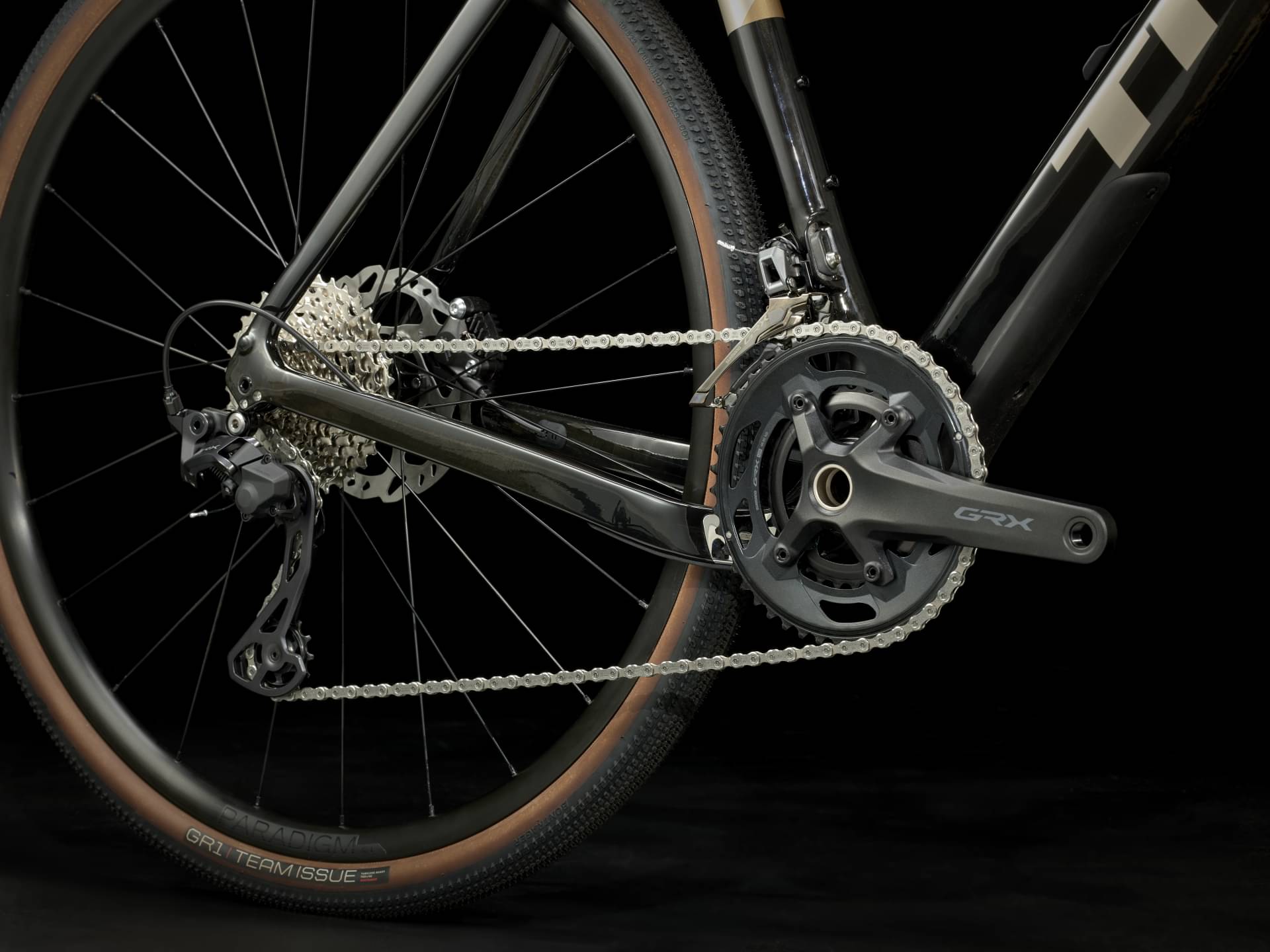

Crank
Size: 49, Shimano GRX RX610, 46/30, 165 mm length; Size: 52, Shimano GRX RX610, 46/30, 170 mm length; Size: 54, 56, Shimano GRX RX610, 46/30, 172.5 mm length; Size: 58, 61, Shimano GRX RX610, 46/30, 175 mm length
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano SLX M7100, 12-speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Rims
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tires
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm
Brakes
Brakes
Shimano RX410 hydraulic disc, flat mount
Cockpit

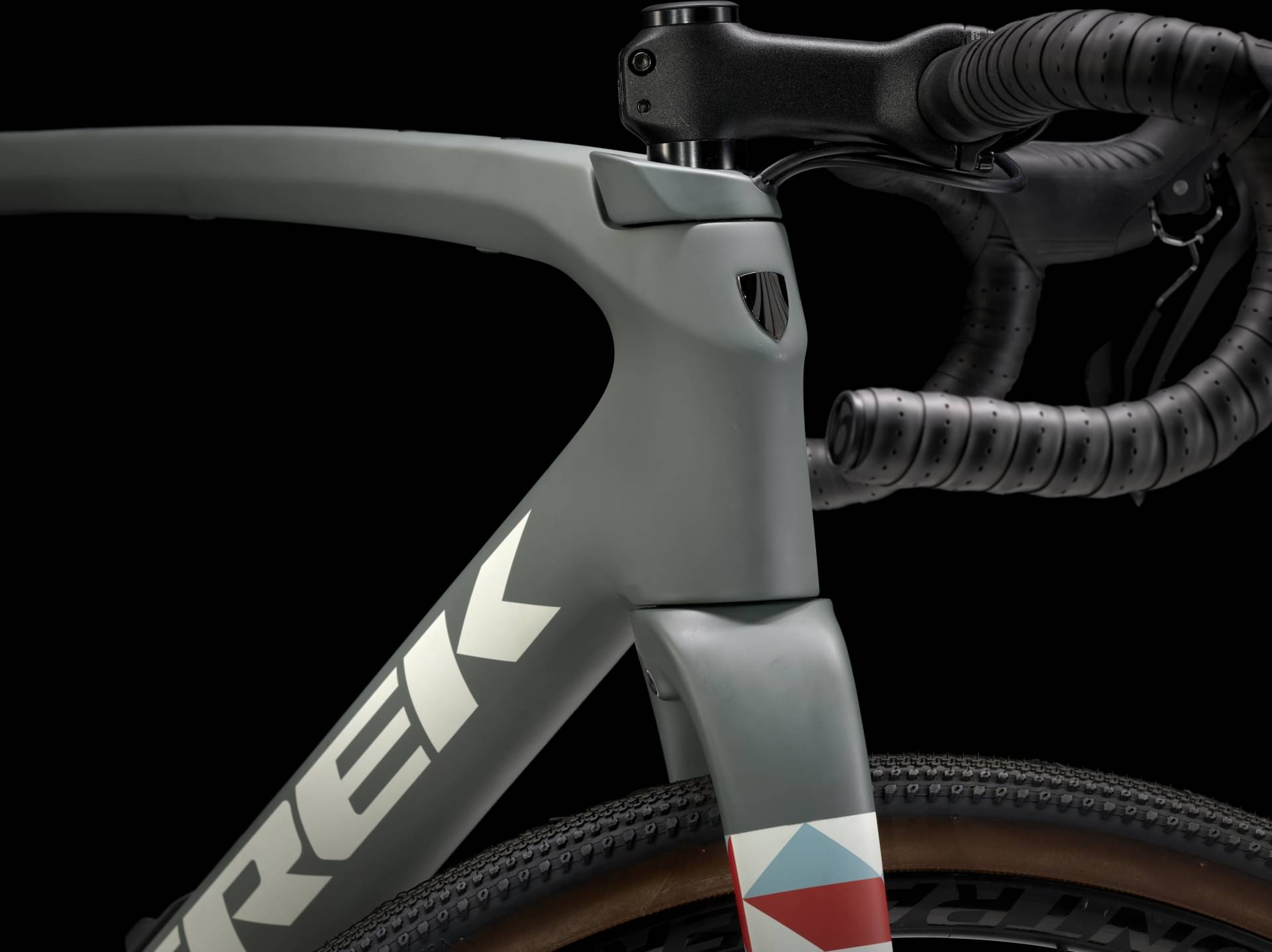

Stem
Size: 49, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: 52, 54, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: 56, 58, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: 61, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

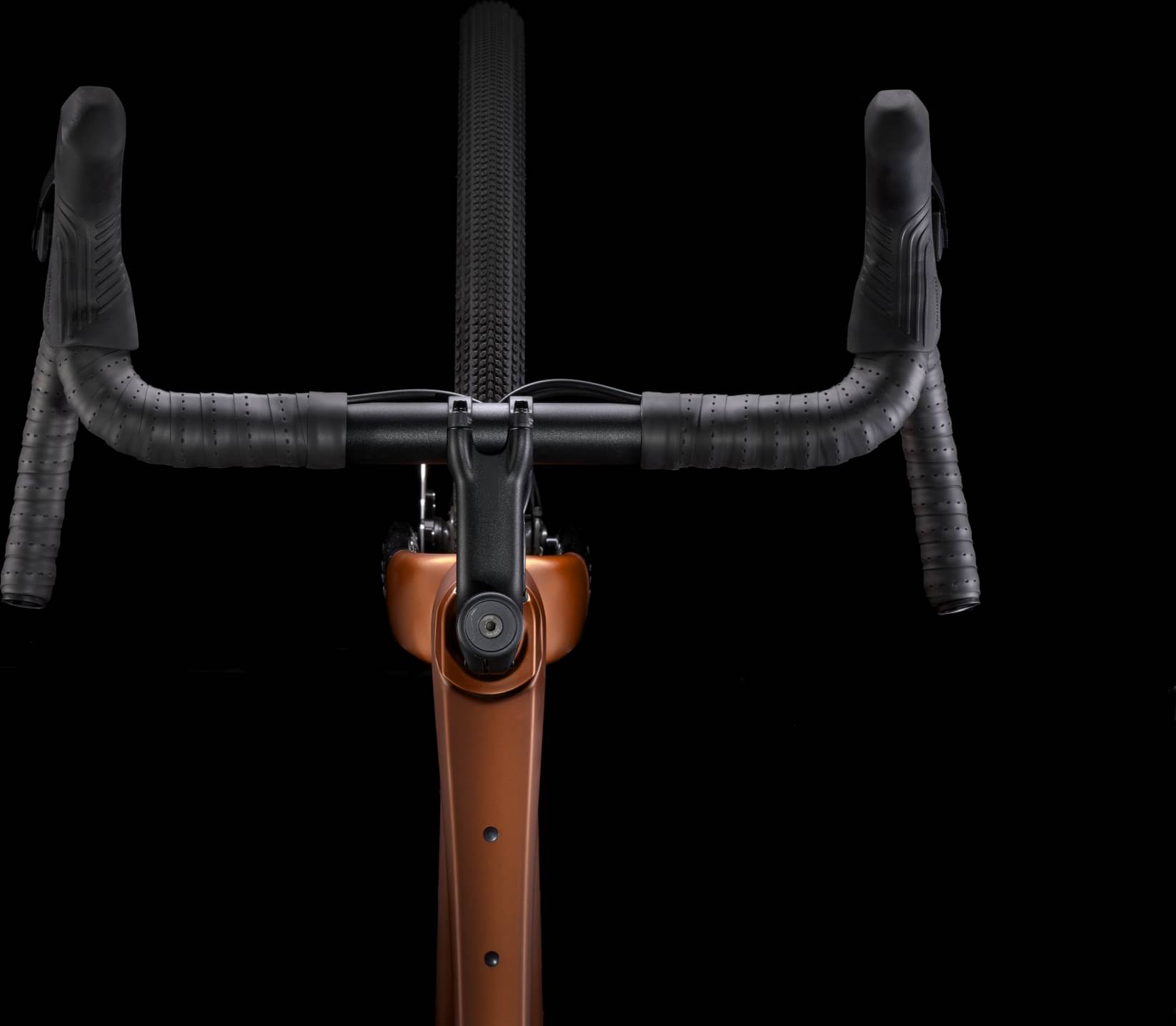

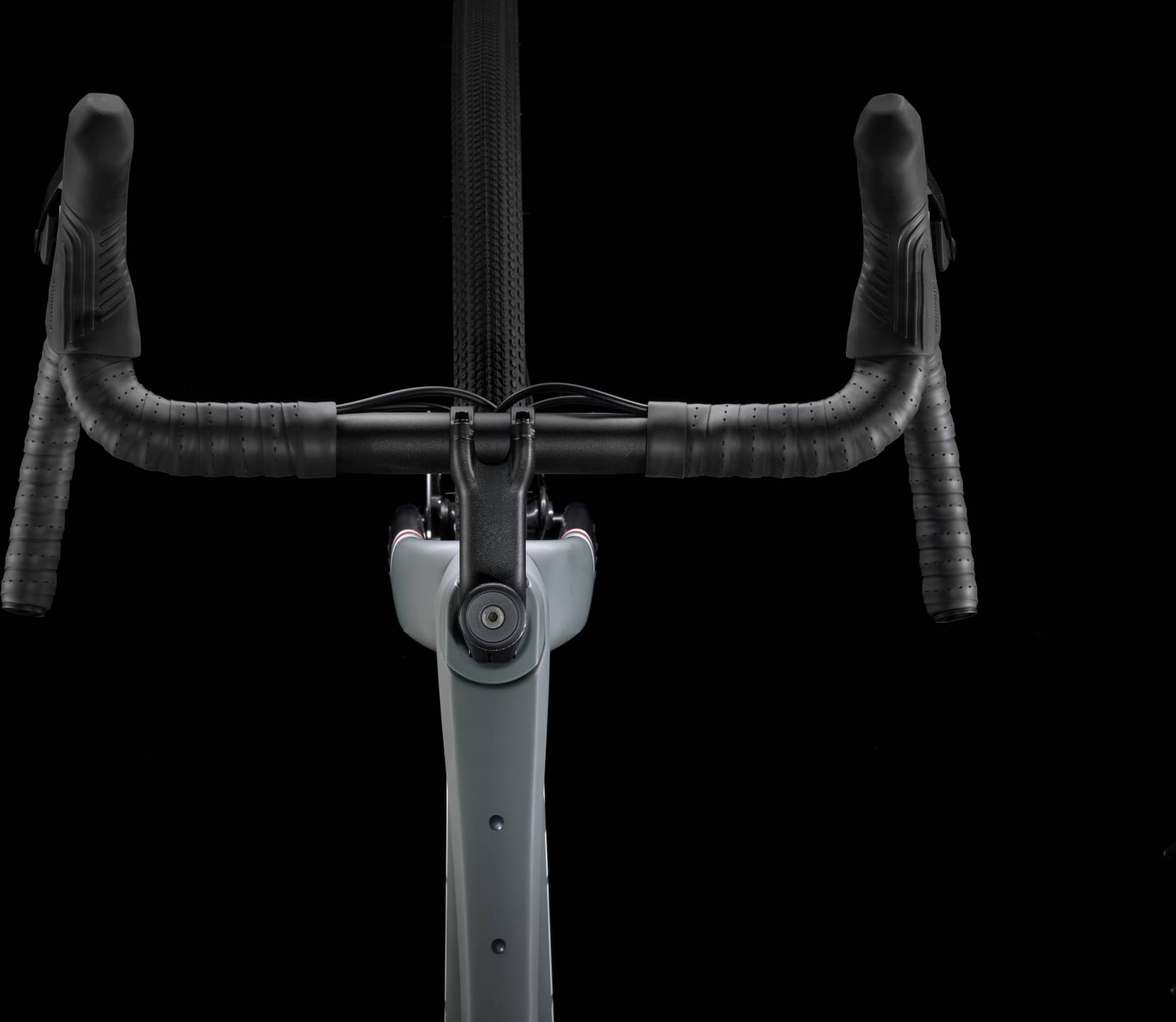

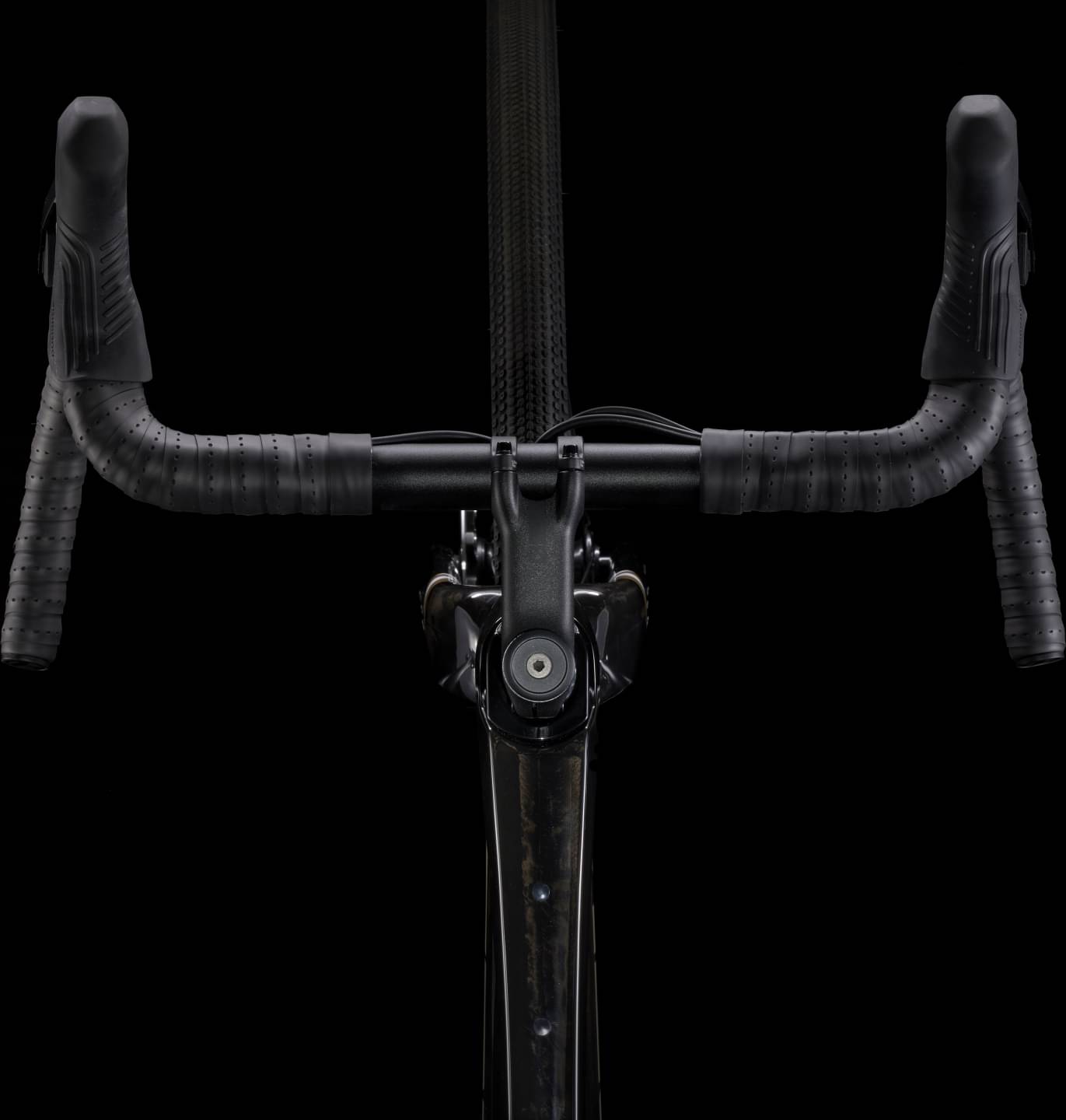

Handlebar
Size: 49, Bontrager Elite Gravel, 38 cm width; Size: 52, Bontrager Elite Gravel, 40 cm width; Size: 54, 56, Bontrager Elite Gravel, 42 cm width; Size: 58, 61, Bontrager Elite Gravel, 44 cm width
Seat
Saddle
Size: 49, 52, Bontrager Verse Comp, steel rails, 155 mm width; Size: 54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.369 mm | 1.386 mm | 1.417 mm | 1.455 mm | 1.482 mm | 1.532 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 273 mm | 273 mm | 275 mm | 275 mm |
| Front Center | 602 mm | 610 mm | 617 mm | 624 mm | 634 mm | 646 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 71 mm | 70 mm | 67 mm | 66 mm | 65 mm |
| Stack | 538 mm | 553 mm | 571 mm | 592 mm | 609 mm | 639 mm |
| Reach | 393 mm | 399 mm | 403 mm | 407 mm | 411 mm | 417 mm |
| Top Tube Length | 541 mm | 555 mm | 570 mm | 584 mm | 597 mm | 617 mm |
| Seat Tube Angle | 74.1 ° | 73.7 ° | 73.2 ° | 72.8 ° | 72.5 ° | 72.1 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.2 ° | 71.6 ° | 71.8 ° | 72.2 ° | 72.3 ° | 72.6 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm | 145 mm | 165 mm | 195 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1025 mm | 1033 mm | 1041 mm | 1048 mm | 1058 mm | 1070 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Standover Height | 735 mm | 765 mm | 789 mm | 809 mm | 829 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Checkpoint SL 5 completes the Trek Checkpoint model. There are 75 bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Trek Checkpoint ALR 4 2024 has a starting price of 1799$. Trek Checkpoint SLR 9 AXS 2024 on the other hand is the most expensive at 12249$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Trek Checkpoint SL 5 price was 3917$. In conclusion, this bike price is 59.1% higher than the price of the average Gravel bike.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Checkpoint SL 5 has a weight of 9.65 kg (21.27 lbs). In conclusion, the average Gravel bike weighs 18.7% less than Checkpoint SL 5.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material

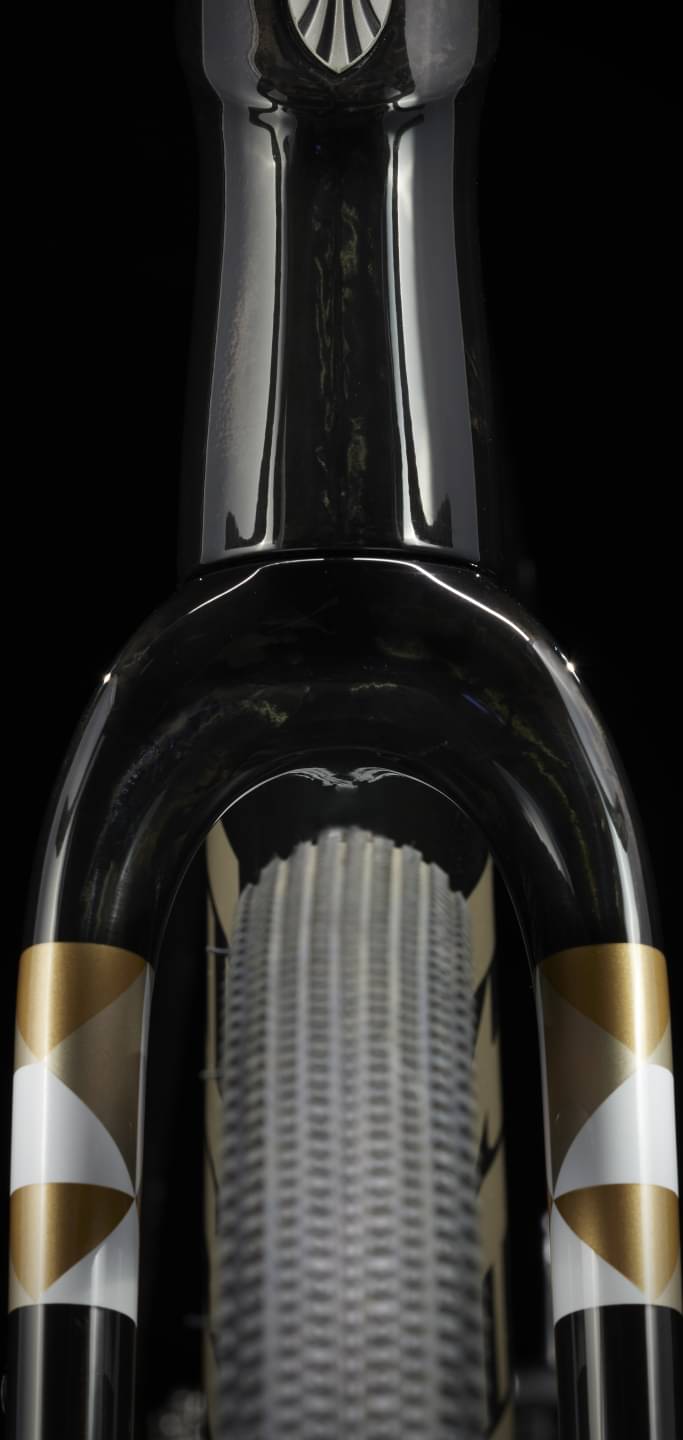

When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Checkpoint SL 5 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 156 cm – 191 cm (5.12 ft – 6.27 ft). In short, you can easily find one that suits you.
