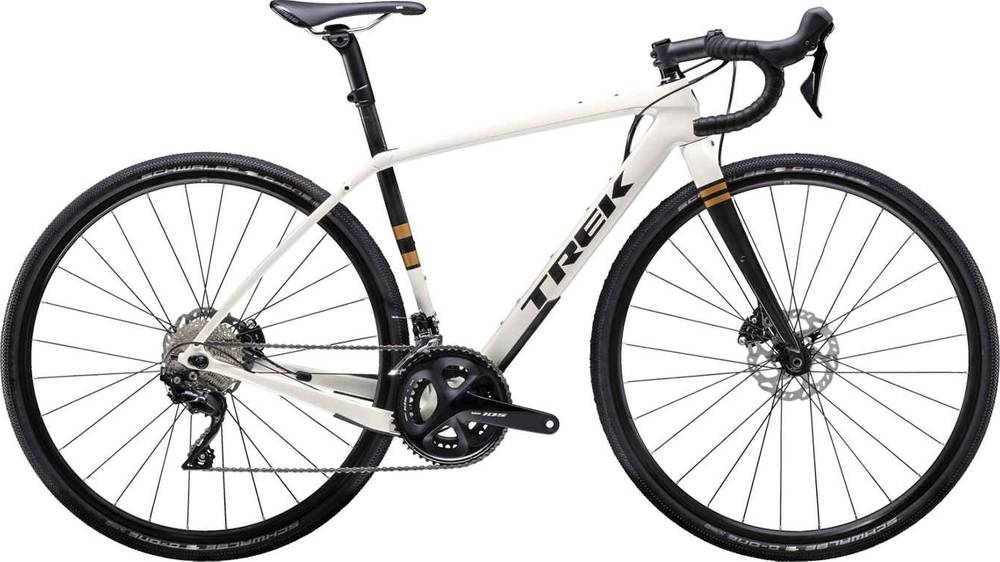

Trek Checkpoint SL 5 Women’s 2020
2020 Road
Estimate price |
2,899$
Weight | 9.54 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
158cm - 164cm
52cm
161cm - 169cm
54cm
167cm - 175cm
56cm
172cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, Rear IsoSpeed, Stranglehold dropouts, tapered head tube, BB90, flat mount disc brakes, rack mounts and hidden fender mounts, Control Freak, internal cable routing, 12mm thru axle, 3S chain keeper, Ride Tuned seatmast
Suspension Fork
Checkpoint carbon disc, carbon tapered steerer, flat mount disc brakes, rack mounts, hidden fender mounts, 12mm thru axle
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 11 speed
Cassette
Shimano HG700, 11-34, 11 speed
Crank
Shimano 105, 50/34 (compact)
Bottom Bracket
BB90
Chain
Shimano HG600, 11 speed
Pedals
Not included
Wheels
Front Hub
Bontrager alloy sealed bearing, 12mm alloy axle, centerlock
Rear Hub
Bontrager alloy sealed bearing, 12mm alloy axle, centerlock
Rims
Bontrager Tubeless Ready
Tires
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120tpi, aramid bead, 700x40c
Brakes
Brakes
Shimano BR-R7070 flat mount hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager RL IsoZone VR-CF, 31.8mm
Grips
Bontrager tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Ajna Comp, chromoly rails
Seatpost
Bontrager Ride Tuned seatmast cap, 10mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 273 mm | 273 mm |
| Front Center | 582 mm | 592 mm | 601 mm | 607 mm |
| Rake | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 66 mm | 65 mm | 64 mm | 61 mm |
| Stack | 537 mm | 554 mm | 572 mm | 591 mm |
| Reach | 378 mm | 384 mm | 388 mm | 392 mm |
| Top Tube Length | 520 mm | 541 mm | 556 mm | 571 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.4 ° | 71.6 ° | 71.8 ° | 72.2 ° |
| Head Tube Length | 90 mm | 107 mm | 126 mm | 145 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1000 mm | 1010 mm | 1019 mm | 1025 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 76 mm | 76 mm |
| Standover Height | 728 mm | 754 mm | 780 mm | 800 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 161 cm | 167 cm | 172 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 180 cm |
Model Overview
Checkpoint SL 5 Women’s is part of the Trek Checkpoint model. 70 bikes variations carry this model name so far. You can easily view all of the Trek Checkpoint bikes models from 2020, here.
Model range prices
The most economical model, the Trek Checkpoint AL 3 2020 has a starting price of 1199$. Trek Checkpoint SL 7 2020 on the other hand is the most expensive at 5999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2899$. Doing a quick comparison, we notice that Checkpoint SL 5 Women’s price is 17.75% more expensive than the average cost of a Gravel bike.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 9.54 kg (21.03 lbs), the Checkpoint SL 5 Women’s model is much heavier than average. In short, the average Gravel bike weight is 17.34% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Checkpoint SL 5 Women’s are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Checkpoint SL 5 Women’s comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 180 cm (5.18 ft – 5.91 ft). In short, it won’t be difficult to find the right one for you.
