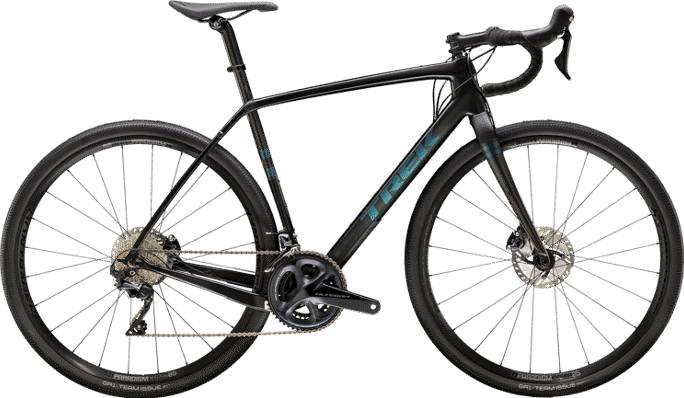

Trek Checkpoint SL 6 2020
2020 Road
Estimate price |
3,799$
Weight | 9.14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
156cm - 164cm
52cm
161cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, IsoSpeed, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and fender mounts, flat mount disc, horizontal sliding dropouts, 142x12mm thru axle
Suspension Fork
Checkpoint carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Ultegra RX800, Shadow Plus clutch, long cage, 34T max cog
Front Derailleur
Shimano Ultegra R8000, braze-on
Shift Levers
Shimano Ultegra R8020, 11-speed
Cassette
Shimano Ultegra HG800-11, 11-34, 11 speed
Crank
Size: 49, Shimano Ultegra R8000, 50/34 (compact), 165mm length; Size: 52, Shimano Ultegra R8000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano Ultegra R8000, 50/34 (compact), 172.5mm length; Size: 58, 61, Shimano Ultegra R8000, 50/34 (compact), 175mm length
Bottom Bracket
Trek BB90
Chain
Shimano Ultegra HG701, 11-speed
Wheels
Rims
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Tires
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c
Brakes
Brakes
Shimano Ultegra hydraulic disc, flat mount
Disk Rotors
Shimano RT800, 160mm, centerlock
Cockpit
Stem
Size: 49, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 49, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 42cm width; Size: 58, 61, Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 93mm reach, 123mm drop, 44cm width
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Arvada Comp, steel rails, 138mm width
Seatpost
Size: 49, 52, 54, 56, Bontrager carbon seatmast cap, 20mm offset, short length; Size: 58, 61, Bontrager carbon seatmast cap, 20mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.55 mm | 1.6 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 273 mm | 273 mm | 275 mm | 275 mm |
| Front Center | 582 mm | 592 mm | 601 mm | 607 mm | 618 mm | 630 mm |
| Rake | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 66 mm | 65 mm | 64 mm | 61 mm | 61 mm | 59 mm |
| Stack | 537 mm | 554 mm | 572 mm | 591 mm | 614 mm | 643 mm |
| Reach | 378 mm | 384 mm | 388 mm | 392 mm | 396 mm | 402 mm |
| Top Tube Length | 520 mm | 541 mm | 556 mm | 571 mm | 582 mm | 597 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.4 ° | 71.6 ° | 71.8 ° | 72.2 ° | 72.3 ° | 72.6 ° |
| Head Tube Length | 90 mm | 107 mm | 126 mm | 145 mm | 171 mm | 200 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1000 mm | 1010 mm | 1019 mm | 1025 mm | 1037 mm | 1049 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 76 mm | 76 mm | 74 mm | 74 mm |
| Standover Height | 728 mm | 754 mm | 780 mm | 800 mm | 822 mm | 851 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 161 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Checkpoint SL 6 completes the Trek Checkpoint model. Trek launched 70 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Trek Checkpoint AL 3 2020 is the most economical model, with a starting price of 1199$. Trek Checkpoint SL 7 2020 on the other hand costs 5999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 3799$. Comparing the average cost of a Gravel bike to this one, you will see that Checkpoint SL 6 price is 54.31% more expensive.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek Checkpoint SL 6 it’s weighing 9.14 kg (20.15 lbs). At this weight, is considerably heavier than average. In other words, this model is 12.42% heavier than the average Gravel bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Checkpoint SL 6 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Checkpoint SL 6 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 156 cm – 191 cm (5.12 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
