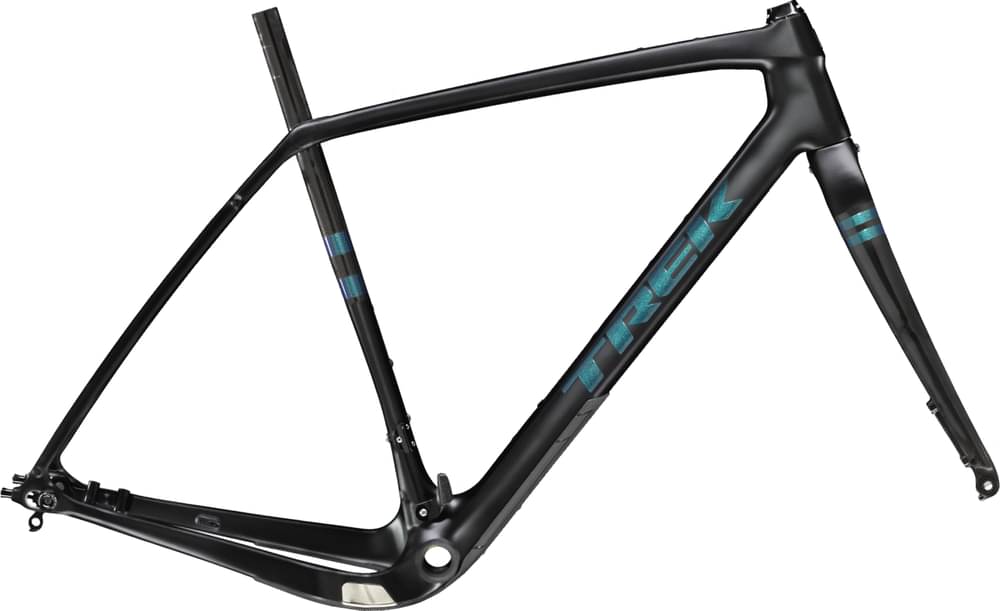

Trek Checkpoint SL Frameset 2020
2020 Road
Estimate price |
1,999$
Weight | 1.94 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, IsoSpeed, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and fender mounts, flat mount disc, horizontal sliding dropouts, 142x12mm thru axle
Suspension Fork
Checkpoint carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Cockpit
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 56cm |
|---|---|
| Stack Reach Ratio | 1.51 mm |
| Bottom Bracket Height | 273 mm |
| Front Center | 607 mm |
| Rake | 49 mm |
| Trail | 61 mm |
| Stack | 593 mm |
| Reach | 394 mm |
| Top Tube Length | 573 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 560 mm |
| Head Tube Angle | 72.2 ° |
| Head Tube Length | 145 mm |
| Chainstay Length | 432 mm |
| Wheelbase | 1027 mm |
| Bottom Bracket Drop | 76 mm |
| Standover Height | 802 mm |
| Wheels | 700 |
Model Overview
Checkpoint SL Frameset is part of the Trek Checkpoint model. Trek launched 70 frames of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Trek Checkpoint ALR Frameset 2020 is the most economical model, with a starting price of 1069$. Trek Checkpoint SL Frameset 2020 on the other hand costs 1999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel frames
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Trek Checkpoint SL Frameset price was 1999$. Comparing this to the average Gravel frame price, we see that the price is 32.82% more expensive.
Gravel frames average weight
Gravel frames weigh an average of 2.06 kg (4.54 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 1.94 kg (4.28 lbs), the Checkpoint SL Frameset model is a bit lighter than average. In conclusion, the average Gravel frame weighs 6.19% more than Checkpoint SL Frameset.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
