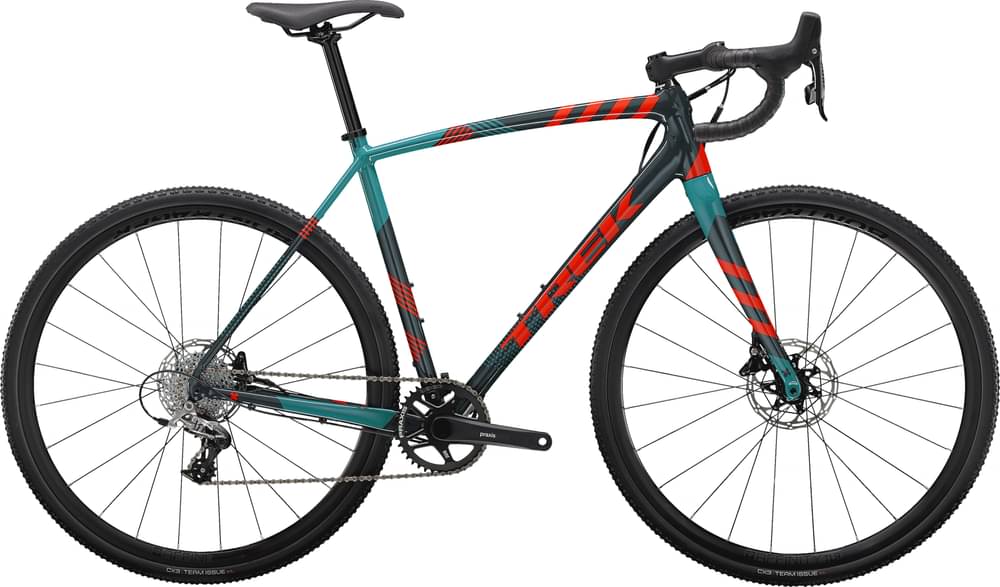

Trek Crockett 5 Disc 2021
2021 Road
Estimate price |
2,399$
Weight | 9.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Rival 1, Praxis -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
300 Series Alpha Aluminum, Invisible Weld Technology, tapered head tube, Control Freak internal routing, 3S chain keeper, flat mount disc, 142x12mm thru axle
Suspension Fork
Trek Cross carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 395mm axle-to-crown, 12x100mm thru axle
Drivetrain
Rear Derailleur
SRAM Rival 1, medium cage, 36T max cog
Shift Levers
SRAM Rival, 11 speed
Cassette
SRAM PG-1130, 11-32, 11 speed
Crank
Size: 47, Praxis Alba M30, 40T, 30mm spindle, 165mm length; Size: 50, 52, Praxis Alba M30, 40T, 30mm spindle, 170mm length; Size: 54, 56, Praxis Alba M30, 40T, 30mm spindle, 172.5mm length; Size: 58, 61, Praxis Alba M30, 40T, 30mm spindle, 175mm length
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
SRAM PC-1130, 11 speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rims
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, presta valve
Spokes
14g stainless steel
Tires
Bontrager CX3 Team Issue, aramid bead, 120 tpi, 700x32c
Brakes
Brakes
SRAM Rival hydraulic disc, flat mount
Cockpit
Stem
Size: 47, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 50, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 47, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 38cm width; Size: 50, 52, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Size: 47, 50, 52, Bontrager P3 Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager P3 Verse Comp, steel rails, 145mm width
Seatpost
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.45 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 276 mm | 276 mm | 279 mm | 279 mm |
| Front Center | 580 mm | 586 mm | 590 mm | 594 mm | 604 mm | 611 mm | 626 mm |
| Rake | 46 mm | 44 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 75 mm | 74 mm | 71 mm | 67 mm | 67 mm | 66 mm | 66 mm |
| Stack | 512 mm | 527 mm | 540 mm | 555 mm | 573 mm | 590 mm | 617 mm |
| Reach | 364 mm | 368 mm | 372 mm | 376 mm | 380 mm | 384 mm | 390 mm |
| Top Tube Length | 500 mm | 511 mm | 524 mm | 537 mm | 551 mm | 563 mm | 581 mm |
| Seat Tube Angle | 75.3 ° | 75 ° | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 444 mm | 476 mm | 493 mm | 513 mm | 533 mm | 553 mm | 583 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.3 ° | 72.3 ° |
| Head Tube Length | 95 mm | 110 mm | 123 mm | 138 mm | 157 mm | 176 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 988 mm | 994 mm | 998 mm | 1003 mm | 1013 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 68 mm | 68 mm | 65 mm | 65 mm |
| Standover Height | 717 mm | 740 mm | 754 mm | 772 mm | 789 mm | 809 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
Crockett 5 Disc is part of the Trek Crockett model. Trek released 39 bikes variations of this model so far. Take a sneak peek at all Trek Crockett bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Cyclocross bikes average price
If you want an acceptable Cyclocross bike you should know that the average price is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Trek released this model in 2021, its price was 2399$. If we compare this with the average Cyclocross bike cost we notice that the price is 19.23% more expensive.
Cyclocross bikes average weight
On a deeper look, we notice that the average weight of a Cyclocross bike is 8.79 kg (19.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, Crockett 5 Disc has a weight of 9.02 kg (19.89 lbs). To sum up, it’s 2.62% heavier than the average weight of Cyclocross bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Crockett 5 Disc model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Crockett 5 Disc is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Trek Crockett 5 Disc bike has 7 sizes, in the range of 152 cm – 191 cm (4.99 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
