Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 Series Alpha Aluminum w/rack and fender mounts, internal cable routing, inboard disc mounts
Suspension Fork
Bontrager Satellite Plus, carbon disc w/lowrider mounts
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 STI, 10 speed
Cassette
SRAM PG-1050 11-32, 10 speed
Crank
Shimano R565, 50/34 (compact)
Pedals
Wellgo track-style alloy
Wheels
Rims
Formula DC91 alloy front hub; Formula DC38 alloy rear hub w/Bontrager Nebula Disc 32-hole rims
Tires
Bontrager H5 Hard-Case Ultimate, 700x32c
Brakes
Brakes
Tektro HYRD cable/hydro brake, 160mm rotors w/Tektro alloy bar-top levers
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite IsoZone, VR-CF, 31.8mm
Headset
Cartridge bearings, sealed
Seat
Saddle
Bontrager Evoke 1
Seatpost
Bontrager SSR, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview

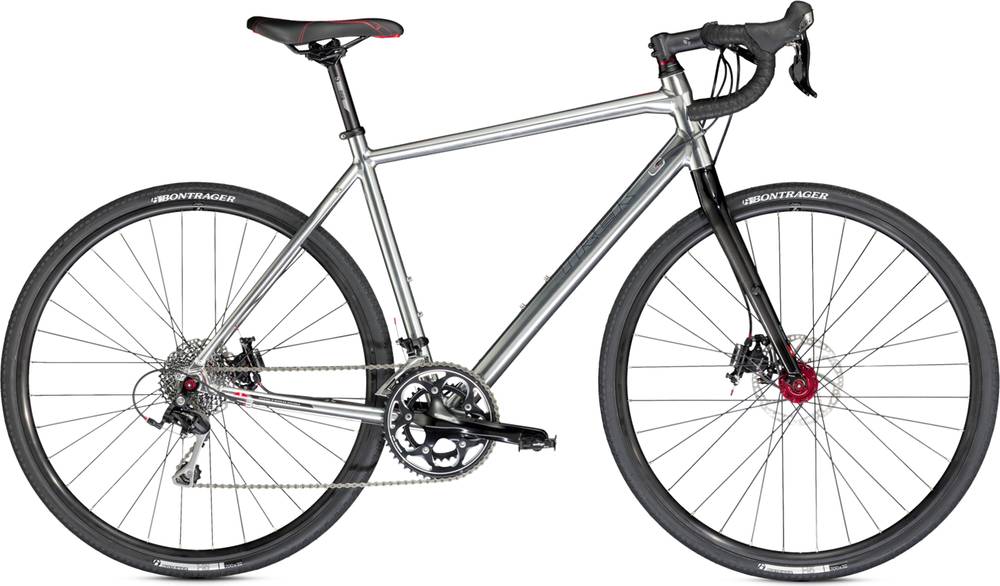

CrossRip LTD is a Trek Crossrip model. There are 21 bikes that carry this model name. Check out the entire range from 2014 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on CrossRip LTD are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CrossRip LTD comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, you can easily find one that suits you.
