Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 Series Alpha Aluminum w/rack & fender mounts, internal cable routing, inboard disc brake mounts
Suspension Fork
Bontrager Satellite Plus, carbon disc w/lowrider mounts
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105, 10 speed
Cassette
SRAM PG 1050, 11-32, 10 speed
Crank
Shimano Tiagra, 50/34 (compact)
Pedals
Wellgo track-style alloy
Wheels
Rims
Bontrager alloy front hub, Bontrager rear hub, Bontrager Tubeless Ready rims
Tires
Bontrager H5 Hard-Case Ultimate, 700x32c
Brakes
Brakes
TRP HY/RD cable/hydro disc brakes, Tektro alloy levers
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, comes w/computer & light mounts
Handlebar
Bontrager Race Lite IsoZone, VR-CF, 31.8mm
Headset
Cartridge bearings, sealed
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model

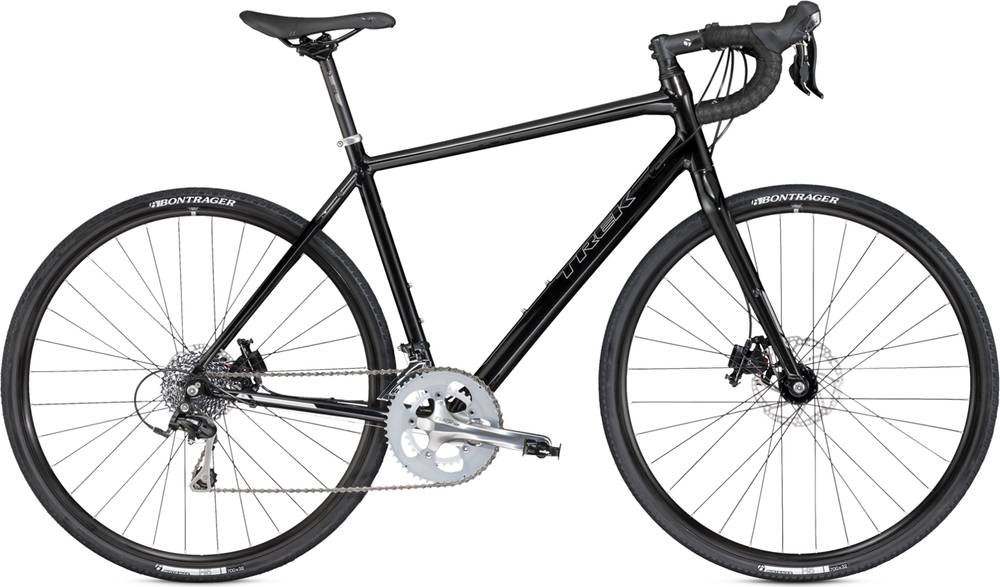

CrossRip LTD belongs to the Trek Crossrip model. Trek released 21 bikes variations of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
Our math shows that the average cost of a dependable Commuter bike is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
CrossRip LTD has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the CrossRip LTD bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek CrossRip LTD has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
