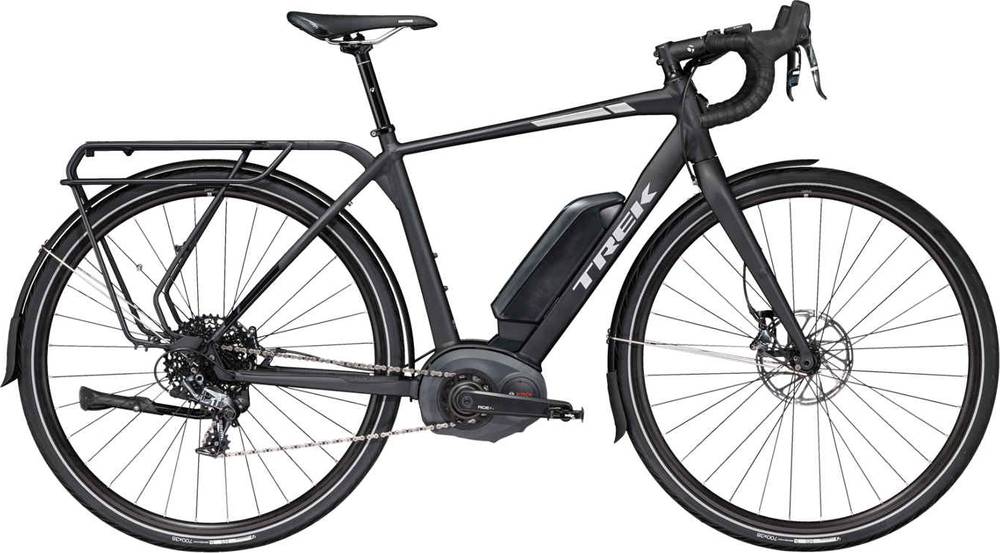

Trek CrossRip+ 2019
2019 E-bike
Estimate price |
4,199$
Weight | 20.26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Force -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerPack 500Wh, frame mount -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
158cm - 163cm
52cm
161cm - 170cm
55cm
168cm - 176cm
58cm
174cm - 182cm
61cm
180cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, custom designed for Bosch Performance system, rack & fender mounts, internal cable routing
Suspension Fork
CrossRip carbon rigid, alloy steerer, 12mm thru axle
Drivetrain
Rear Derailleur
SRAM Force CX1, Long-cage
Shift Levers
SRAM Force CX1, 11 speed
Cassette
SRAM PG-1130, 11-42, 11 speed
Crank
RIDE+ aluminum 20T w/chainguard
Bottom Bracket
Bosch, press-fit
Chain
SRAM PC-1130
Pedals
Wellgo track-style alloy
Wheels
Front Hub
Formula alloy, centerlock disc, 12mm thru axle, 32h
Rear Hub
Formula alloy, centerlock disc, 32h
Rims
Bontrager Tubeless Ready Disc alloy, 32h
Tires
Bontrager H1, Hard-Case Ultimate, reflective sidewall, 700x38c
Brakes
Brakes
SRAM Force CX 1, hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Elite IsoZone
Grips
Bontrager tape
Headset
1-1/8? threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Montrose Comp
Seatpost
Bontrager, 2-bolt head, 27.2mm, 8mm offset
Motor & Battery
Motor
Bosch Performance Speed, 350 watt, 63Nm, 28 mph
Battery
Bosch PowerPack 500Wh, frame mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.49 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 607 mm | 613 mm | 622 mm | 629 mm | 639 mm |
| Rake | 54 mm | 46 mm | 50 mm | 50 mm | 50 mm |
| Trail | 76 mm | 72 mm | 71 mm | 66 mm | 66 mm |
| Stack | 541 mm | 565 mm | 584 mm | 608 mm | 627 mm |
| Reach | 381 mm | 392 mm | 392 mm | 399 mm | 403 mm |
| Top Tube Length | 527 mm | 529 mm | 567 mm | 583 mm | 599 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.2 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 69.9 ° | 70.5 ° | 70.7 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 115 mm | 121 mm | 151 mm | 173 mm | 193 mm |
| Chainstay Length | 440 mm | 440 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1036 mm | 1042 mm | 1090 mm | 1097 mm | 1107 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 744 mm | 761 mm | 802 mm | 818 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 161 cm | 168 cm | 174 cm | 180 cm |
| Rider Max Height | 163 cm | 170 cm | 176 cm | 182 cm | 187 cm |
About this model
CrossRip+ is part of the Trek E Crossrip model. 3 e-bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Trek CrossRip+ 2019 is the cheapest e-bike model and costs 4199$. Trek CrossRip+ 2019 is the most expensive one and costs 4199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 4199$. Comparing the average cost of a Commuter e-bike to this one, you will see that CrossRip+ price is 63.45% higher.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, CrossRip+ has a weight of 20.26 kg (44.67 lbs). To sum up, it’s 24.38% lighter than the average weight of Commuter e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Trek CrossRip+ 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
