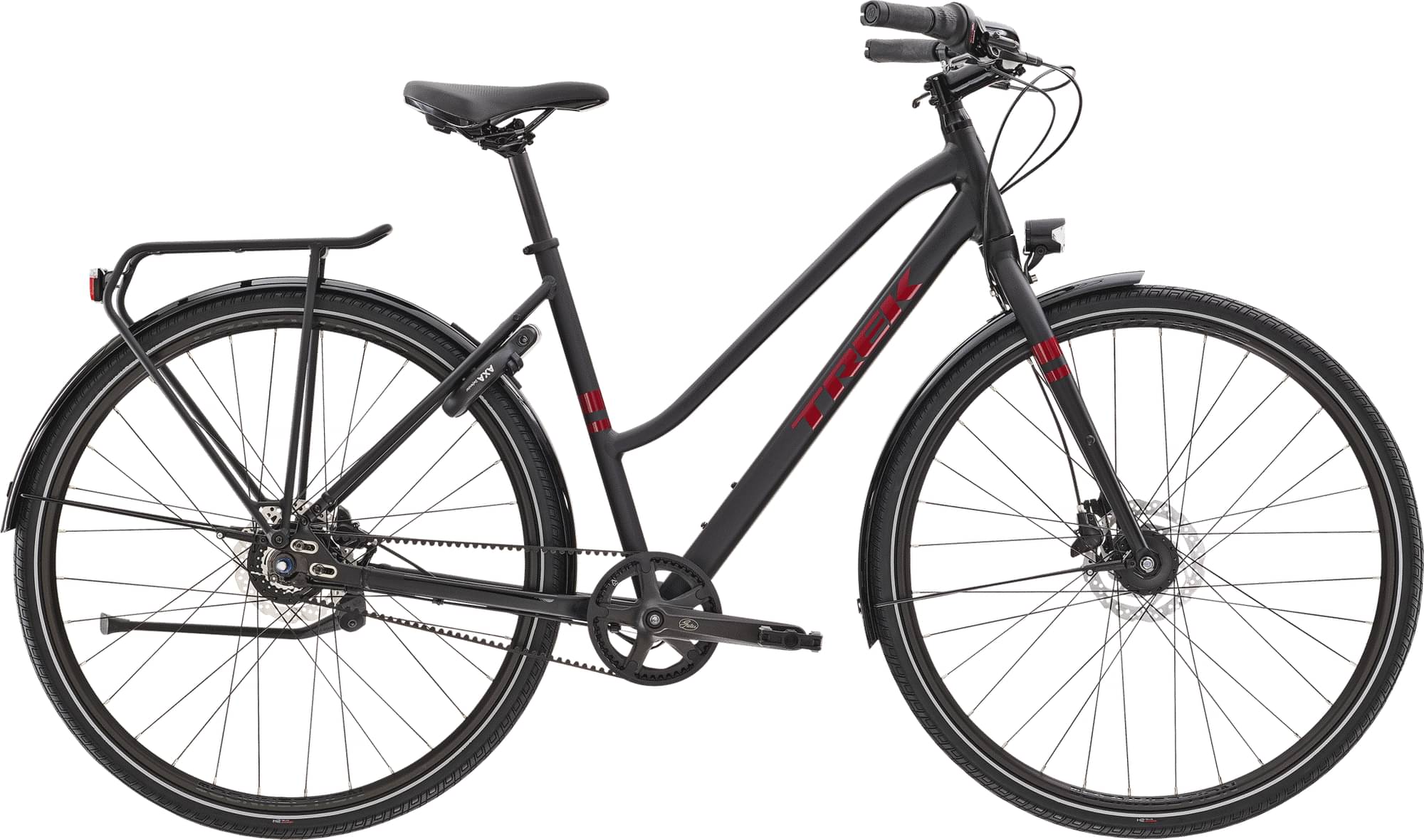

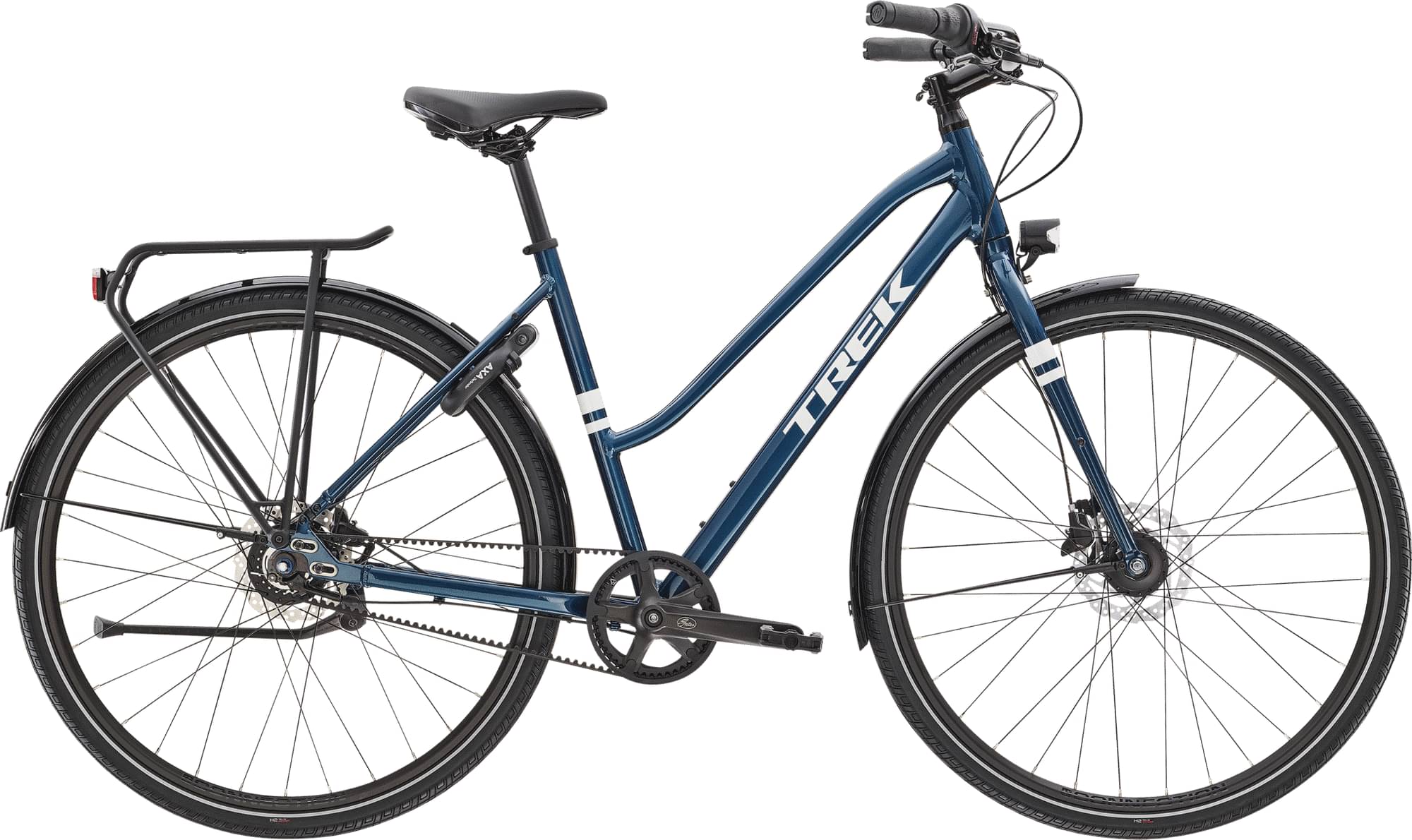

Trek District 3 Equipped Stagger 2023
2023 Urban
Estimate price |
1,740$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Nexus, Gates CDN -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminium, internal cable routing, belt compatibility, post-mount disc
Suspension Fork
Size: S, M, L, Rigid Aluminium with Lowrider mounts; Size: S, M, L, Rigid Aluminium
Drivetrain
Shift Levers
Shimano Nexus Revo, 8-speed
Cassette
Size: S, M, L, Gates CDC CenterTrack, 24T; Size: S, M, L, Gates CDN CenterTrack, 22T steel ring
Crank
Size: S, M, Gates CDN S150, 46T, 170 mm length; Size: S, M, Gates CDN for Belt, 50T, 170 mm length; Size: L, Gates CDN S150, 46T, 175 mm length; Size: L, Gates CDN for Belt, 50T, 175 mm length
Bottom Bracket
VP BC73C, 68 mm, threaded
Pedals
Size: S, M, L, VP-857; Size: S, M, L, slip-proof pedals with reflectors
Wheels
Front Hub
Shimano 3.0 watt dynamo hub
Rear Hub
Shimano Nexus, 8-speed, internal gear hub
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Bontrager H2 Comp, reflective strip, wire bead, 30 tpi, 700x40 mm
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: M, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length; Size: L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Handlebar
Size: S, M, L, Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width; Size: S, M, L, Aluminium comfort
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.61 mm | 1.64 mm |
| Bottom Bracket Height | 293 mm | 293 mm | 293 mm |
| Front Center | 627 mm | 631 mm | 643 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 84 mm | 81 mm | 77 mm |
| Stack | 601 mm | 618 mm | 643 mm |
| Reach | 381 mm | 384 mm | 393 mm |
| Top Tube Length | 560 mm | 573 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1085 mm | 1089 mm | 1101 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 659 mm | 673 mm | 690 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
Model Overview
District 3 Equipped Stagger is a Trek District model. Trek released 41 bikes variations of this model so far. Take a sneak peek at all Trek District bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Trek District 1 Equipped 2023 has a starting price of 943$. Trek District 4 Equipped 2023 on the other hand is the most expensive at 1749$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1581$. Comparing the average cost of a Commuter bike to this one, you will see that District 3 Equipped Stagger price is 107.48% more expensive.
Commuter bikes average weight
Commuter bikes weigh an average of 14.29 kg (31.5 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, District 3 Equipped Stagger has a weight of 15.1 kg (33.29 lbs). In other words, this model is 5.67% heavier than the average Commuter bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
As for the wheels, Trek District 3 Equipped Stagger 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek District 3 Equipped Stagger has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
District 3 Equipped Stagger comes in 3 sizes, that range from 155 cm – 186 cm (5.09 ft – 6.1 ft). In conclusion, it won’t take much to find one that’s right for you.
