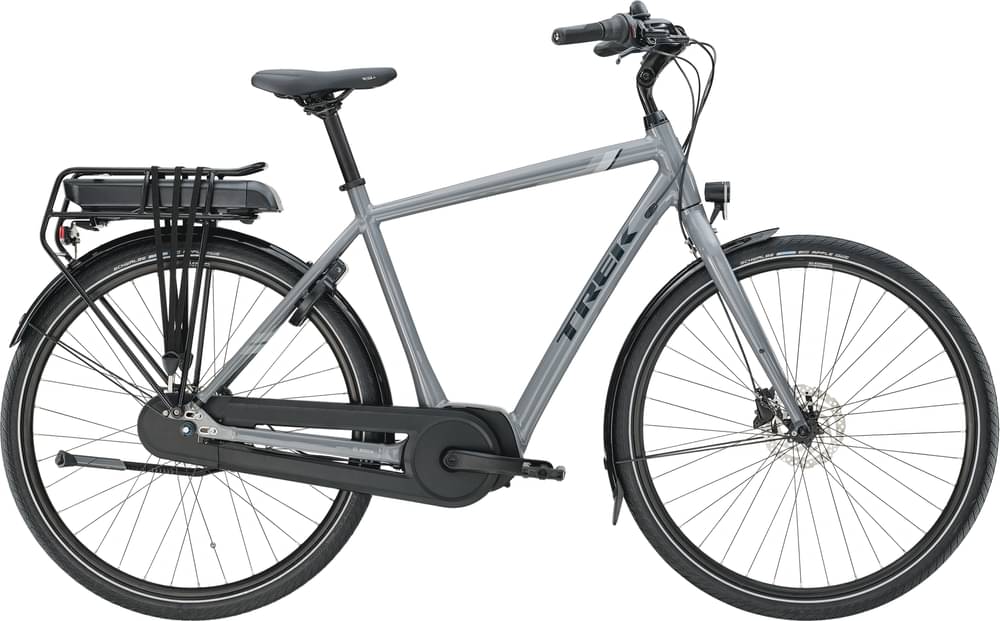

Trek District+ 1 2020
Bike details
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum
-
Wheels 700c
-
Groupset Nexus
-
Suspension Rigid
-
Motor Bosch 250W 40Nm mid-drive
-
Battery Bosch Powerpack 300/400/500Wh
-
Drivetrain Internally Geared Hub
-
Brakes Hydraulic Disc
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight Alpha Super Smooth Aluminum with internal cable routing and Belt compatibility
Suspension Fork
Rigid
Drivetrain
Shift Levers
Shimano Nexus Revo Shifter 7-speed
Crank
Prowheel alloy, 38T steel ring
Bottom Bracket
18T
Chain
Shimano
Pedals
VP Black with reflectors
Wheels
Front Hub
Shimano
Rear Hub
Shimano Nexus 7-speed
Rims
Alex Rims DP23
Tires
Schwalbe Big Apple, 700x50c
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Bontrager alloy quill, 31.8mm clamp, adjustable rise, Blendr compatible
Handlebar
Aluminum comfort
Grips
Bontrager Satellite Plus Ergonomic
Seat
Saddle
Selle Royal Nuvola
Seatpost
Bontrager Aluminum
Motor & Battery
Motor
Bosch Active Line, 250 watt, 40 Nm, 20 mph / 32 km/h (25 km/h in Europe)
Battery
Bosch Powerpack 300/400/500Wh
Fit data
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.61 mm | 1.66 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm |
| Front Center | 653 mm | 653 mm | 665 mm |
| Rake | 45 mm | 45 mm | 50 mm |
| Trail | 95 mm | 95 mm | 95 mm |
| Stack | 614 mm | 614 mm | 632 mm |
| Reach | 381 mm | 381 mm | 381 mm |
| Top Tube Length | 599 mm | 605 mm | 617 mm |
| Seat Tube Angle | 70.5 ° | 70 ° | 70 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 160 mm | 160 mm | 180 mm |
| Chainstay Length | 500 mm | 500 mm | 500 mm |
| Wheelbase | 1146 mm | 1146 mm | 1158 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 810 mm | 837 mm | 871 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
Model Overview
District+ 1 is part of the Trek E Districtplus model. Trek released 47 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Trek District+ 1 Midstep 2020 is the cheapest e-bike model and costs 2760$. Trek District+ 1 Lowstep 2020 is the most expensive one and costs 2760$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Trek District+ 1 price was 2760$. Comparing the average cost of a Commuter e-bike to this one, you will see that District+ 1 price is 7.43% more expensive.
Average weight for Commuter e-bikes
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably lighter than average, District+ 1 has a weight of 22.1 kg (48.72 lbs). In other words, this model is 14.03% lighter than the average Commuter e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Wheels size
The wheels on District+ 1 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The District+ 1 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 197 cm (5.41 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
