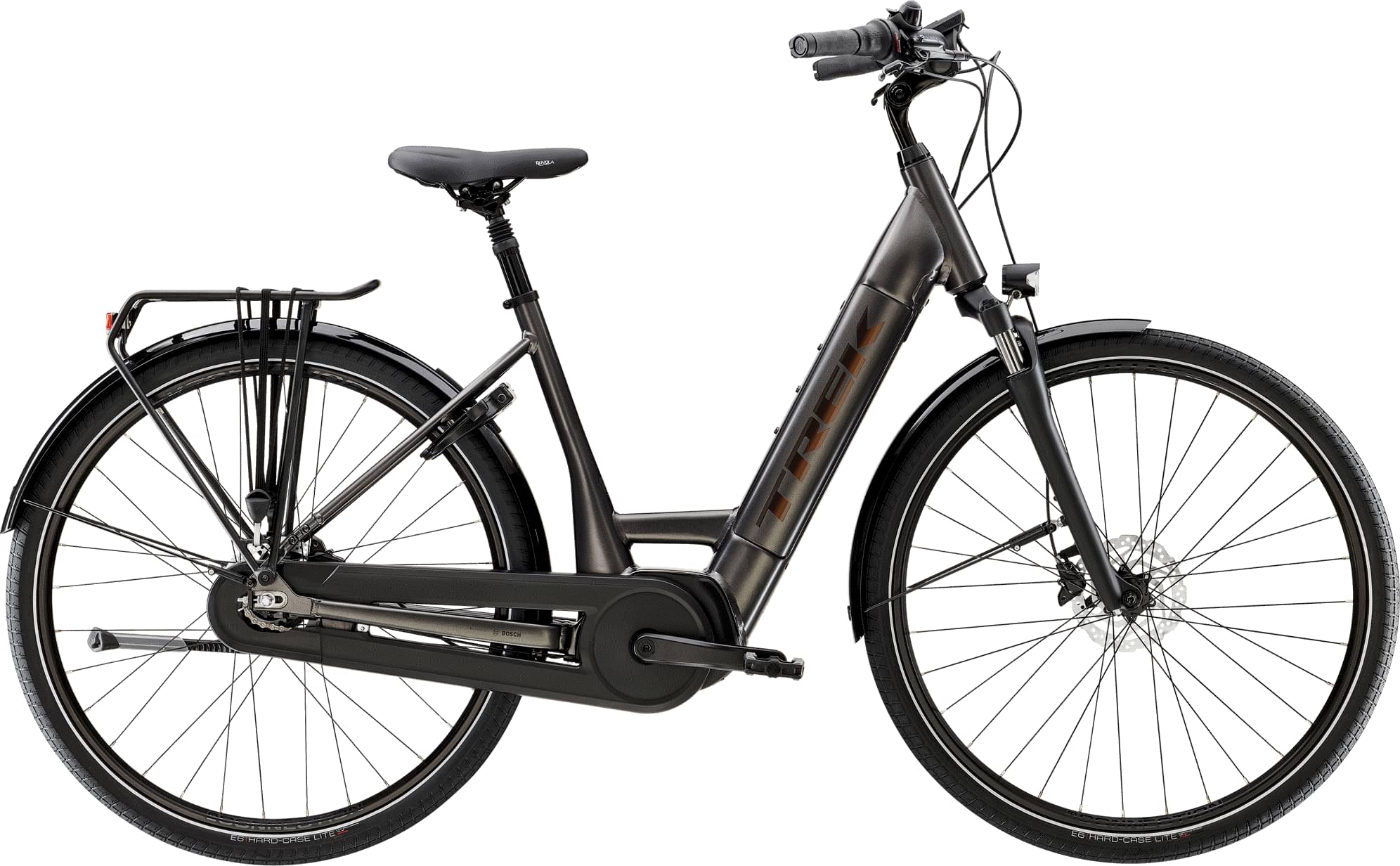

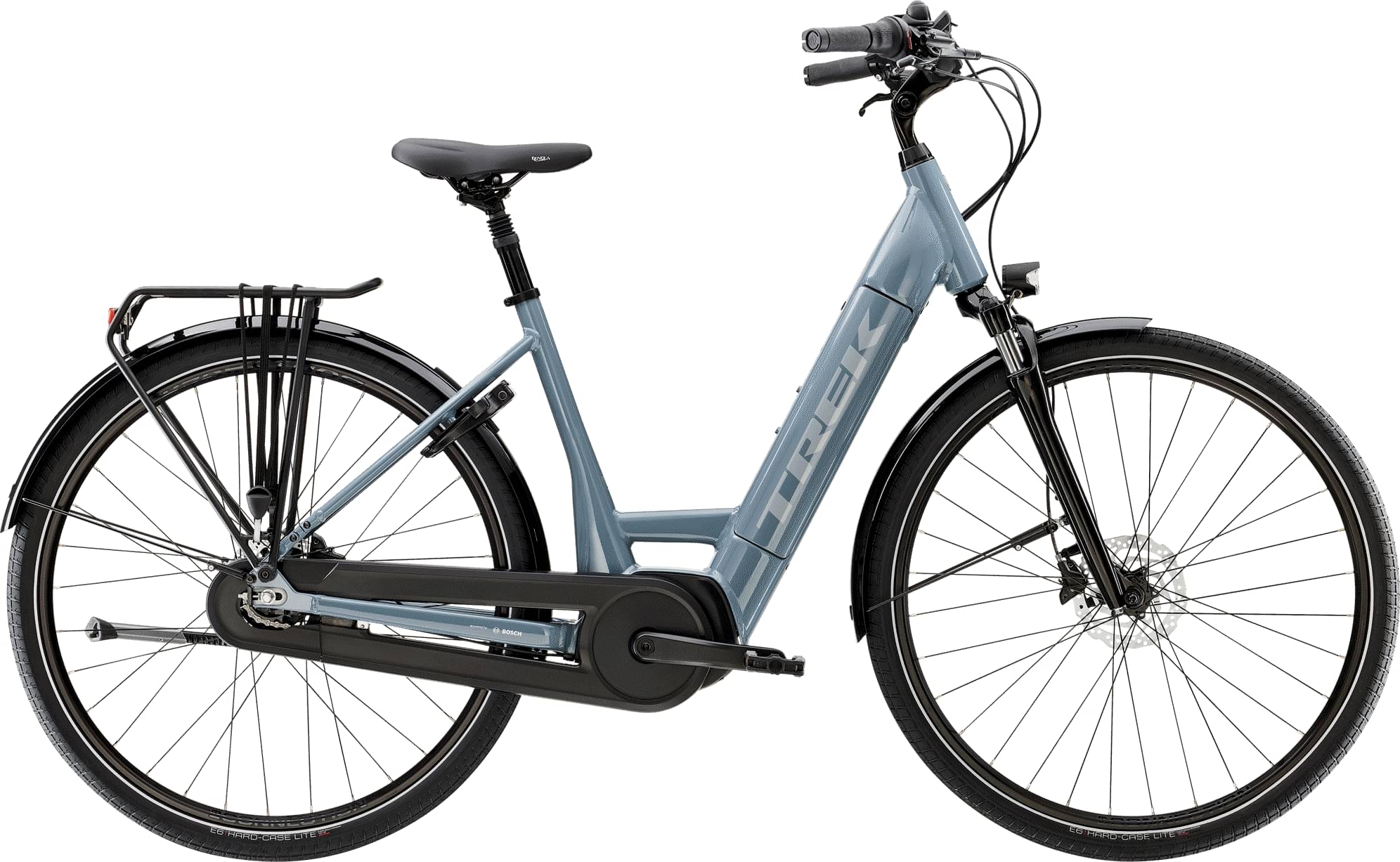

Trek District+ 3 Lowstep 2023
2023 E-bike
Estimate price |
3,847$
Weight | 24.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 400 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour NEX, coil spring, preload, 50 mm travel, 100x5 mm QR
Drivetrain
Shift Levers
Shimano Nexus Revo, 7-speed
Cassette
18T
Crank
ProWheel alloy, 170 mm
Chain
Shimano HG40, 6/7/8-speed
Pedals
slip-proof pedals with reflectors
Wheels
Front Hub
Alloy, CenterLock disc, 100 mm thru axle
Rear Hub
Shimano Nexus C3001, CenterLock, 7-speed
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 700x50c
Brakes
Brakes
Shimano MT200 hydraulic disc
Cockpit
Stem
Size: S, M, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, XL, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
Grips
Herrmans Clik, ergonomic, lock-on
Seat
Saddle
Selle Royal Nuvola
Seatpost
Alloy, suspension, 31.6 mm, 300 mm length
Motor & Battery
Motor
Bosch Active Line Plus, 250 watt, 50 Nm, 25 km/h (15.5 mph), 32 km/h for New Zealand
Battery
Bosch PowerTube 400
Charger
Bosch compact 2A, 100–240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.7 mm | 1.73 mm | 1.75 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 641 mm | 653 mm | 665 mm | 678 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 630 mm | 649 mm | 667 mm | 686 mm |
| Reach | 376 mm | 381 mm | 386 mm | 391 mm |
| Top Tube Length | 597 mm | 609 mm | 627 mm | 638 mm |
| Seat Tube Angle | 70.5 ° | 70.5 ° | 70 ° | 70 ° |
| Seat Tube Length | 440 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 508 mm | 508 mm | 508 mm | 508 mm |
| Wheelbase | 1140 mm | 1152 mm | 1164 mm | 1177 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
About this model
District+ 3 Lowstep completes the Trek E Districtplus model. 47 e-bikes variations carry this model name so far. You can easily view all of the Trek E Districtplus e-bikes models from 2023, here.
Model range prices
Trek District+ 1 Midstep 2023 is the most affordable e-bike of this model and has a price of 2585$. On the other hand, Trek District+ 5 Lowstep 2023, is the most expensive and costs 5413$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 3497$. If we compare this with the average Commuter e-bike cost we notice that the price is 36.12% higher.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 24.02 kg (52.95 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 24.1 kg (53.13 lbs), Trek e-bike is slightly heavier than average. To sum up, it’s 0.33% heavier than the average weight of Commuter e-bikes.
District+ 3 Lowstep components
Fork
The District+ 3 Lowstep comes factory-installed with the Suntour NEX fork. This has a travel range of 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Trek District+ 3 Lowstep 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 155 cm – 197 cm (5.09 ft – 6.46 ft). In conclusion, it won’t take much to find one that’s right for you.
