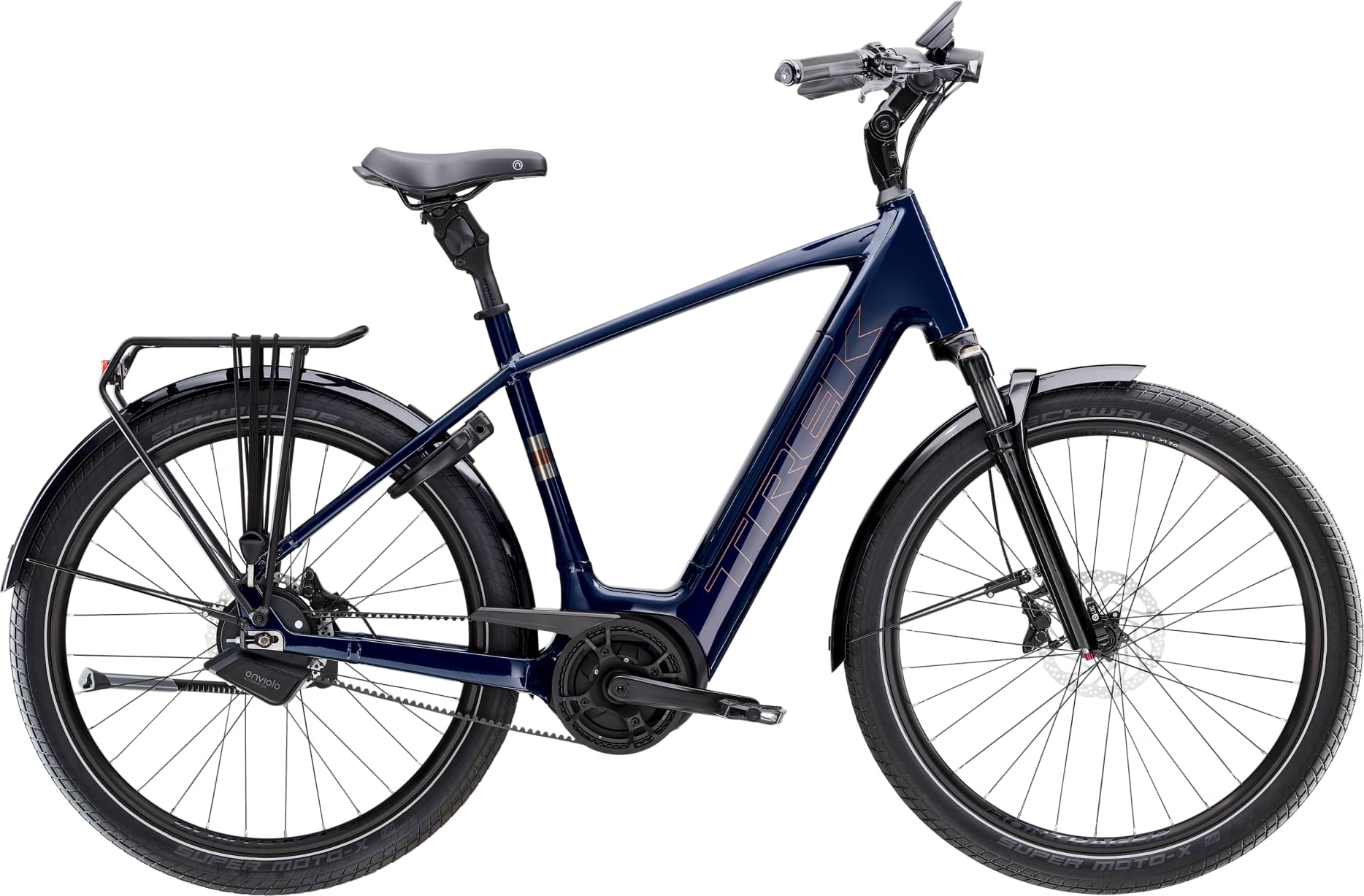

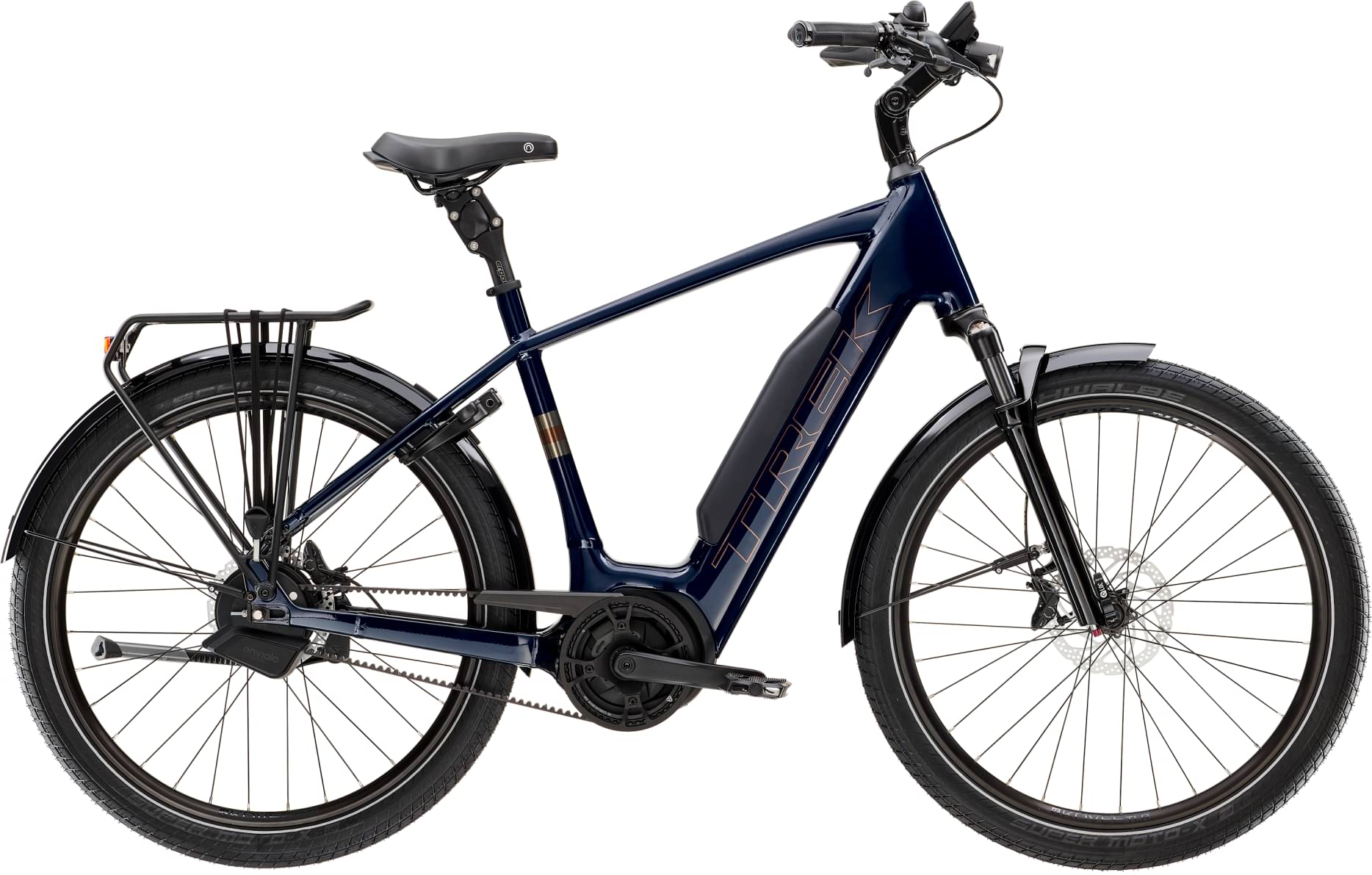

Trek District+ 5 2024
2024 E-bike
Estimate price |
6,283$
Weight | 27.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork Suntour MOBIE
-
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, Removable Integrated Battery, internal cable routing, Motor Armour, post-mount disc
Suspension Fork
SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15 mm thru axle, 60 mm travel
Drivetrain
Shift Levers
Enviolo Automatic Controller
Cassette
Gates CDX, 22 T, steel
Crank
ProWheel alloy, 175 mm length
Pedals
Bontrager City pedals
Wheels
Front Hub
Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle
Rear Hub
Enviolo Trekking, 32-hole, 6-bolt disc, 44T
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Schwalbe Super Moto-X, reflective, wire bead, GreenGuard protection, 650x62 mm
Brakes
Brakes
Size: L, XL, XXL, Shimano MT401/MT410 hydraulic disc; Size: L, XL, XXL, Shimano MT401 / MT420 hydraulic disc
Cockpit
Stem
Alloy adjustable stem, 110 mm length
Handlebar
Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Selle Royal ON relaxed
Seatpost
Ergotec PM705-N suspension
Motor & Battery
Motor
Bosch Performance Line Cruise, 250 W, 75 Nm, 20 mph (25 km/h in Europe)
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 55cm | 60cm | 65cm |
|---|---|---|---|
| Stack Reach Ratio | 1.758 mm | 1.782 mm | 1.759 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm |
| Front Center | 673 mm | 685 mm | 690 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 95 mm | 95 mm | 95 mm |
| Stack | 668 mm | 686 mm | 686 mm |
| Reach | 380 mm | 385 mm | 390 mm |
| Top Tube Length | 610 mm | 621 mm | 626 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 550 mm | 600 mm | 650 |
| Head Tube Angle | 68.2 ° | 68.2 ° | 68.2 ° |
| Head Tube Length | 200 mm | 220 mm | 220 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1152 mm | 1165 mm | 1170 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 853 mm | 887 mm | 911 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
District+ 5 is a Trek E Districtplus model. There are 49 e-bikes that carry this model name. You can easily view all of the Trek E Districtplus e-bikes models from 2024, here.
Model range prices
Trek District+ 4 Lowstep 2024 is the most economical model, with a starting price of 4506$. Trek District+ 5 Lowstep 2024 on the other hand costs 5718$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Trek released this model in 2024, its price was 5718$. Comparing this to the average Commuter e-bike price, we see that the price is 122.58% higher.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Trek District+ 5 it’s weighing 27.1 kg (59.75 lbs). At this weight, is a bit heavier than average. In conclusion, the average Commuter e-bike weighs 7.54% less than District+ 5.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 60mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Trek District+ 5 2024, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The District+ 5 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
