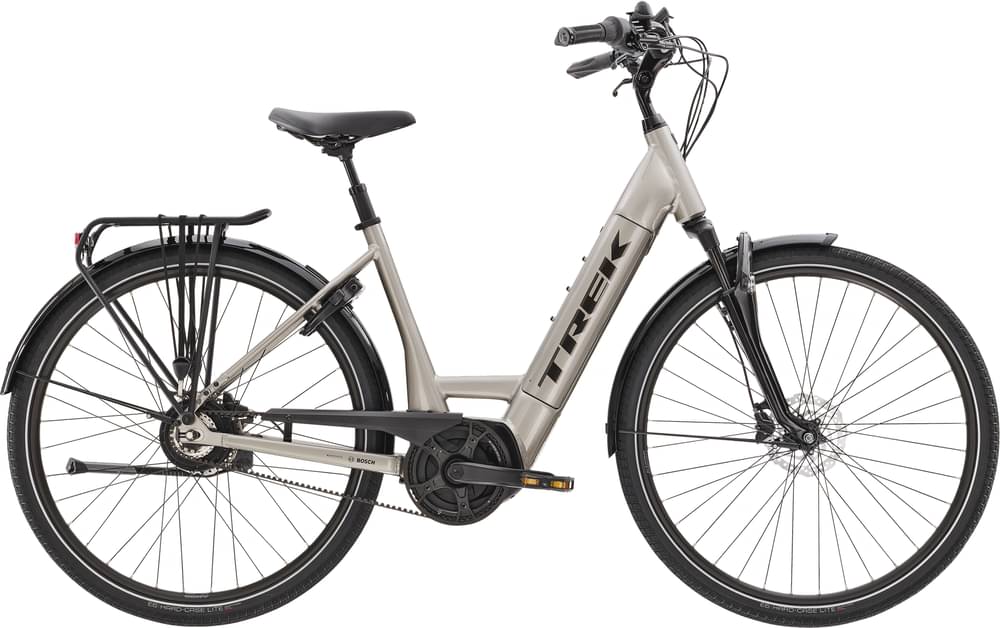

Trek District+ 9 Lowstep 2022
2022 E-bike
Estimate price |
5,103$
Weight | 25.55 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 40mm -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, vertical, 500 wh -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size: S, M, L, XL, High-performance hydroformed alloy, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR; Size: S, M, L, XL, High-performance hydroformed alloy, internal cable routing, Motor Armour, post-mount disc, 135x5 mm QR; Size: S, M, L, XL, Alpha Smooth Aluminium, with Removable Integrated Battery (RIB)
Suspension Fork
Forklight 3.0 with integrated 50LUX lighting, 40 mm travel
Drivetrain
Shift Levers
Enviolo Trekking manual twist shifter
Cassette
Gates CDX, 26T
Crank
ProWheel alloy, 38T steel ring, 170 mm length
Wheels
Front Hub
Alloy, CenterLock disc, 100 mm thru axle
Rear Hub
Size: S, M, L, XL, Enviolo Trekking, 36-hole, 6-bolt disc, 44T; Size: S, M, L, XL, Enviolo Trekking CVT rear hub, 380% range, 32 h
Rims
Alex Rims DP23, alloy, 36-hole, presta valve
Spokes
Stainless steel black
Tires
Bontrager E6 Hard-Case Lite, reflective, wire bead, 60 tpi, 700x50c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Size: S, M, L, XL, Shimano RT26, 6-bolt,160 mm; Size: S, M, L, XL, Shimano RT10, CenterLock, 160 mm
Cockpit
Stem
Size: S, M, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, XL, Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Size: S, M, L, XL, Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width; Size: S, M, L, XL, Aluminium comfort
Grips
Bontrager Satellite Elite, alloy lock-on
Seat
Saddle
Bontrager Boulevard
Seatpost
Comfort suspension, 31.6 mm
Motor & Battery
Motor
Bosch Performance Line Cruise, 250 watt, 65Nm, 25 km/h
Battery
Bosch PowerTube, vertical, 500 wh
Charger
Bosch standard 4A (220-240 V) charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.7 mm | 1.73 mm | 1.75 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 641 mm | 653 mm | 665 mm | 678 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 630 mm | 649 mm | 667 mm | 686 mm |
| Reach | 376 mm | 381 mm | 386 mm | 391 mm |
| Top Tube Length | 597 mm | 609 mm | 627 mm | 638 mm |
| Seat Tube Angle | 70.5 ° | 70.5 ° | 70 ° | 70 ° |
| Seat Tube Length | 440 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 508 mm | 508 mm | 508 mm | 508 mm |
| Wheelbase | 1140 mm | 1152 mm | 1164 mm | 1177 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
About this model
District+ 9 Lowstep is a Trek E Districtplus model. 47 e-bikes variations carry this model name so far. You can easily view all of the Trek E Districtplus e-bikes models from 2022, here.
Model range prices
Trek District+ 6 Lowstep 400Wh 2022 is the most economical model, with a starting price of 3041$. Trek District+ 9 2022 on the other hand costs 4724$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 4724$. Doing a quick comparison, we notice that District+ 9 Lowstep price is 83.88% more expensive than the average cost of a Commuter e-bike.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 25.55 kg (56.33 lbs), Trek e-bike is slightly heavier than average. To sum up, it’s 1.39% heavier than the average weight of Commuter e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Wheels size
When it comes to wheels, the District+ 9 Lowstep e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The District+ 9 Lowstep comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
District+ 9 Lowstep comes in 4 sizes, that range from 155 cm – 197 cm (5.09 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
