Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
400 Series OCLV Carbon, IsoSpeed, disc balanced post mount, 142x12 Closed Convert dropout, vanishing fender mounts, E2, BB90, 3S chain keeper, DuoTrap compatible
Suspension Fork
Trek IsoSpeed carbon disc, E2, 15mm thru-axle
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora, braze-on
Shift Levers
Shimano Sora, 9 speed
Cassette
Shimano HG50 11-32, 9 speed
Crank
Shimano Sora, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Tires
Bontrager R1 Hard-Case Lite, 700x25c
Brakes
Brakes
TRP HY/RD cable/hydro disc, 160mm rotors
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Blade VR-C, 31.8mm
Headset
Integrated, cartridge bearings, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm 1
Seatpost
Bontrager Alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

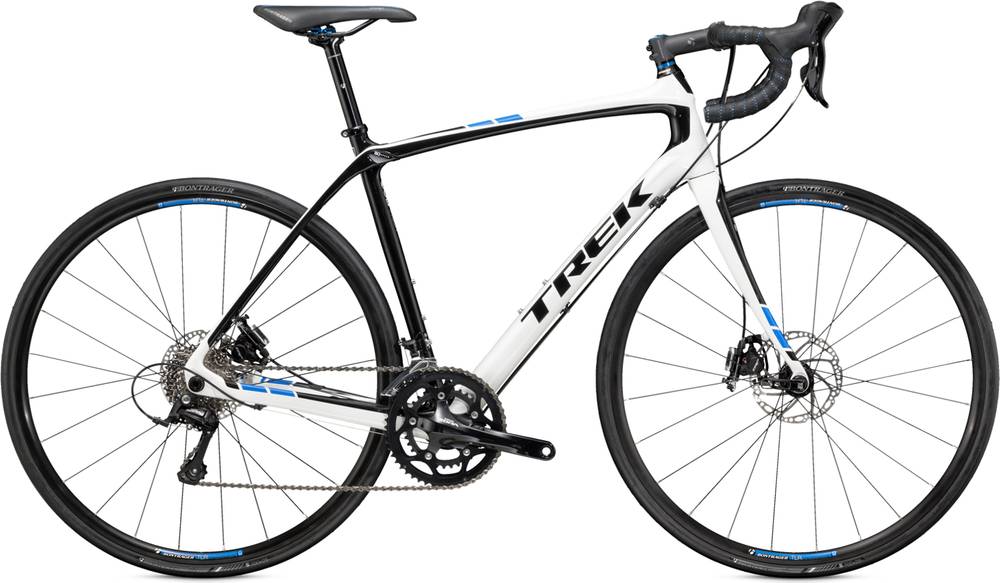

Domane 4.0 Disc Compact completes the Trek Domane model. Trek released 316 bikes variations of this model so far. You can easily view all of the Trek Domane bikes models from 2015, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Domane 4.0 Disc Compact model has 700c wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
