Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
400 Series OCLV Carbon, E2, BB90, 3S chain keeper, DuoTrap compatible, IsoSpeed
Suspension Fork
Trek IsoSpeed carbon, E2
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 11 speed
Cassette
Shimano 105 11-32, 11 speed
Crank
Shimano RS500, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Tires
Bontrager R1 Hard-Case Lite, 700x25c
Brakes
Brakes
Alloy dual-pivot
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Blade VR-C, 31.8mm
Headset
Integrated, cartridge bearings, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm 1
Seatpost
Bontrager Carbon, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model

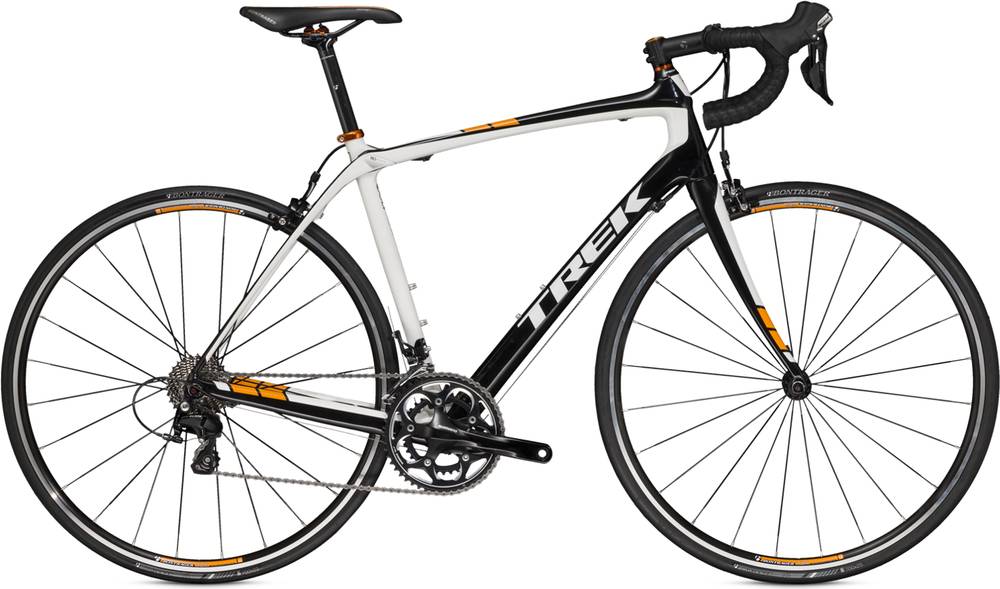

Domane 4.3 Compact belongs to the Trek Domane model. Trek released 316 bikes variations of this model so far. Take a sneak peek at all Trek Domane bikes models from 2015, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Domane 4.3 Compact model has 700c wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Domane 4.3 Compact comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Trek Domane 4.3 Compact bike has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
