Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
400 Series OCLV Carbon, IsoSpeed, disc balanced post mount, 142x12 Closed Convert dropout, vanishing fender mounts, E2, BB90, 3S chain keeper, DuoTrap compatible
Suspension Fork
Trek IsoSpeed carbon disc, E2, 15mm thru-axle
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 11 speed
Cassette
Shimano 105 11-32, 11 speed
Crank
Shimano RS500, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Tires
Bontrager R1 Hard-Case Lite, 700x25c
Brakes
Brakes
TRP HY/RD cable/hydro disc, 160mm rotors
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Blade VR-C, 31.8mm
Headset
Integrated, cartridge bearings, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm 1
Seatpost
Bontrager Carbon, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

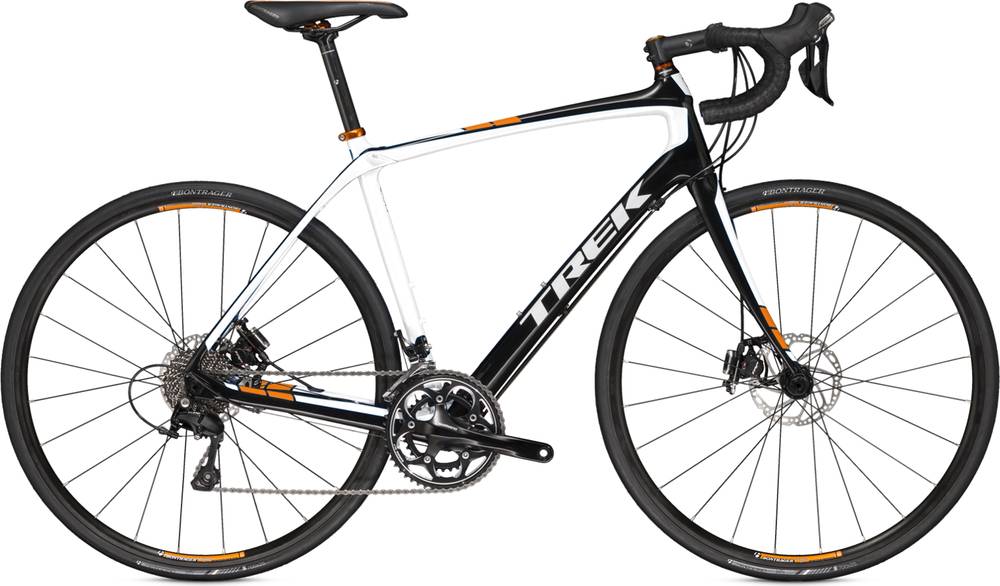

Domane 4.3 Disc Compact completes the Trek Domane model. 316 bikes variations carry this model name so far. You can easily view all of the Trek Domane bikes models from 2015, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Domane 4.3 Disc Compact 2015 bike is equipped with 700c wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Domane 4.3 Disc Compact has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
