Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
400 Series OCLV Carbon, IsoSpeed, Power Transfer Construction, disc balanced post mount, 142x12 Closed Convert dropout, hidden fender mounts, E2 tapered head tube, BB90, DuoTrap compatible, 3S chain keeper
Suspension Fork
Trek IsoSpeed carbon disc, 15mm thru-axle, E2 steerer
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano RS685 hydraulic, 11 speed
Cassette
Shimano 105, 11-32, 11 speed
Crank
Shimano RS500, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Affinity Comp Tubeless Ready, 15mm front hub, 142x12 rear hub
Tires
Bontrager R2 Hard-Case Lite, aramid bead, 700x25c
Brakes
Brakes
Shimano RS685 hydraulic disc, 160mm rotors
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/Blendr computer & light mounts
Handlebar
Bontrager Race Lite IsoZone, VR-CF, 31.8mm
Headset
FSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm R, hollow chromoly rails
Seatpost
Bontrager carbon, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

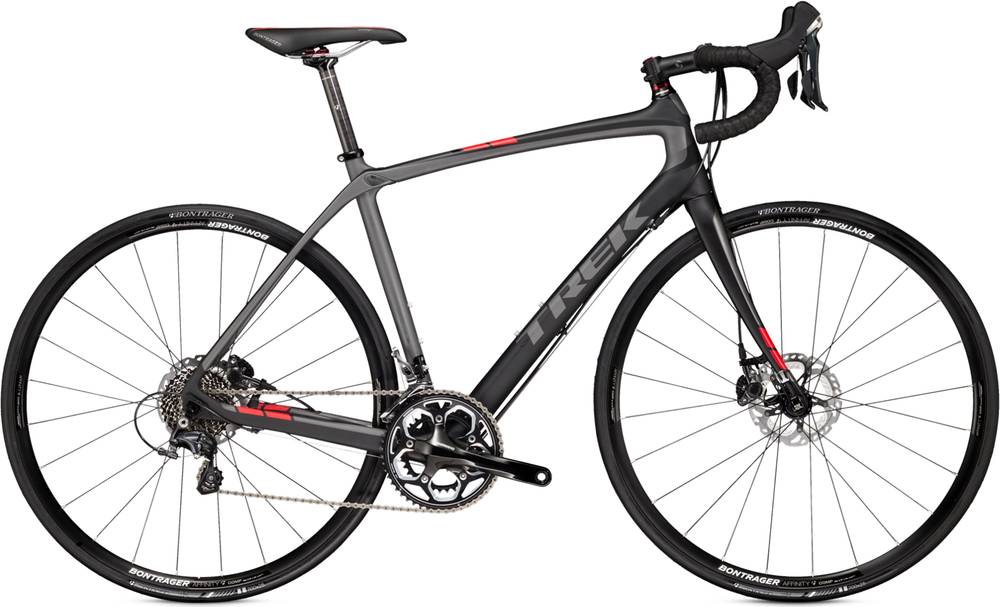

Domane 4.5 Disc Compact is a Trek Domane model. Trek released 316 bikes variations of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Domane 4.5 Disc Compact 2016 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Domane 4.5 Disc Compact is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
