Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, IsoSpeed, Ride Tuned seatmast, Power Transfer Construction, hidden fender mounts, E2 tapered head tube, BB90, performance cable routing, DuoTrap compatible, 3S chain keeper
Suspension Fork
Trek IsoSpeed full carbon, carbon E2 asymmetric steerer
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2
Front Derailleur
Shimano Dura-Ace Di2, braze-on
Shift Levers
Shimano Dura-Ace Di2, 11 speed
Cassette
Shimano Dura-Ace, 11-28, 11 speed
Crank
Shimano Dura-Ace, 50/34 (compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Aeolus 3 D3 Tubeless Ready
Tires
Bontrager R4 Hard-Case Lite, 220tpi, aramid bead, 700x25c
Brakes
Brakes
Shimano Dura-Ace
Cockpit
Stem
Bontrager XXX, OCLV Carbon, 31.8mm, 7 degree, w/Blendr computer & light mounts
Handlebar
Bontrager Race X Lite IsoZone, OCLV carbon, VR-CF, 31.8mm
Headset
Cane Creek IS-8 carbon, integrated, sealed cartridge bearings, 1-1/8 top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm XXX, carbon rails
Seatpost
Bontrager Ride Tuned carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

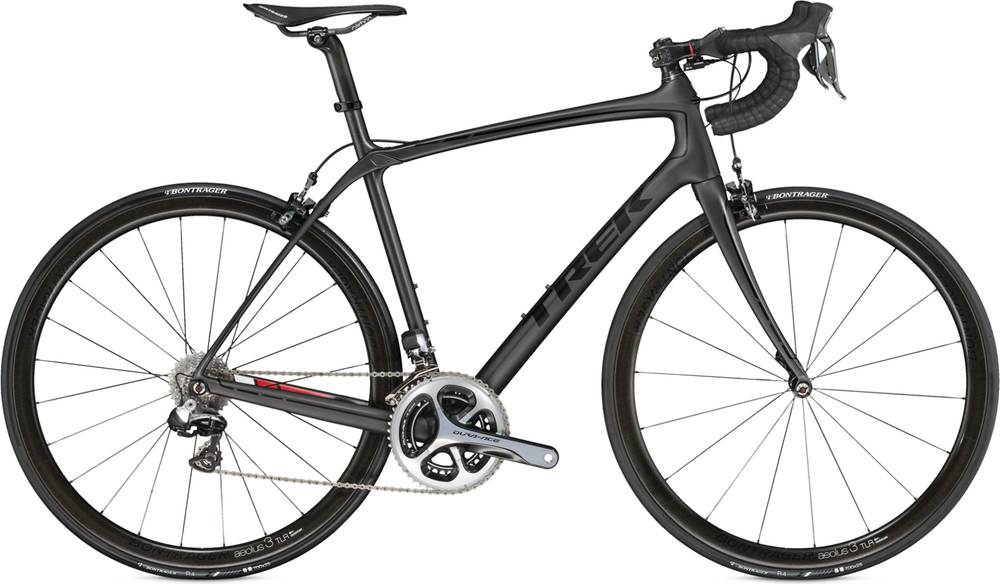

Domane 6.9 Compact belongs to the Trek Domane model. 316 bikes variations carry this model name so far. You can easily view all of the Trek Domane bikes models from 2016, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Domane 6.9 Compact components
Fork material
Domane 6.9 Compact has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Domane 6.9 Compact model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Trek Domane 6.9 Compact bike has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
