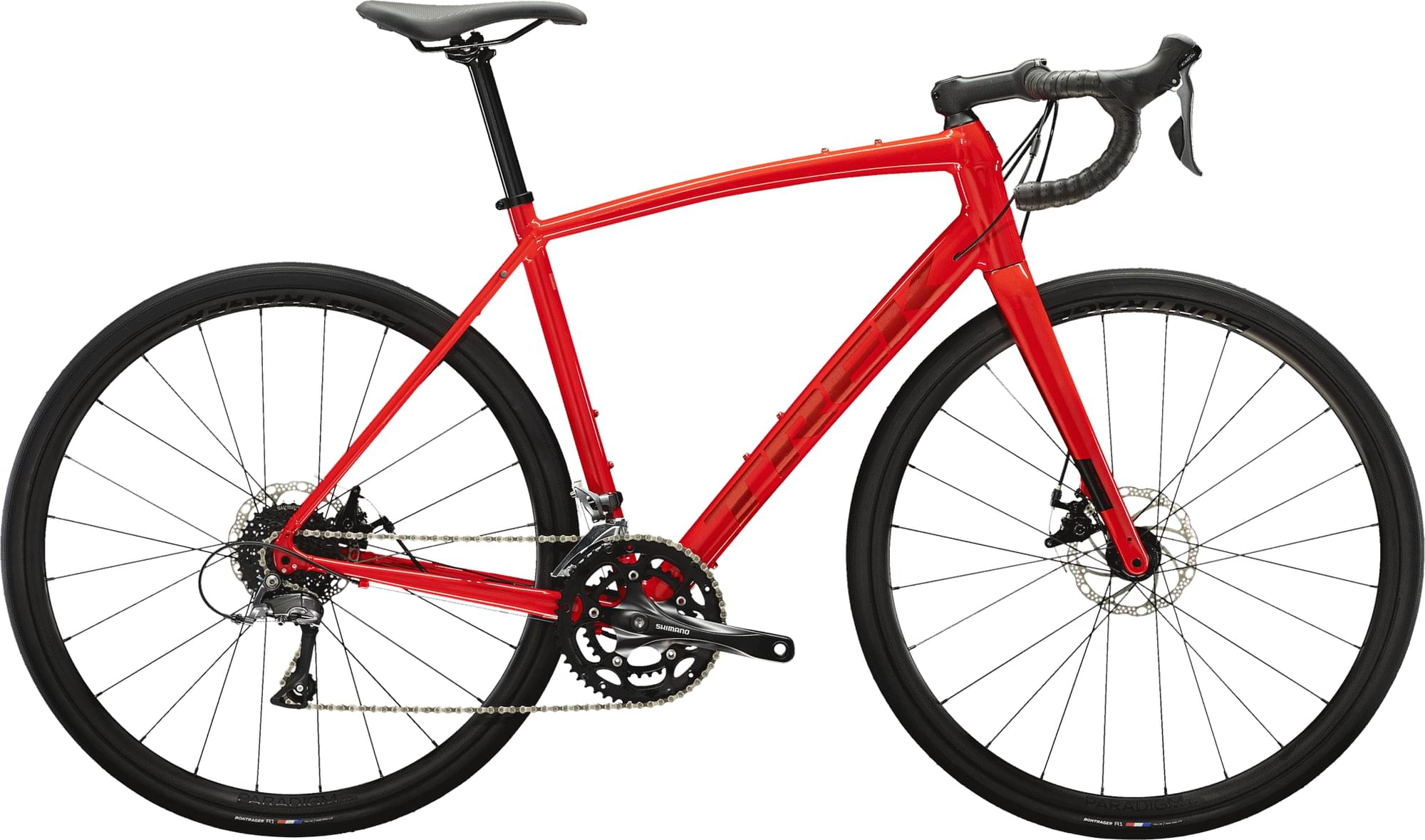

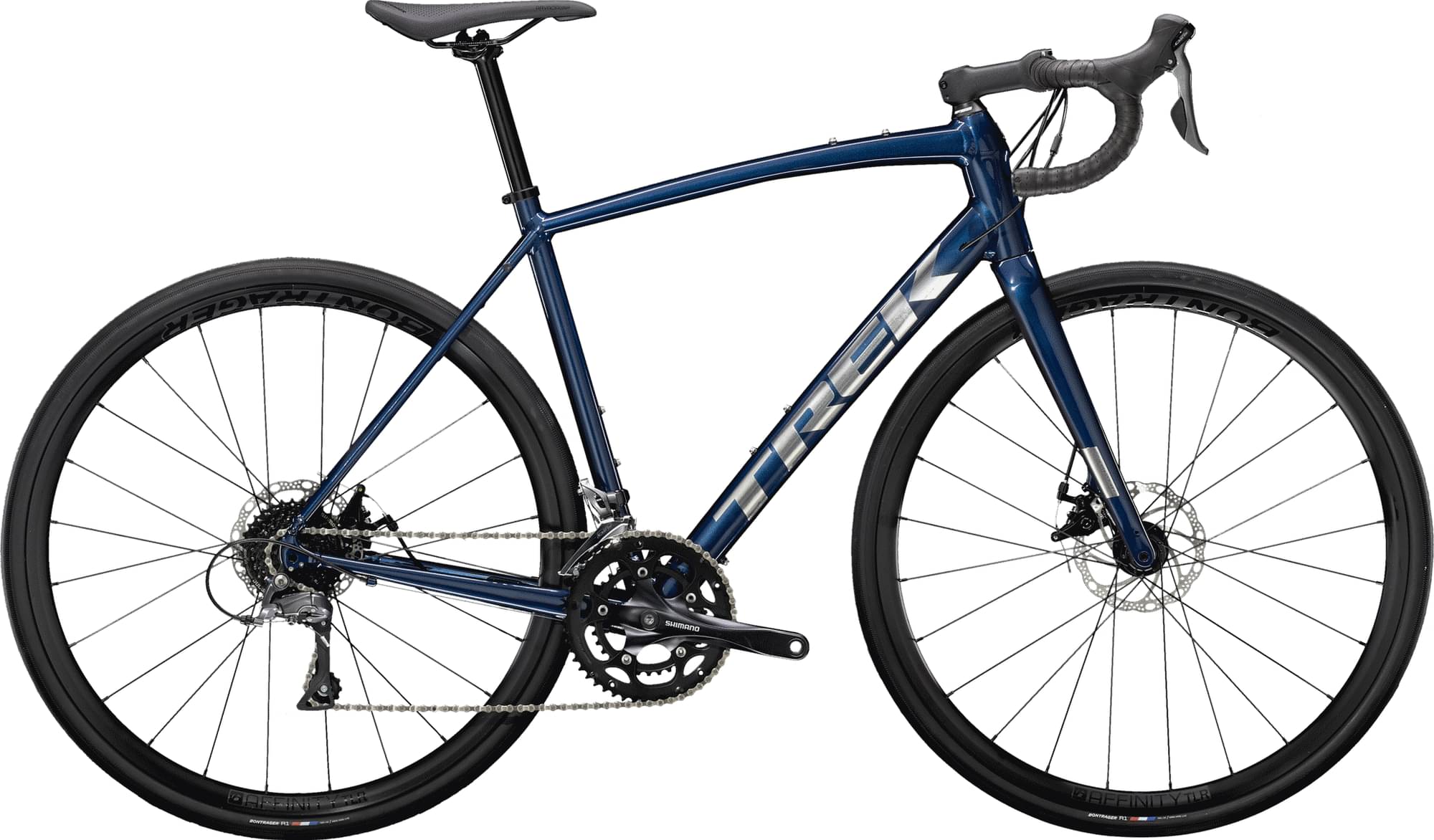

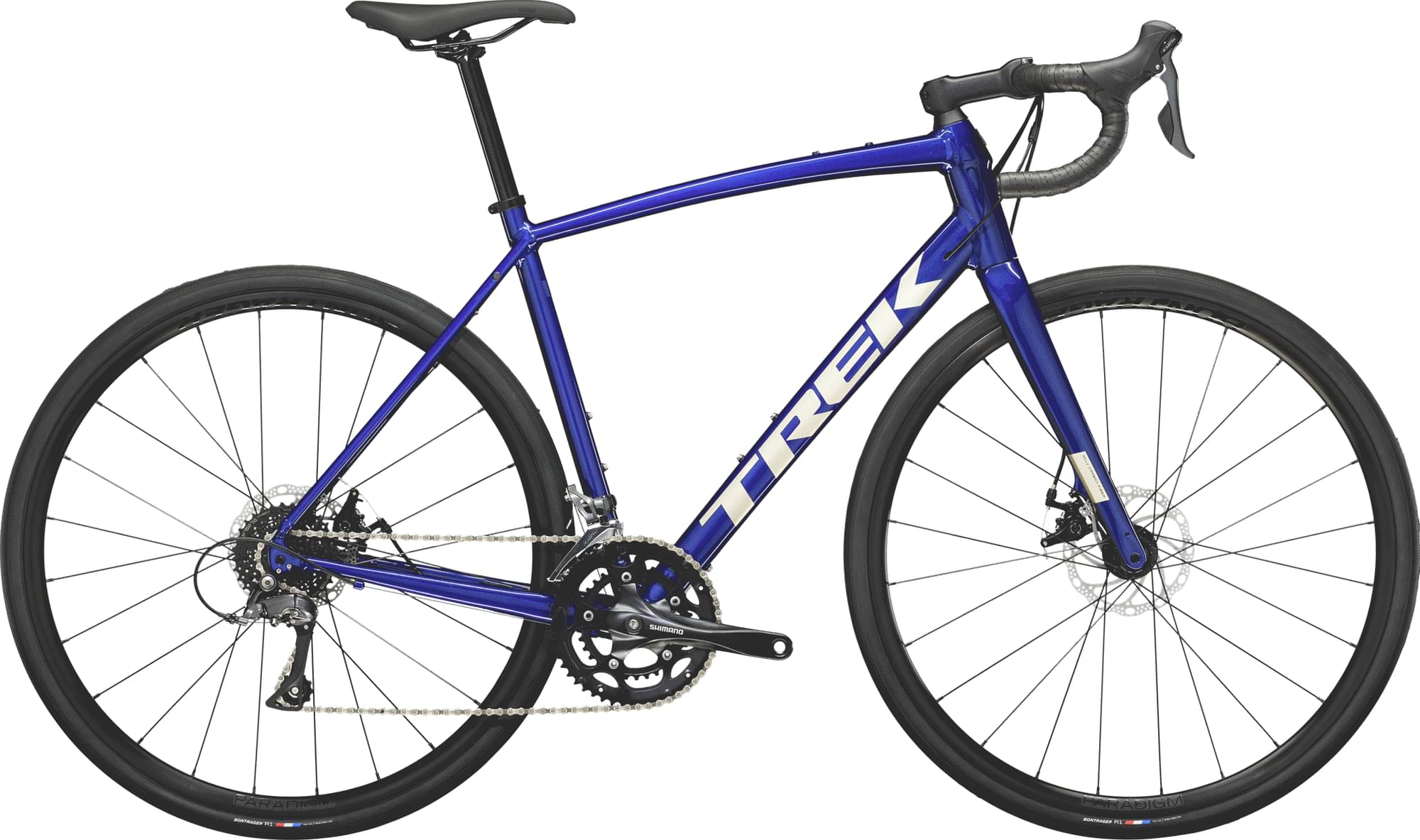

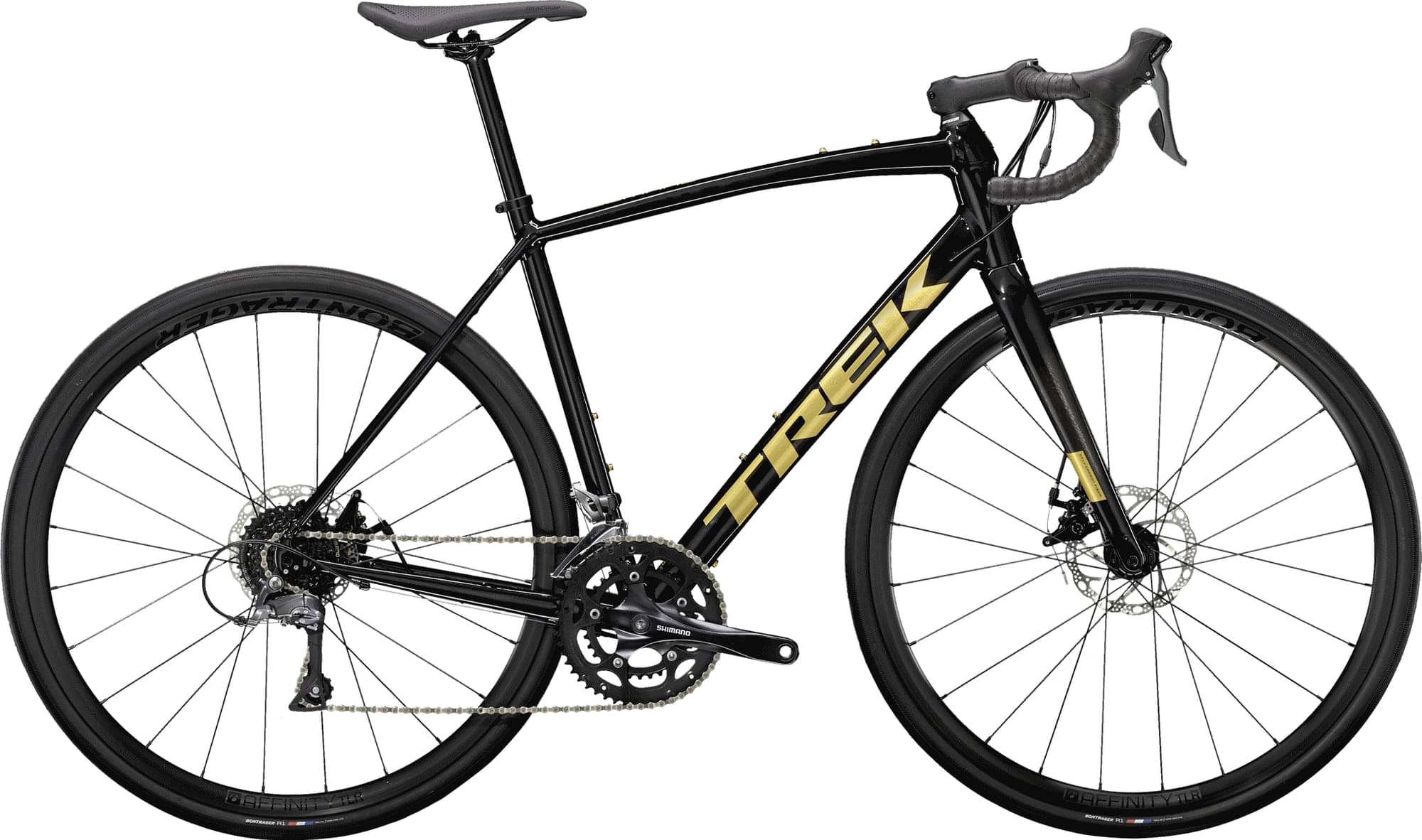

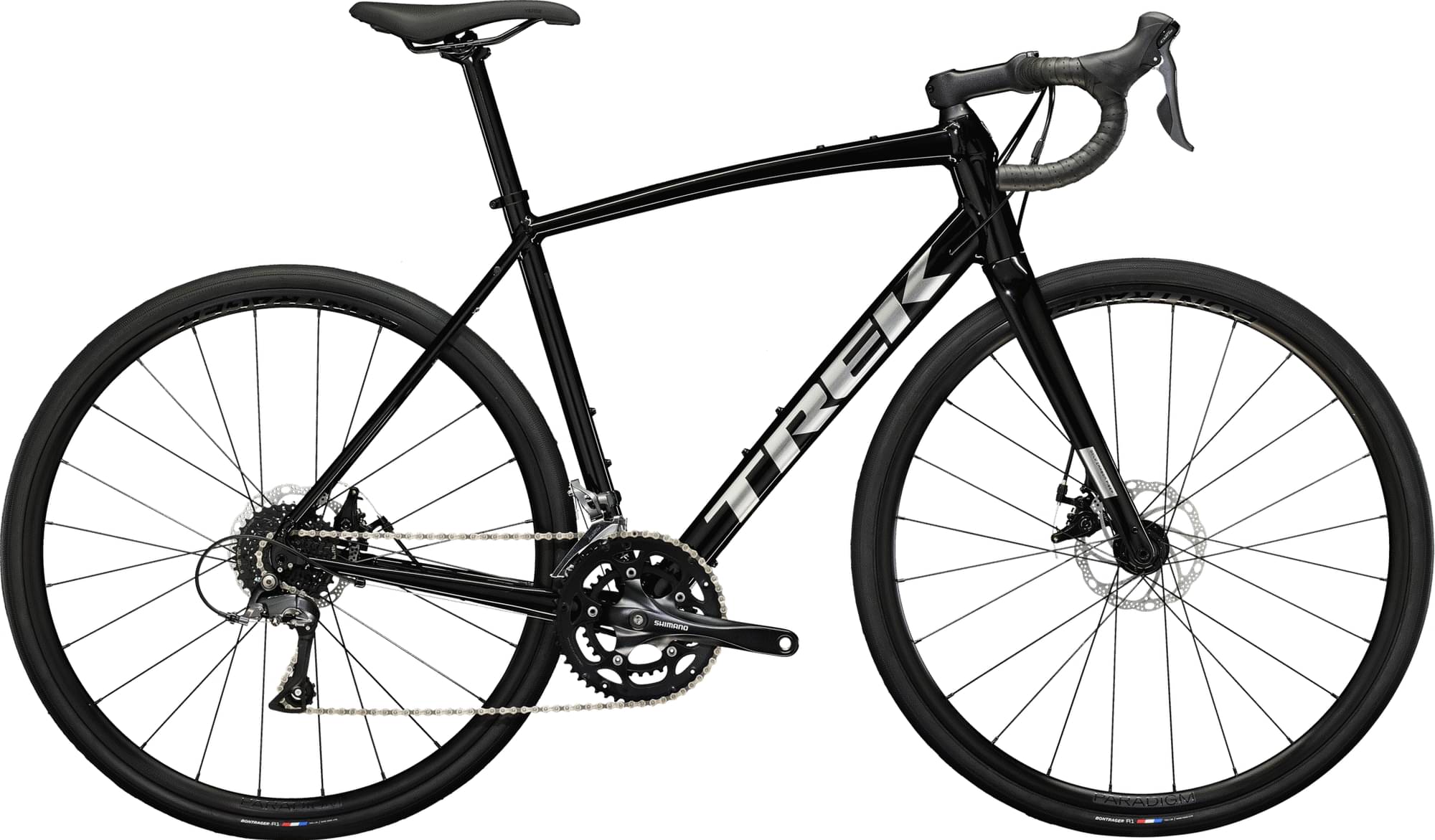

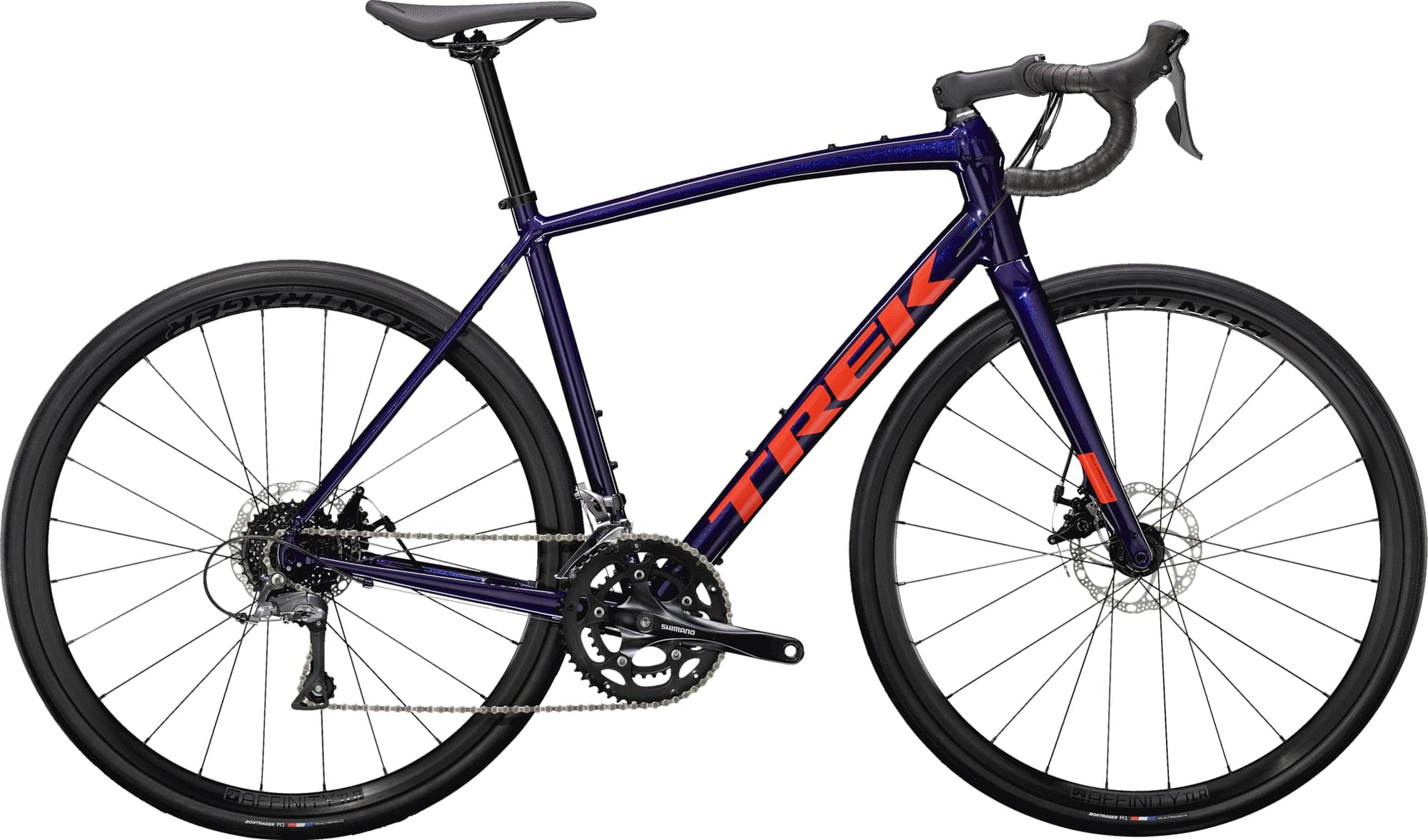

Trek Domane AL 2 Disc 2023
2023 Road
Estimate price |
1,199$
Weight | 10.76 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
49cm
156cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000, long cage, 34T max cog
Front Derailleur
Shimano Claris R2000, FD-R2000, 8-speed, 31.8mm clamp
Shift Levers
Size: 44, 49, 52, 54, 56, 58, 61, Shimano Claris ST-R2000-R, 8 speed, right; Size: 44, 49, 52, 54, 56, 58, 61, Shimano Claris ST-R2000-L, 8 speed, left
Cassette
Shimano HG31, CS-HG31, 11-32, 8 speed
Crank
Size: 44, Shimano RS200, 50/34 (compact), 165mm length; Size: 49, 52, 54, Shimano RS200, 50/34 (compact), 170mm length; Size: 56, 58, 61, Shimano RS200, 50/34 (compact), 175mm length
Bottom Bracket
Shimano UN30, 68mm, threaded cartridge, 110mm spindle
Chain
Shimano Sora HG71, 8 speed
Wheels
Front Hub
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Rear Hub
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Rims
Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, Presta valve; Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve; Size: 49, 52, 54, 56, 58, 61, Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes
14g stainless steel, black
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Brakes
Brakes
Tektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor
Cockpit
Stem
Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Size: 44, 49, 52, Bontrager Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.67 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm |
| Front Center | 589 mm | 596 mm | 603 mm | 610 mm | 609 mm | 624 mm |
| Rake | 52 mm | 54 mm | 53 mm | 58 mm | 49 mm | 48 mm |
| Trail | 66 mm | 59 mm | 59 mm | 61 mm | 60 mm | 63 mm |
| Stack | 546 mm | 567 mm | 581 mm | 597 mm | 617 mm | 652 mm |
| Reach | 374 mm | 377 mm | 380 mm | 383 mm | 386 mm | 391 mm |
| Top Tube Length | 522 mm | 536 mm | 548 mm | 560 mm | 573 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 440 mm | 475 mm | 500 mm | 525 mm | 548 mm | 576 mm |
| Head Tube Angle | 70.8 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° |
| Head Tube Length | 123 mm | 145 mm | 160 mm | 175 mm | 195 mm | 235 mm |
| Chainstay Length | 431 mm | 426 mm | 426 mm | 426 mm | 431 mm | 431 mm |
| Wheelbase | 1007 mm | 1009 mm | 1016 mm | 1024 mm | 1028 mm | 1044 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm |
| Standover Height | 723 mm | 741 mm | 760 mm | 782 mm | 802 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Domane AL 2 Disc is part of the Trek Domane model. There are 316 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Trek Domane AL 2 Gen 3 2023 has a starting price of 1099$. Trek Domane SLR 9 eTap Gen 4 2023 on the other hand is the most expensive at 13199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1199$. In conclusion, this bike price is 95.66% lower than the price of the average Endurance bike.
Endurance bikes average weight
Endurance bikes have an average weight of 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 10.76 kg (23.72 lbs), the Domane AL 2 Disc model is much heavier than average. In short, the average Endurance bike weight is 31.22% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Domane AL 2 Disc components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Domane AL 2 Disc bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Domane AL 2 Disc has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 156 cm – 191 cm (5.12 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
