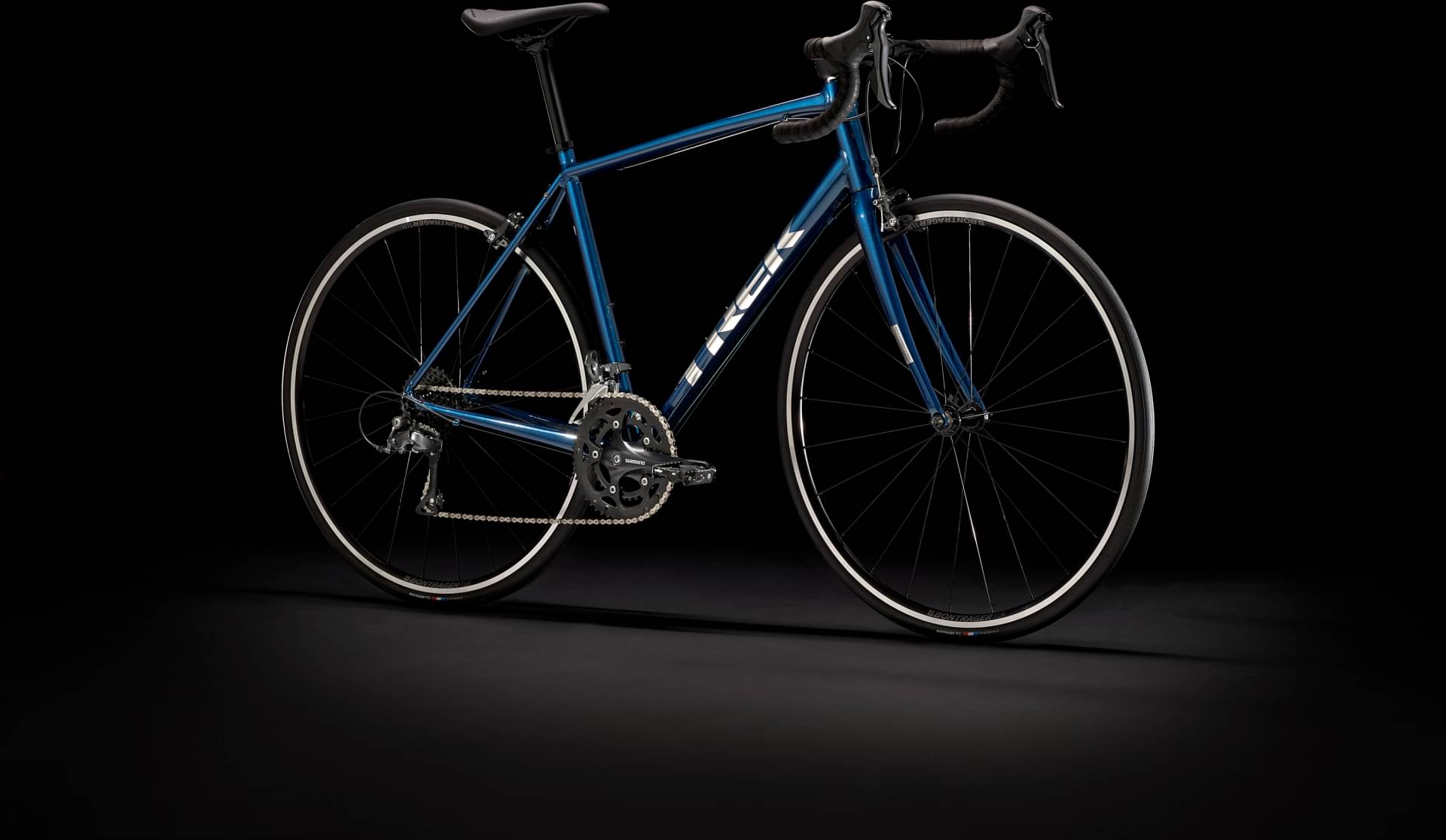

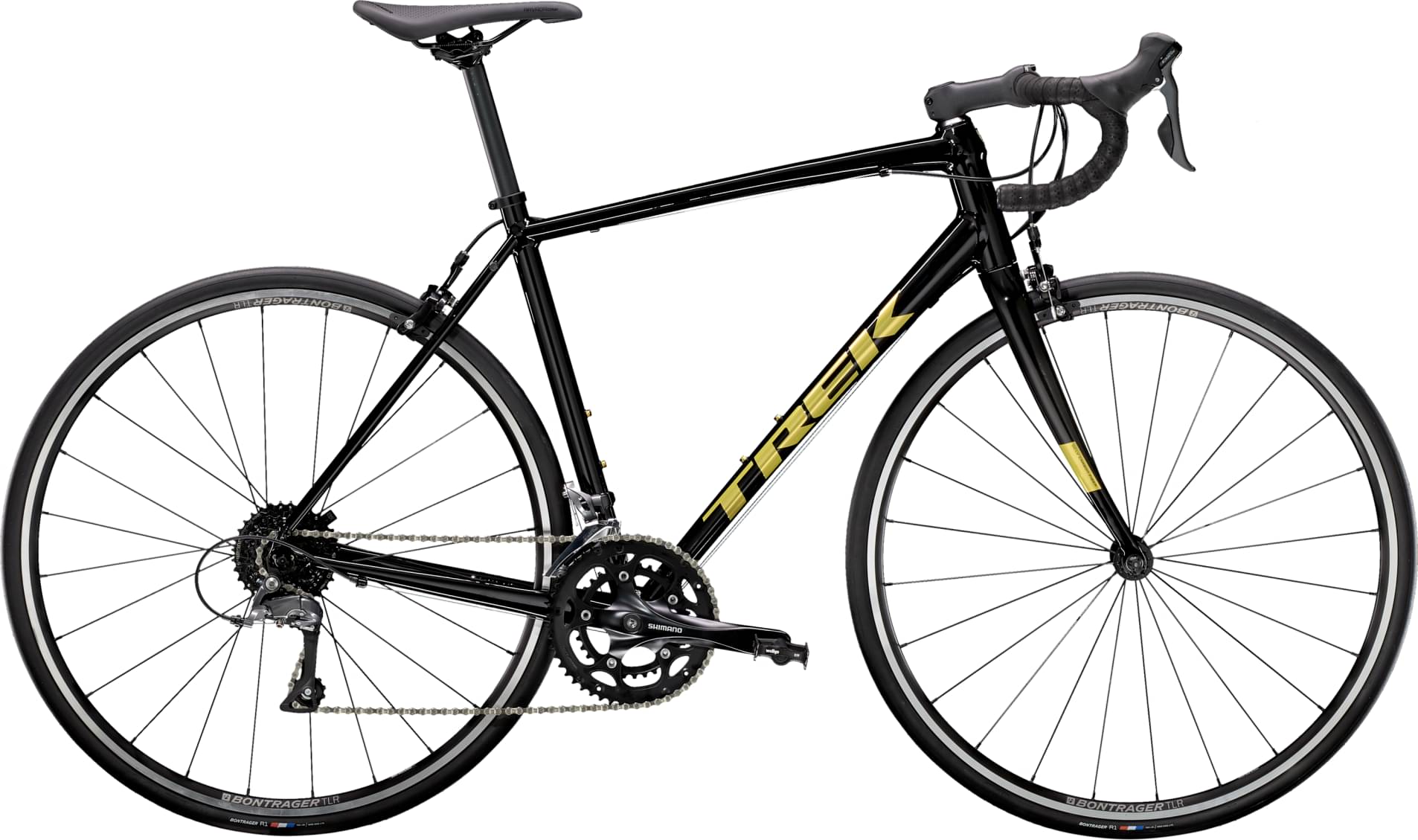

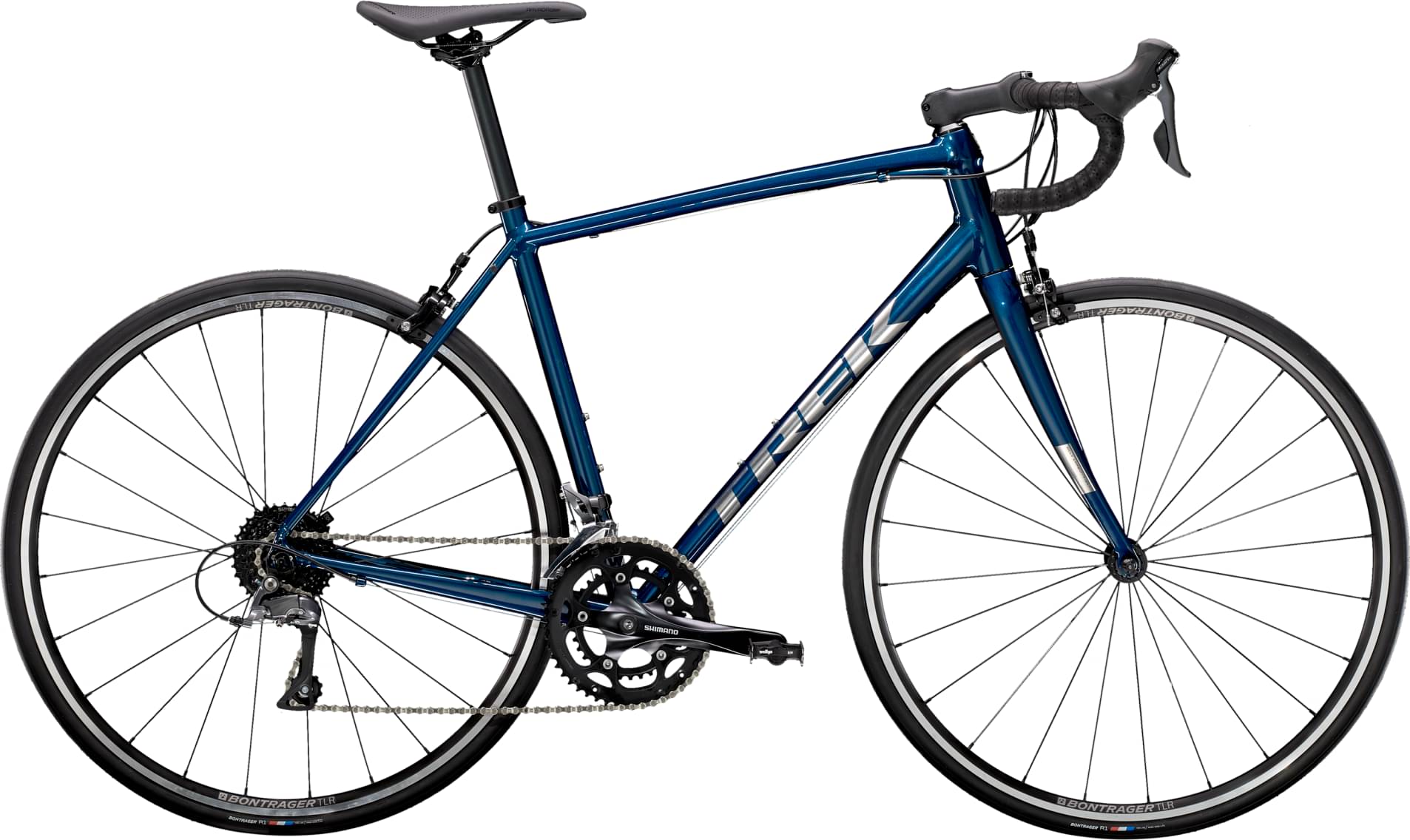

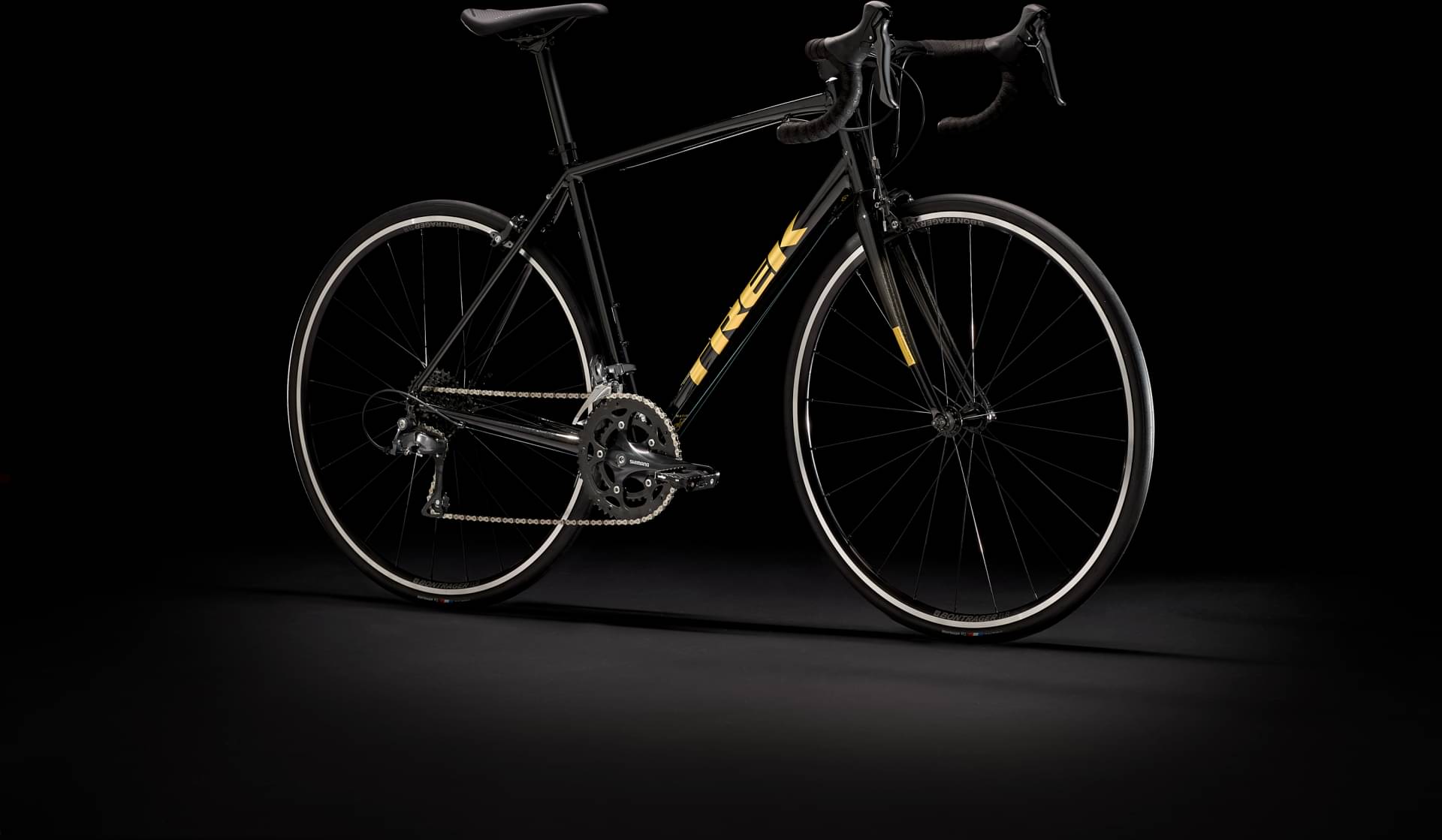

Trek Domane AL 2 Rim 2024
2024 Road
Estimate price |
999$
Weight | 9.57 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

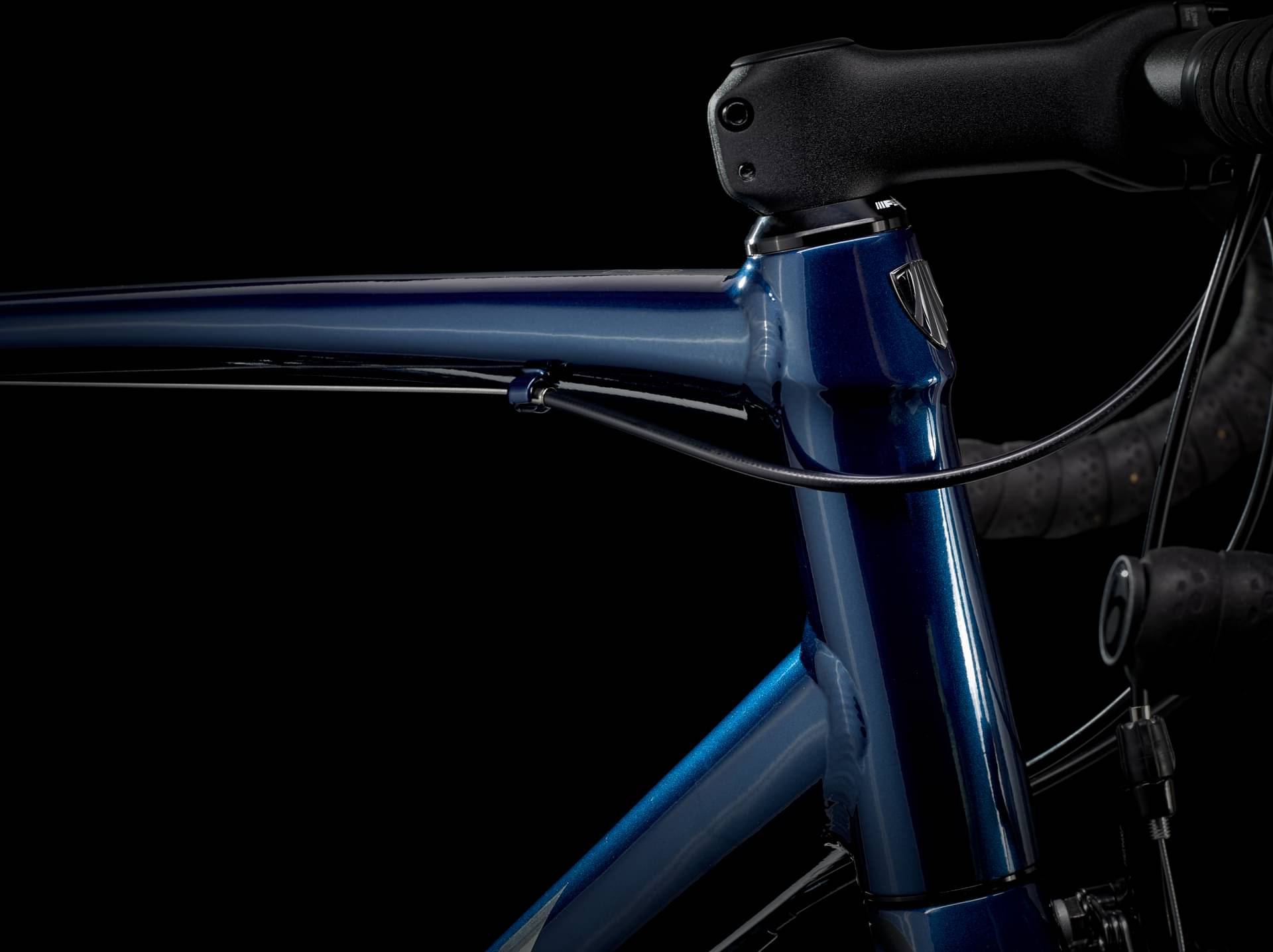

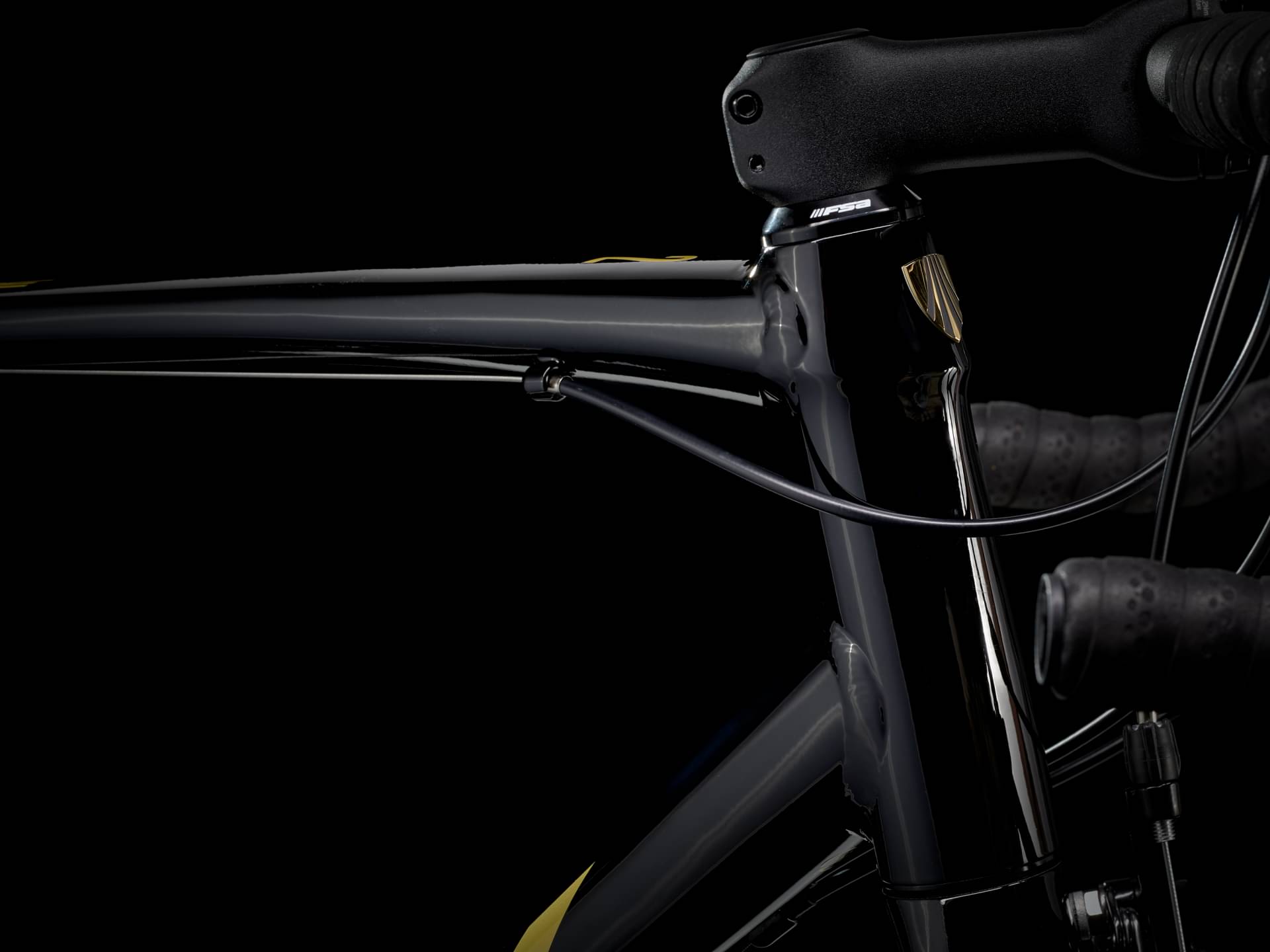

Frame
Frame

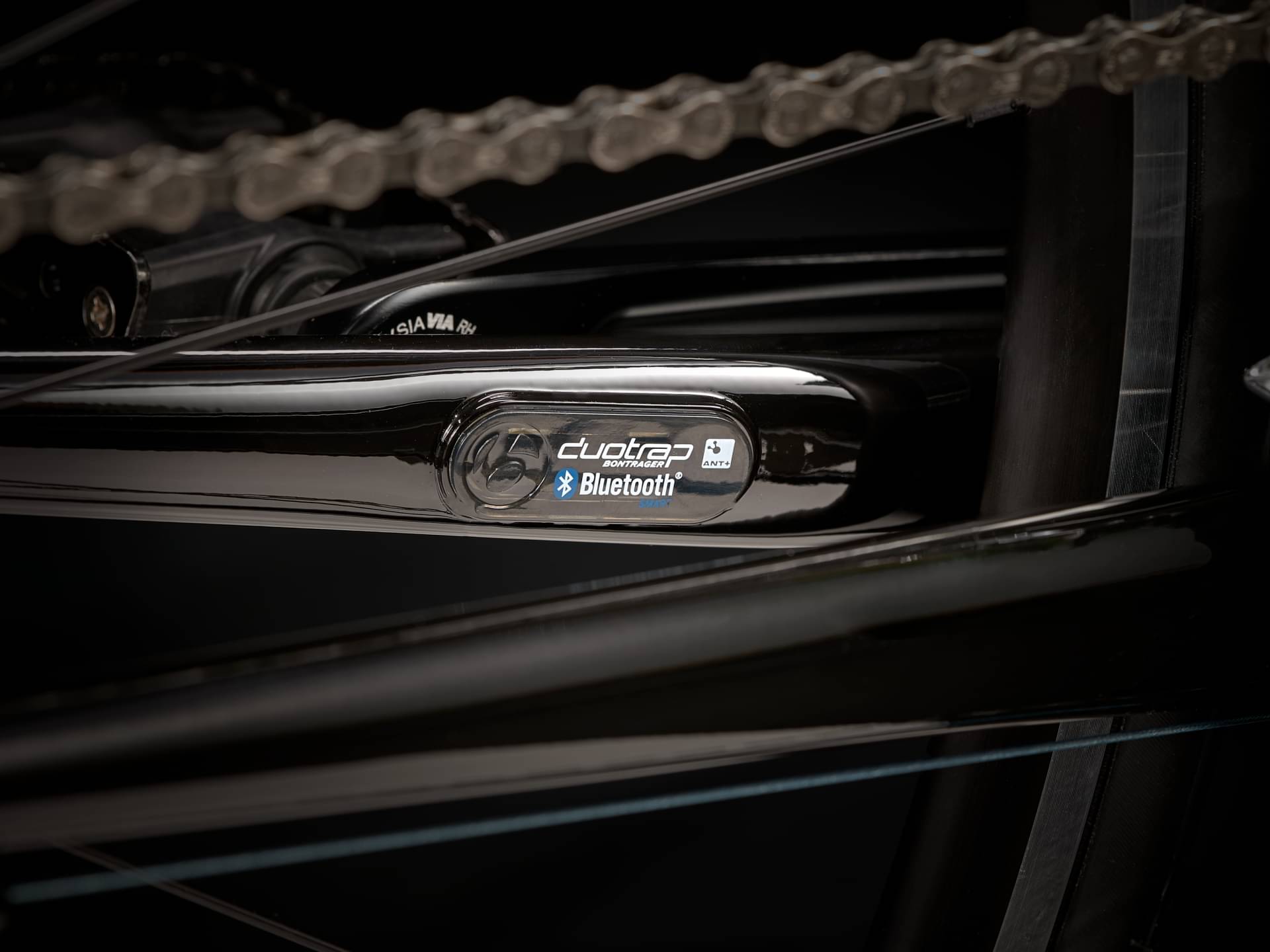

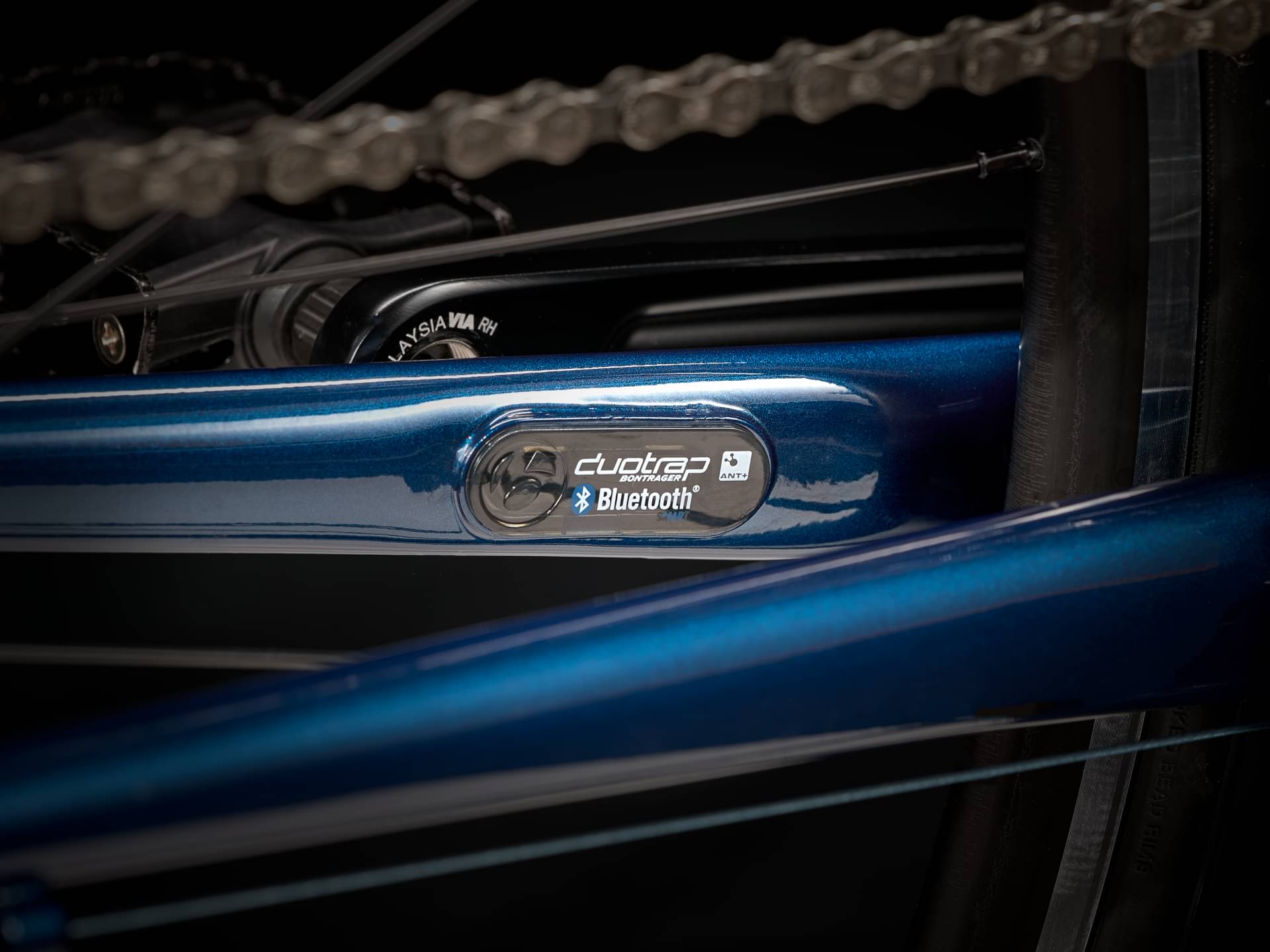

100 Series Alpha Aluminum, fender mounts, DuoTrap S compatible, rim brake, 130x5mm QR

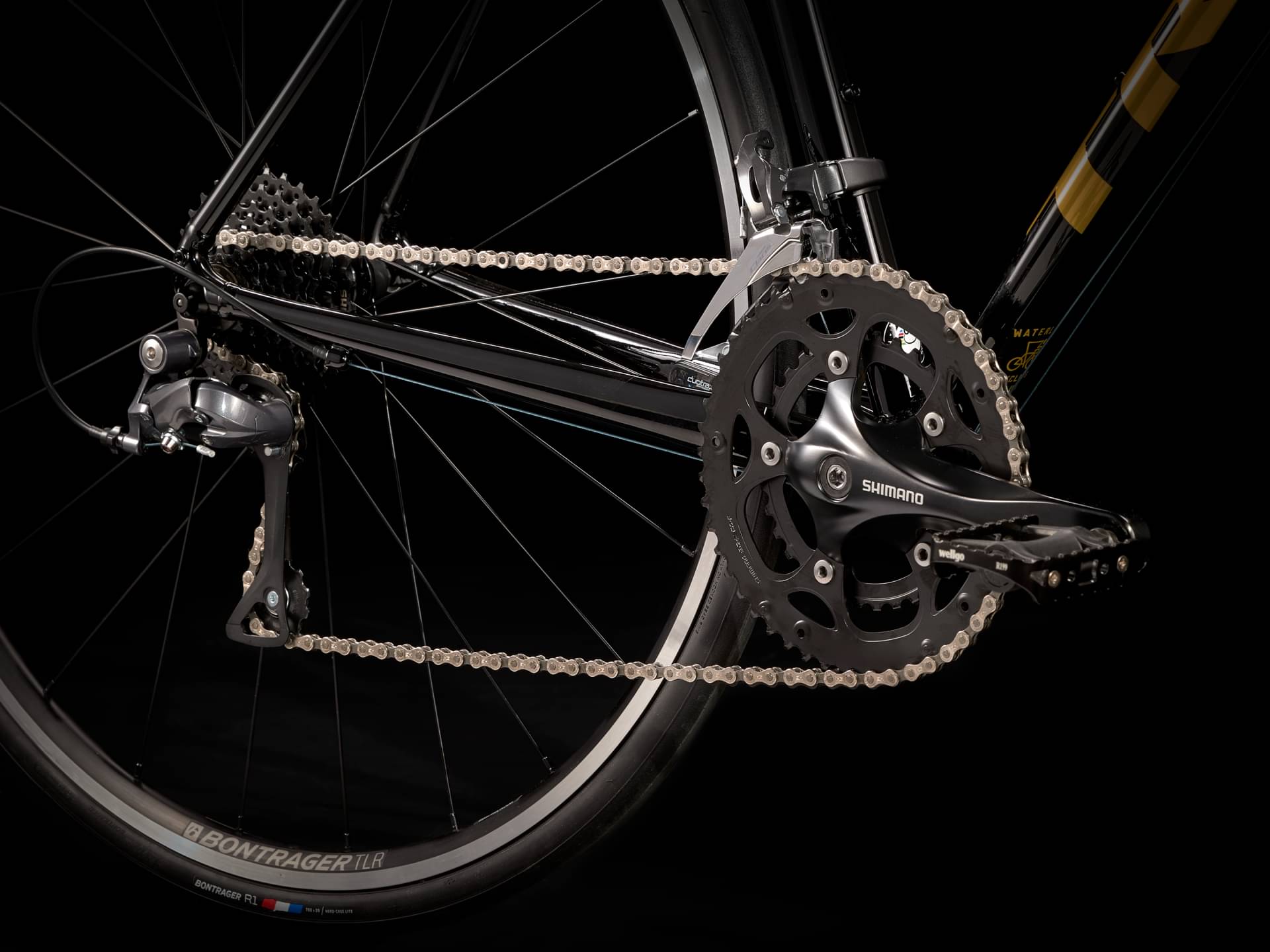

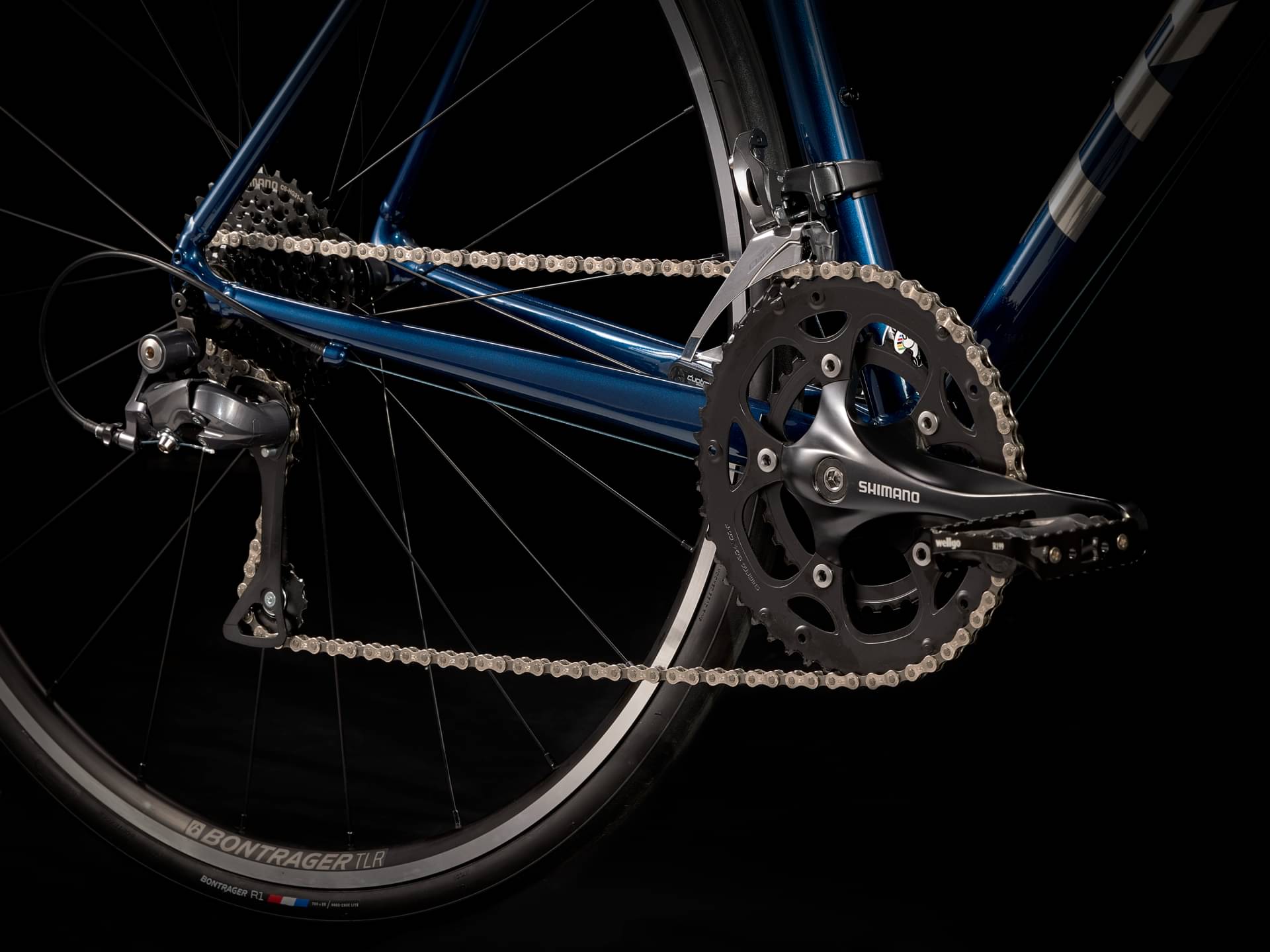

Drivetrain
Rear Derailleur
Shimano Claris RD-R2000, long cage, 34T max cog
Front Derailleur
Shimano Claris R2000, FD-R2000, 8-speed, 31.8mm clamp
Shift Levers
Size: 47, 50, 52, 54, 56, 58, 60, 62, Shimano Claris ST-R2000-R, 8 speed, right; Size: 47, 50, 52, 54, 56, 58, 60, 62, Shimano Claris ST-R2000-L, 8 speed, left
Cassette
Shimano HG31, CS-HG31, 11-32, 8 speed
Crank
Size: 47, Shimano RS200, 50/34 (compact), 165mm length; Size: 50, 52, 54, Shimano RS200, 50/34 (compact), 170mm length; Size: 56, 58, 60, 62, Shimano RS200, 50/34 (compact), 175mm length
Bottom Bracket
Shimano UN30, 68mm, threaded cartridge, 110mm spindle
Chain
Shimano Sora HG71, 8 speed
Pedals
Wellgo R199, nylon body, alloy cage
Wheels
Front Hub
Formula TK-31 alloy, 5x100mm QR
Rear Hub
Formula TK-32 alloy, Shimano 8/9/10 freehub, 5x130mm QR
Rims
Bontrager Tubeless Ready, 24-hole, 17mm width, Presta valve
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Brakes
Brakes
Alloy dual-pivot

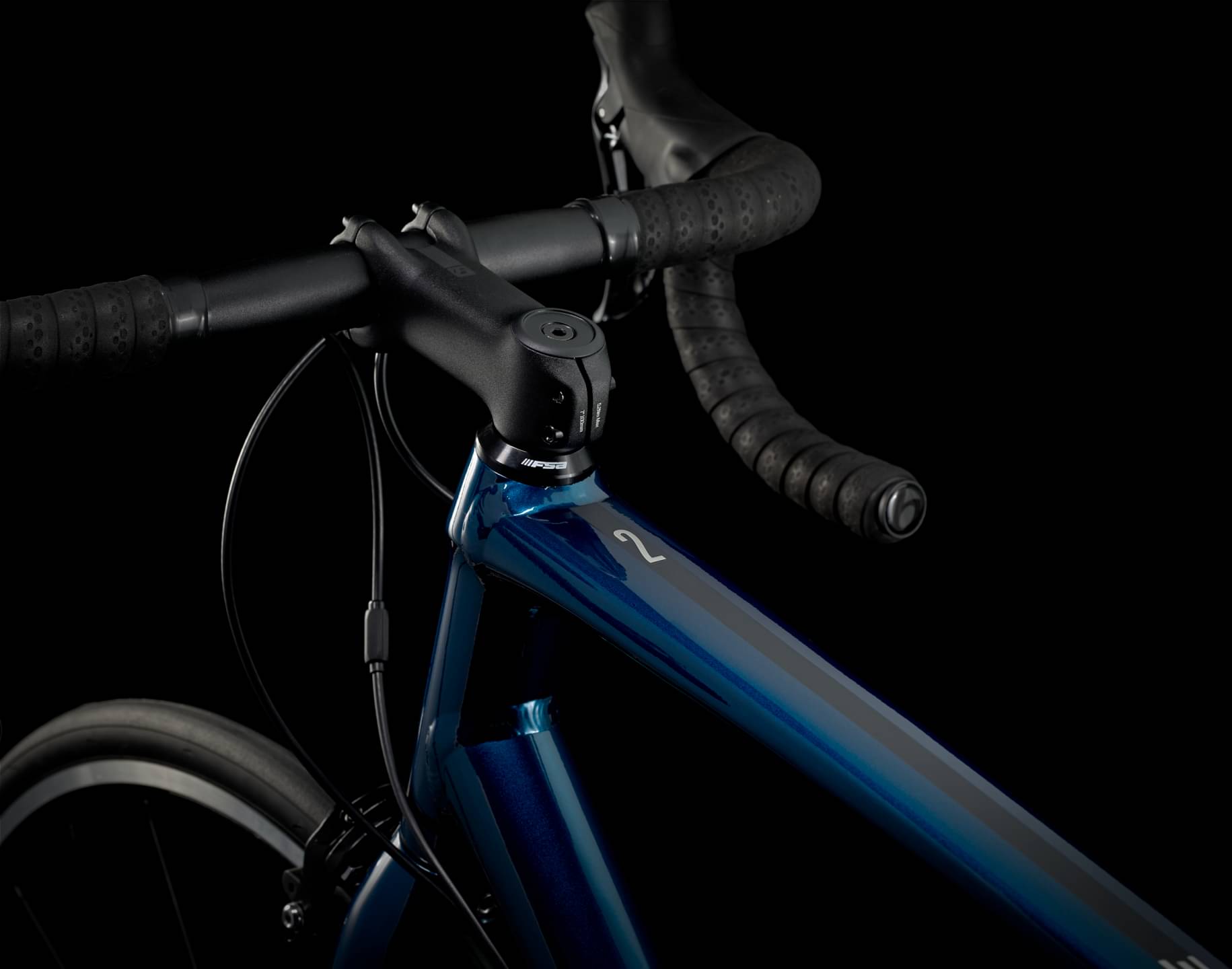

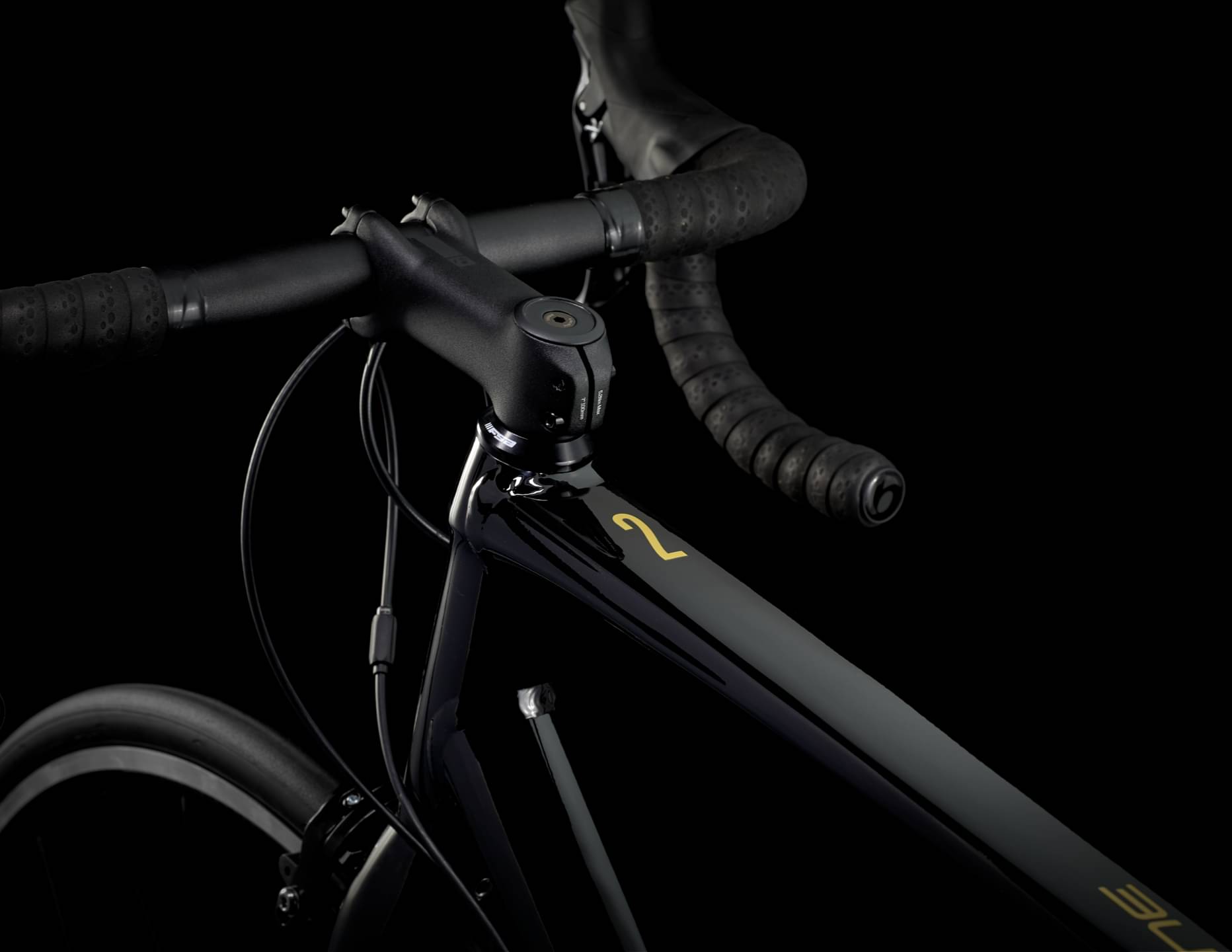

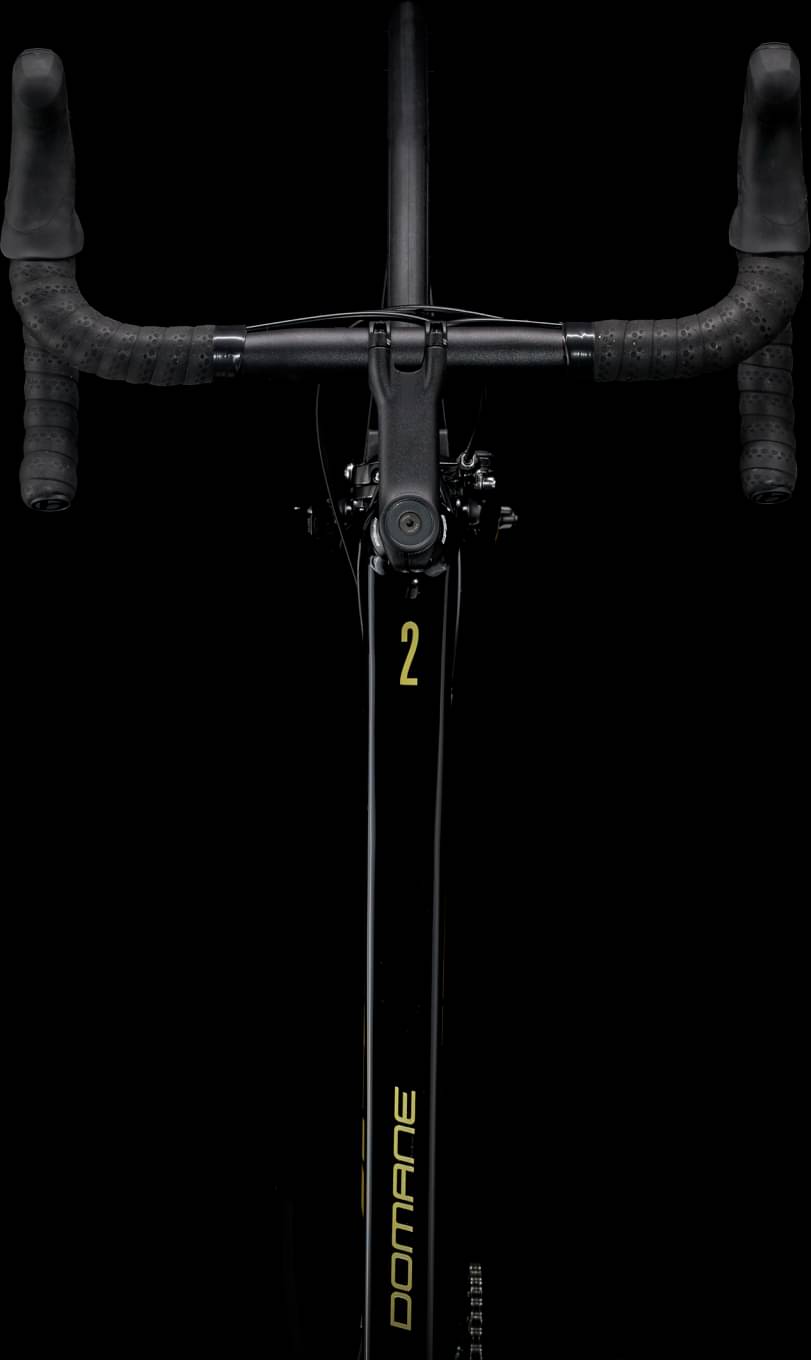

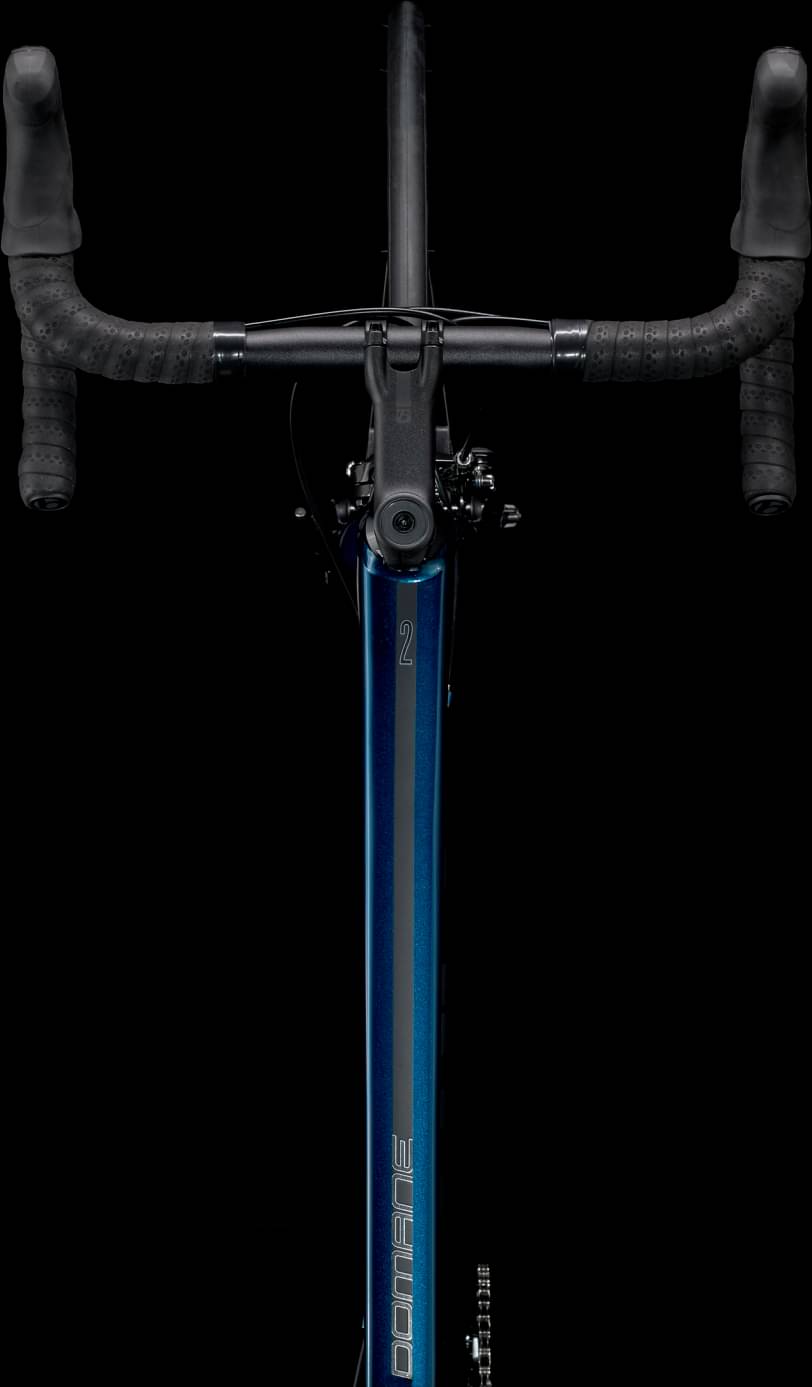

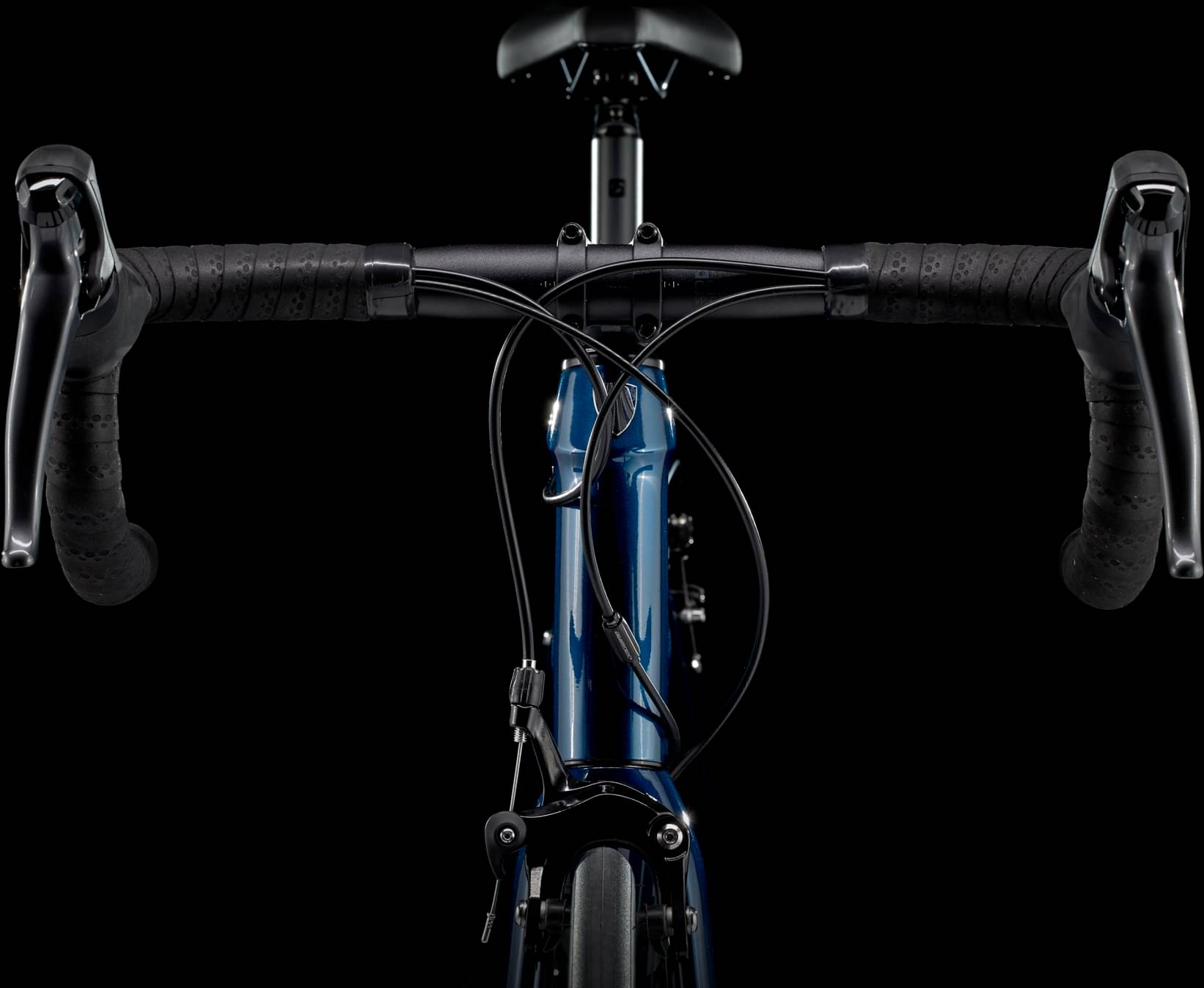

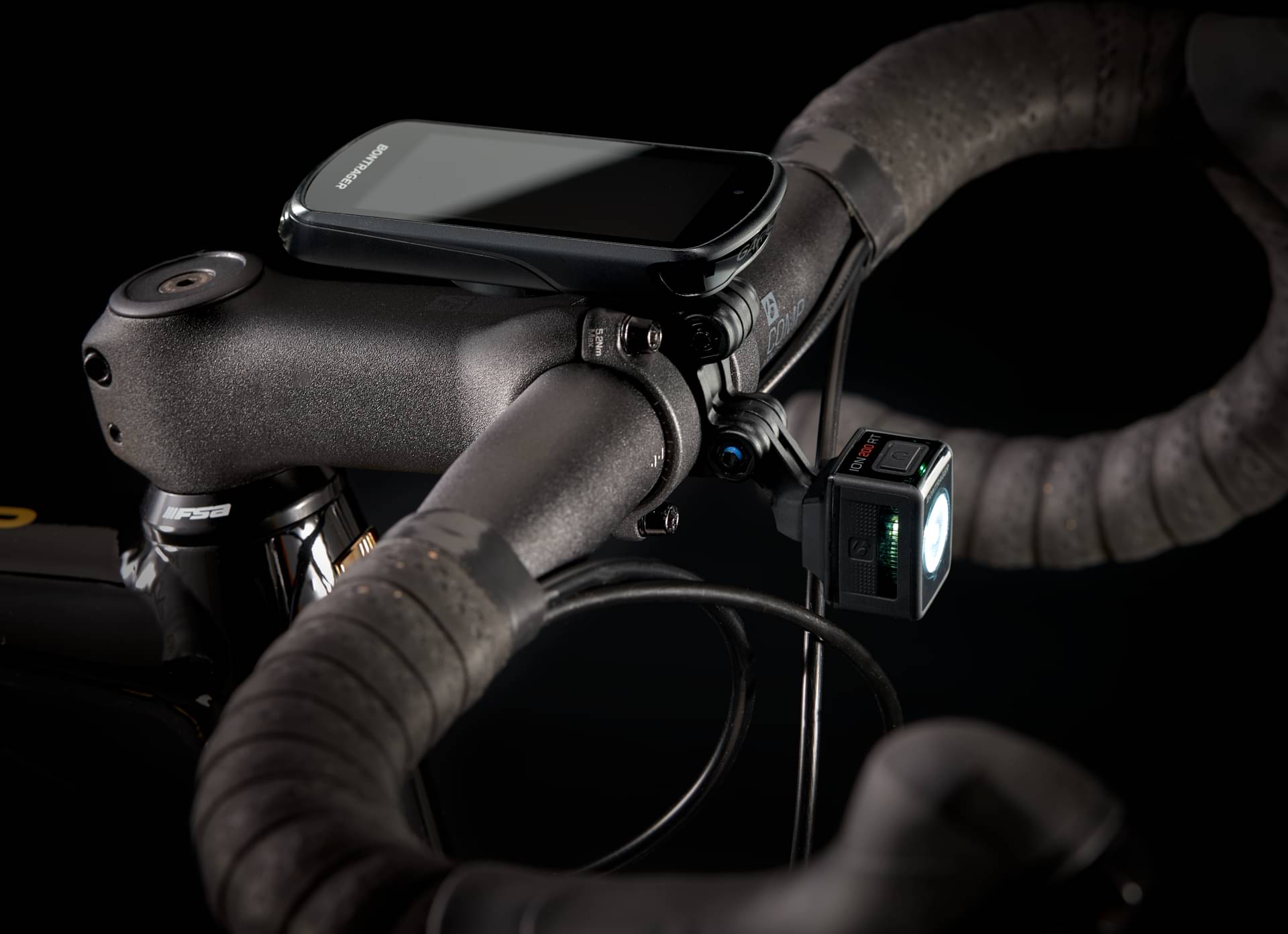

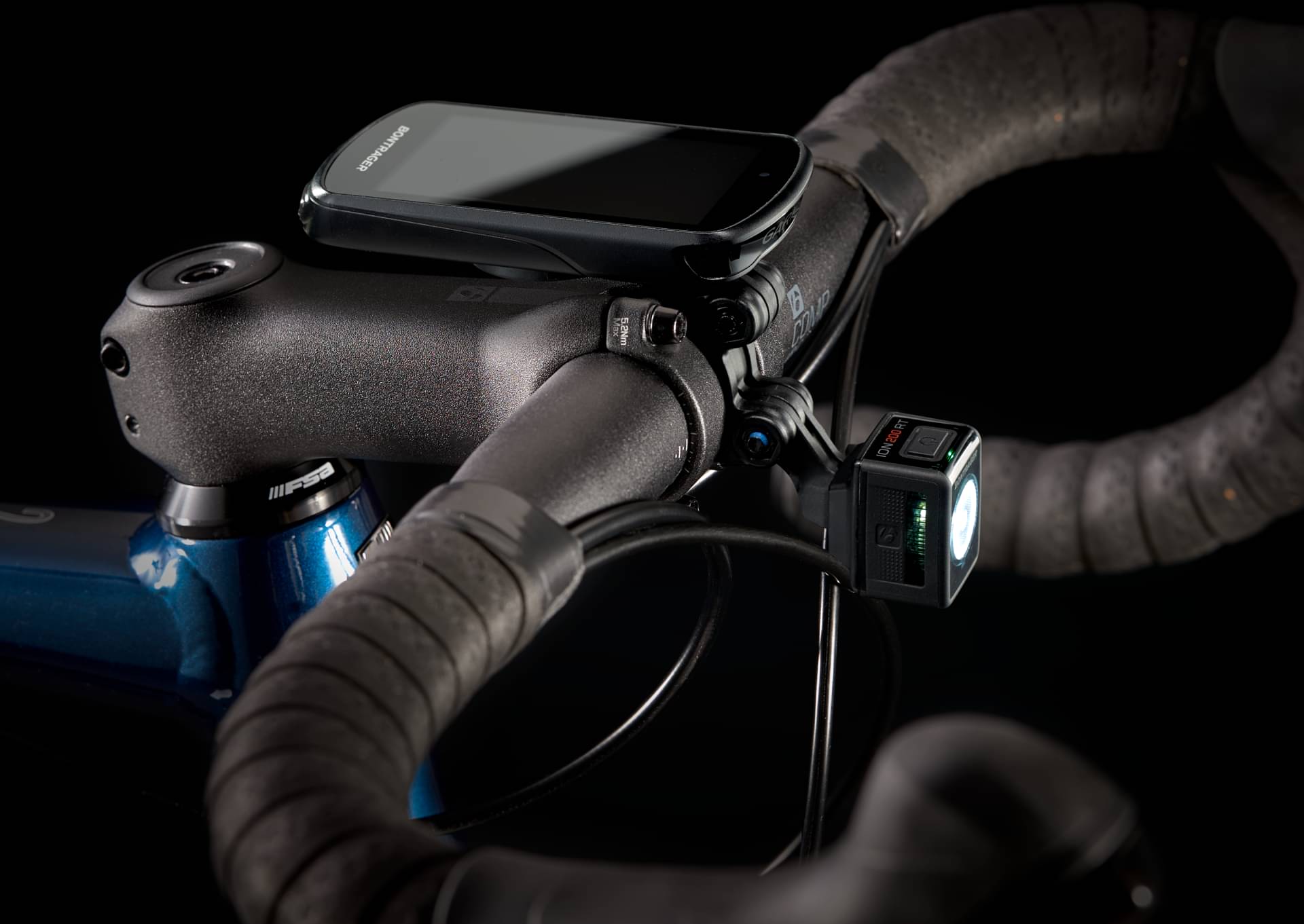

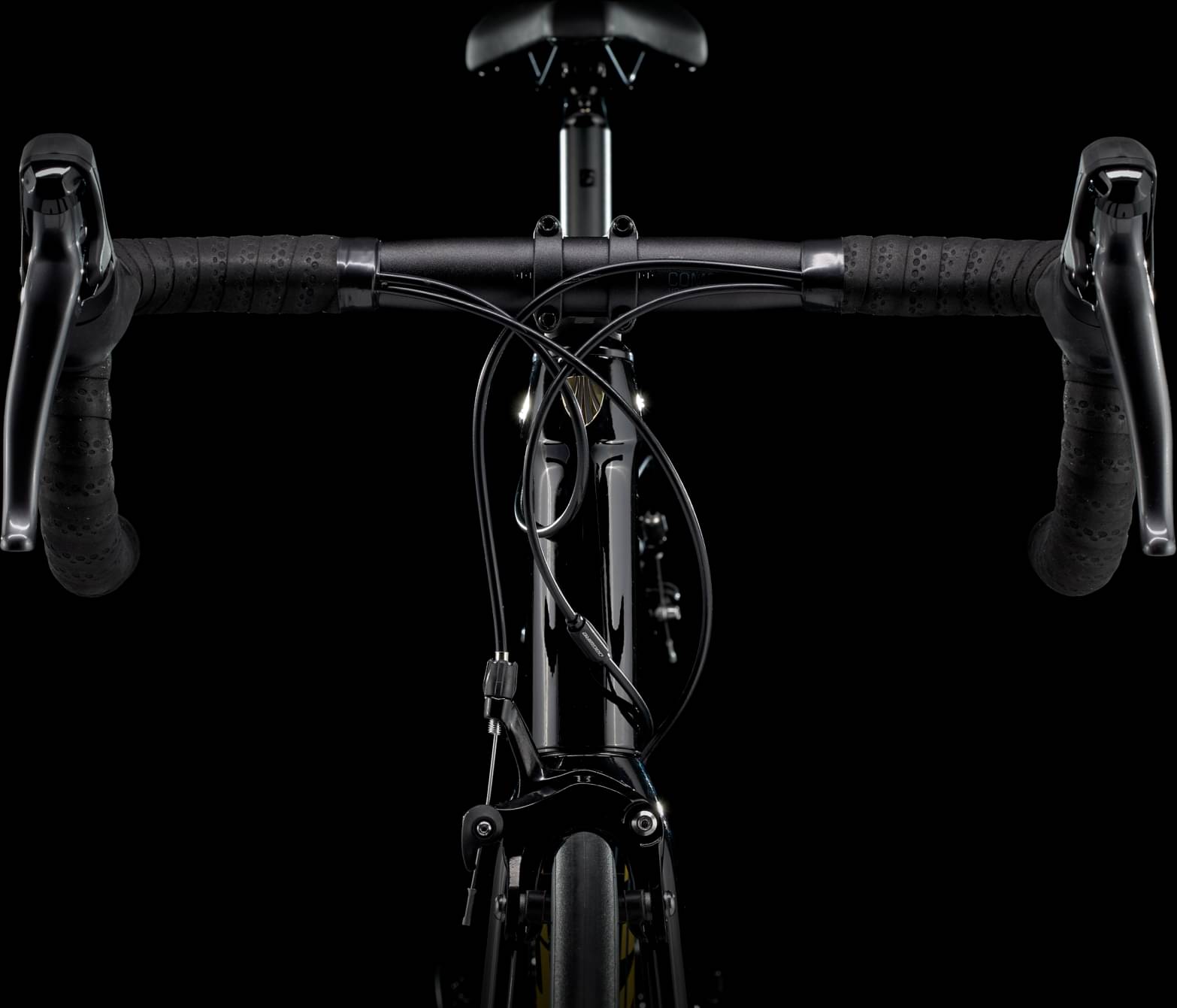

Cockpit
Stem
Size: 47, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 50, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 60, 62, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 47, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 38cm width; Size: 50, 52, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 60, 62, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8''
Seat
Saddle
Size: 47, 50, 52, Bontrager Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Size: 47, Bontrager alloy, 27.2mm, 12mm offset, 250mm length; Size: 50, 52, 54, 56, 58, 60, 62, Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.65 mm | 1.69 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 579 mm | 589 mm | 596 mm | 603 mm | 610 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 53 mm | 54 mm | 53 mm | 58 mm | 49 mm | 48 mm | 48 mm |
| Trail | 61 mm | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 530 mm | 549 mm | 564 mm | 578 mm | 594 mm | 614 mm | 635 mm | 659 mm |
| Reach | 367 mm | 371 mm | 374 mm | 377 mm | 380 mm | 383 mm | 386 mm | 389 mm |
| Top Tube Length | 512 mm | 522 mm | 533 mm | 545 mm | 557 mm | 570 mm | 582 mm | 596 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71 ° | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 989 mm | 999 mm | 1006 mm | 1013 mm | 1021 mm | 1025 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 689 mm | 719 mm | 738 mm | 757 mm | 779 mm | 799 mm | 820 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Domane AL 2 Rim belongs to the Trek Domane model. There are 316 bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Trek Domane AL 2 Rim 2024 is the most economical model, with a starting price of 999$. Trek Domane SLR 9 AXS Gen 4 2024 on the other hand costs 13199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 999$. In conclusion, this bike price is 134.83% smaller than the price of the average Endurance bike.
Average weight for Endurance bikes
On a deeper look, we notice that the average weight of an Endurance bike is 8.56 kg (18.87 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, Domane AL 2 Rim has a weight of 9.57 kg (21.1 lbs). In short, the average Endurance bike weight is 11.8% lower than this one.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Trek Domane AL 2 Rim 2024, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Domane AL 2 Rim is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 8 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
