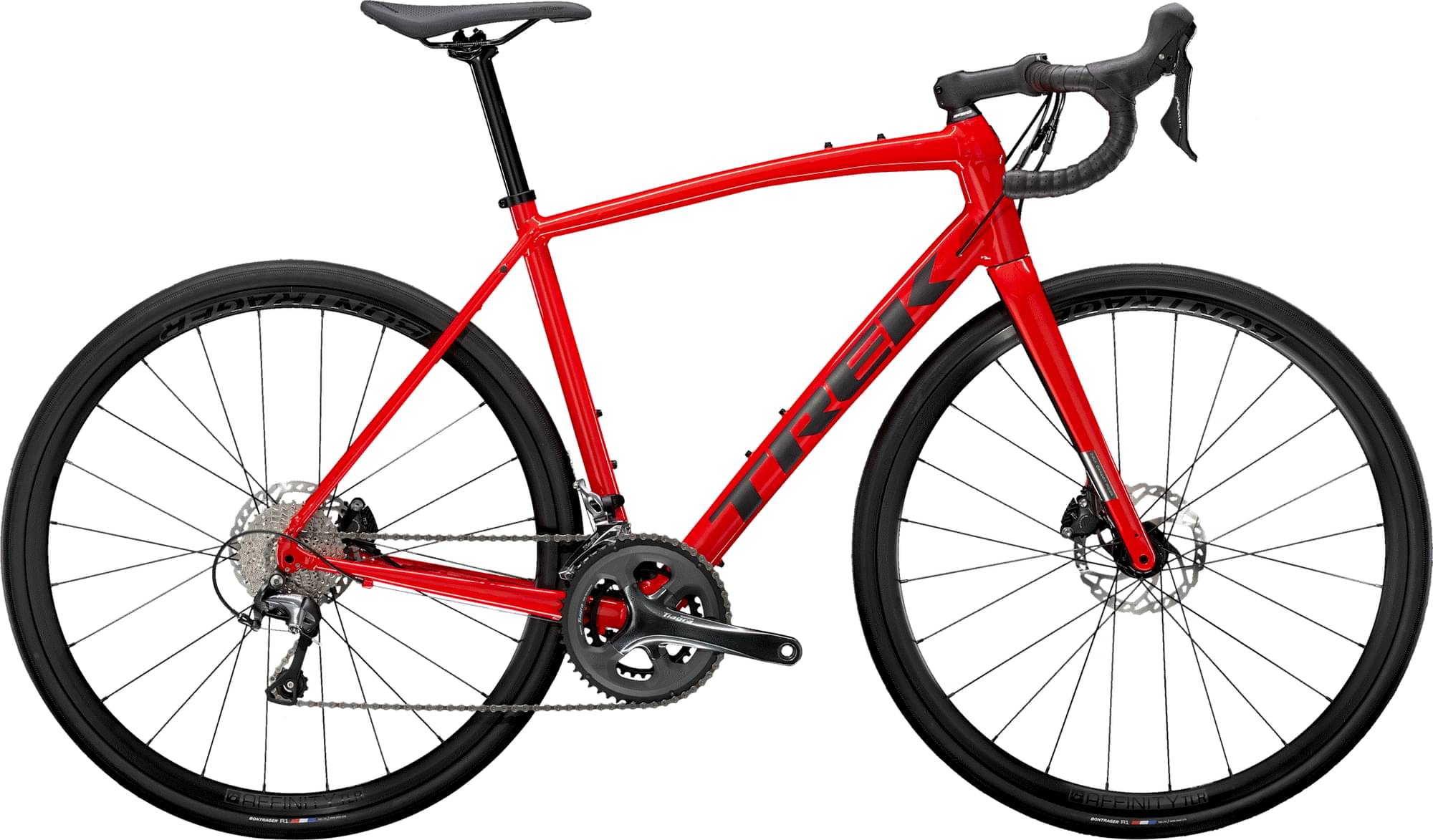

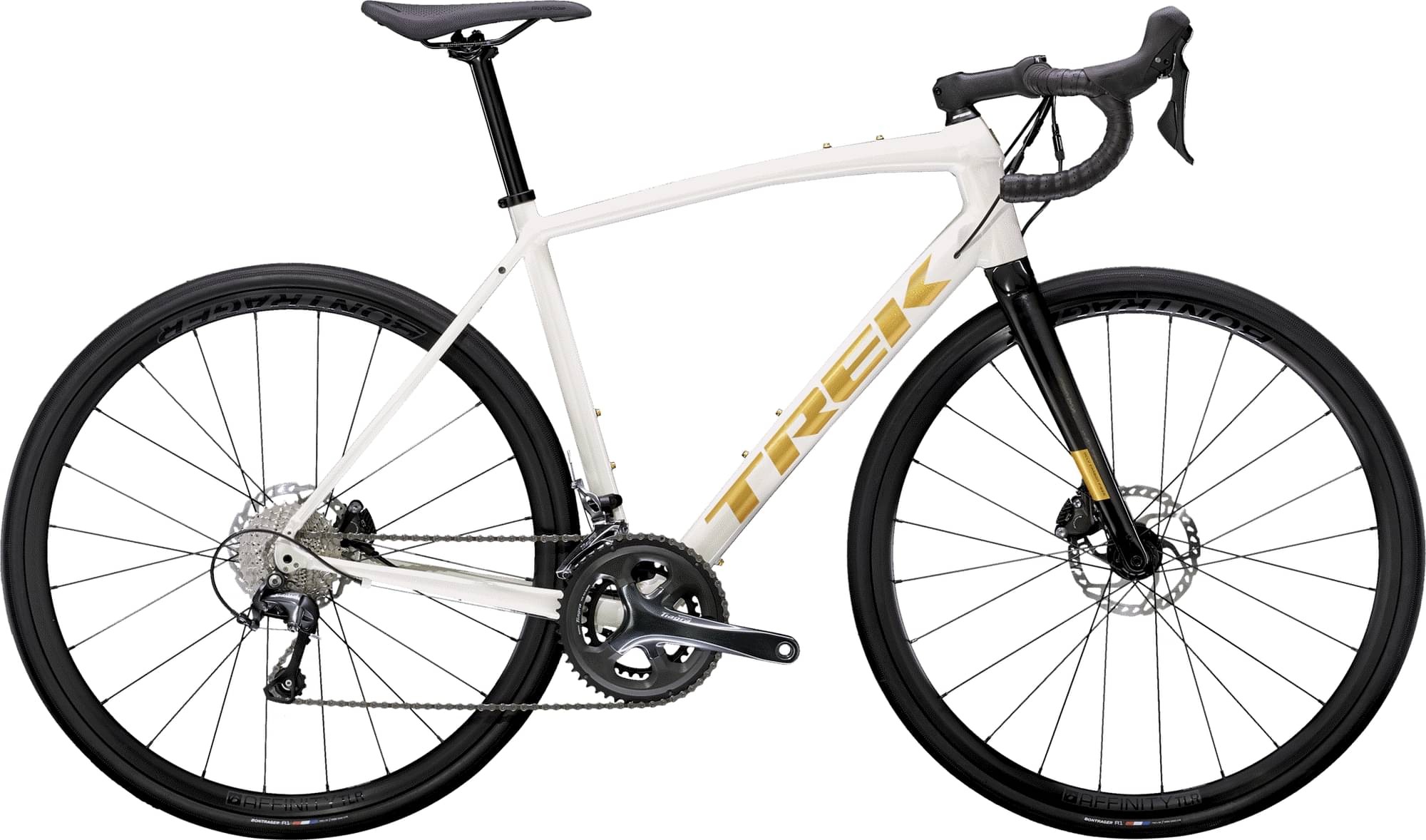

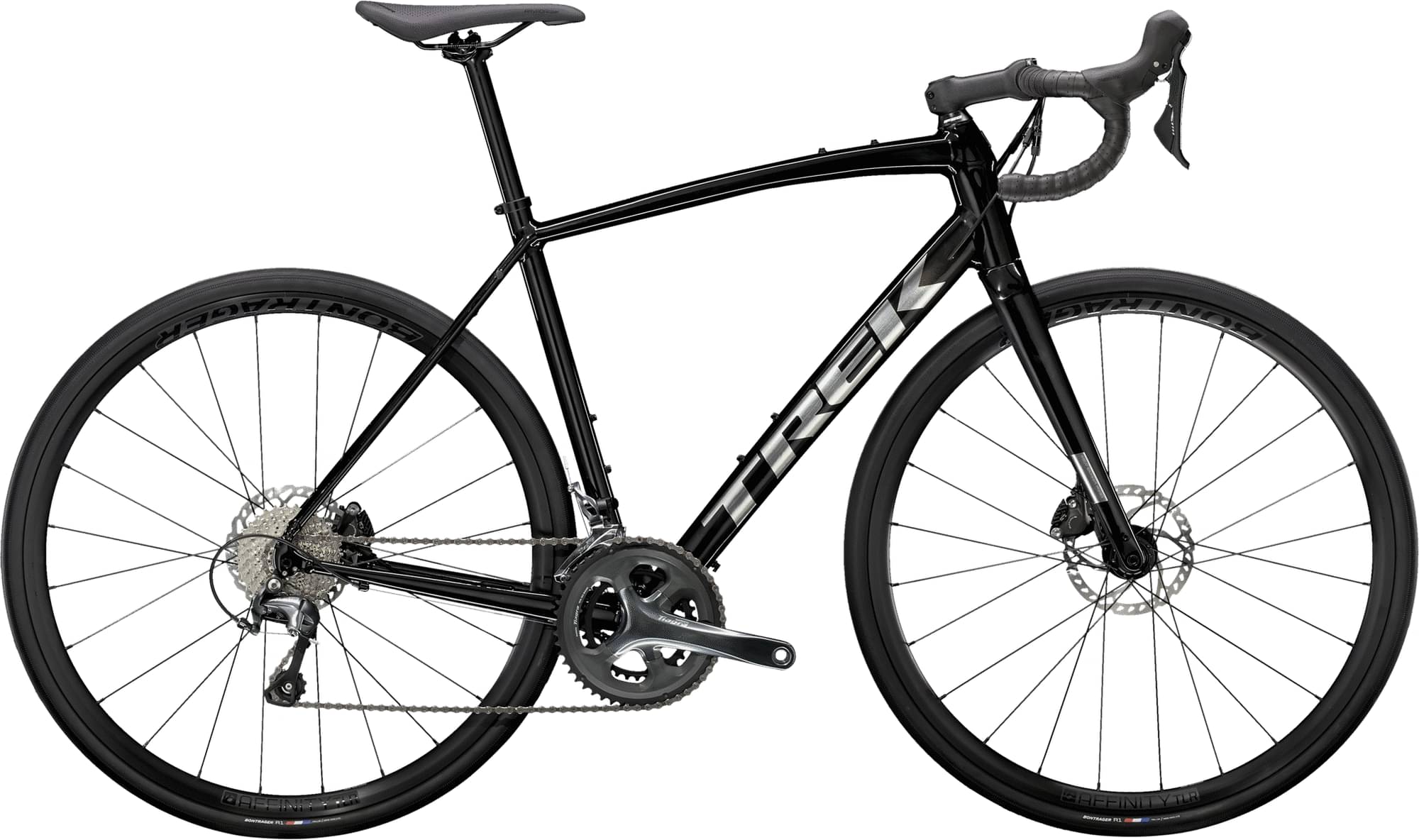

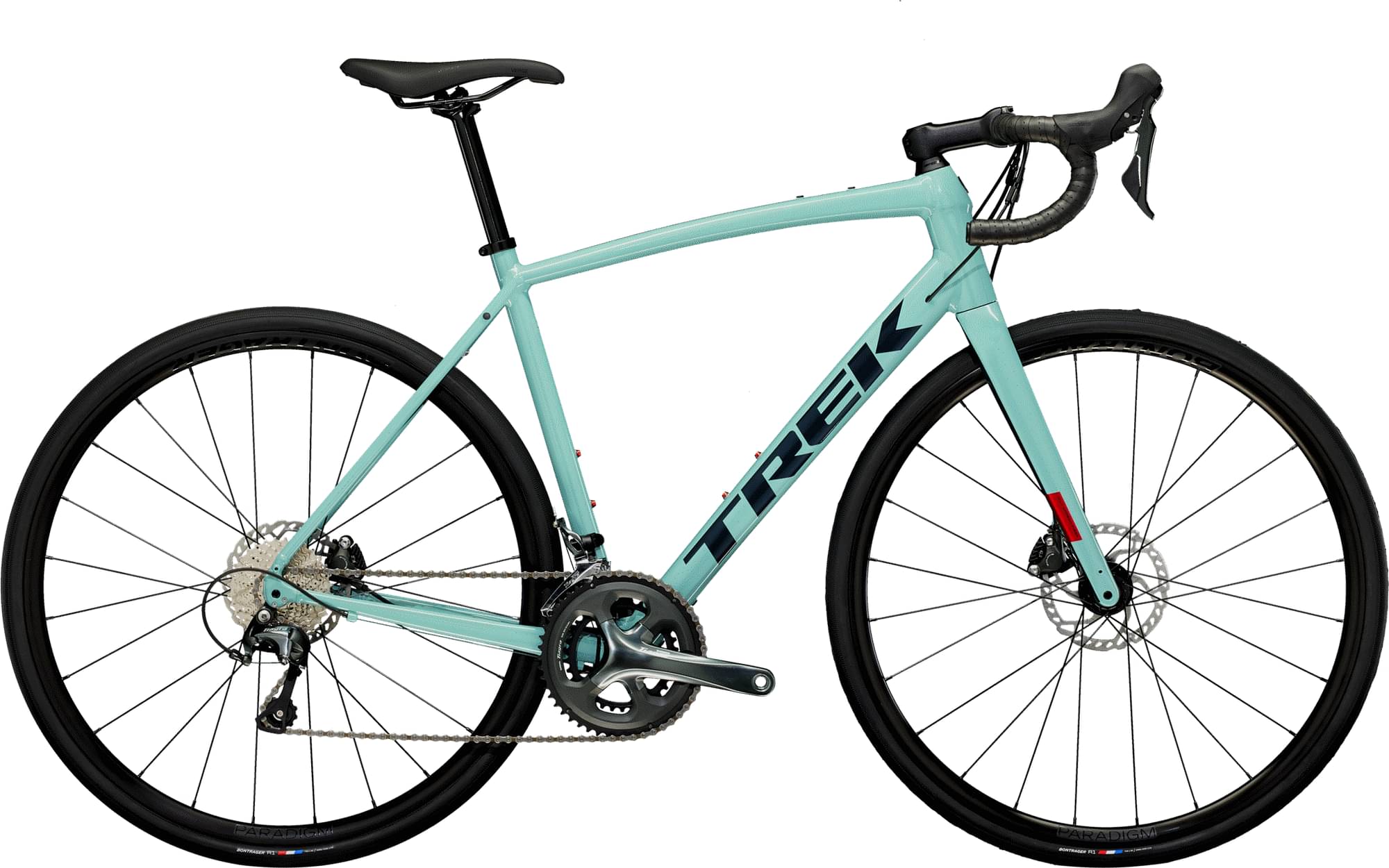

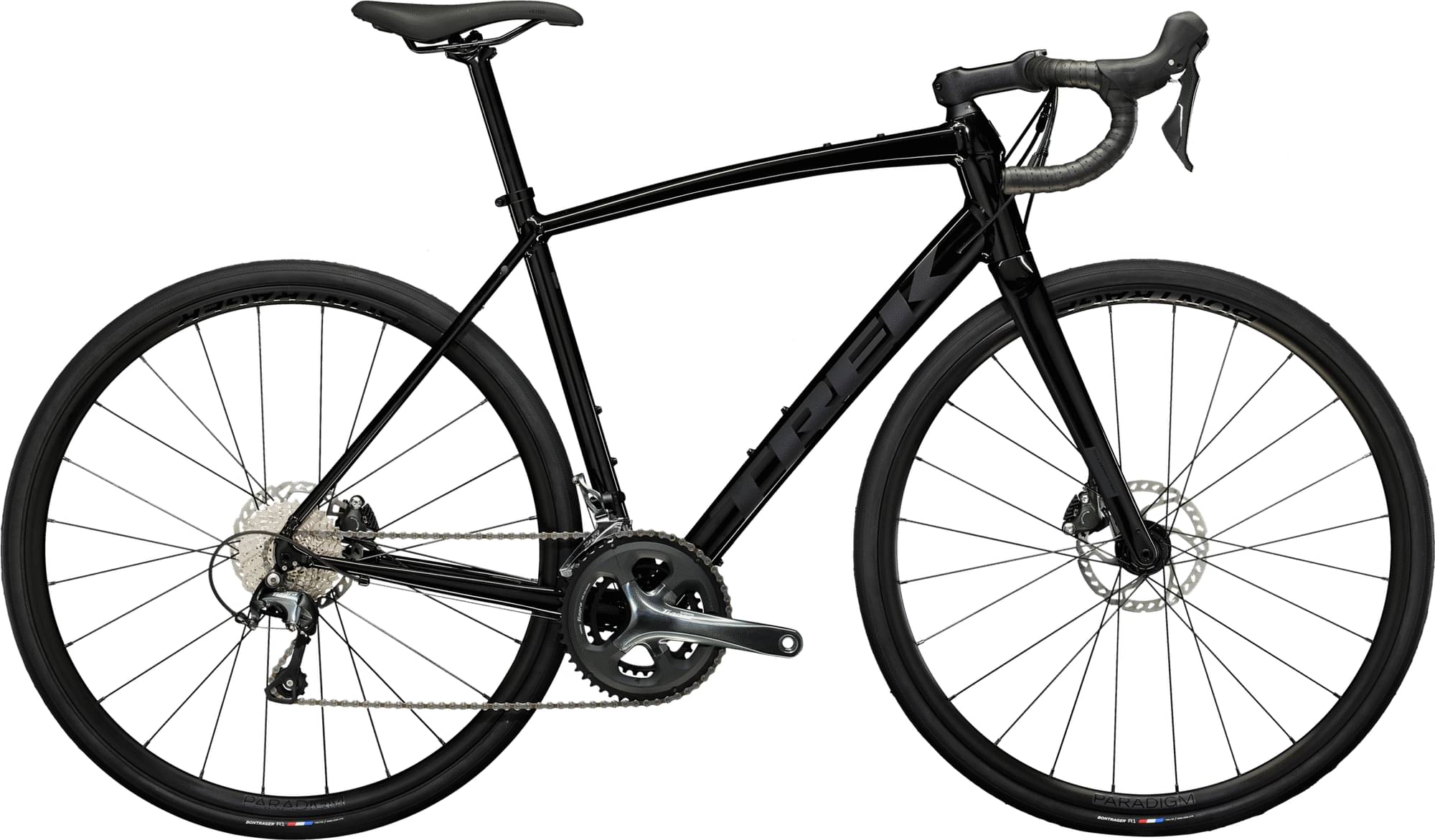

Trek Domane AL 4 Gen 3 2023
2023 Road
Estimate price |
1,799$
Weight | 10.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
44cm
150cm - 153cm
49cm
156cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Tiagra 4700, long cage, 34T max cog
Front Derailleur
Shimano Tiagra 4700, 31.8mm clamp
Shift Levers
Shimano Tiagra R4725, short reach lever, 10 speed
Cassette
Shimano HG500, 11-32, 10 speed
Crank
Size: 44, Shimano Tiagra 4700, 50/34, 165mm length; Size: 49, 52, Shimano Tiagra 4700, 50/34, 170mm length; Size: 54, 56, Shimano Tiagra 4700, 50/34, 172.5mm length; Size: 58, 61, Shimano Tiagra 4700, 50/34, 175mm length
Bottom Bracket
Shimano RS500, 68mm, threaded external
Chain
Shimano Tiagra HG54, 10 speed
Wheels
Front Hub
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Rear Hub
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Rims
Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, Presta valve; Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve; Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes
14g stainless steel, black
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Brakes
Brakes
Size: 44, 49, 52, 54, 56, 58, 61, Shimano Tiagra hydraulic disc; Size: 44, 49, 52, 54, 56, 58, 61, Shimano Tiagra hydraulic disc, flat mount
Cockpit
Stem
Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Size: 44, 49, 52, Bontrager Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.46 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.67 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm |
| Front Center | 576 mm | 589 mm | 596 mm | 603 mm | 610 mm | 609 mm | 624 mm |
| Rake | 53 mm | 52 mm | 54 mm | 53 mm | 58 mm | 49 mm | 48 mm |
| Trail | 66 mm | 66 mm | 59 mm | 59 mm | 61 mm | 60 mm | 63 mm |
| Stack | 517 mm | 547 mm | 568 mm | 582 mm | 598 mm | 618 mm | 653 mm |
| Reach | 367 mm | 375 mm | 378 mm | 381 mm | 384 mm | 387 mm | 392 mm |
| Top Tube Length | 514 mm | 523 mm | 537 mm | 549 mm | 561 mm | 574 mm | 593 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 390 mm | 440 mm | 475 mm | 500 mm | 525 mm | 548 mm | 576 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° |
| Head Tube Length | 95 mm | 123 mm | 145 mm | 160 mm | 175 mm | 195 mm | 235 mm |
| Chainstay Length | 427 mm | 432 mm | 427 mm | 427 mm | 427 mm | 432 mm | 432 mm |
| Wheelbase | 990 mm | 1008 mm | 1010 mm | 1017 mm | 1025 mm | 1029 mm | 1045 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm |
| Standover Height | 664 mm | 724 mm | 742 mm | 761 mm | 783 mm | 803 mm | 849 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 153 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
Domane AL 4 Gen 3 is a Trek Domane model. Trek launched 316 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Trek Domane AL 2 Gen 3 2023 has a starting price of 1099$. Trek Domane SLR 9 eTap Gen 4 2023 on the other hand is the most expensive at 13199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 1799$. Comparing the average cost of an Endurance bike to this one, you will see that Domane AL 4 Gen 3 price is 30.41% smaller.
Average weight for Endurance bikes
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Domane AL 4 Gen 3 has a weight of 10.45 kg (23.04 lbs). In other words, this model is 27.44% heavier than the average Endurance bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Domane AL 4 Gen 3 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Domane AL 4 Gen 3 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 7 sizes. They vary from 150 cm – 191 cm (4.92 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
