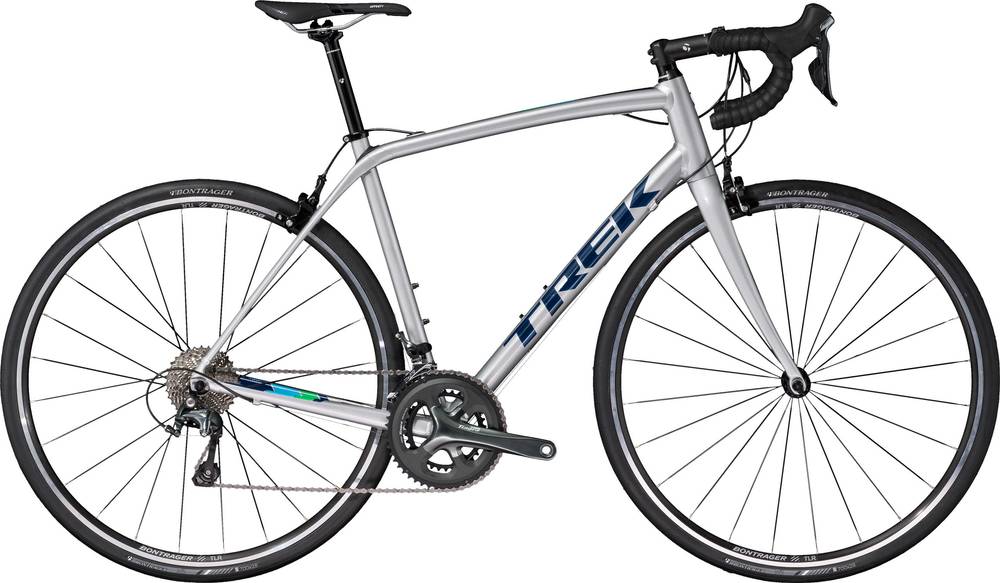

Trek Domane ALR 4 2017
2017 Road
Estimate price |
1,419$
Weight | 9.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
200 Series Alpha Aluminum, IsoSpeed, Invisible Weld Technology, E2 tapered head tube, BB86.5, hidden fender mounts, DuoTrap S compatible
Suspension Fork
Domane carbon, E2 tapered steerer, direct mount brakes
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra, 10 speed
Cassette
Shimano Tiagra, 11-32, 10 speed
Crank
Shimano Tiagra, 50/34 (compact)
Bottom Bracket
Press Fit
Wheels
Front Hub
Alloy
Rear Hub
Alloy
Rims
Bontrager Tubeless Ready
Tires
Bontrager R1 Hard-Case Lite, 700x28c
Brakes
Brakes
Tektro T731
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Race VR-C, 31.8mm
Grips
Bontrager gel cork tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity Comp, chromoly rails
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.65 mm | 1.7 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm | 610 mm | 631 mm | 655 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm | 379 mm | 382 mm | 385 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm | 566 mm | 578 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 995 mm | 1002 mm | 1009 mm | 1007 mm | 1021 mm | 1031 mm | 1041 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 715 mm | 734 mm | 753 mm | 775 mm | 795 mm | 816 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Domane ALR 4 completes the Trek Domane model. Trek launched 316 bikes of this model so far. You can easily view all of the Trek Domane bikes models from 2017, here.
Model range prices
The most economical model, the Trek Domane ALR 3 2017 has a starting price of 1149$. Trek Domane SLR 10 Race Shop Limited 2017 on the other hand is the most expensive at 11999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2017 and its price was 1419$. If we compare this with the average Endurance bike cost we notice that the price is 65.33% smaller.
Average weight for Endurance bikes
Endurance bikes have an average weight of 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, Domane ALR 4 has a weight of 9.36 kg (20.64 lbs). In other words, this model is 14.15% heavier than the average Endurance bike.
Domane ALR 4 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Domane ALR 4 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Domane ALR 4 comes in 7 sizes, that range from 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
