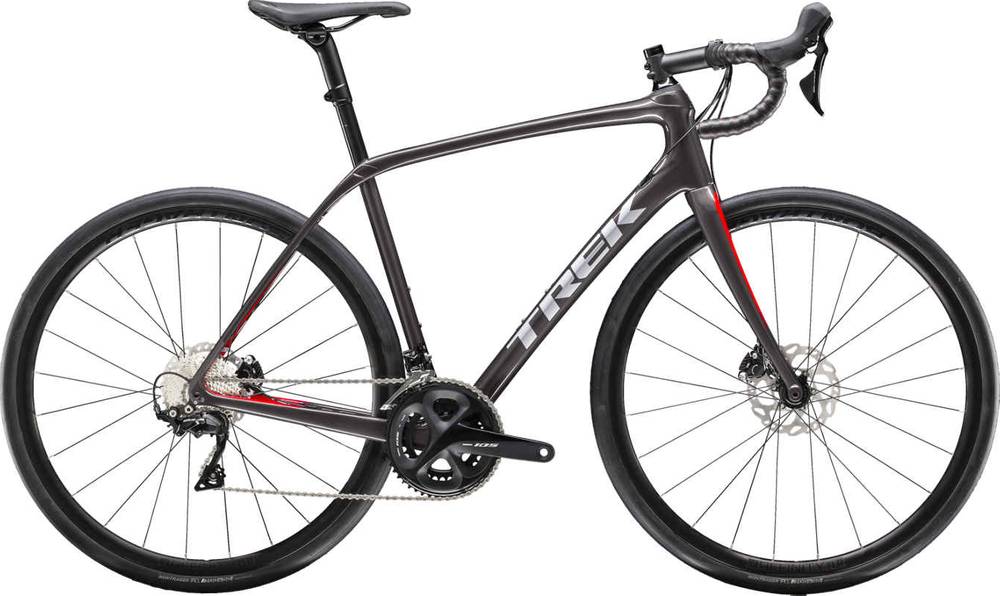

Trek Domane SL 5 Disc 2019
2019 Road
Estimate price |
2,699$
Weight | 9.39 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
44cm
150cm - 155cm
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, Front & Rear IsoSpeed, tapered head tube, BB90, flat mount disc brakes, 12mm thru-axle, internal cable routing, hidden fender mounts, 3S chain keeper, DuoTrap S compatible, Ride Tuned seatmast
Suspension Fork
Domane carbon disc, carbon tapered steerer, flat mount disc brakes, 12mm thru-axle
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 11 speed
Cassette
Shimano 105 11-34, 11 speed
Crank
Shimano 105, 50/34 (compact)
Bottom Bracket
BB90
Chain
Shimano 105
Pedals
Not included
Wheels
Front Hub
Bontrager alloy sealed bearing, 12mm thru-axle
Rear Hub
Alloy
Rims
Bontrager Affinity Tubeless Ready
Tires
Bontrager R1 Hard-Case Lite, 700x32c
Brakes
Brakes
Shimano 105 flat mount hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Comp VR-C, 31.8mm
Grips
Bontrager tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Arvada Comp, steel rails
Seatpost
Bontrager Ride Tuned seatmast cap, 10mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.64 mm | 1.69 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 576 mm | 579 mm | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 53 mm | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 66 mm | 61 mm | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 517 mm | 534 mm | 553 mm | 568 mm | 582 mm | 598 mm | 618 mm | 639 mm | 663 mm |
| Reach | 367 mm | 371 mm | 375 mm | 378 mm | 381 mm | 384 mm | 387 mm | 390 mm | 393 mm |
| Top Tube Length | 508 mm | 516 mm | 526 mm | 537 mm | 549 mm | 561 mm | 574 mm | 586 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 70.3 ° | 71 ° | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 95 mm | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 990 mm | 993 mm | 1003 mm | 1010 mm | 1017 mm | 1015 mm | 1029 mm | 1039 mm | 1049 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 664 mm | 693 mm | 723 mm | 742 mm | 761 mm | 783 mm | 803 mm | 824 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 152 cm | 157 cm | 162 cm | 167 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 155 cm | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 196 cm |
About this model
Domane SL 5 Disc is a Trek Domane model. There are 316 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Trek Domane AL 2 2019 has a starting price of 849$. Trek Domane SLR 9 Disc eTap 2019 on the other hand is the most expensive at 11799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Trek Domane SL 5 Disc price was 2699$. Comparing the average cost of an Endurance bike to this one, you will see that Domane SL 5 Disc price is 15.05% higher.
Endurance bikes average weight
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 9.39 kg (20.7 lbs), Trek bike is considerably heavier than average. To sum up, it’s 14.51% heavier than the average weight of Endurance bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Domane SL 5 Disc bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Domane SL 5 Disc has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Trek Domane SL 5 Disc bike has 9 sizes, in the range of 150 cm – 196 cm (4.92 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
