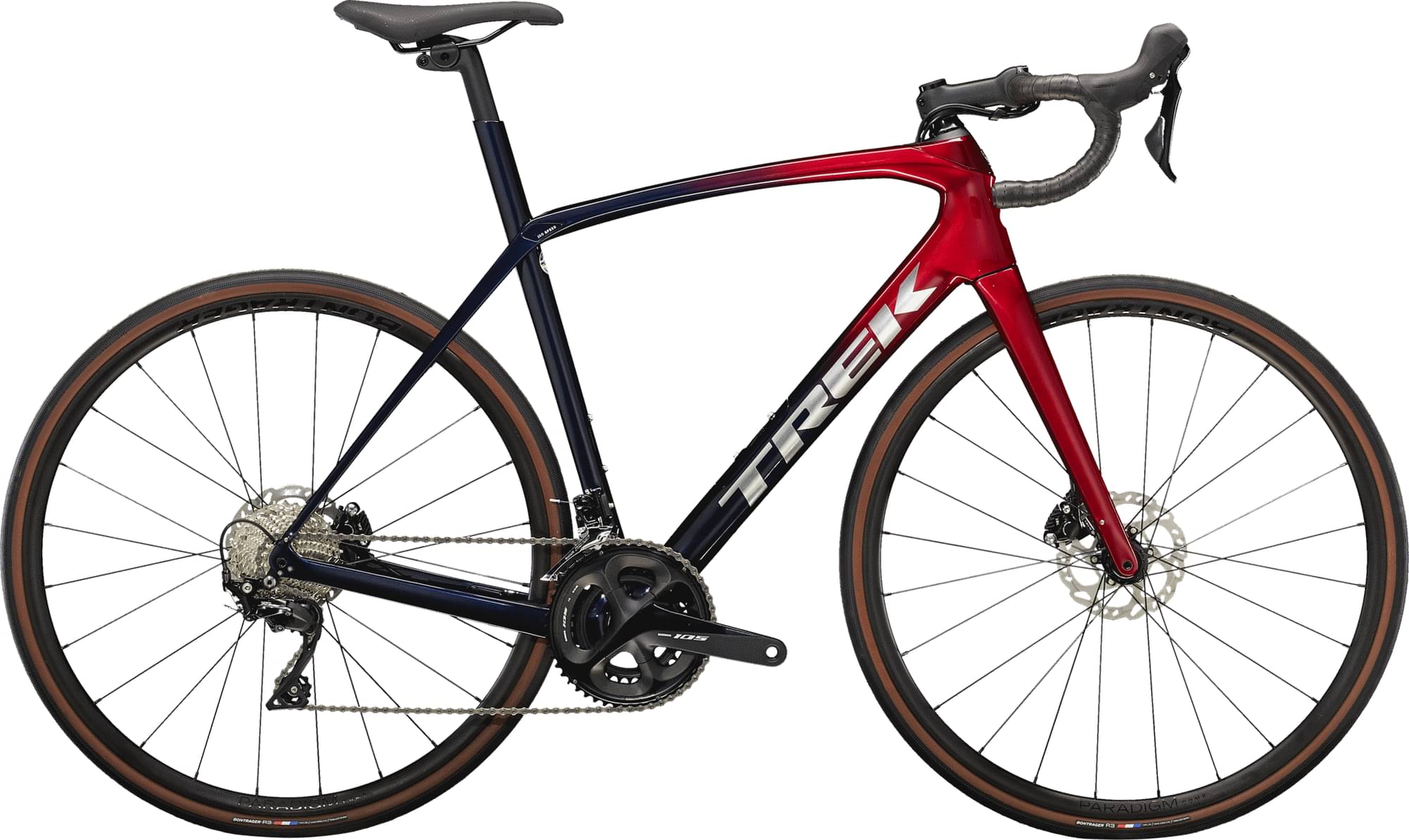

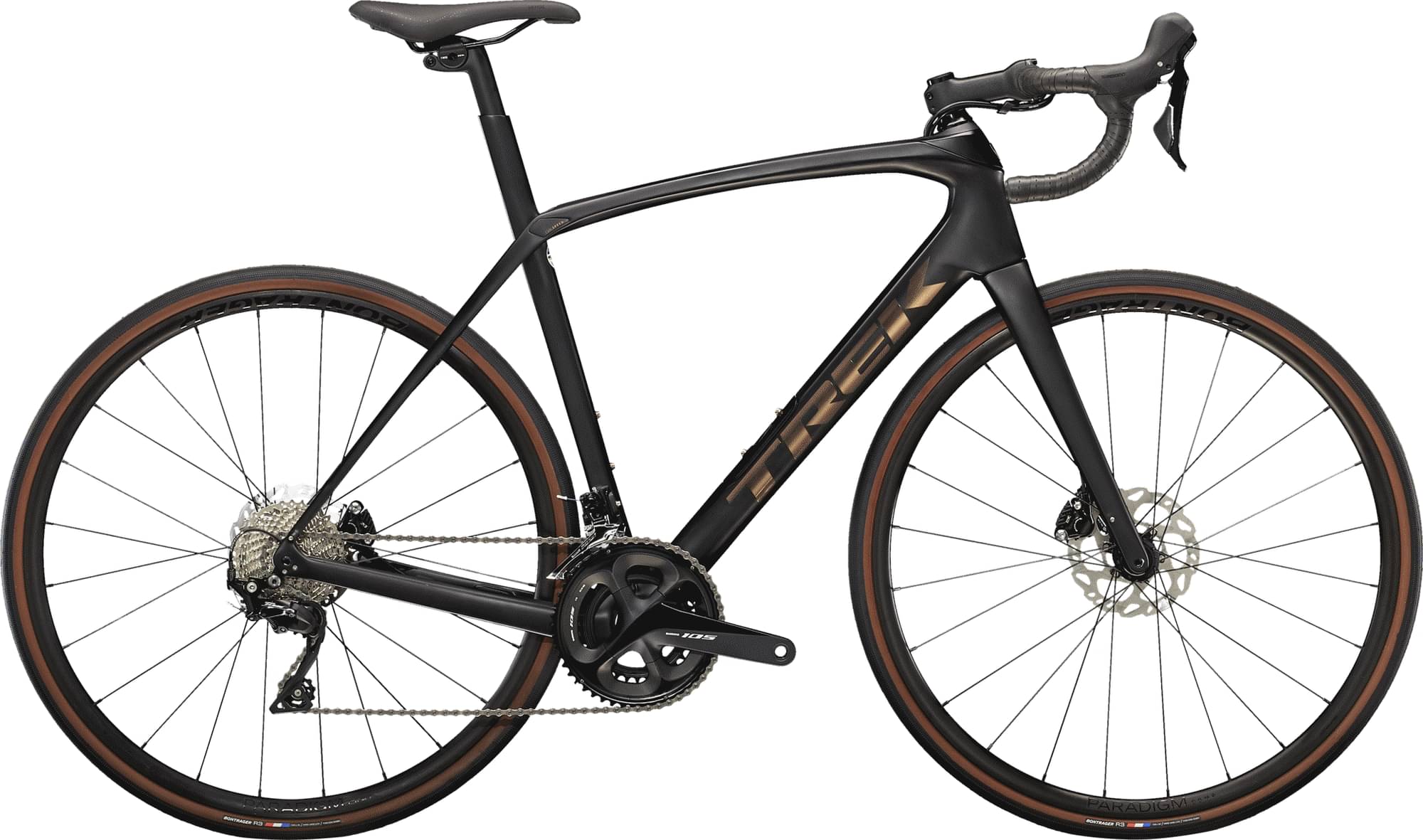

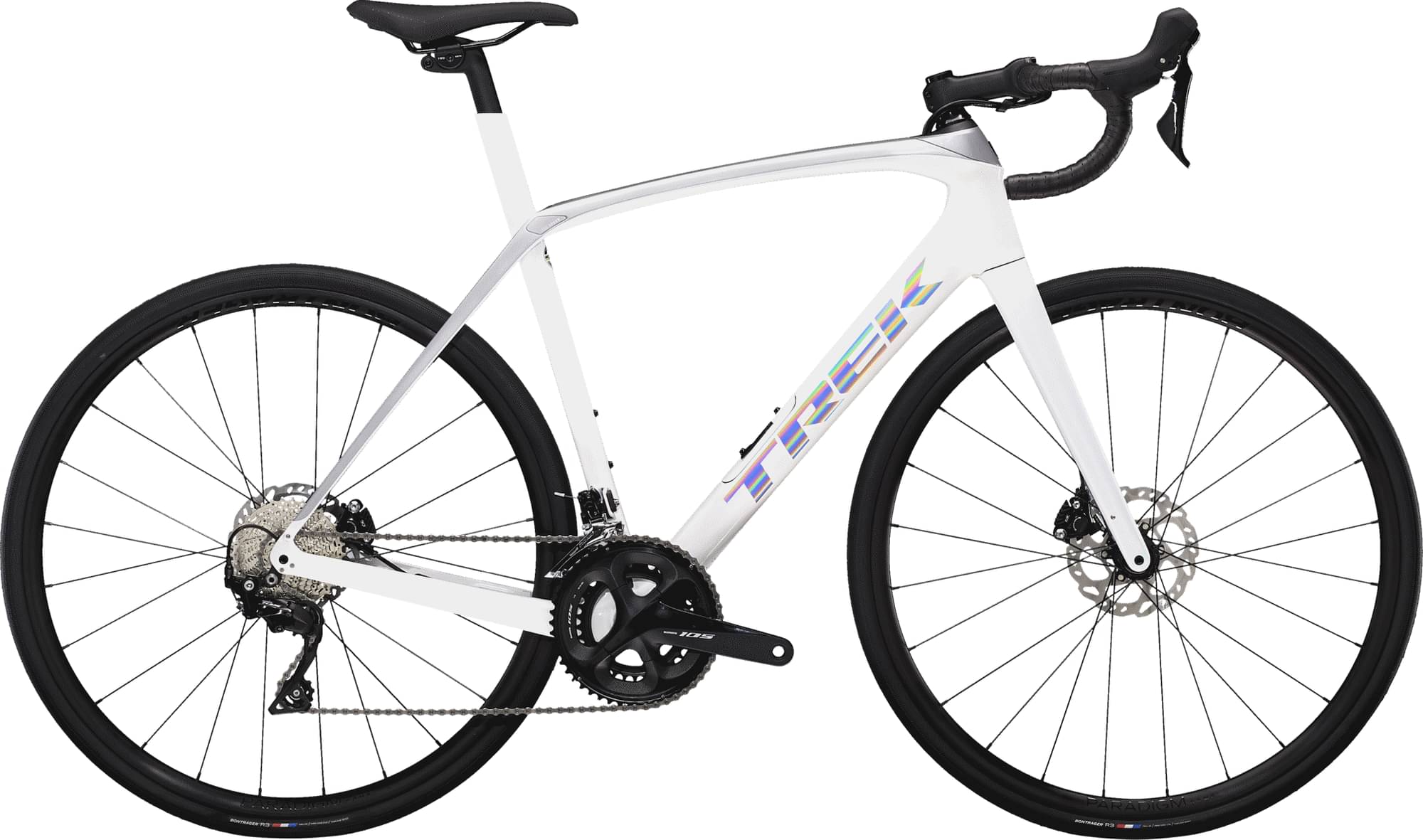

Trek Domane SL 5 Gen 3 2023
2023 Road
Estimate price |
3,299$
Weight | 9.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
44cm
150cm - 154cm
47cm
151cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 142x12mm thru axle
Suspension Fork
Size: 44, 47, Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle; Size: 50, 52, 54, 56, 58, 60, 62, Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano 105 R7000, long cage, 34T max cog
Front Derailleur
Shimano 105 R7000, braze-on
Shift Levers
Size: 44, 47, 50, 52, Shimano 105 R7025, short-reach lever, 11 speed; Size: 54, 56, 58, 60, 62, Shimano 105 R7020, 11 speed
Cassette
Shimano 105 HG700-11, 11-34, 11 speed
Crank
Size: 44, 47, Shimano 105 R7000, 50/34 (compact), 165mm length; Size: 50, 52, Shimano 105 R7000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano 105 R7000, 50/34 (compact), 172.5mm length; Size: 58, 60, 62, Shimano 105 R7000, 50/34 (compact), 175mm length
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano 105 HG601, 11 speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Rims
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: 47, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 50, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 60, 62, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 44, 47, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 36cm width; Size: 50, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 60, 62, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Seat
Saddle
Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Size: 44, 47, 50, 52, 54, 56, Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short length; Size: 58, 60, 62, Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.64 mm | 1.69 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 576 mm | 579 mm | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 53 mm | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 66 mm | 61 mm | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 517 mm | 534 mm | 553 mm | 568 mm | 582 mm | 598 mm | 618 mm | 639 mm | 663 mm |
| Reach | 367 mm | 371 mm | 375 mm | 378 mm | 381 mm | 384 mm | 387 mm | 390 mm | 393 mm |
| Top Tube Length | 508 mm | 516 mm | 526 mm | 537 mm | 549 mm | 561 mm | 574 mm | 586 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 70.3 ° | 71 ° | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 95 mm | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 990 mm | 993 mm | 1003 mm | 1010 mm | 1017 mm | 1015 mm | 1029 mm | 1039 mm | 1049 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 664 mm | 693 mm | 723 mm | 742 mm | 761 mm | 783 mm | 803 mm | 824 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 151 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 154 cm | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Domane SL 5 Gen 3 is a Trek Domane model. There are 316 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Trek Domane AL 2 Gen 3 2023 is the cheapest bike model and costs 1099$. Trek Domane SLR 9 eTap Gen 4 2023 is the most expensive one and costs 13199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Trek Domane SL 5 Gen 3 price was 3299$. Comparing the average cost of an Endurance bike to this one, you will see that Domane SL 5 Gen 3 price is 40.62% higher.
Endurance bikes average weight
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Domane SL 5 Gen 3 weighs 9.2 kg (20.28 lbs) and is considerably heavier than the average. In other words, this model is 12.2% heavier than the average Endurance bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Domane SL 5 Gen 3 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Domane SL 5 Gen 3 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 9 sizes. They vary from 150 cm – 195 cm (4.92 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
