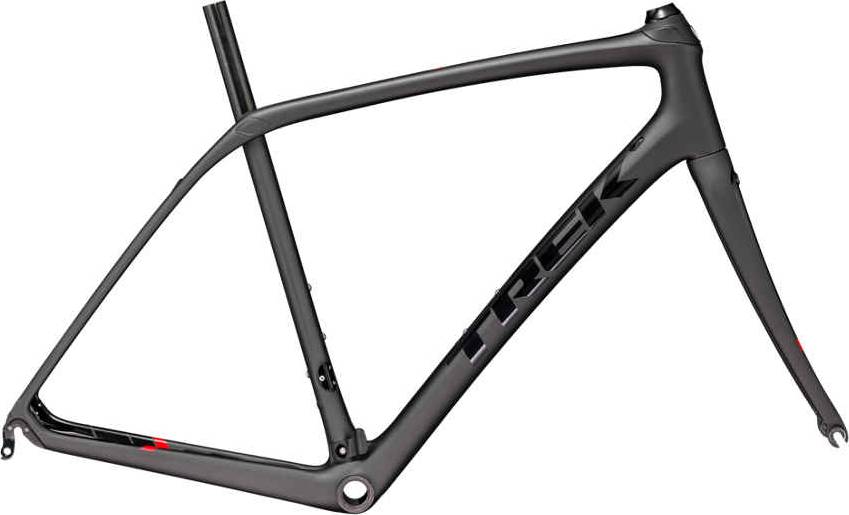

Trek Domane SL Frameset 2018
2018 Road
Estimate price |
1,579$
Weight | 1.94 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, Front & Rear IsoSpeed, E2 tapered head tube, BB90, direct mount brakes, Power Transfer Construction, hidden fender mounts, internal cable routing, 3S chain keeper, DuoTrap S compatible, Ride Tuned seatmast
Suspension Fork
Domane carbon, carbon E2 steerer, direct mount brakes
Drivetrain
Bottom Bracket
BB90, 90.5mm, press-fit
Cockpit
Headset
Integrated, cartridge bearing, sealed, 1-1/8? top, 1.5? bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 54cm |
|---|---|
| Stack Reach Ratio | 1.54 mm |
| Bottom Bracket Height | 256 mm |
| Front Center | 603 mm |
| Rake | 53 mm |
| Trail | 59 mm |
| Stack | 573 mm |
| Reach | 372 mm |
| Top Tube Length | 540 mm |
| Seat Tube Angle | 73.7 ° |
| Seat Tube Length | 500 mm |
| Head Tube Angle | 71.3 ° |
| Head Tube Length | 160 mm |
| Chainstay Length | 418 mm |
| Wheelbase | 1008 mm |
| Bottom Bracket Drop | 80 mm |
| Standover Height | 752 mm |
| Wheels | 700 |
About this model
Domane SL Frameset completes the Trek Domane model. Trek released 316 frames variations of this model so far. You can easily view all of the Trek Domane frames models from 2018, here.
Model range prices
Trek Domane ALR Frameset 2018 is the most affordable frame of this model and has a price of 959$. On the other hand, Trek Domane SLR Factory Overstock Frameset 2018, is the most expensive and costs 3299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance frames
If you want an acceptable Endurance frame you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Trek released this model in 2018, its price was 1579$. In conclusion, this frame price is 20.65% smaller than the price of the average Endurance frame.
Average weight for Endurance frames
If we make a quick analysis of the average weight of an Endurance frame, we get 1.64 kg (3.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Domane SL Frameset weighs 1.94 kg (4.28 lbs) and is much heavier than the average. In short, the average Endurance frame weight is 18.29% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Domane SL Frameset components
Fork material
Domane SL Frameset has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
