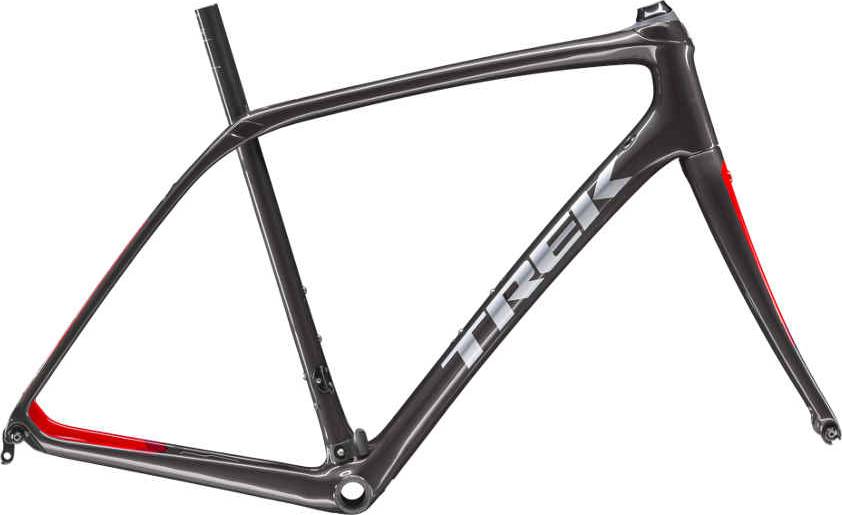

Trek Domane SL Frameset 2019
2019 Road
Estimate price |
1,839$
Weight | 1.56 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, Front & Rear IsoSpeed, tapered head tube, BB90, direct mount rim brakes, internal cable routing, hidden fender mounts, 3S chain keeper, DuoTrap S compatible, Ride Tuned seatmast
Suspension Fork
Domane carbon, carbon tapered steerer, direct mount rim brakes
Drivetrain
Bottom Bracket
BB90, 90.5mm, press-fit
Cockpit
Headset
Integrated, cartridge bearing, sealed, 1-1/8? top, 1.5? bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.65 mm | 1.7 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm | 610 mm | 631 mm | 655 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm | 379 mm | 382 mm | 385 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm | 566 mm | 578 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 995 mm | 1002 mm | 1009 mm | 1007 mm | 1021 mm | 1031 mm | 1041 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 715 mm | 734 mm | 753 mm | 775 mm | 795 mm | 816 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 162 cm | 167 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 196 cm |
Model Overview
Domane SL Frameset belongs to the Trek Domane model. There are 316 frames that carry this model name. Take a sneak peek at all Trek Domane frames models from 2019, by clicking here.
Model range prices
Trek Domane SL Frameset 2019 is the most affordable frame of this model and has a price of 1839$. On the other hand, Trek Domane SLR Disc Frameset 2019, is the most expensive and costs 3299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance frames
According to our math, the average price for a trustworthy Endurance frame is 1905$. However, this doesn’t mean that if you spend less money on an Endurance frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Trek Domane SL Frameset price was 1839$. Comparing the average cost of an Endurance frame to this one, you will see that Domane SL Frameset price is 3.59% smaller.
Average weight for Endurance frames
If we make a quick analysis of the average weight of an Endurance frame, we get 1.64 kg (3.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Domane SL Frameset weighs 1.56 kg (3.44 lbs) and is a bit lighter than the average. In other words, this model is 5.13% lighter than the average Endurance frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Domane SL Frameset components
Fork material
Domane SL Frameset has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Sizes
Domane SL Frameset comes in 7 sizes, that range from 157 cm – 196 cm (5.15 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
