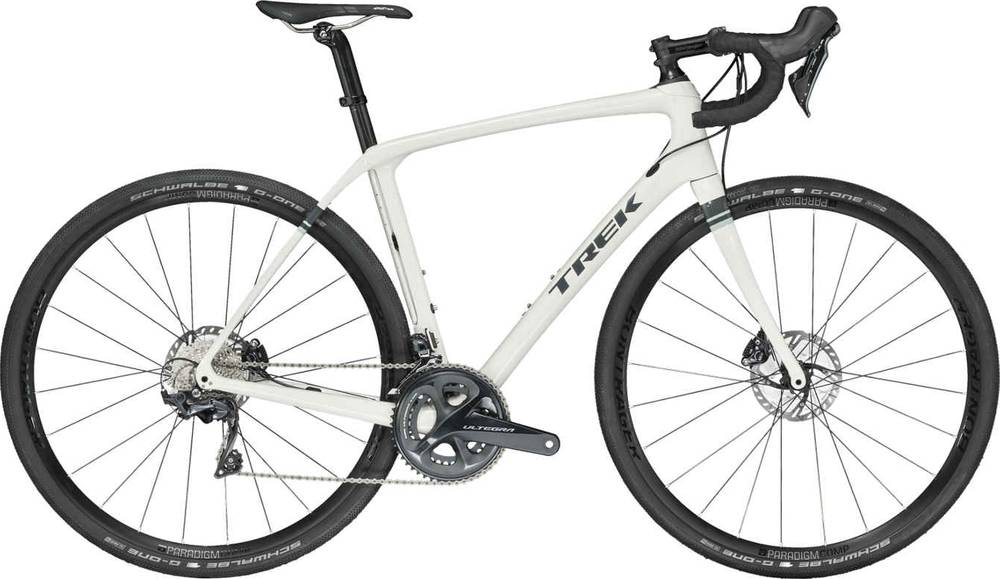

Trek Domane SLR 6 Gravel Disc 2018
2018 Road
Estimate price |
5,499$
Weight | 7.99 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, Front IsoSpeed, Adjustable Rear IsoSpeed, E2 tapered head tube, BB90, flat mount disc brakes, internal cable routing, DuoTrap S compatible, 3S chain keeper, Ride Tuned seatmast
Suspension Fork
Domane carbon disc, carbon E2 steerer, flat mount disc brakes, 12mm thru axle
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano Ultegra, 11 speed
Cassette
Shimano Ultegra, 11-32, 11 speed
Crank
Shimano Ultegra, 50/34 (compact)
Bottom Bracket
BB90
Chain
Shimano Ultegra
Pedals
Not included
Wheels
Rims
Bontrager Paradigm Comp Tubeless Ready Disc, 12mm thru axle
Tires
Schwalbe G-One Allround 700x35c Tubeless
Brakes
Brakes
Shimano Ultegra flat mount hydraulic disc
Cockpit
Stem
Bontrager Pro, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Pro IsoCore VR-CF, 31.8mm
Grips
Bontrager tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Affinity Elite, titanium rails
Seatpost
Bontrager Ride Tuned carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.64 mm | 1.69 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm | 271 mm | 271 mm | 274 mm | 274 mm |
| Front Center | 576 mm | 579 mm | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 53 mm | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 66 mm | 61 mm | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 517 mm | 534 mm | 553 mm | 568 mm | 582 mm | 598 mm | 618 mm | 639 mm | 663 mm |
| Reach | 367 mm | 371 mm | 375 mm | 378 mm | 381 mm | 384 mm | 387 mm | 390 mm | 393 mm |
| Top Tube Length | 508 mm | 516 mm | 526 mm | 537 mm | 549 mm | 561 mm | 574 mm | 586 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 70.3 ° | 71 ° | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 95 mm | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 990 mm | 993 mm | 1003 mm | 1010 mm | 1017 mm | 1015 mm | 1029 mm | 1039 mm | 1049 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 664 mm | 693 mm | 723 mm | 742 mm | 761 mm | 783 mm | 803 mm | 824 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Domane SLR 6 Gravel Disc completes the Trek Domane model. Trek launched 316 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Trek Domane AL 2 2018 is the most economical model, with a starting price of 769$. Trek Domane SLR 9 Disc 2018 on the other hand costs 11999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2018 for 5499$. Comparing the average cost of a Gravel bike to this one, you will see that Domane SLR 6 Gravel Disc price is 123.35% more expensive.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Domane SLR 6 Gravel Disc has a weight of 7.99 kg (17.61 lbs). In conclusion, the average Gravel bike weighs 1.75% more than Domane SLR 6 Gravel Disc.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Domane SLR 6 Gravel Disc components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Domane SLR 6 Gravel Disc bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Domane SLR 6 Gravel Disc is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
