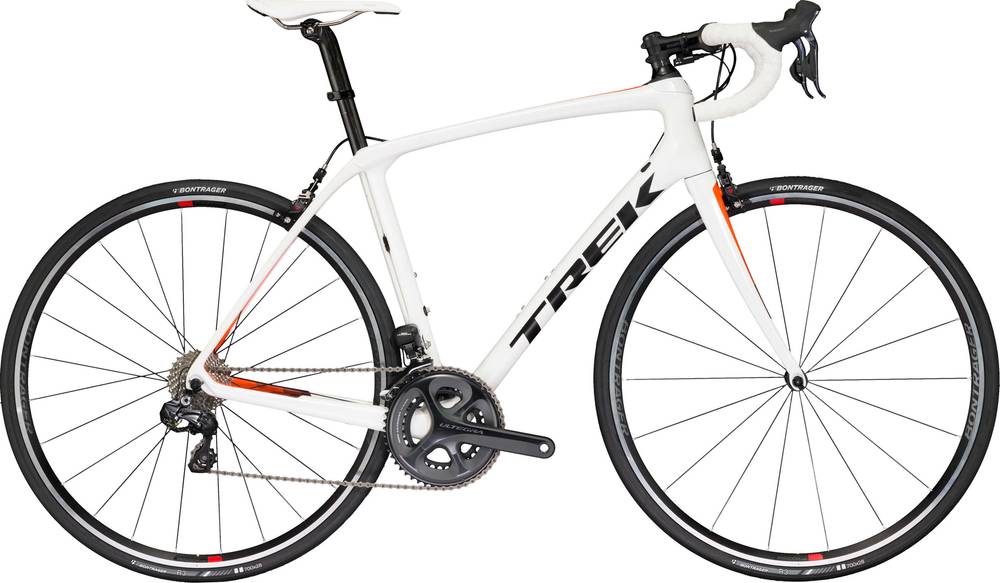

Trek Domane SLR 7 2017
2017 Road
Estimate price |
5,999$
Weight | 7.49 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, Front IsoSpeed, Adjustable Rear IsoSpeed, E2 tapered head tube, BB90, Power Transfer Construction, hidden fender mounts, internal cable routing, 3S chain keeper, DuoTrap S compatible, Ride Tuned seatmast
Suspension Fork
Domane full carbon, E2 tapered steerer, direct mount brakes
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2, braze-on
Shift Levers
Shimano Ultegra Di2, 11 speed
Cassette
Shimano Ultegra, 11-28, 11 speed
Crank
Shimano Ultegra, 50/34 (compact)
Bottom Bracket
BB90
Chain
Shimano Ultegra
Wheels
Rims
Bontrager Paradigm Comp Tubeless Ready
Tires
Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x28c
Brakes
Brakes
Bontrager Speed Stop, direct mount
Cockpit
Stem
Bontrager Pro, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Pro IsoCore VR-CF, 31.8mm
Grips
Bontrager gel cork tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Affinity Elite, titanium rails
Seatpost
Bontrager Ride Tuned carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.65 mm | 1.7 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm | 610 mm | 631 mm | 655 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm | 379 mm | 382 mm | 385 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm | 566 mm | 578 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 995 mm | 1002 mm | 1009 mm | 1007 mm | 1021 mm | 1031 mm | 1041 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 715 mm | 734 mm | 753 mm | 775 mm | 795 mm | 816 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Domane SLR 7 is a Trek Domane model. There are 316 bikes that carry this model name. Take a sneak peek at all Trek Domane bikes models from 2017, by clicking here.
Model range prices
Trek Domane ALR 3 2017 is the cheapest bike model and costs 1149$. Trek Domane SLR 10 Race Shop Limited 2017 is the most expensive one and costs 11999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2017, its price was 5999$. Comparing this to the average Endurance bike price, we see that the price is 155.71% more expensive.
Average weight for Endurance bikes
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 7.49 kg (16.51 lbs), the Domane SLR 7 model is a bit lighter than average. In other words, this model is 9.48% lighter than the average Endurance bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Domane SLR 7 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Domane SLR 7 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Domane SLR 7 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Domane SLR 7 comes in 7 sizes, that range from 157 cm – 195 cm (5.15 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
