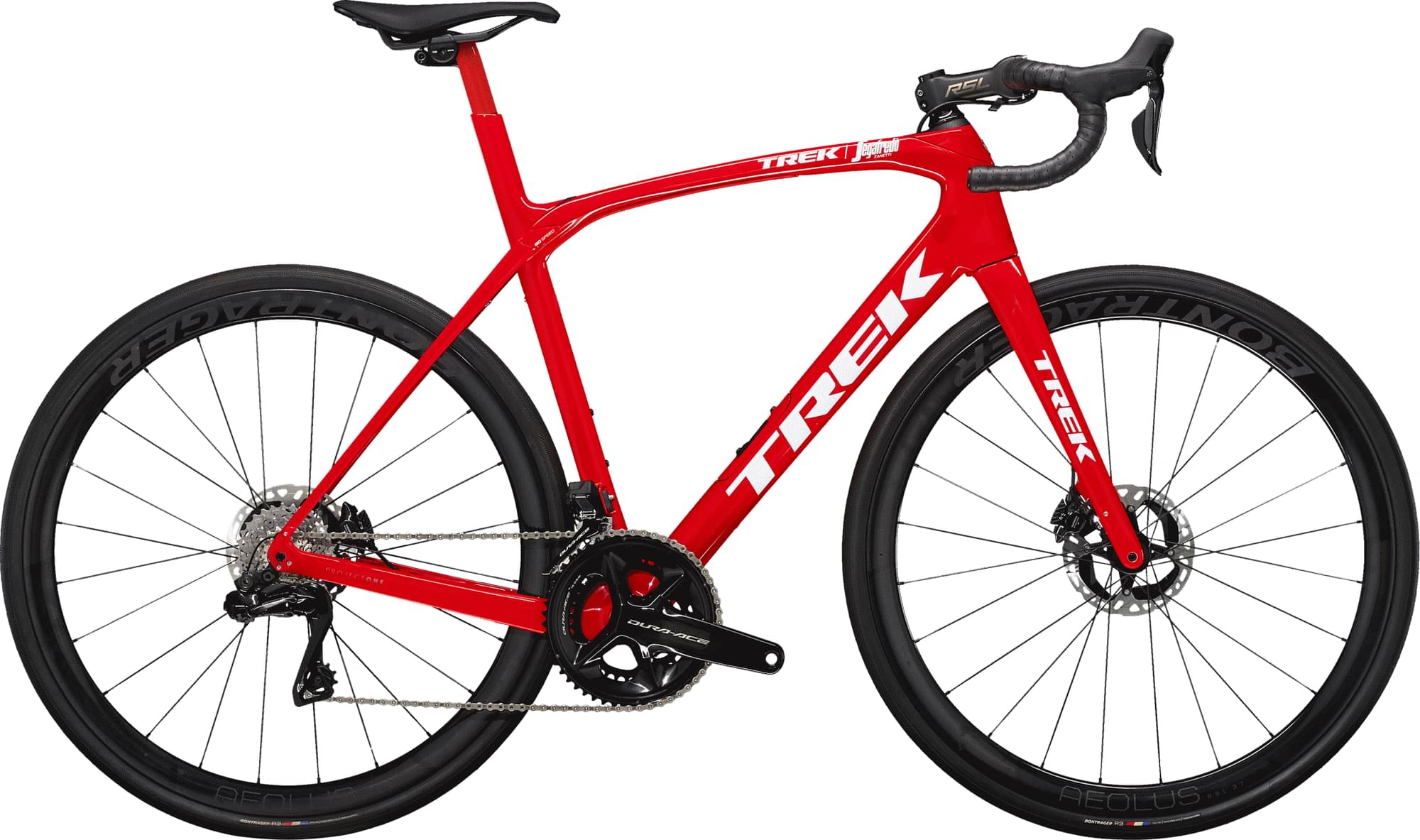

Trek Domane SLR 9 2022
2022 Road
Estimate price |
13,877$
Weight | 7.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
700 Series OCLV Carbon, front IsoSpeed, adjustable rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 142x12mm thru axle
Suspension Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Dura-Ace R9250 Di2
Front Derailleur
Shimano Dura-Ace R9250 Di2, braze-on, down swing
Shift Levers
Shimano Dura-Ace R9270 Di2, 12 speed
Cassette
Shimano Dura-Ace R9200, 11-34, 12 speed
Crank
Size: 47, Shimano Dura-Ace R9200, 50/34, 165mm length; Size: 50, 52, Shimano Dura-Ace R9200, 50/34, 170mm length; Size: 54, 56, Shimano Dura-Ace R9200, 50/34, 172.5mm length; Size: 58, 60, 62, Shimano Dura-Ace R9200, 50/34, 175mm length
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano Dura-Ace/XTR M9100, 12 speed
Wheels
Rear Hub
Bontrager Aeolus, OCLV Carbon, Tubeless Ready, Shimano 11/12 speed freehub, 142x12mm thru axle
Rims
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
Brakes
Brakes
hydraulicDisc
Disk Rotors
Shimano MT900, centerlock, 160mm
Cockpit
Stem
Size: 47, Bontrager RSL Carbon, 31.8mm clamp, 7 degree, 70mm length; Size: 50, Bontrager RSL Carbon, 31.8mm clamp, 7 degree, 80mm length; Size: 52, 54, Bontrager RSL Carbon, 31.8mm clamp, 7 degree, 90mm length; Size: 56, 58, Bontrager RSL Carbon, 31.8mm clamp, 7 degree, 100mm length; Size: 60, 62, Bontrager RSL Carbon, 31.8mm clamp, 7 degree, 110mm length
Handlebar
Size: 47, Bontrager Pro IsoCore VR-SF, 38cm; Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm
Seat
Saddle
Size: 47, 50, 52, Bontrager P3 Verse Pro, carbon rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager P3 Verse Pro, carbon rails, 145mm width
Seatpost
Size: 47, 50, 52, 54, 56, Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short length; Size: 58, 60, 62, Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.65 mm | 1.69 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 579 mm | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 61 mm | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 530 mm | 549 mm | 564 mm | 578 mm | 594 mm | 614 mm | 635 mm | 659 mm |
| Reach | 367 mm | 371 mm | 374 mm | 377 mm | 380 mm | 383 mm | 386 mm | 389 mm |
| Top Tube Length | 512 mm | 522 mm | 533 mm | 545 mm | 557 mm | 570 mm | 582 mm | 596 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71 ° | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 989 mm | 999 mm | 1006 mm | 1013 mm | 1011 mm | 1025 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 689 mm | 719 mm | 738 mm | 757 mm | 779 mm | 799 mm | 820 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Domane SLR 9 is part of the Trek Domane model. There are 316 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Trek Domane AL 2 2022 is the most affordable bike of this model and has a price of 999$. On the other hand, Trek Domane SLR 9 2022, is the most expensive and costs 12847$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek Domane SLR 9 price was 12847$. Comparing the average cost of an Endurance bike to this one, you will see that Domane SLR 9 price is 447.61% more expensive.
Endurance bikes average weight
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, Domane SLR 9 has a weight of 7.8 kg (17.2 lbs). To sum up, it’s 5.13% lighter than the average weight of Endurance bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
Domane SLR 9 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Domane SLR 9 2022 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Domane SLR 9 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
