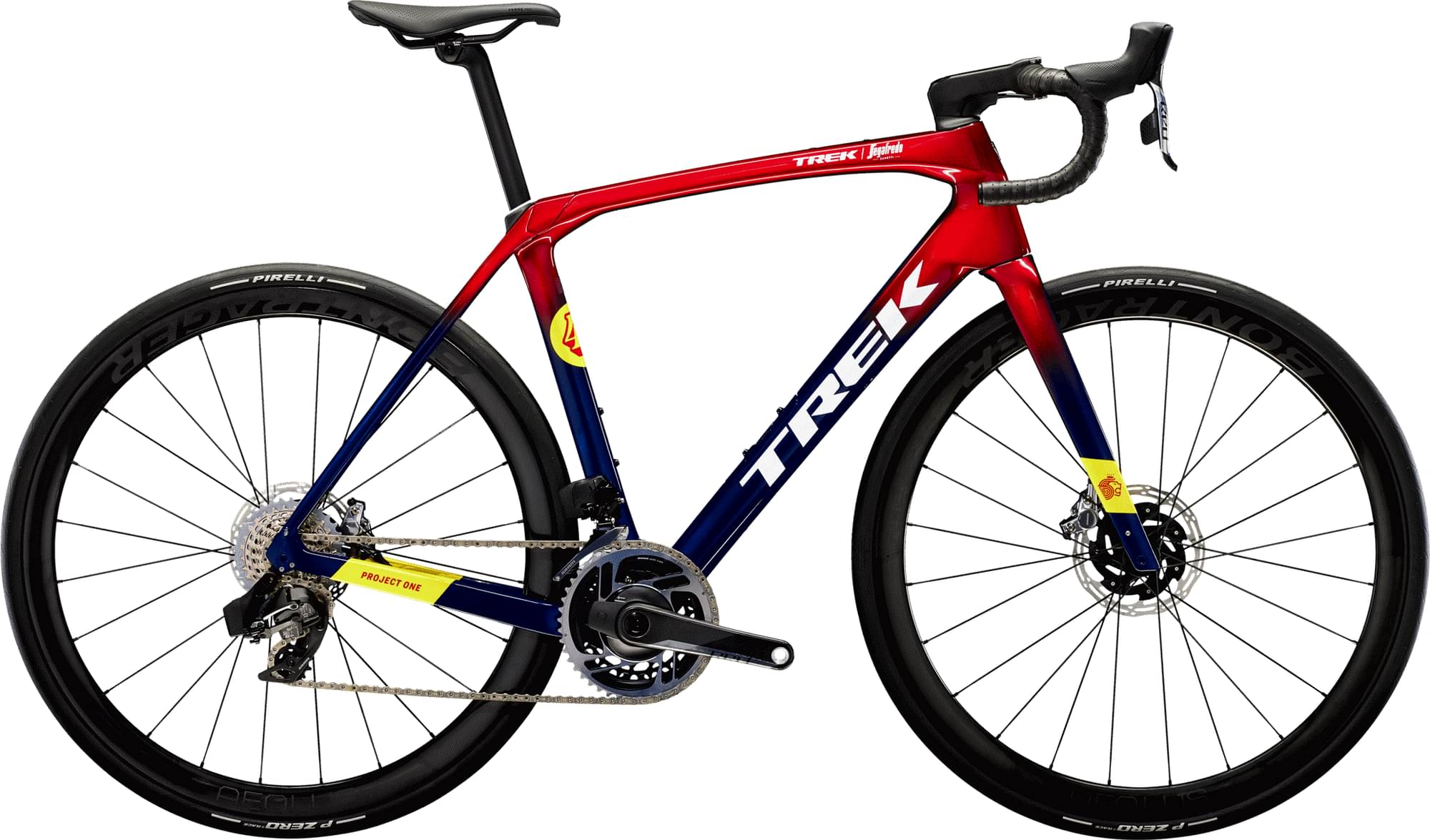

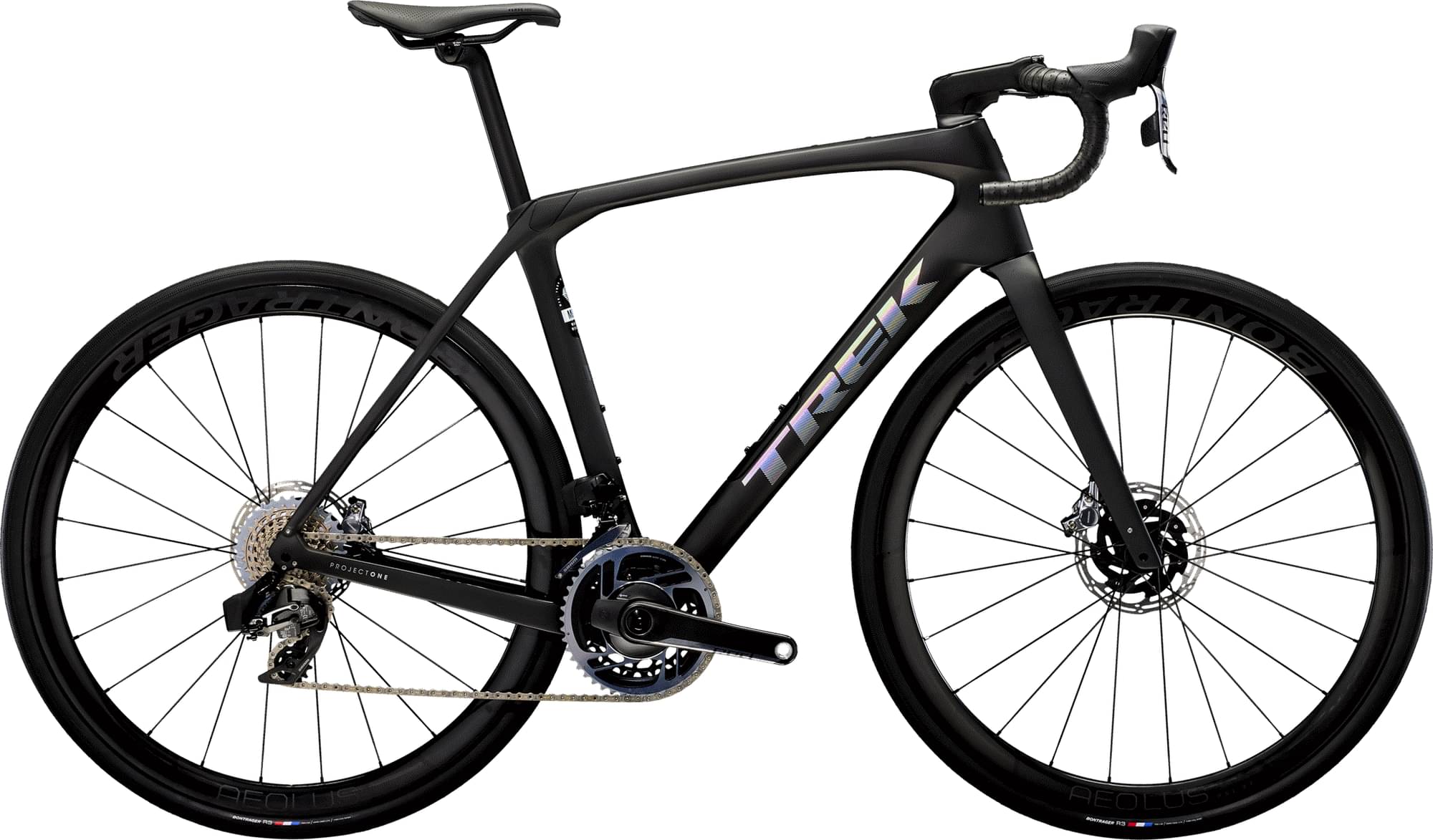

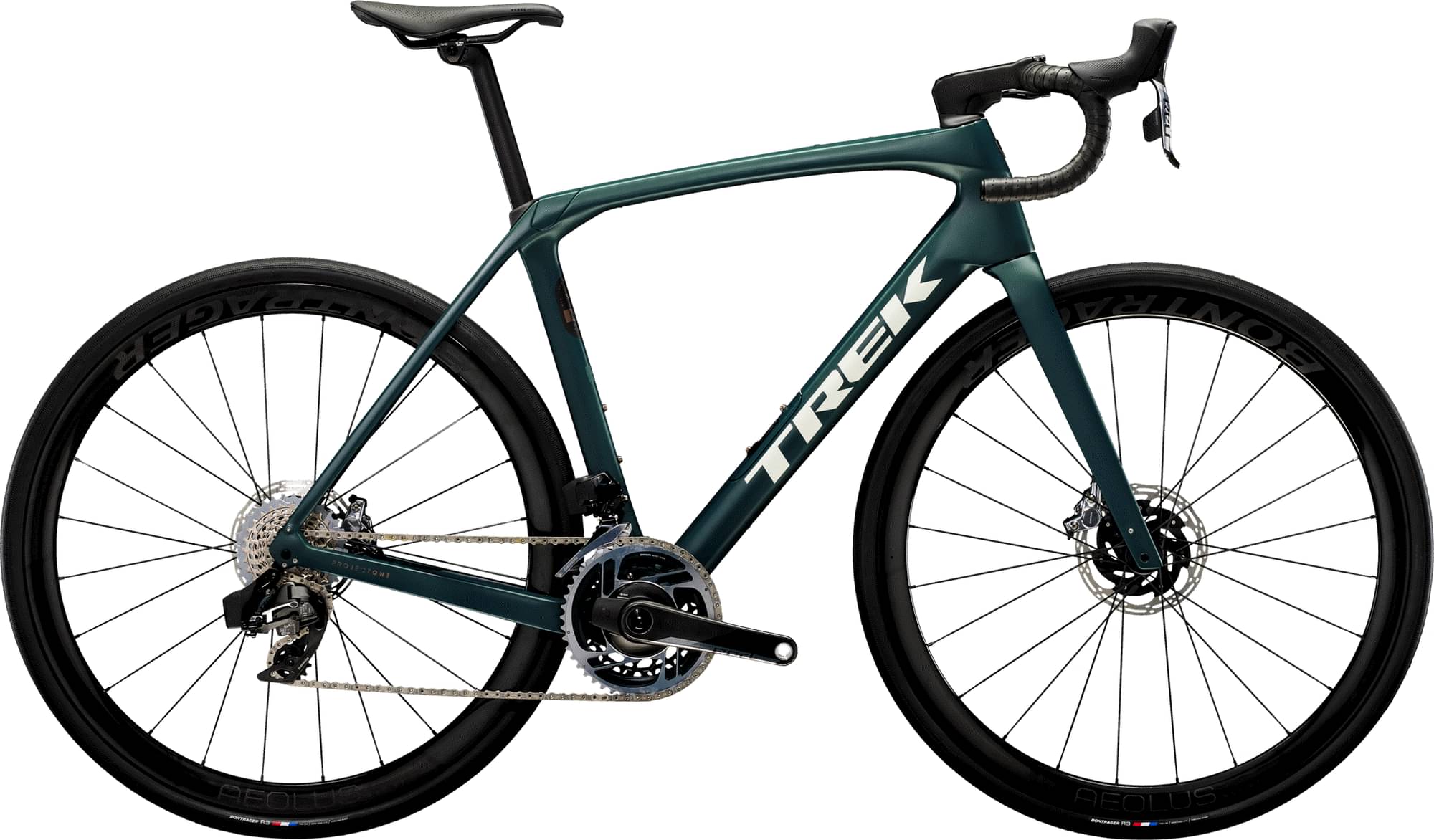

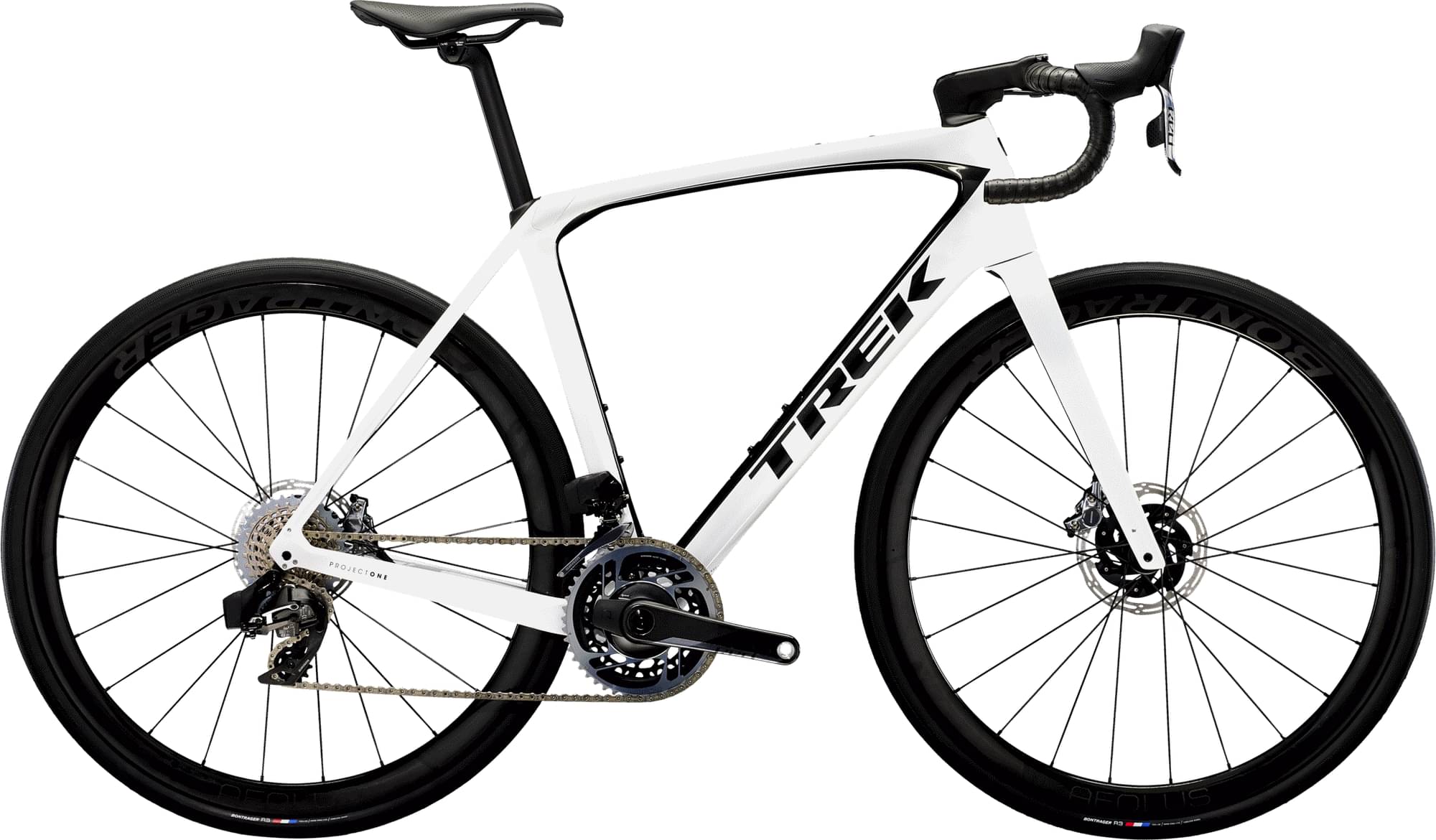

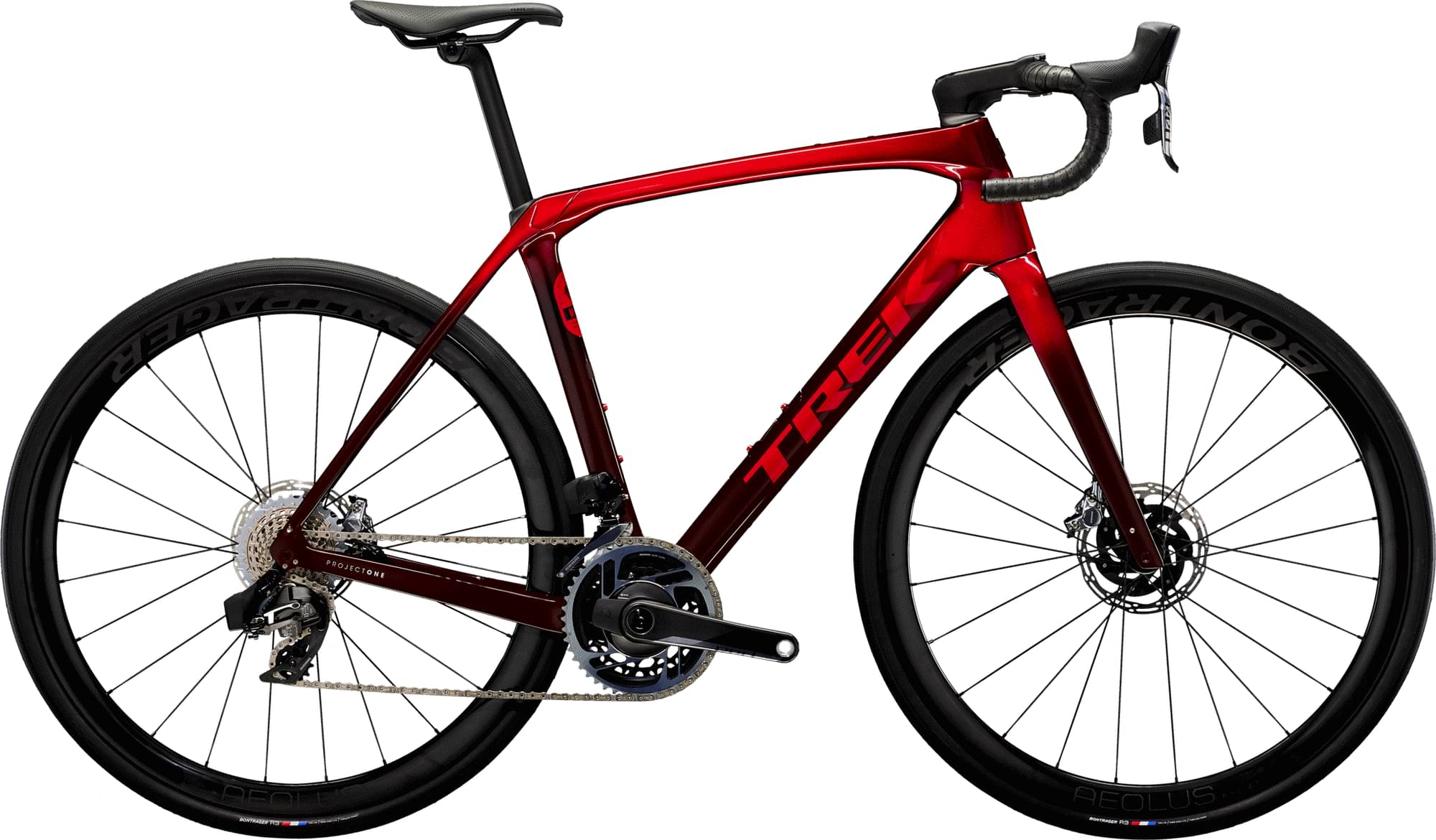

Trek Domane SLR 9 Gen 4 AXS 2023
2023 Road
Estimate price |
13,199$
Weight | 7.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Suspension Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
Drivetrain
Rear Derailleur
SRAM RED eTap AXS, 36T max cog
Front Derailleur
SRAM RED eTap AXS, braze-on
Shift Levers
SRAM RED eTap AXS, 12 speed
Cassette
SRAM XG-1290, 10-33, 12 speed
Crank
Size: 47, SRAM RED AXS w/ power meter, 46/33, DUB, 165mm length; Size: 50, 52, SRAM RED AXS w/ power meter, 46/33, DUB, 170mm length; Size: 54, 56, SRAM RED AXS w/ power meter, 46/33, DUB, 172.5mm length; Size: 58, 60, 62, SRAM RED AXS w/ power meter, 46/33, DUB, 175mm length
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chain
SRAM RED D1, 12 speed
Wheels
Rims
Front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Tires
Size: 47, 50, 52, 54, 56, 58, 60, 62, Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c; Size: 47, 50, 52, 54, 56, 58, 60, 62, Pirelli P Zero Race, 120 tpi, tubeless compatible, 700x30c
Brakes
Brakes
SRAM Red eTap AXS hydraulic disc, flat mount
Cockpit
Stem
Size: 47, Bontrager RCS Pro, -7 degree, 70mm length; Size: 50, Bontrager RCS Pro, -7 degree, 80mm length; Size: 52, 54, Bontrager RCS Pro, -7 degree, 90mm length; Size: 56, 58, Bontrager RCS Pro, -7 degree, 100mm length; Size: 60, 62, Bontrager RCS Pro, -7 degree, 110mm length
Handlebar
Size: 47, Bontrager Pro IsoCore VR-SF, 38cm; Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm
Seat
Saddle
Size: 47, 50, 52, Bontrager Verse Short Pro, carbon rails 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Verse Short Pro, carbon rails, 145mm width
Seatpost
Size: 47, 50, 52, 54, 56, Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length; Size: 58, 60, 62, Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.48 mm | 1.51 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.65 mm | 1.69 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 579 mm | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 61 mm | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 530 mm | 549 mm | 564 mm | 578 mm | 594 mm | 614 mm | 635 mm | 659 mm |
| Reach | 367 mm | 371 mm | 374 mm | 377 mm | 380 mm | 383 mm | 386 mm | 389 mm |
| Top Tube Length | 512 mm | 522 mm | 533 mm | 545 mm | 557 mm | 570 mm | 582 mm | 596 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71 ° | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 989 mm | 999 mm | 1006 mm | 1013 mm | 1011 mm | 1025 mm | 1035 mm | 1045 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 689 mm | 719 mm | 738 mm | 757 mm | 779 mm | 799 mm | 820 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Domane SLR 9 Gen 4 AXS is a Trek Domane model. Trek launched 316 bikes of this model so far. Take a sneak peek at all Trek Domane bikes models from 2023, by clicking here.
Model range prices
Trek Domane AL 2 Gen 3 2023 is the cheapest bike model and costs 1099$. Trek Domane SLR 9 eTap Gen 4 2023 is the most expensive one and costs 13199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2023, its price was 13199$. Doing a quick comparison, we notice that Domane SLR 9 Gen 4 AXS price is 462.62% higher than the average cost of an Endurance bike.
Average weight for Endurance bikes
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Domane SLR 9 Gen 4 AXS weighs 7.8 kg (17.2 lbs) and is a bit lighter than the average. In conclusion, the average Endurance bike weighs 5.13% more than Domane SLR 9 Gen 4 AXS.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Trek Domane SLR 9 Gen 4 AXS 2023, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Domane SLR 9 Gen 4 AXS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Trek Domane SLR 9 Gen 4 AXS bike has 8 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
