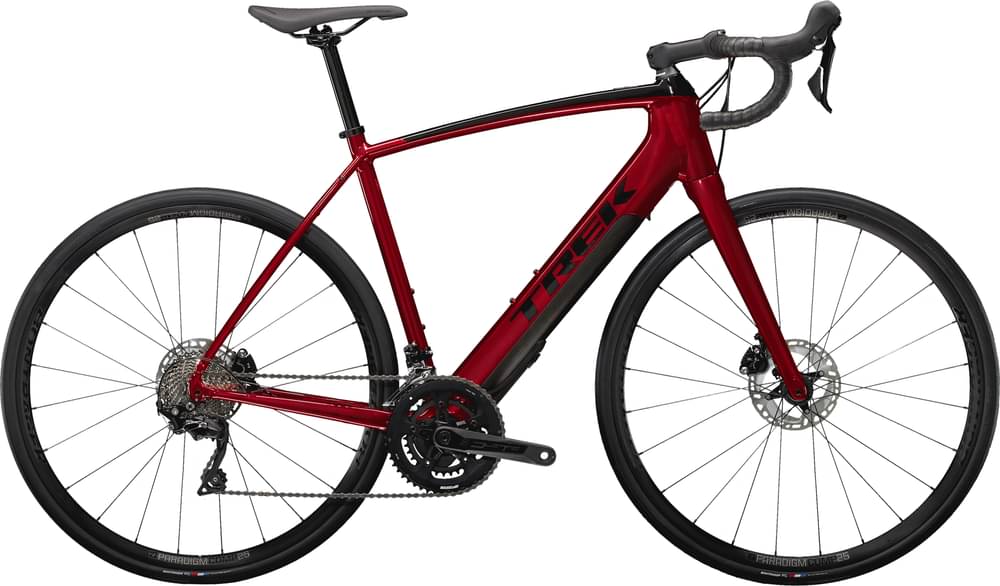

Trek Domane+ ALR 2021
2021 E-bike
Estimate price |
4,599$
Weight | 15.21 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Size: 49, 52, 54, 56, 58, 61, Fazua Evation 1.0, 250Wh; Size: 49, 52, 54, 56, 58, 61, Fazua Evation Drive Pack, 20mph max assist; Size: 49, 52, 54, 56, 58, 61, Fazua Evation touch remote; Size: 49, 52, 54, 56, 58, 61, Fazua Evation charger -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
156cm - 164cm
52cm
161cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
61cm
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
300 Series Alpha Aluminum, Fazua Evation integrated drive system, tapered head tube, internal routing, flat mount disc, fender mounts, 148x12mm thru axle
Suspension Fork
Domane+ carbon, tapered alloy steerer, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano 105 R7000, long cage, 34T max cog
Front Derailleur
Shimano 105 R7000, braze-on
Shift Levers
Size: 49, 52, Shimano 105 R7025, short-reach lever, 11 speed; Size: 54, 56, 58, 61, Shimano 105 R7020, 11 speed
Cassette
Shimano 105 HG700-11, 11-34, 11 speed
Crank
Size: 49, 52, FSA Alloy for Fazua, 50/34 chainrings, 170mm length; Size: 54, 56, FSA Alloy for Fazua, 50/34 chainrings, 172.5mm length; Size: 58, 61, FSA Alloy for Fazua, 50/34 chainrings, 175mm length
Chain
Shimano 105 HG601, 11 speed
Wheels
Rims
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Brakes
Brakes
Shimano 105 hydraulic disc, flat mount
Disk Rotors
Size: 49, 52, 54, 56, 58, 61, Shimano MT800, centerlock, 160mm; Size: 49, 52, 54, 56, 58, 61, Shimano EM810, centerlock 160mm
Cockpit
Stem
Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 49, 52, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Arvada Comp, steel rails, 138mm width
Seatpost
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Motor & Battery
Motor
Size: 49, 52, 54, 56, 58, 61, Fazua Evation 1.0, 250Wh; Size: 49, 52, 54, 56, 58, 61, Fazua Evation Drive Pack, 20mph max assist; Size: 49, 52, 54, 56, 58, 61, Fazua Evation touch remote; Size: 49, 52, 54, 56, 58, 61, Fazua Evation charger
Battery
Size: 49, 52, 54, 56, 58, 61, Fazua Evation 1.0, 250Wh; Size: 49, 52, 54, 56, 58, 61, Fazua Evation Drive Pack, 20mph max assist; Size: 49, 52, 54, 56, 58, 61, Fazua Evation touch remote; Size: 49, 52, 54, 56, 58, 61, Fazua Evation charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.6 mm | 1.67 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 590 mm | 596 mm | 604 mm | 600 mm | 609 mm | 625 mm |
| Rake | 53 mm | 54 mm | 54 mm | 48 mm | 48 mm | 49 mm |
| Trail | 67 mm | 64 mm | 64 mm | 65 mm | 65 mm | 64 mm |
| Stack | 546 mm | 567 mm | 581 mm | 597 mm | 617 mm | 652 mm |
| Reach | 374 mm | 377 mm | 380 mm | 383 mm | 386 mm | 391 mm |
| Top Tube Length | 523 mm | 536 mm | 548 mm | 560 mm | 573 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 440 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm |
| Head Tube Angle | 70.8 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 180 mm | 220 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1013 mm | 1019 mm | 1027 mm | 1024 mm | 1033 mm | 1049 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm |
| Standover Height | 733 mm | 759 mm | 778 mm | 800 mm | 815 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 161 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model
Domane+ ALR is a Trek E Domane model. Trek released 42 e-bikes variations of this model so far. You can easily view all of the Trek E Domane e-bikes models from 2021, here.
Model range prices
Trek Domane+ ALR 2021 is the most affordable e-bike of this model and has a price of 4599$. On the other hand, Trek Domane+ LT 9 2021, is the most expensive and costs 12499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance e-bikes
If you want an acceptable Endurance e-bike you should know that the average price is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 4599$. Comparing this to the average Endurance e-bike price, we see that the price is 21.03% higher.
Endurance e-bikes average weight
On a deeper look, we notice that the average weight of an Endurance e-bike is 13.52 kg (29.81 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Domane+ ALR weighs 15.21 kg (33.53 lbs) and is considerably heavier than the average. In conclusion, the average Endurance e-bike weighs 12.5% less than Domane+ ALR.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Domane+ ALR components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Domane+ ALR are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Domane+ ALR has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Domane+ ALR comes in 6 sizes, that range from 156 cm – 191 cm (5.12 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
