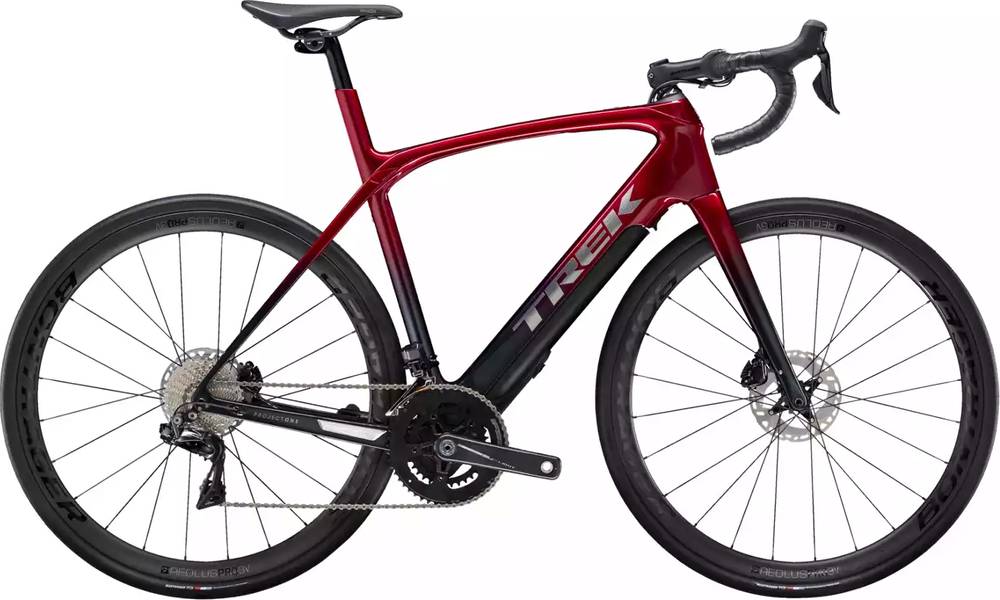

Trek Domane+ LT 9 2020
2020 E-bike
Estimate price |
12,499$
Weight | 13.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation Drive Pack, 20mph max assist; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation 1.0, 250Wh; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation charger; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation touch remote -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, Fazua Evation integrated drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 148x12mm thru axle
Suspension Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9150, short cage, 30T max cog
Front Derailleur
Shimano Dura-Ace Di2 R9150, braze-on
Shift Levers
Shimano Dura-Ace Di2 R9170, 11 speed
Cassette
Shimano Dura-Ace R9100, 11-30, 11 speed
Crank
Size: 50, 52, FSA Carbon for Fazua, 50/34, 170mm length; Size: 54, 56, FSA Carbon for Fazua, 50/34, 172.5 length; Size: 58, 60, 62, FSA Carbon for Fazua, 50/34, 175 length
Chain
Shimano Dura-Ace HG900, 11 speed
Wheels
Rims
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
Brakes
Brakes
Shimano Dura-Ace hydraulic disc, flat mount
Disk Rotors
Size: 50, 52, 54, 56, 58, 60, 62, Shimano EM910, 160mm, centerlock; Size: 50, 52, 54, 56, 58, 60, 62, Shimano MT900, 160mm, centerlock
Cockpit
Stem
Size: 50, Bontrager XXX, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager XXX, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager XXX, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 60, 62, Bontrager XXX, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 50, 52, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 40cm width; Size: 54, 56, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 42cm width; Size: 58, 60, 62, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width
Seat
Saddle
Bontrager Arvada Pro, carbon rails, 138mm width
Motor & Battery
Motor
Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation Drive Pack, 20mph max assist; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation 1.0, 250Wh; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation charger; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation touch remote
Battery
Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation Drive Pack, 20mph max assist; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation 1.0, 250Wh; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation charger; Size: 50, 52, 54, 56, 58, 60, 62, Fazua Evation touch remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.65 mm | 1.7 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 589 mm | 596 mm | 603 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 53 mm | 54 mm | 53 mm | 48 mm | 49 mm | 48 mm | 48 mm |
| Trail | 60 mm | 59 mm | 59 mm | 61 mm | 60 mm | 59 mm | 59 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm | 610 mm | 631 mm | 655 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm | 379 mm | 382 mm | 385 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm | 566 mm | 578 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 995 mm | 1002 mm | 1009 mm | 1007 mm | 1021 mm | 1031 mm | 1041 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 715 mm | 734 mm | 753 mm | 775 mm | 795 mm | 816 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Domane+ LT 9 completes the Trek E Domane model. 42 e-bikes variations carry this model name so far. Take a sneak peek at all Trek E Domane e-bikes models from 2020, by clicking here.
Model range prices
Trek Domane+ LT 2020 is the cheapest e-bike model and costs 6999$. Trek Domane+ LT 9 2020 is the most expensive one and costs 12499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance e-bikes
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Trek released this model in 2020, its price was 12499$. Comparing the average cost of an Endurance e-bike to this one, you will see that Domane+ LT 9 price is 228.92% higher.
Average weight for Endurance e-bikes
Endurance e-bikes have an average weight of 13.52 kg (29.81 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.6 kg (29.98 lbs), Trek e-bike is slightly heavier than average. In short, the average Endurance e-bike weight is 0.59% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Domane+ LT 9 components
Fork material
Domane+ LT 9 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Domane+ LT 9 are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Domane+ LT 9 comes in 7 sizes, that range from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
