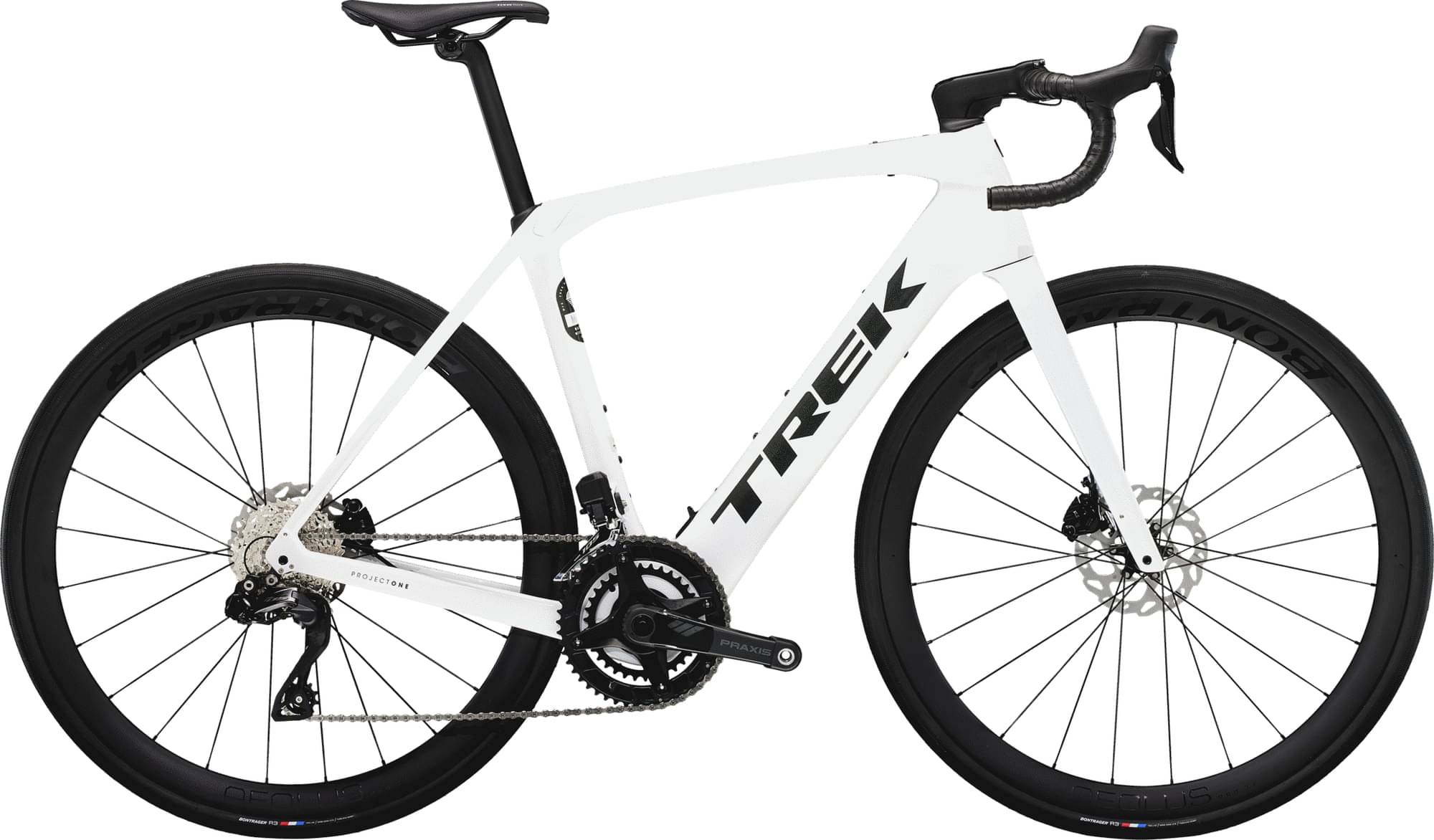

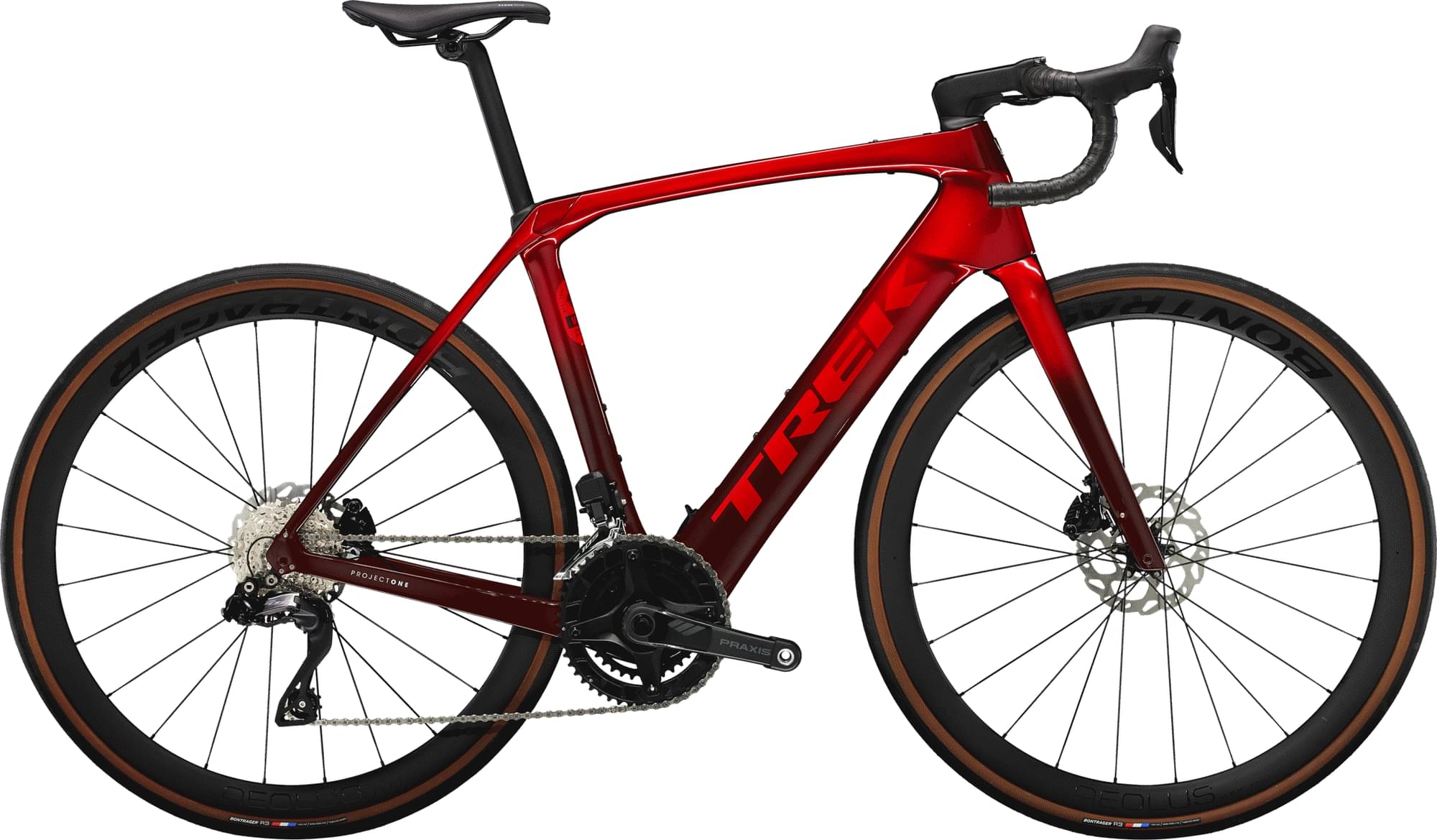

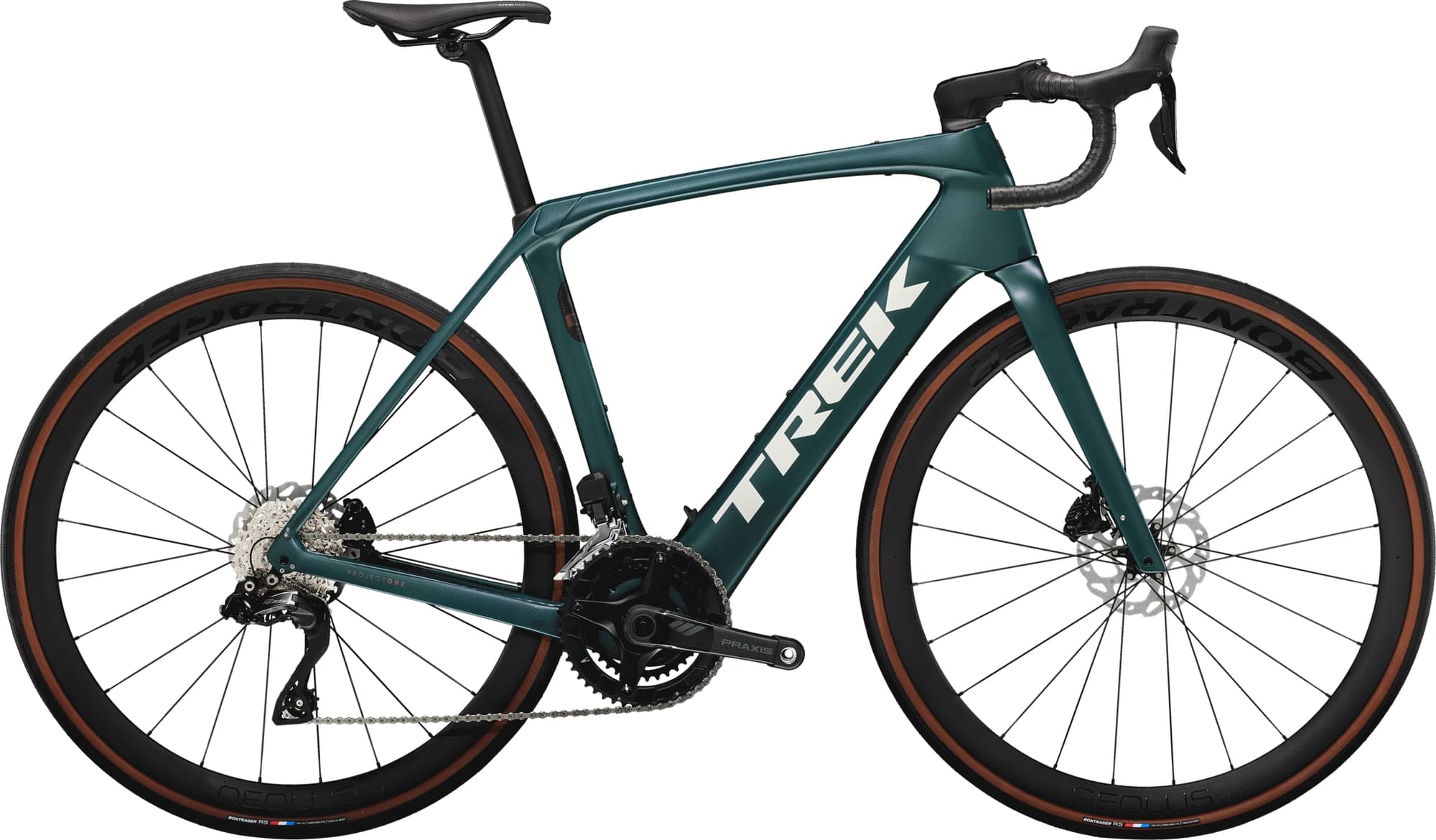

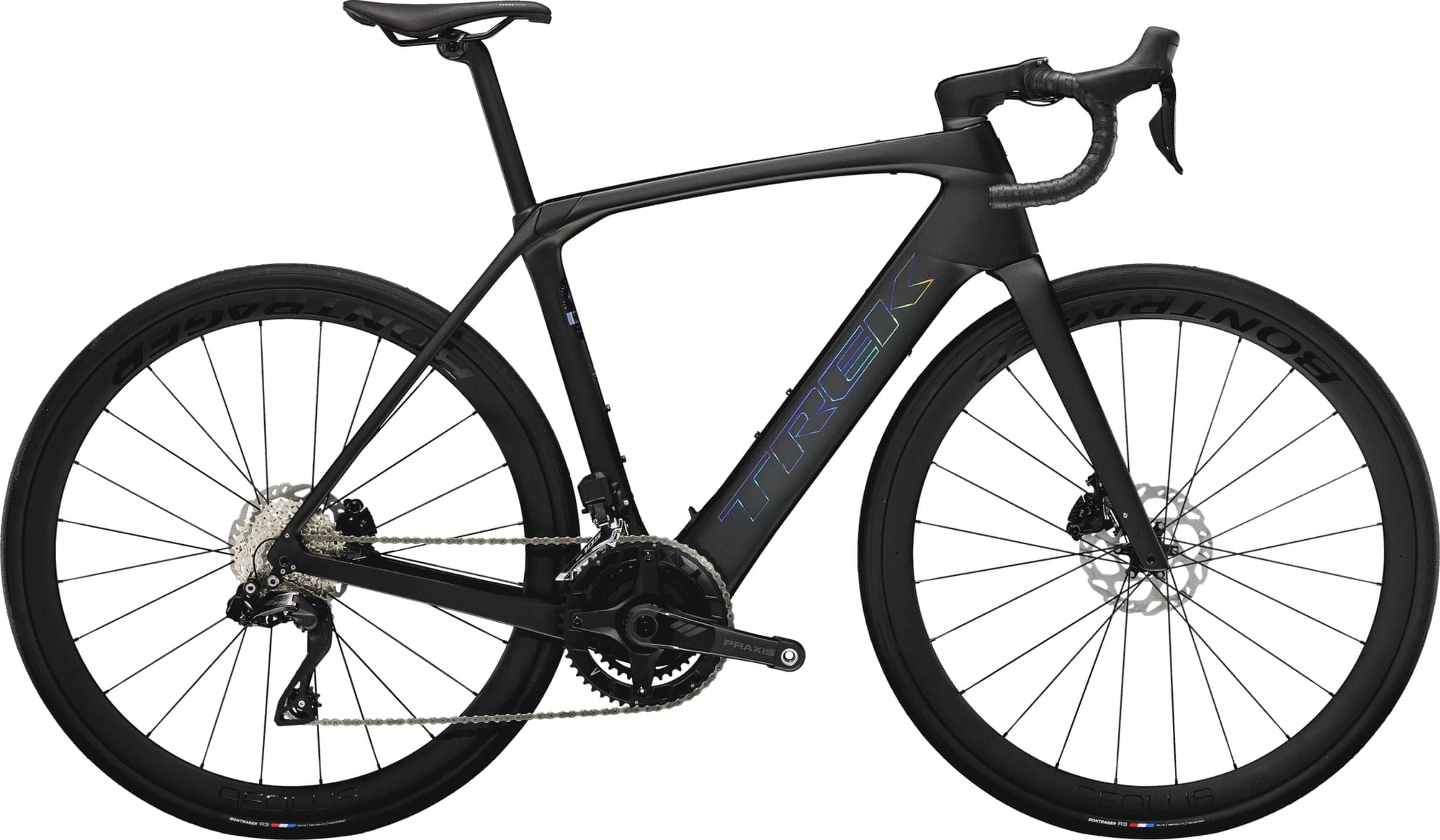

Trek Domane+ SLR 6 2023
2023 E-bike
Estimate price |
8,499$
Weight | 12.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2, Praxis -
Suspension Rigid -
Motor TQ 250W 50Nm mid-drive -
Battery Size: 50, 52, 54, 56, 58, 60, 62, TQ 360Wh; Size: 50, 52, 54, 56, 58, 60, 62, Shimano BT-DN300 -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle
Suspension Fork
Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano R7150 Di2, 36T max cog
Front Derailleur
Shimano 105 R7150 Di2, braze-on, down swing
Shift Levers
Shimano 105 R7170 Di2, 12 speed
Cassette
Shimano 105 7100, 11-34, 12 speed
Crank
Size: 50, 52, Praxis Carbon, 170mm length; Size: 54, 56, Praxis Carbon, 172.5mm length; Size: 58, 60, 62, Praxis Carbon, 175mm length
Chain
Shimano SLX M7100, 12 speed
Wheels
Rims
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Brakes
Brakes
Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
Cockpit
Stem
Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length
Handlebar
Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm
Seat
Saddle
Size: 50, 52, Bontrager Verse Short Elite, hollow stainless steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Verse Short Elite, hollow stainless steel rails, 145mm width
Seatpost
Size: 50, 52, 54, 56, Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length; Size: 58, 60, 62, Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length
Motor & Battery
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
Size: 50, 52, 54, 56, 58, 60, 62, TQ 360Wh; Size: 50, 52, 54, 56, 58, 60, 62, Shimano BT-DN300
Charger
Charging cable included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.65 mm | 1.7 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 590 mm | 596 mm | 604 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 54 mm | 54 mm | 54 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 63 mm | 62 mm | 62 mm | 63 mm | 63 mm | 62 mm | 62 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm | 610 mm | 631 mm | 655 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm | 379 mm | 382 mm | 385 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm | 566 mm | 578 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1006 mm | 1012 mm | 1020 mm | 1017 mm | 1026 mm | 1036 mm | 1046 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 727 mm | 746 mm | 765 mm | 787 mm | 807 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Domane+ SLR 6 is a Trek E Domane model. There are 42 e-bikes that carry this model name. You can easily view all of the Trek E Domane e-bikes models from 2023, here.
Model range prices
Trek Domane+ AL 5 2023 is the most affordable e-bike of this model and has a price of 3499$. On the other hand, Trek Domane+ SLR 9 2023, is the most expensive and costs 12999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8499$. Comparing this to the average Endurance e-bike price, we see that the price is 123.66% more expensive.
Average weight for Endurance e-bikes
The average weight for Endurance e-bikes is 13.82 kg (30.47 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Trek Domane+ SLR 6 it’s weighing 12.4 kg (27.34 lbs). At this weight, is considerably lighter than average. In short, the average Endurance e-bike weight is 11.45% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
Domane+ SLR 6 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Domane+ SLR 6 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Domane+ SLR 6 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Domane+ SLR 6 comes in 7 sizes, that range from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
