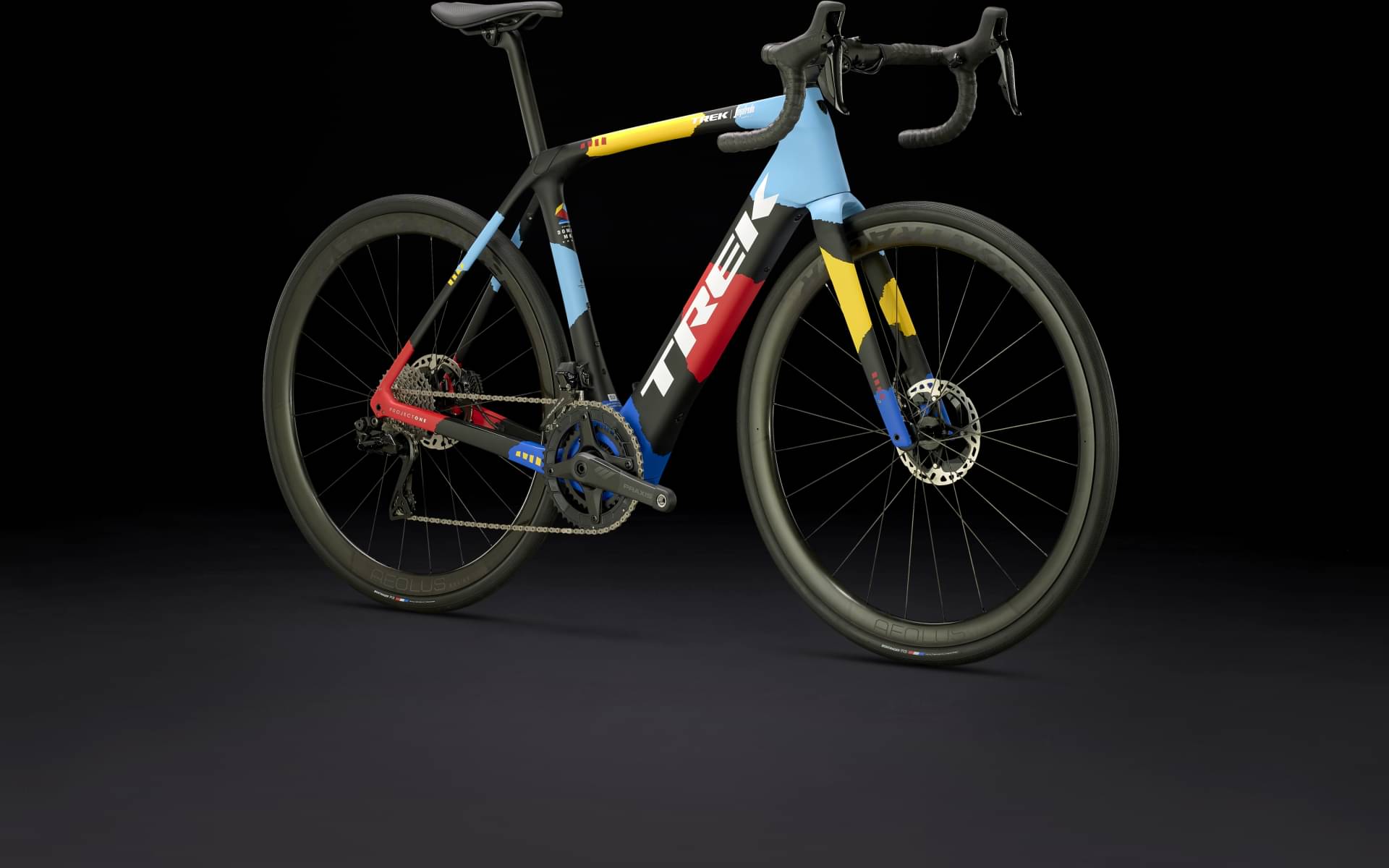

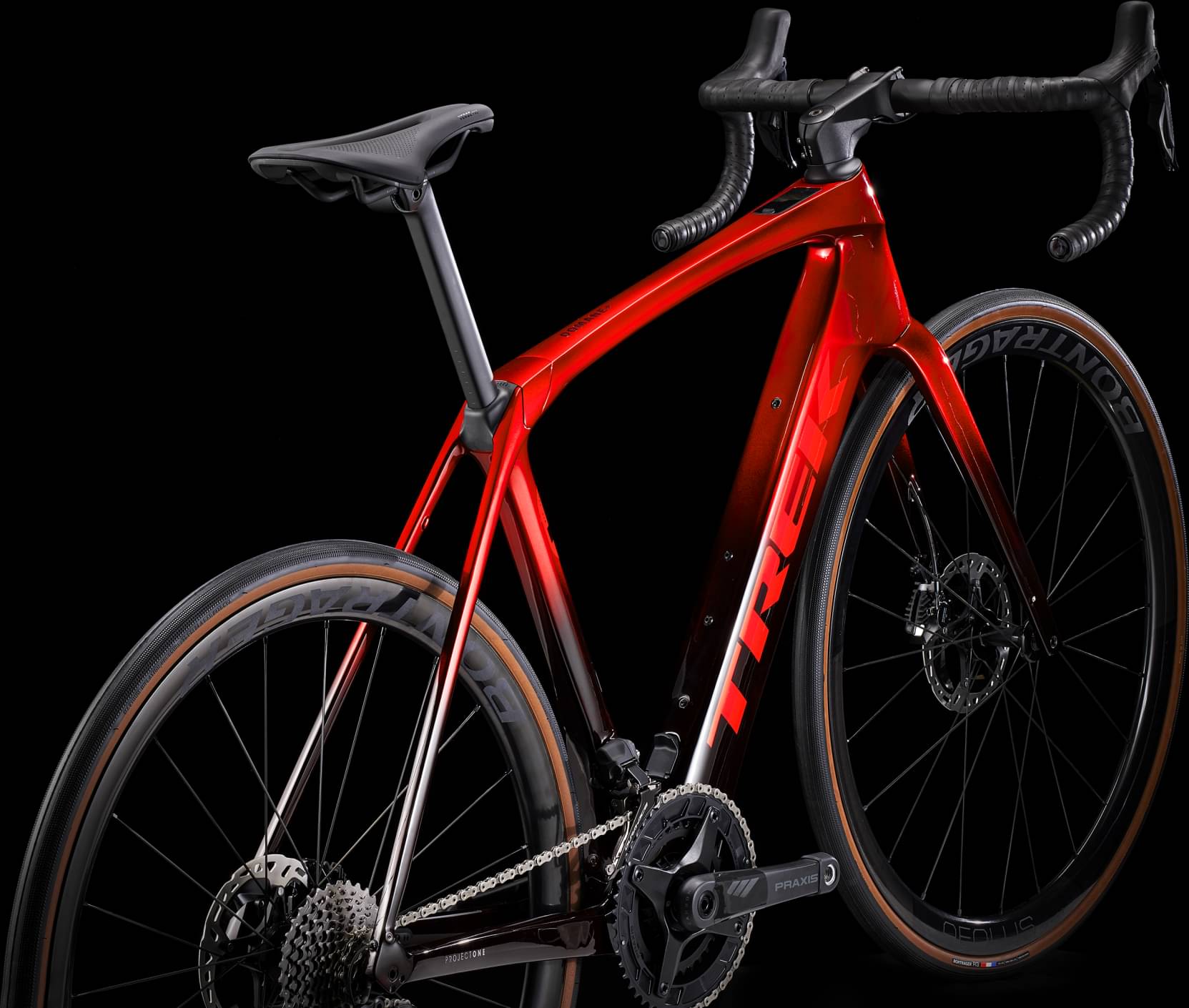

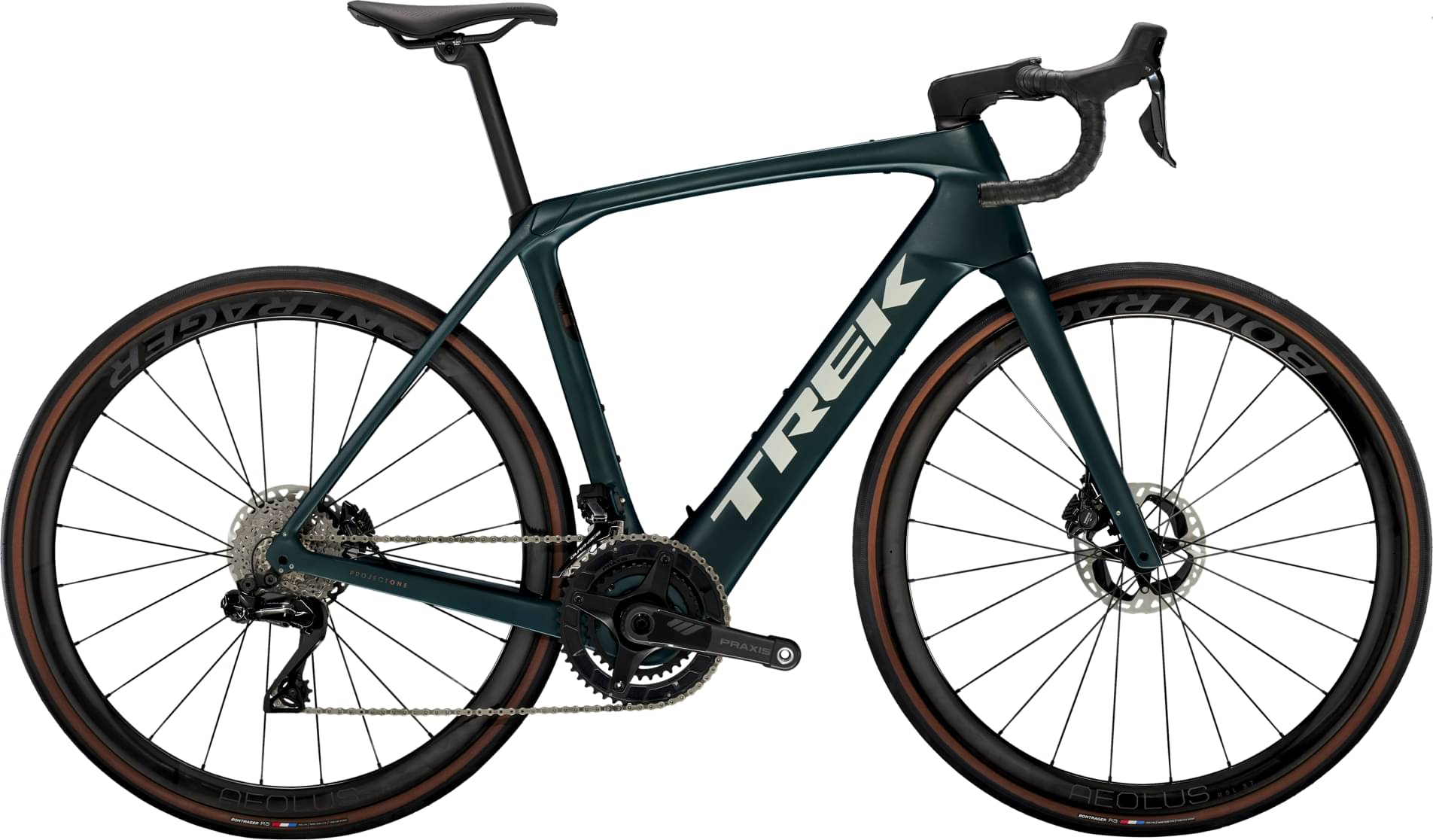

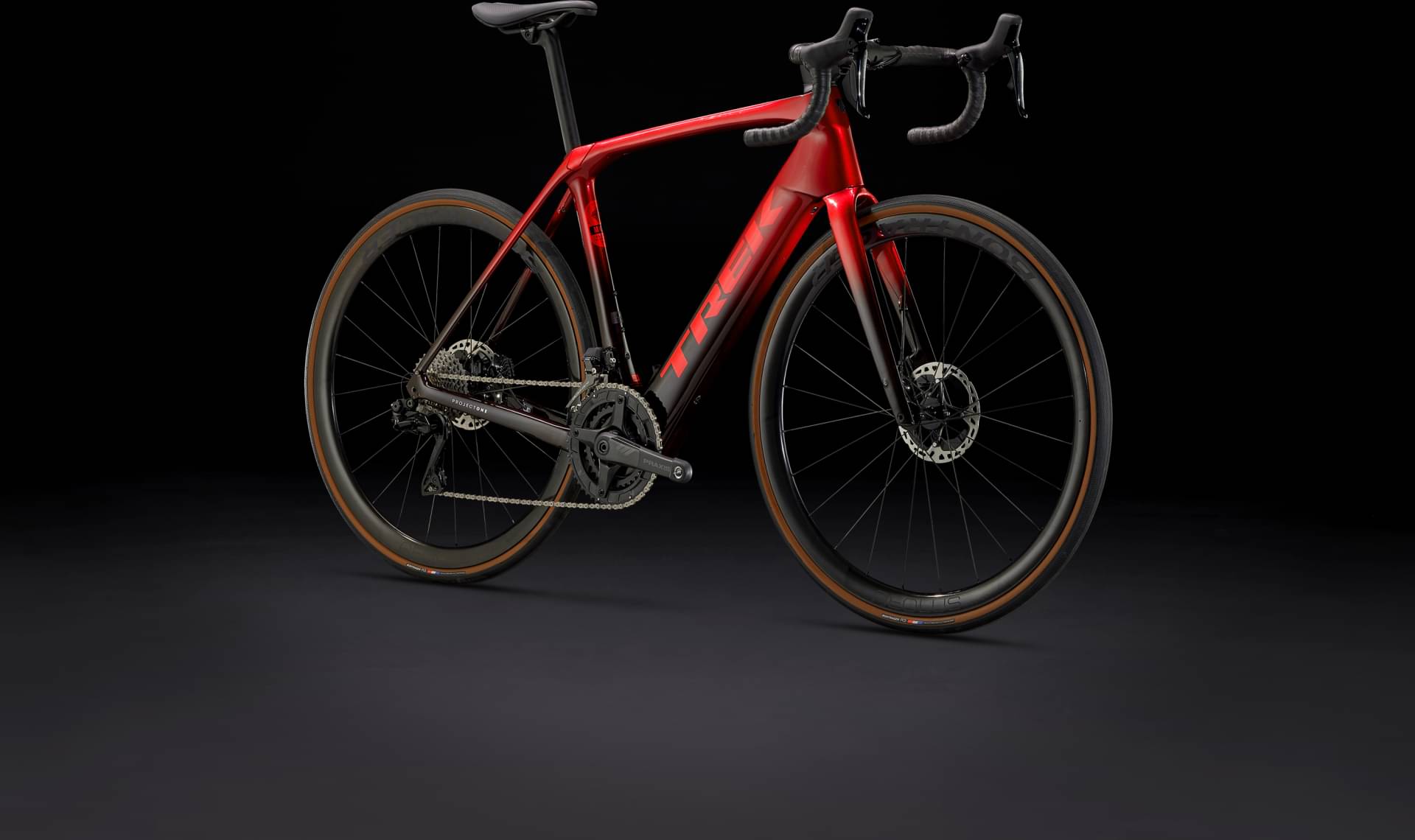

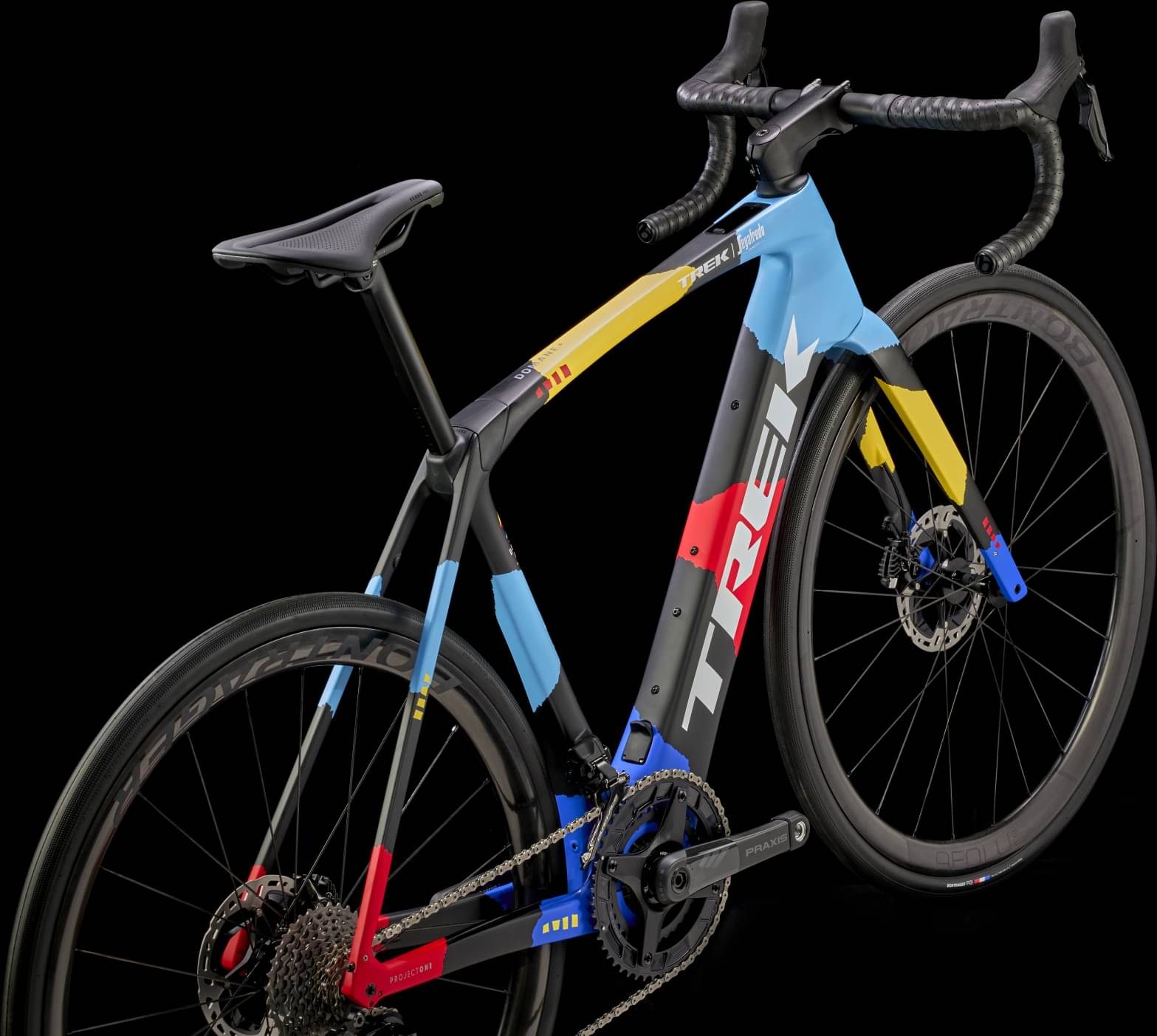

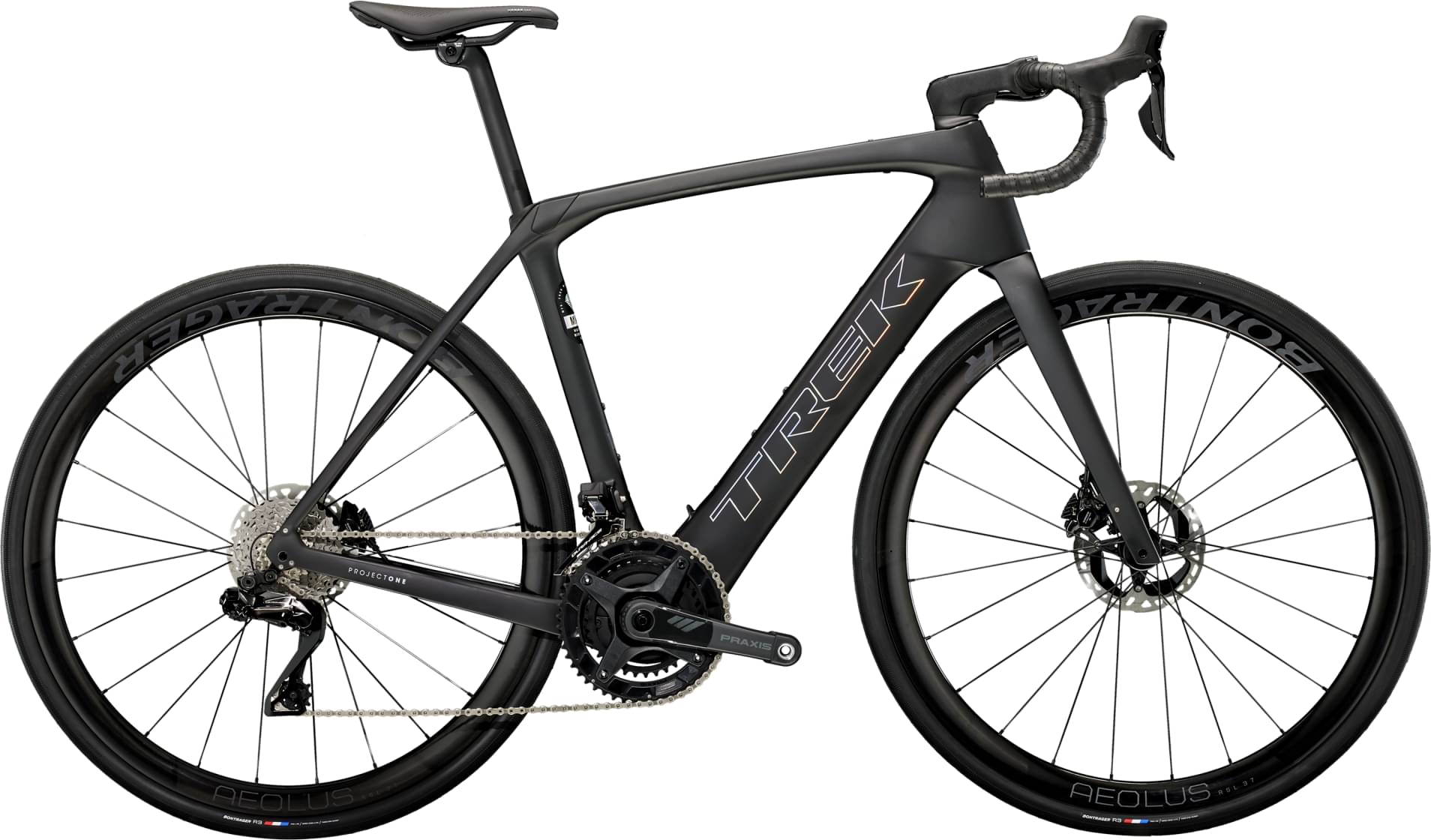

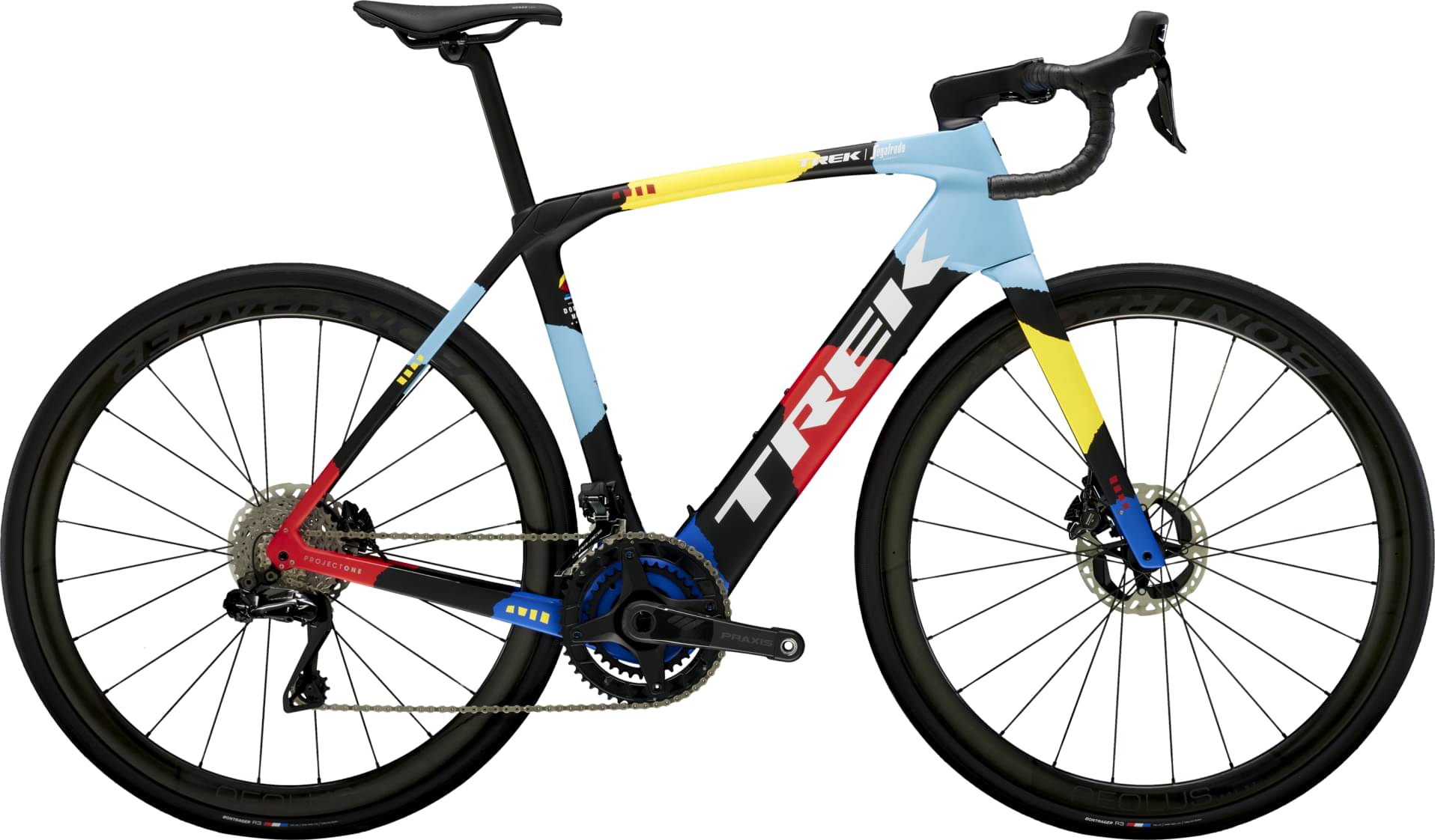

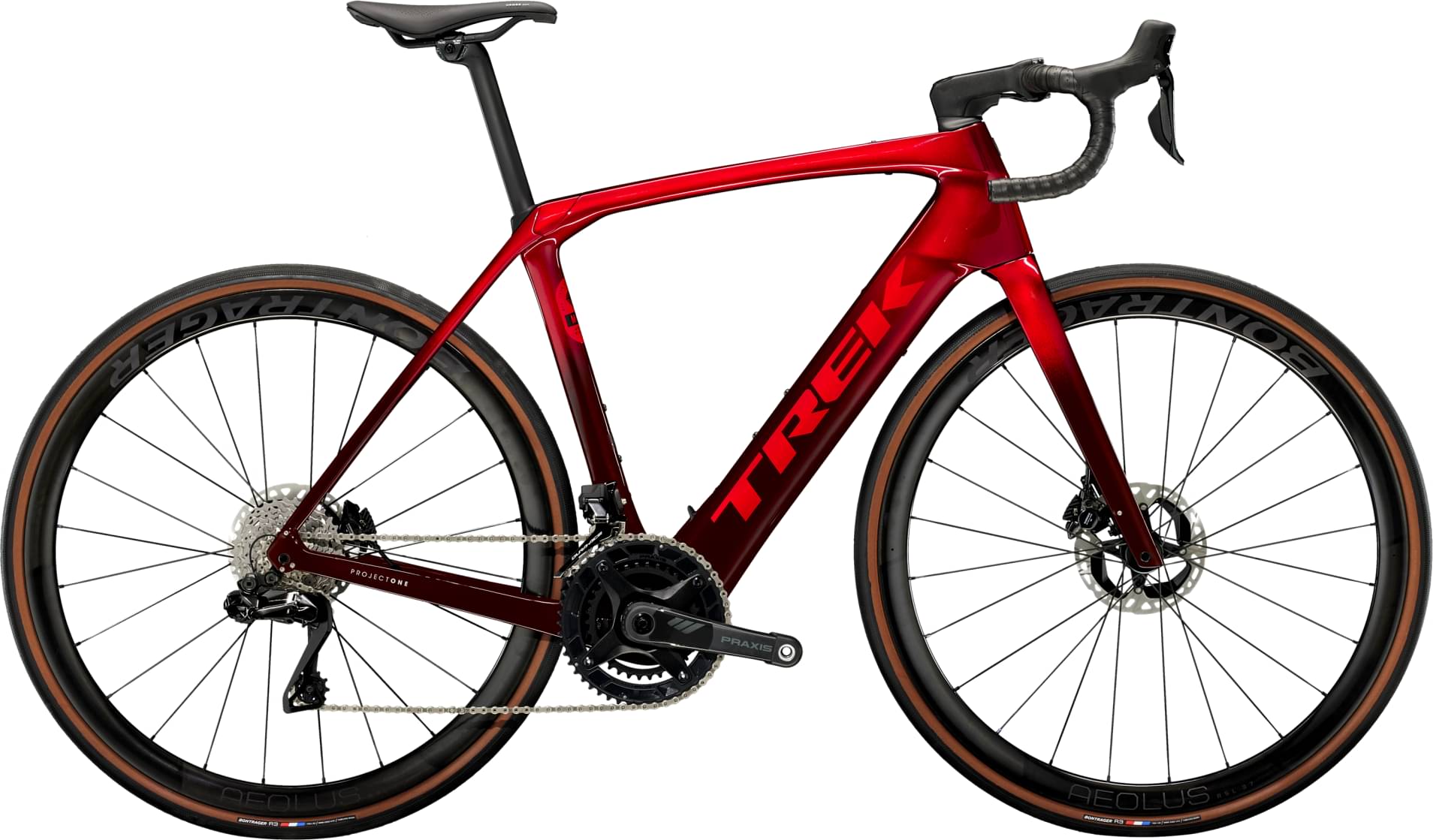

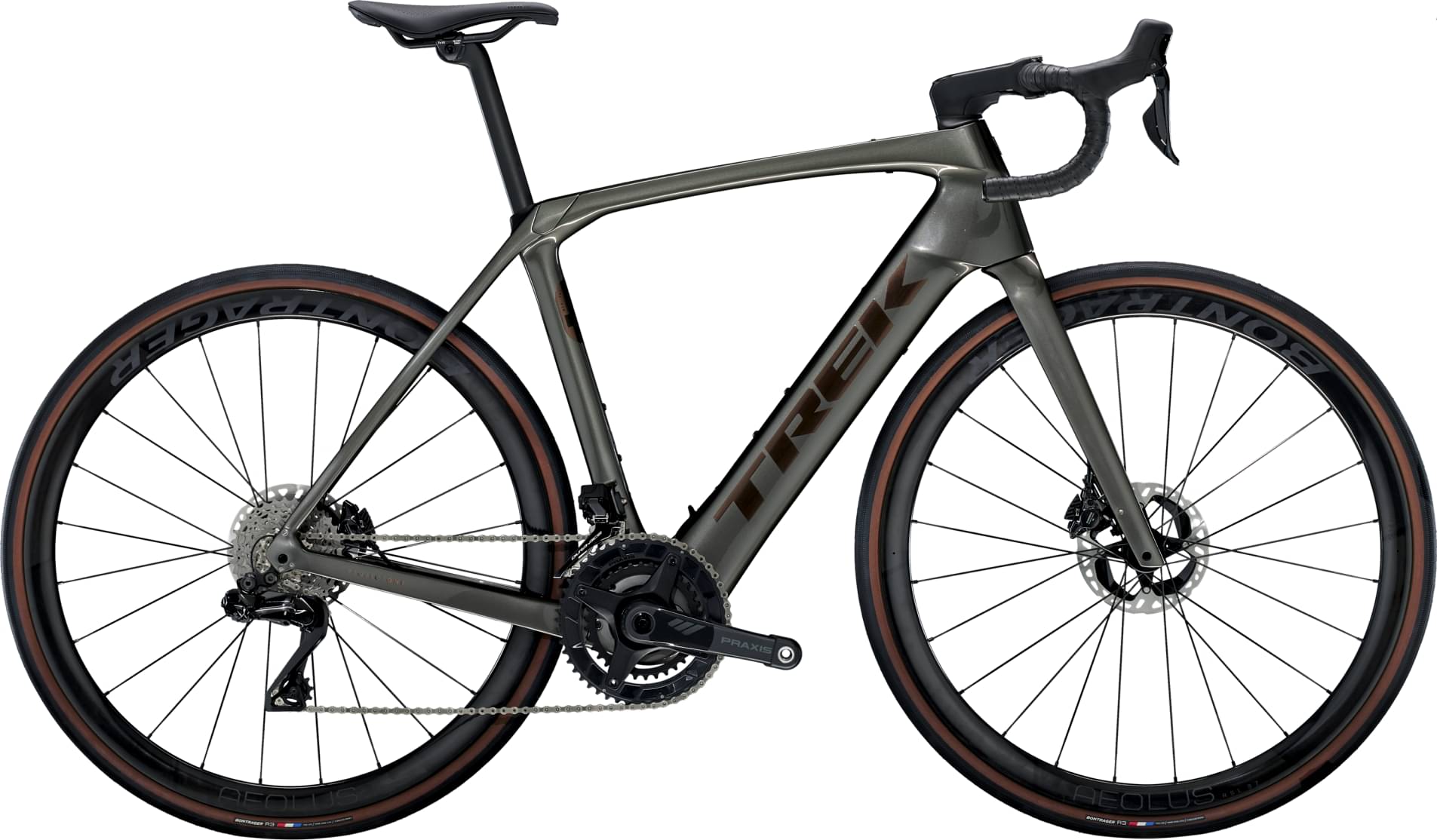

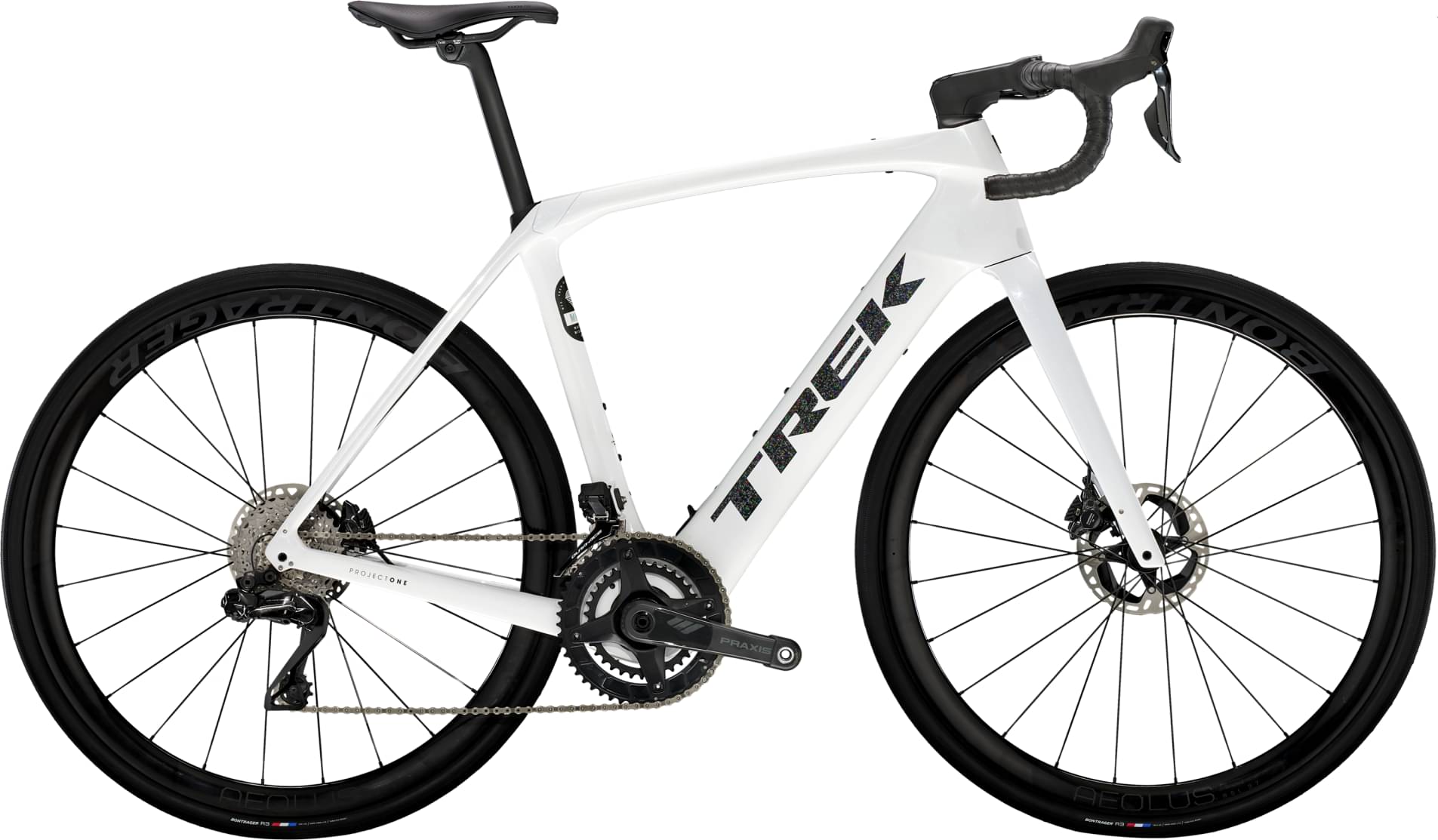

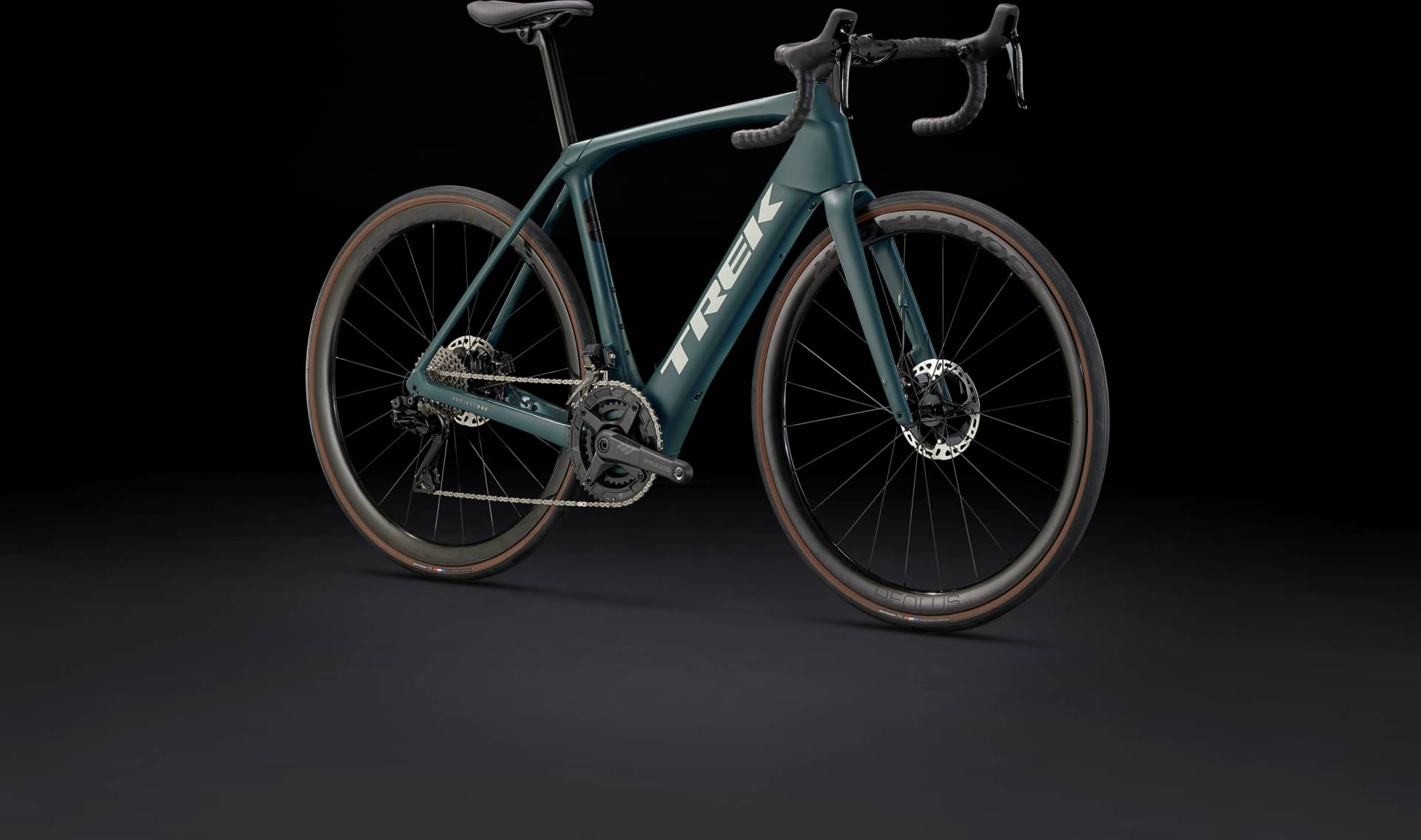

Trek Domane+ SLR 9 2024
2024 E-bike
Estimate price |
12,999$
Weight | 11.75 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, Praxis -
Suspension Rigid -
Motor TQ 250W 50Nm mid-drive -
Battery Size: 50, 52, 54, 56, 58, 60, 62, Shimano BT-DN300; Size: 50, 52, 54, 56, 58, 60, 62, TQ 360Wh -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

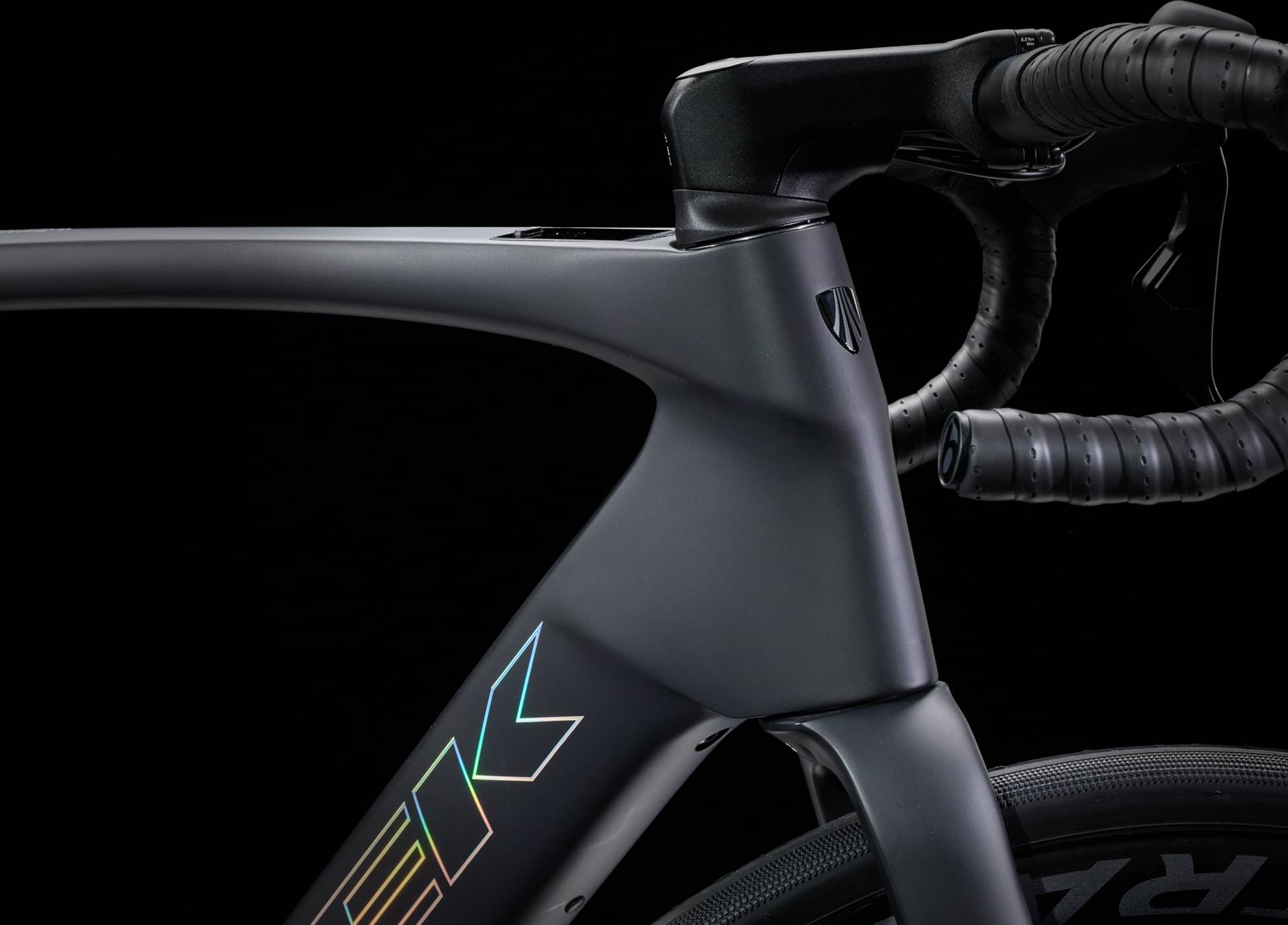

Frame
Frame

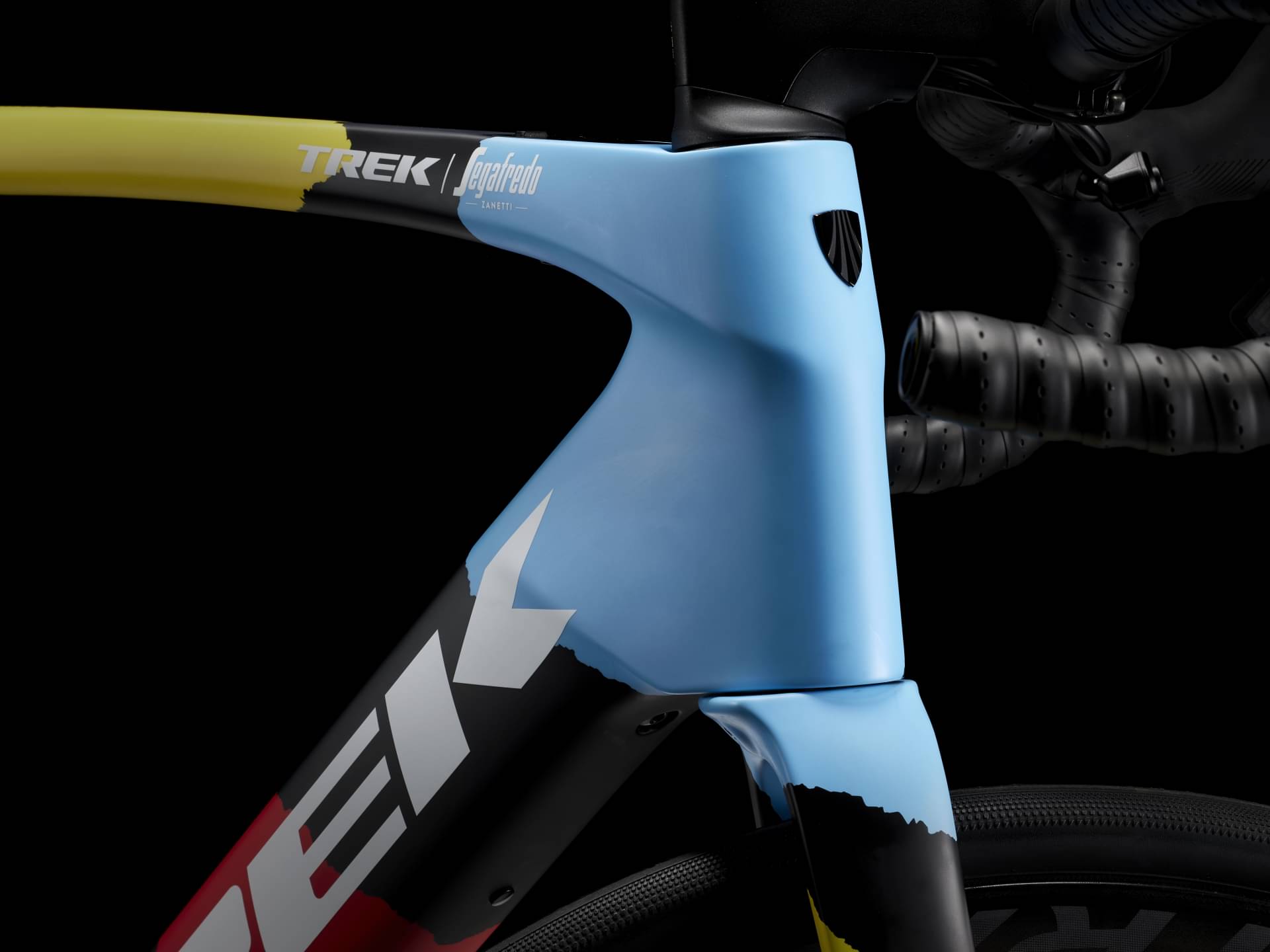

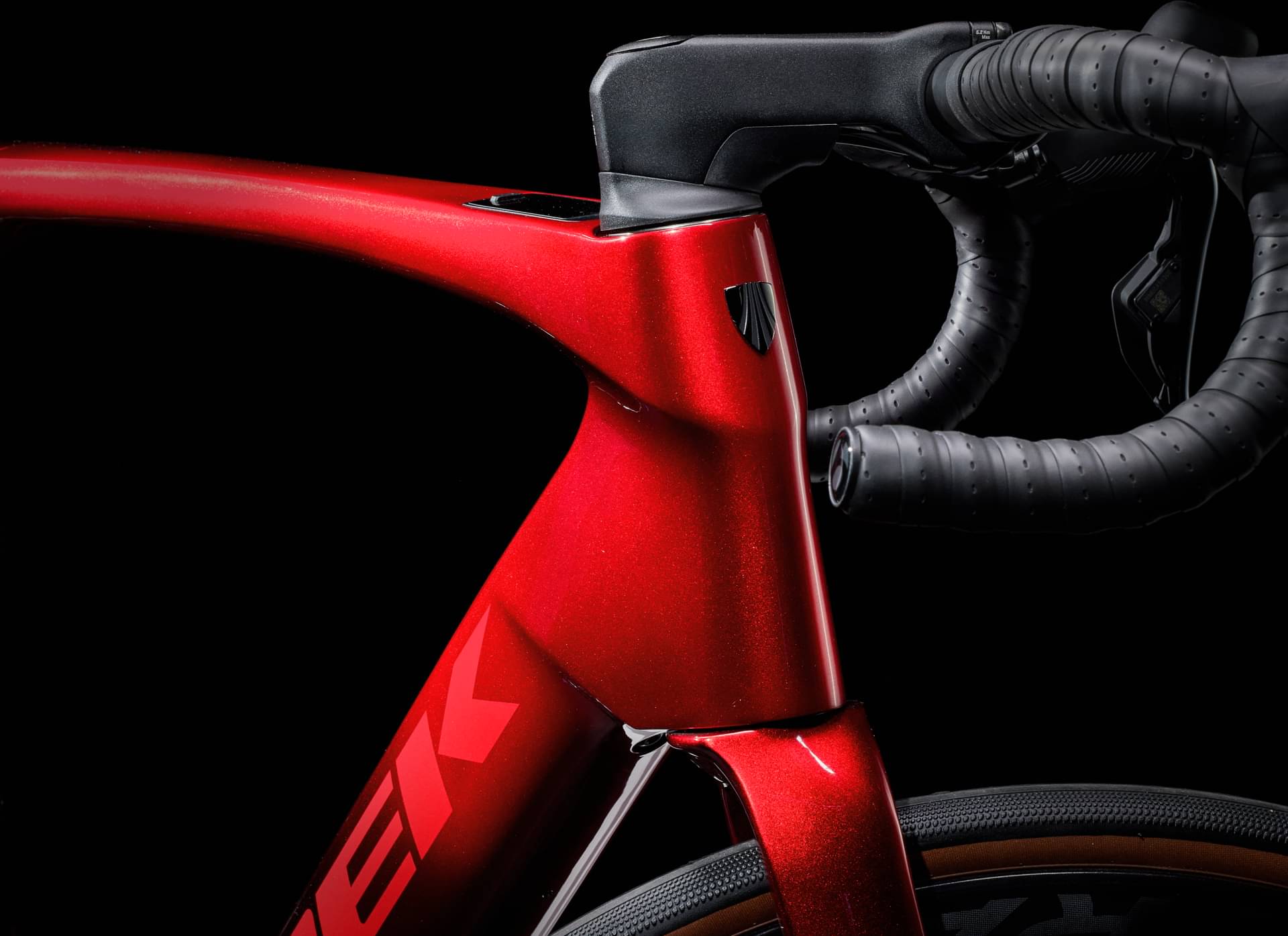

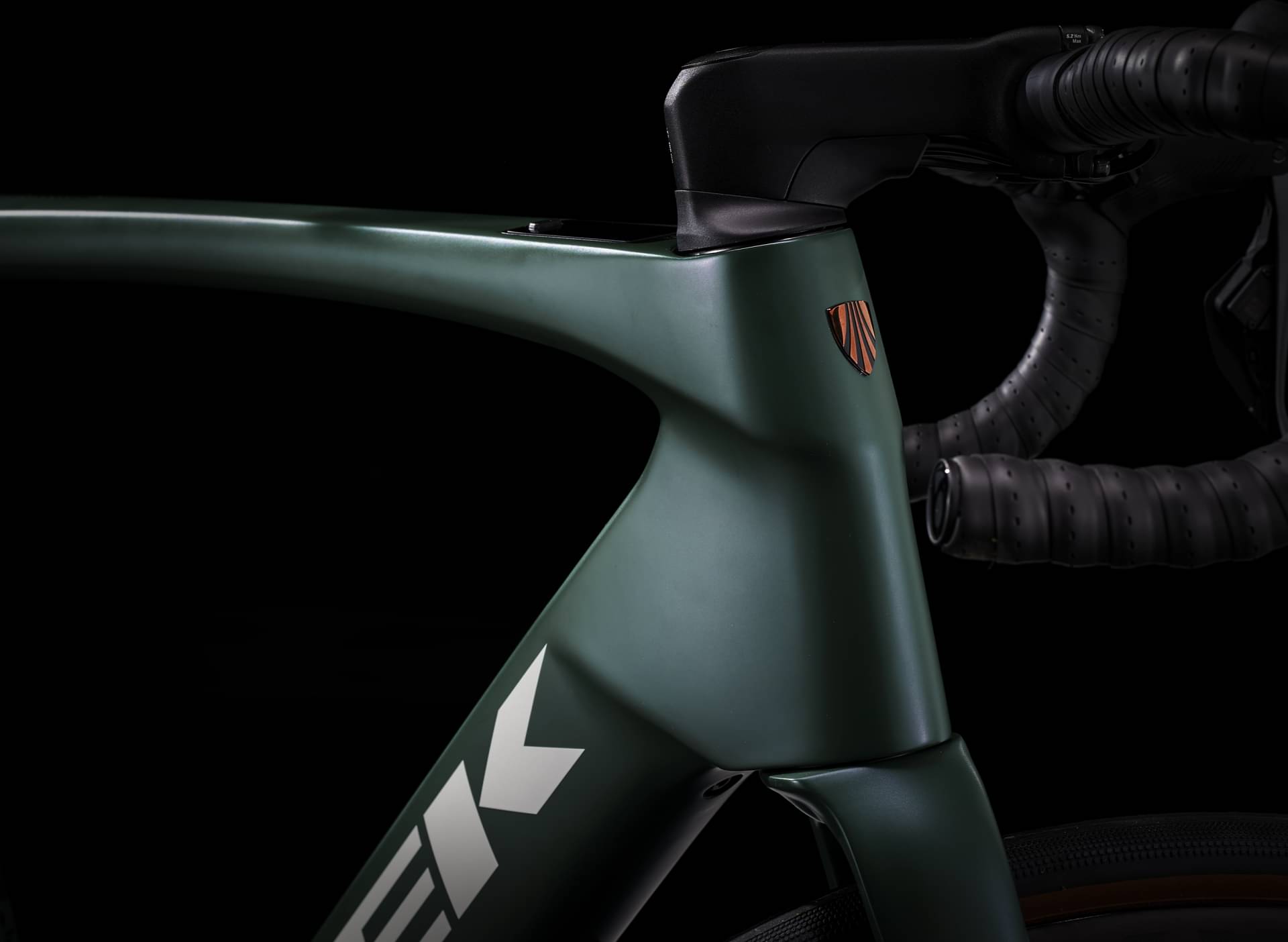

800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle
Suspension Fork
Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

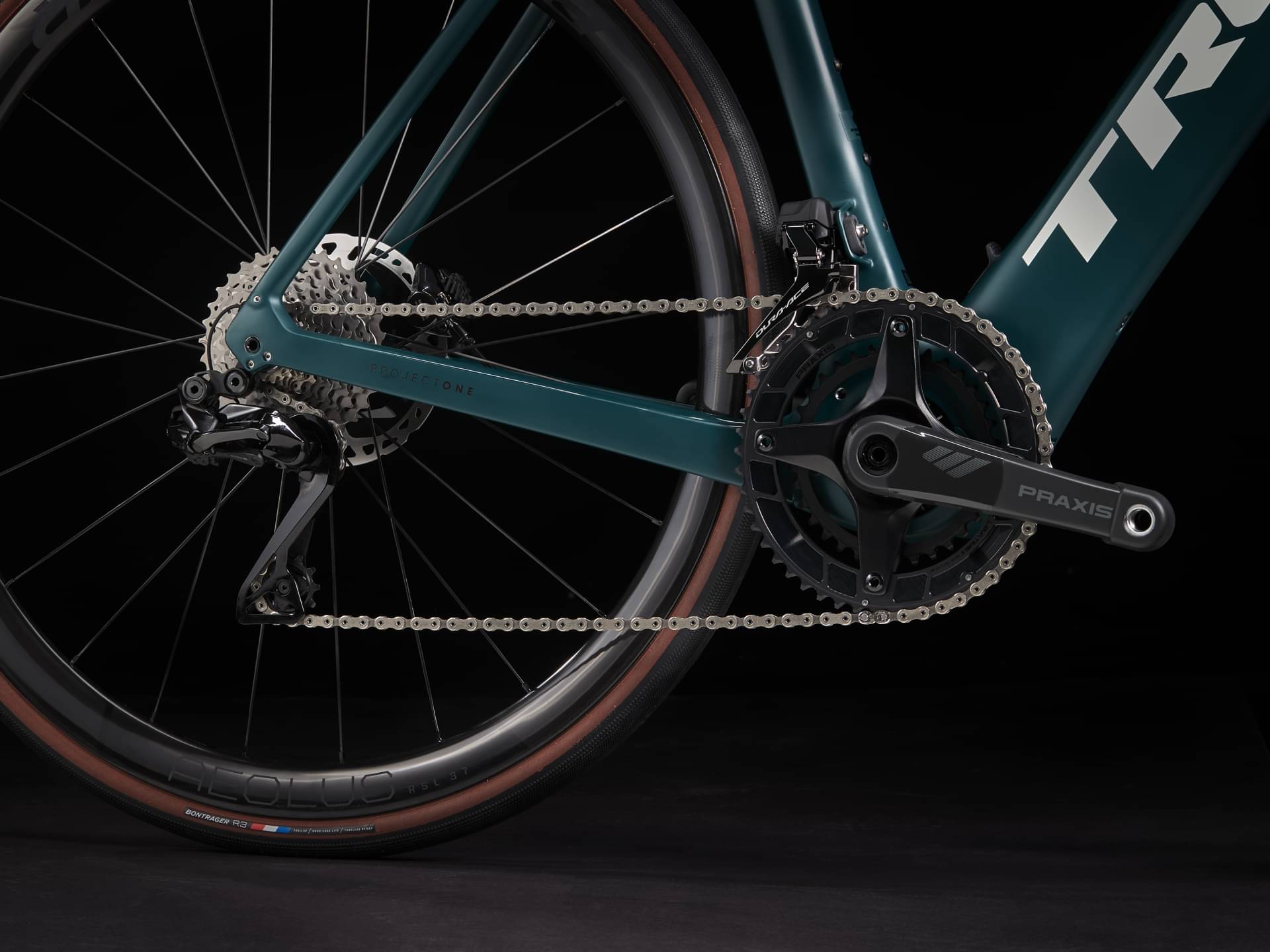

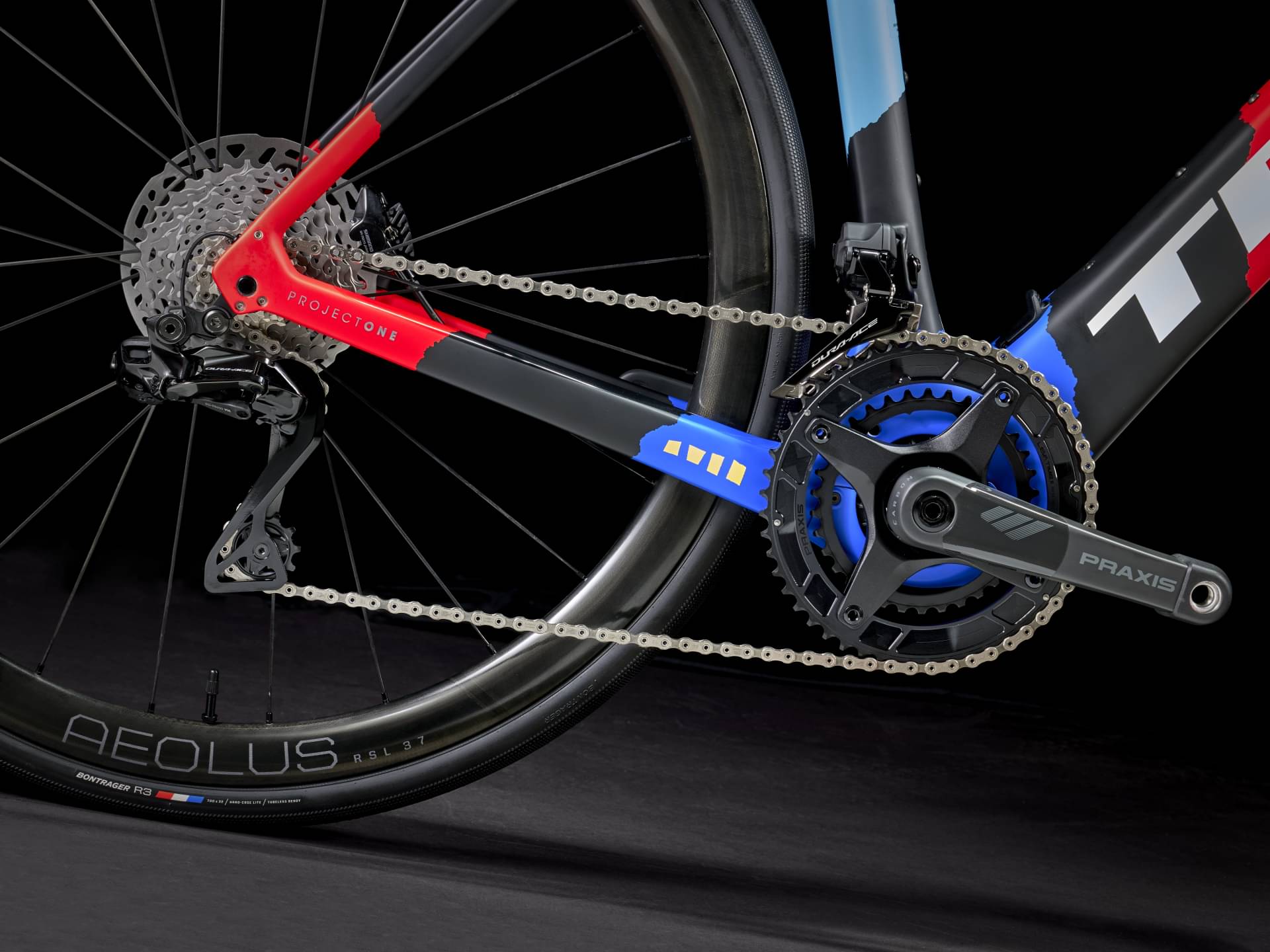

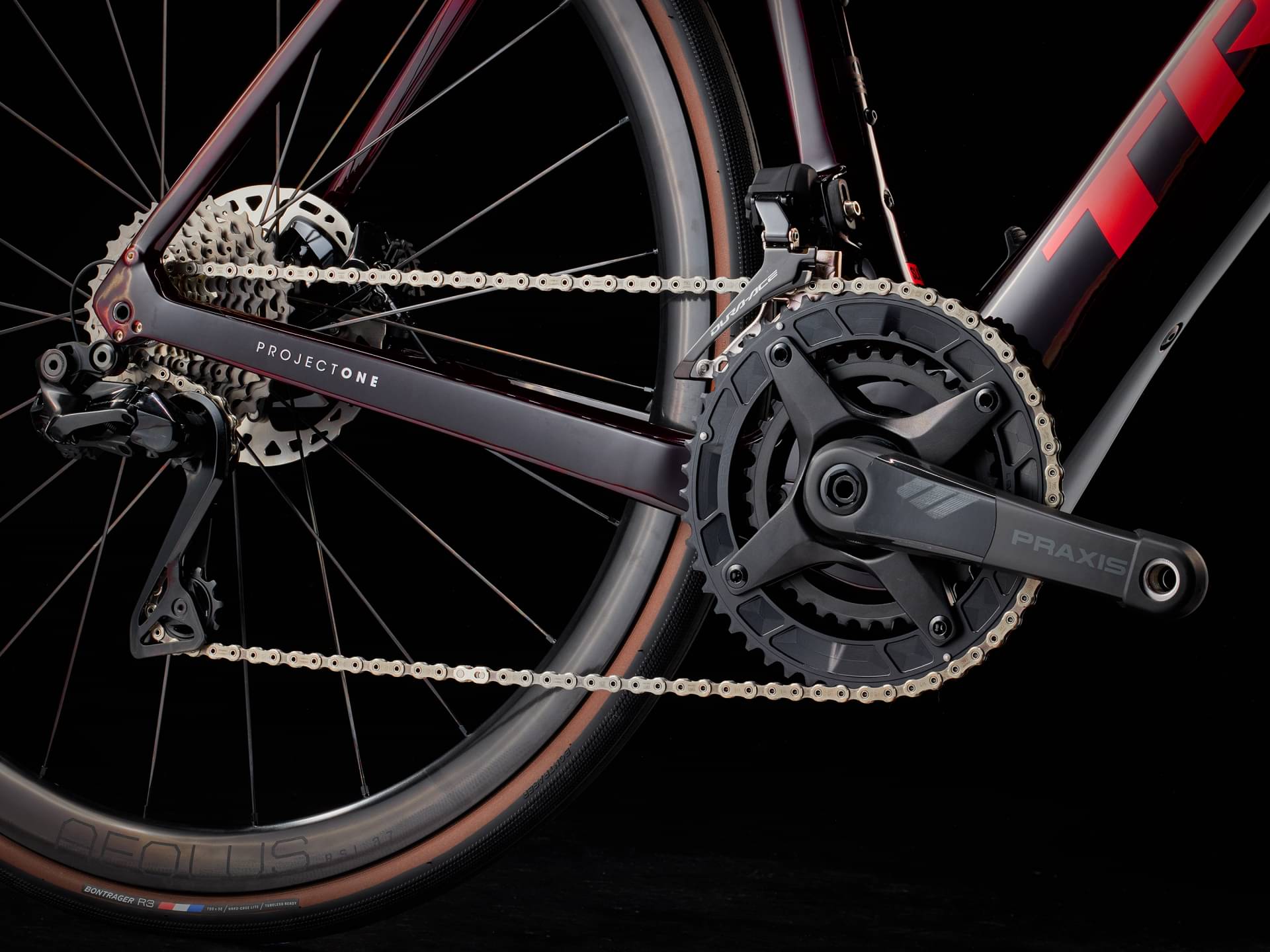

Drivetrain
Rear Derailleur
Shimano Dura-Ace R9250 Di2, 34T max cog
Front Derailleur
Shimano Dura-Ace R9250 Di2, braze-on, down swing
Shift Levers
Shimano Dura-Ace R9270 Di2, 12 speed
Cassette
Shimano Dura-Ace R9200, 11-34, 12 speed

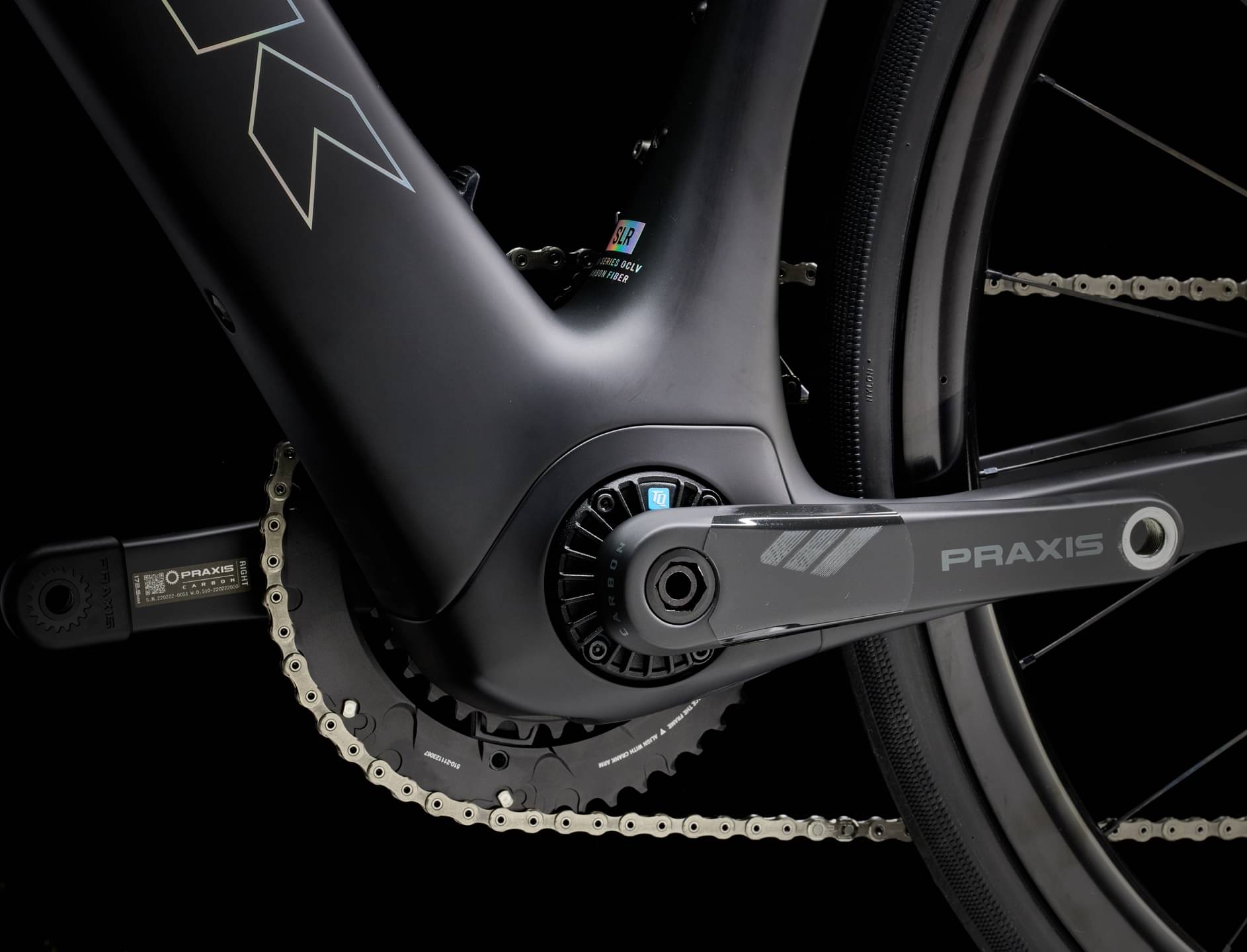

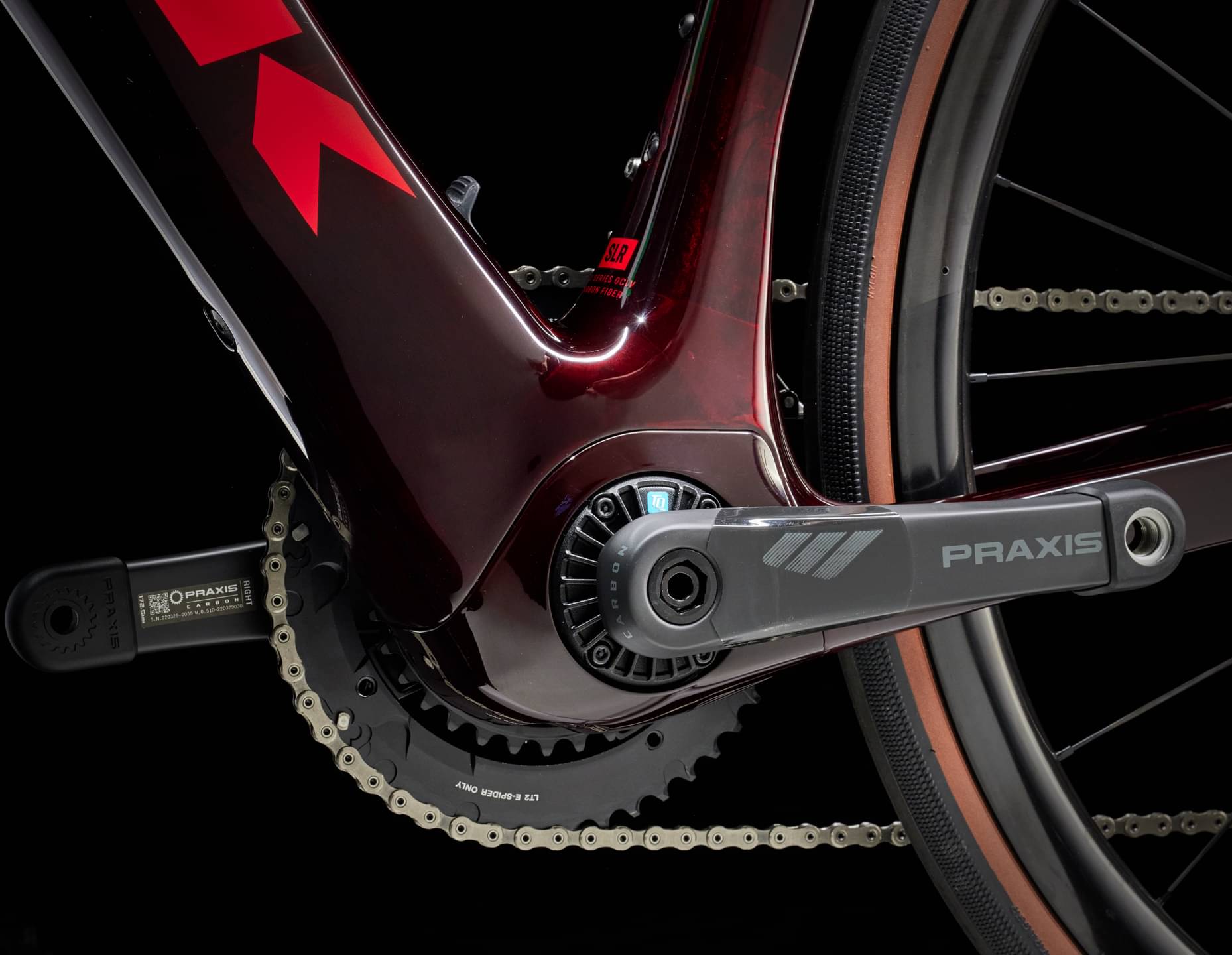

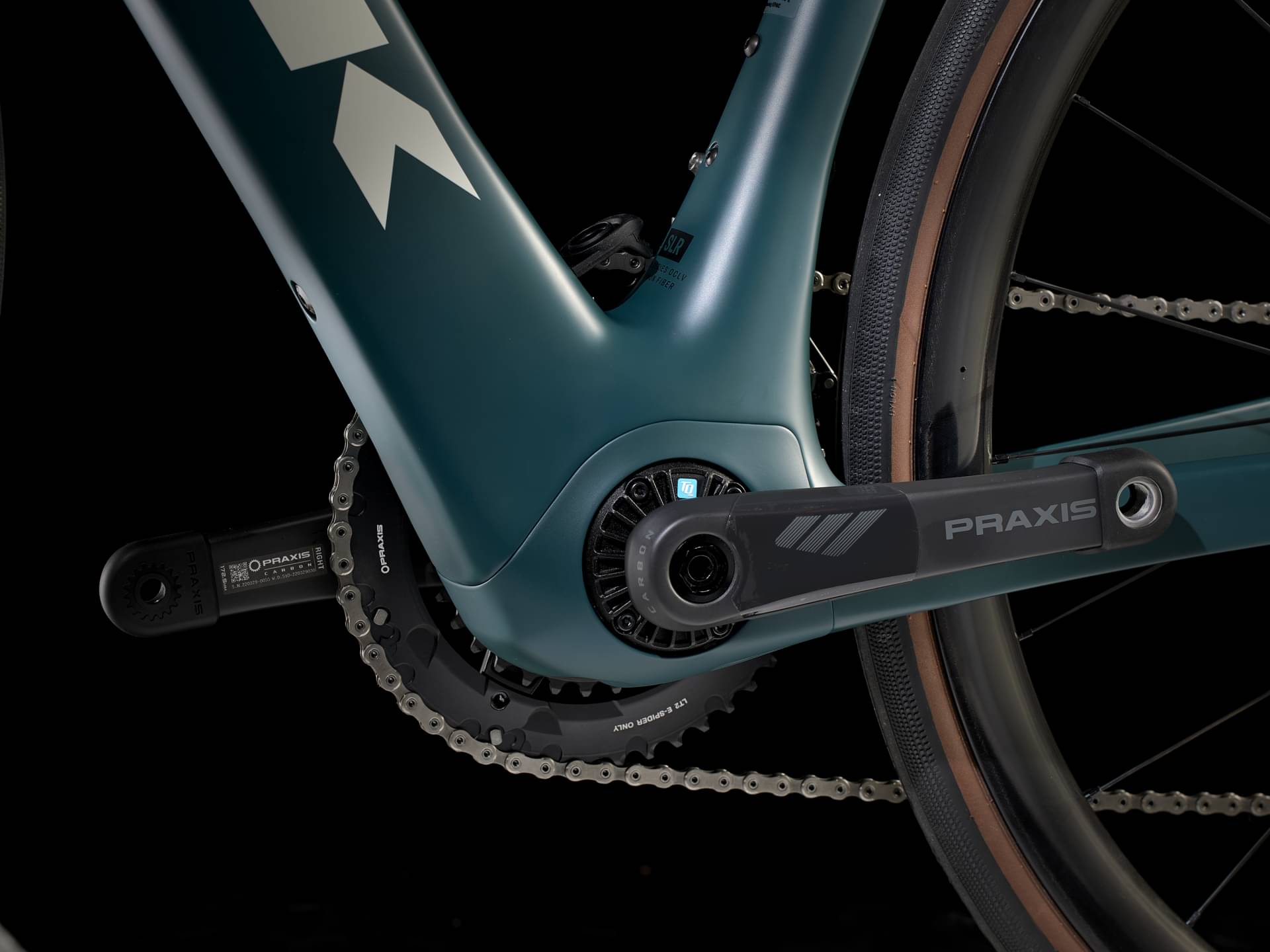

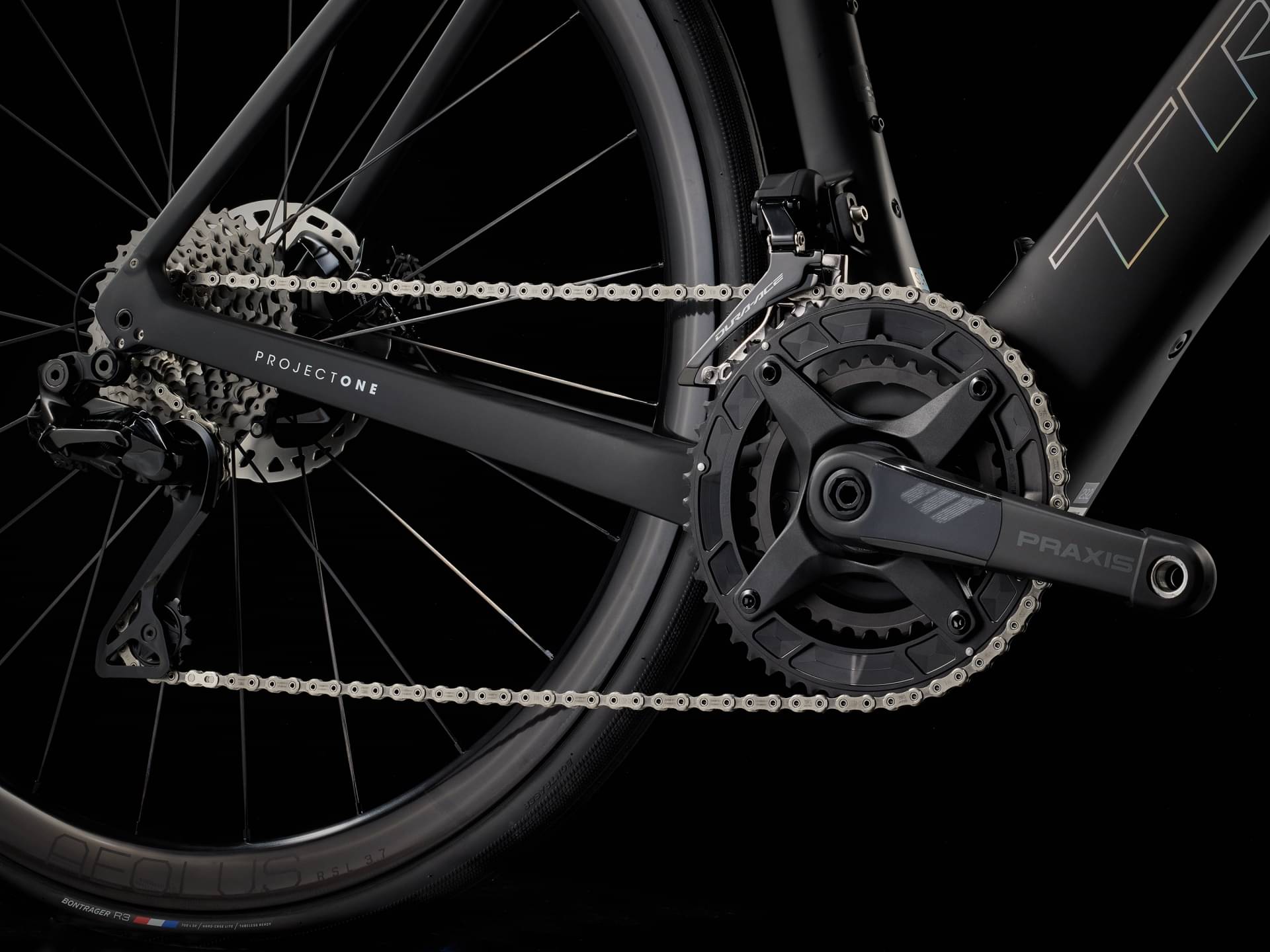

Crank
Size: 50, 52, Praxis Carbon, 170mm length; Size: 54, 56, Praxis Carbon, 172.5mm length; Size: 58, 60, 62, Praxis Carbon, 175mm length
Chain
Shimano Dura-Ace/XTR M9100, 12 speed
Wheels
Rims
Front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm

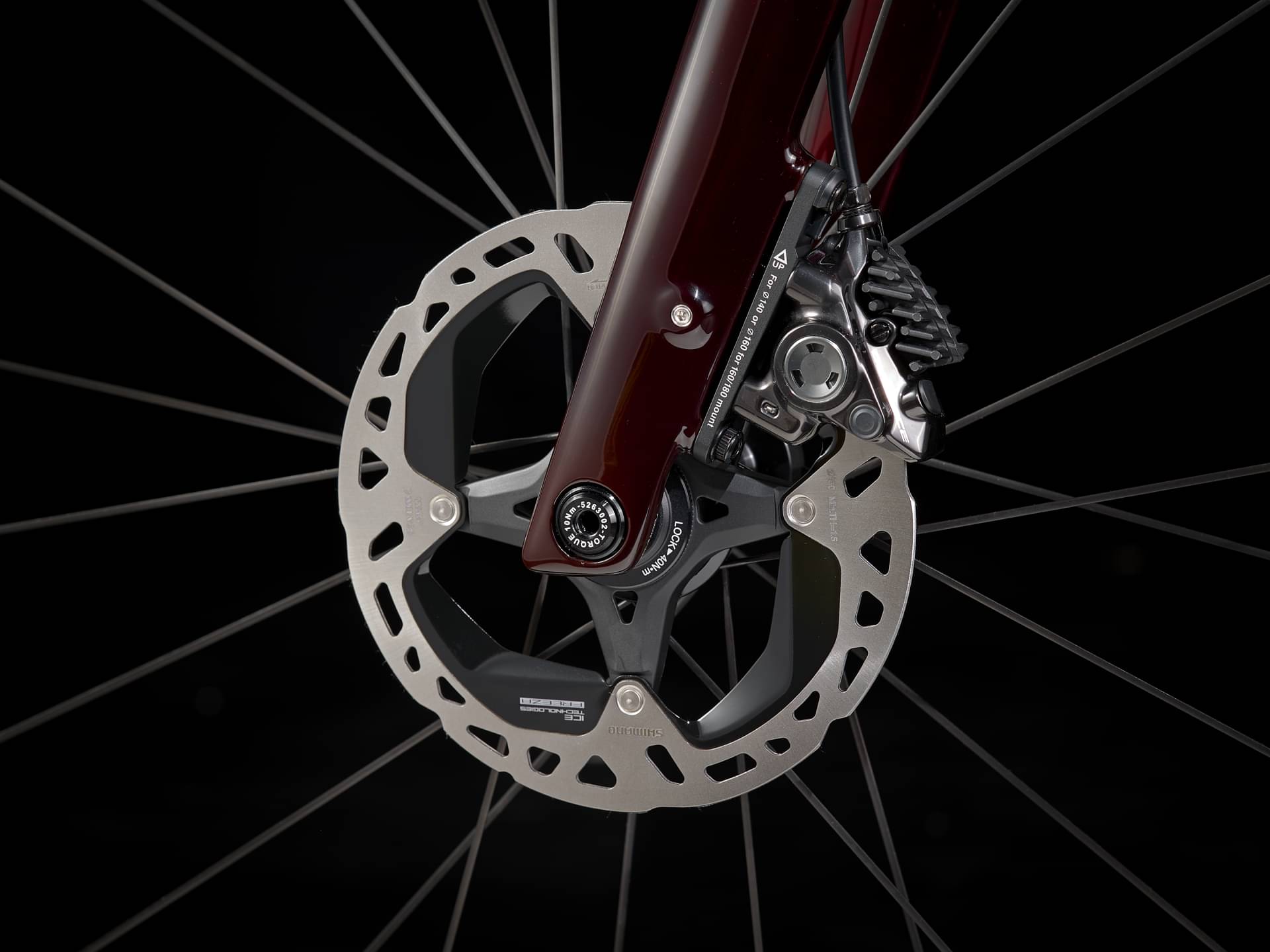

Brakes
Brakes

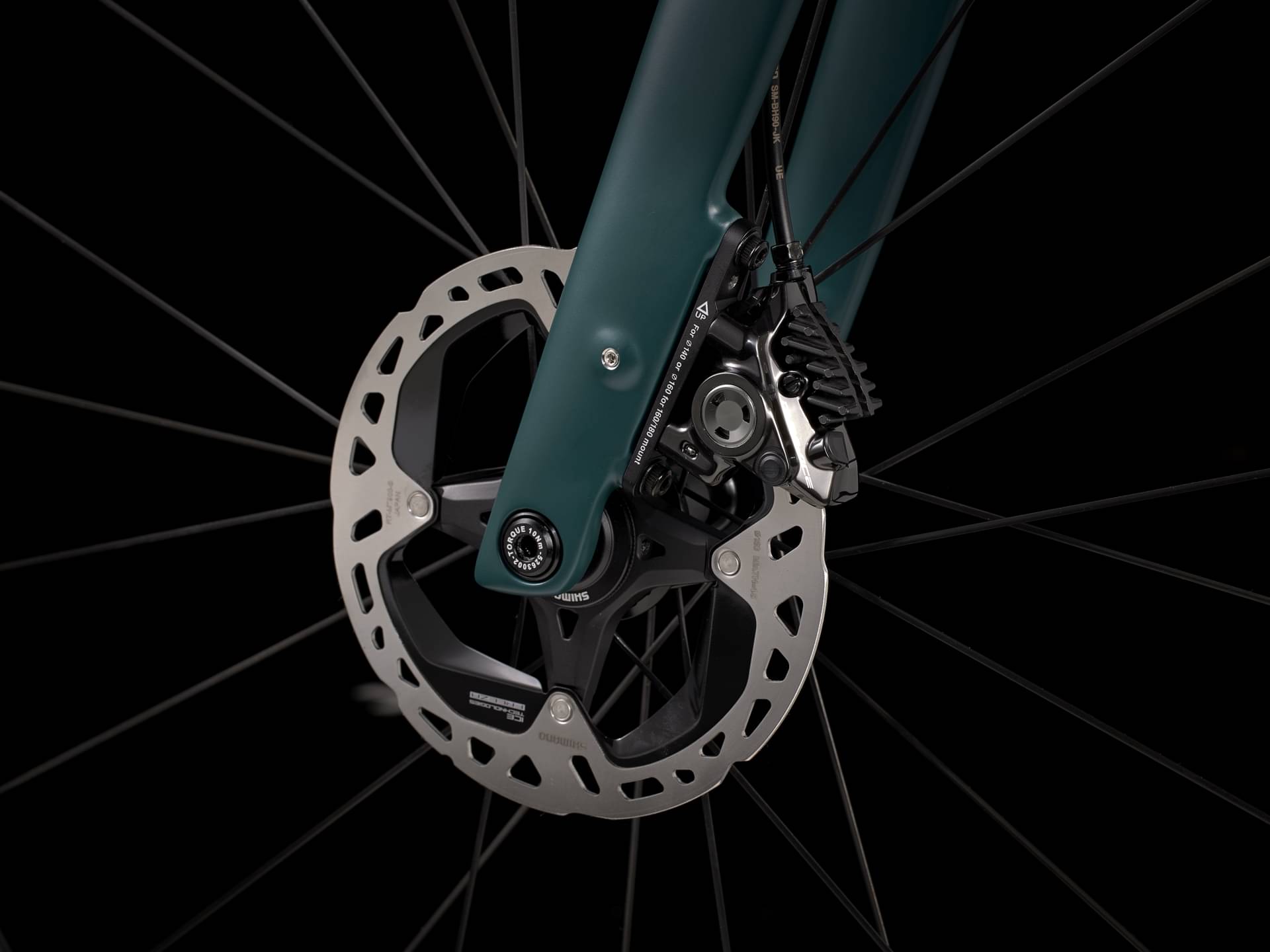

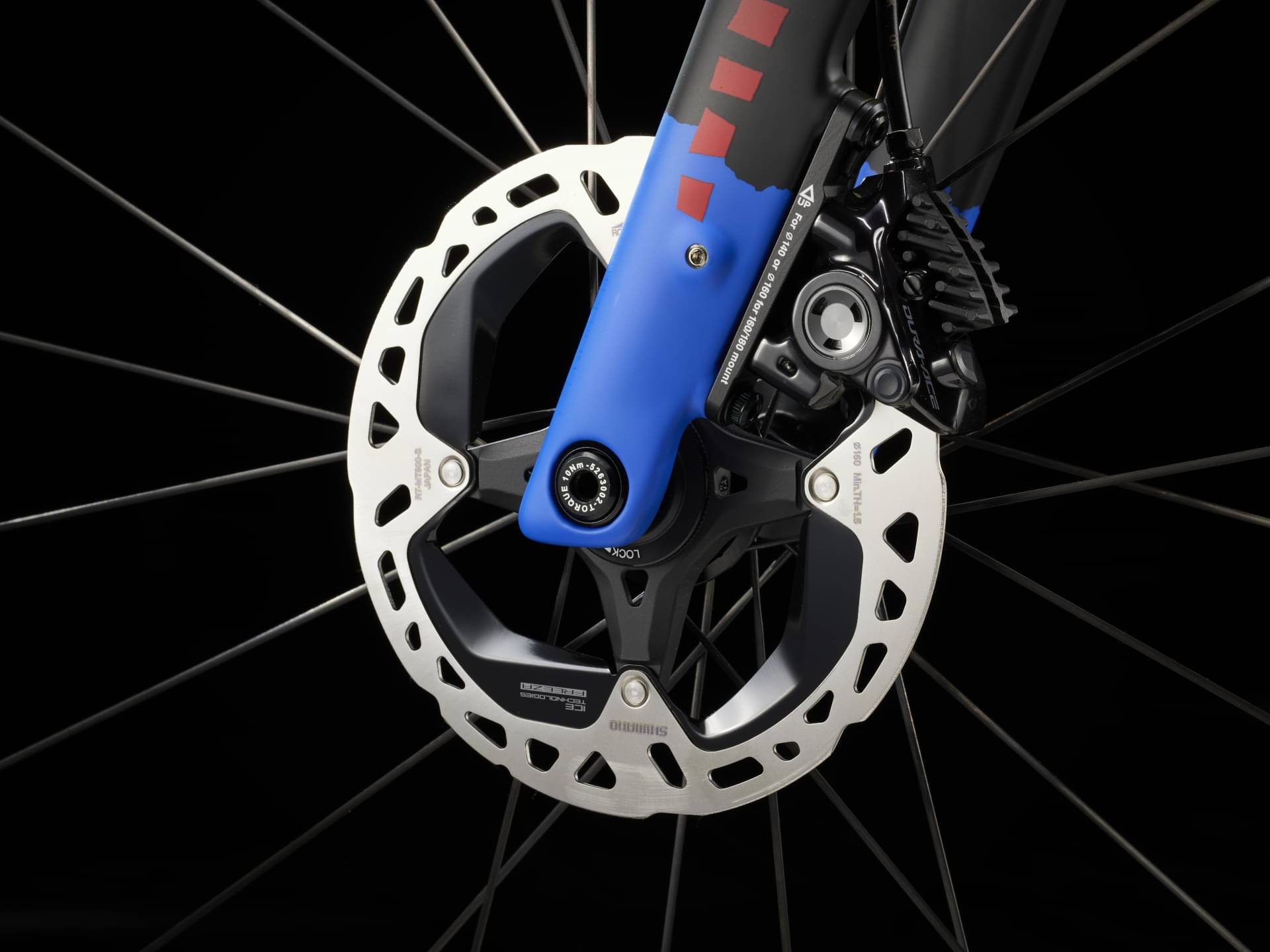

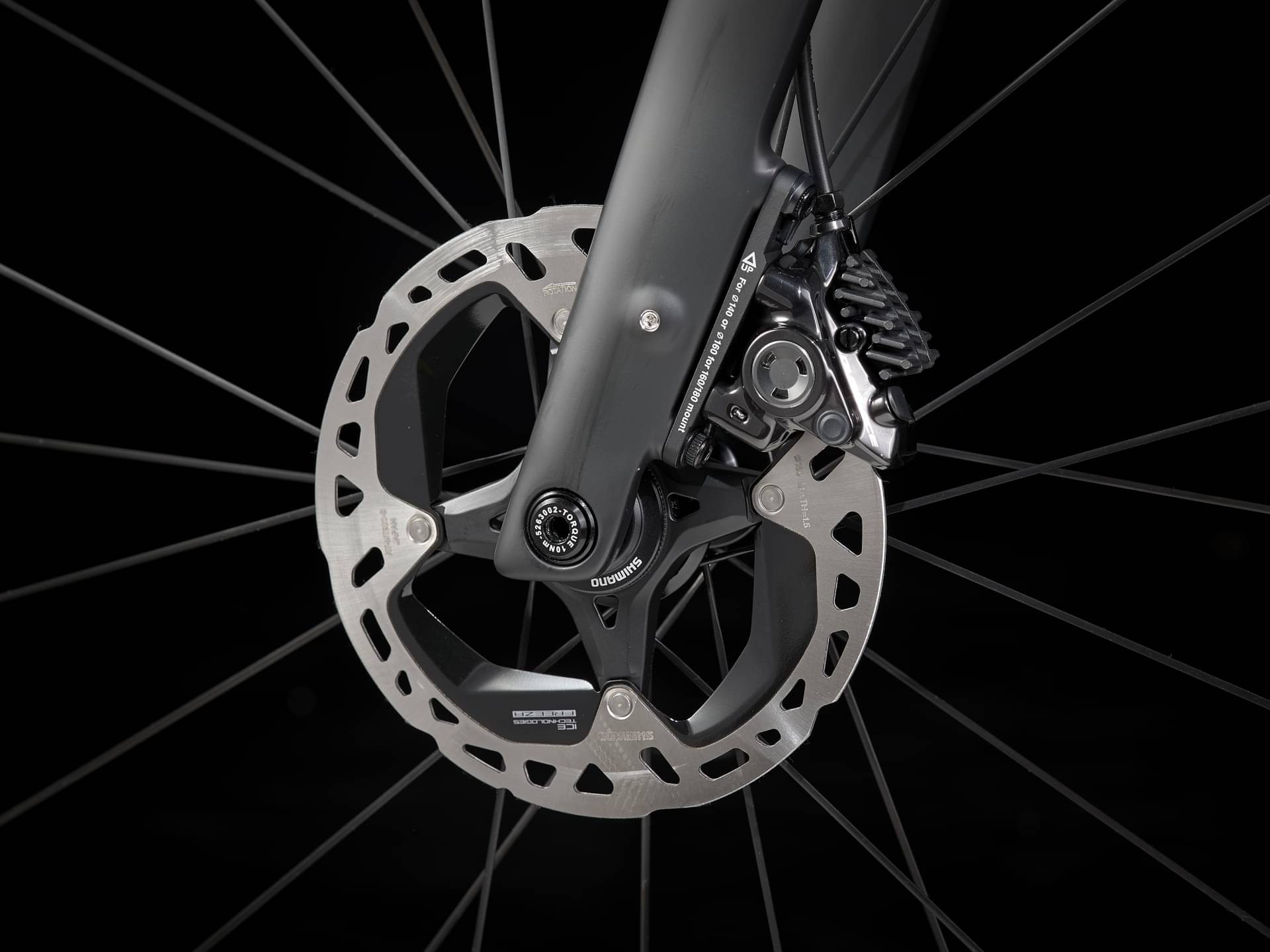

Shimano Dura-Ace BR-9270 hydraulic disc, flat mount caliper, resin pad w/fin.

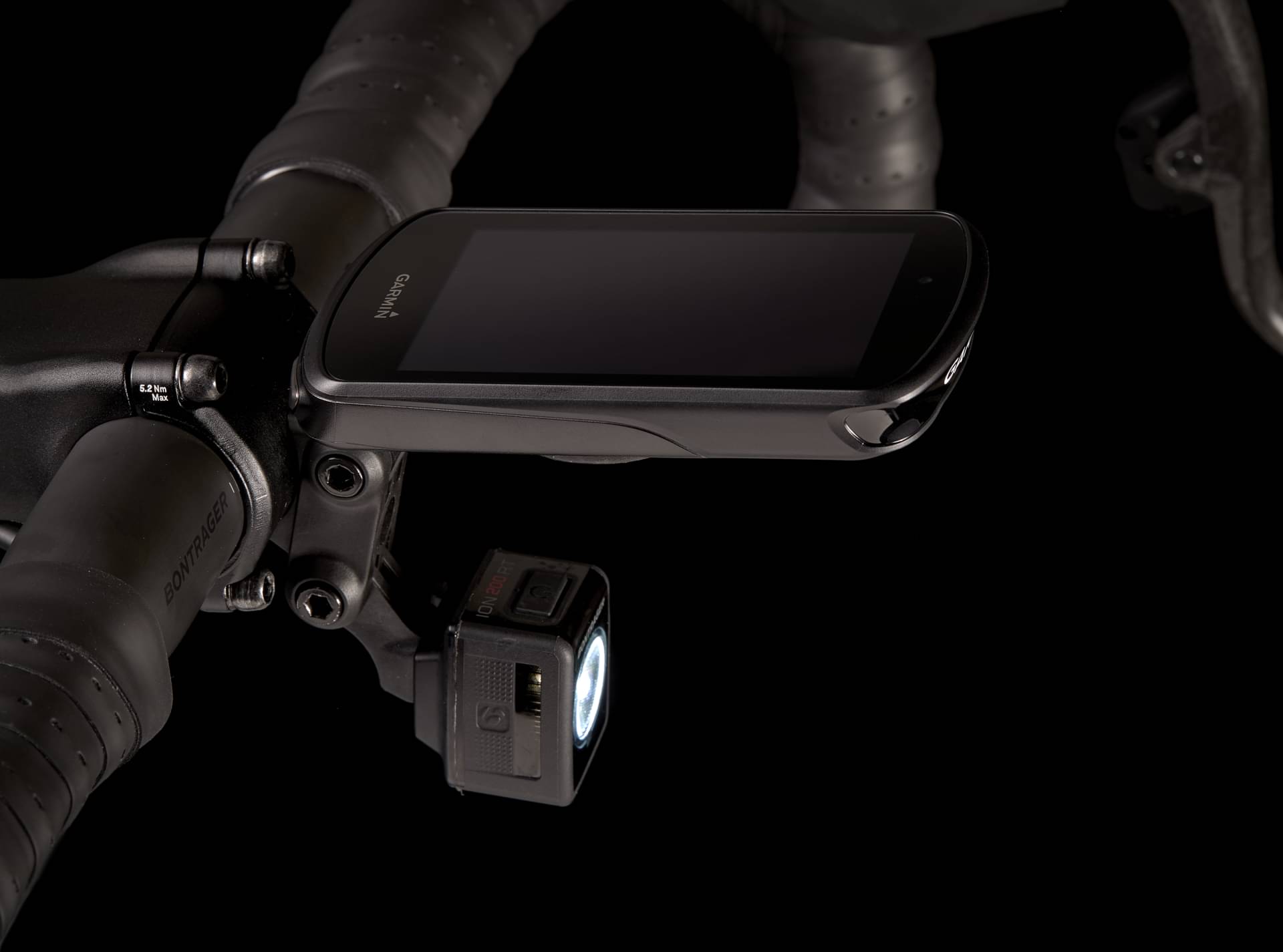

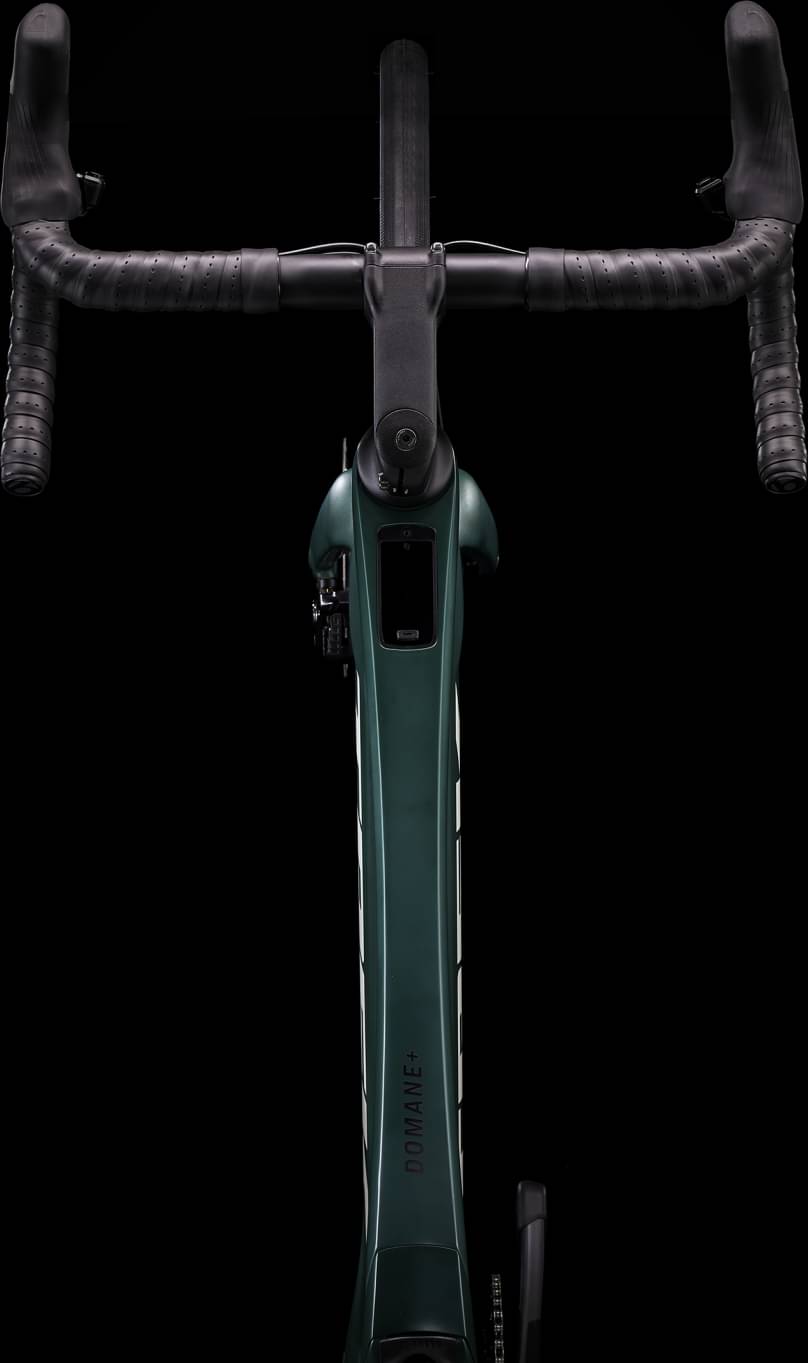

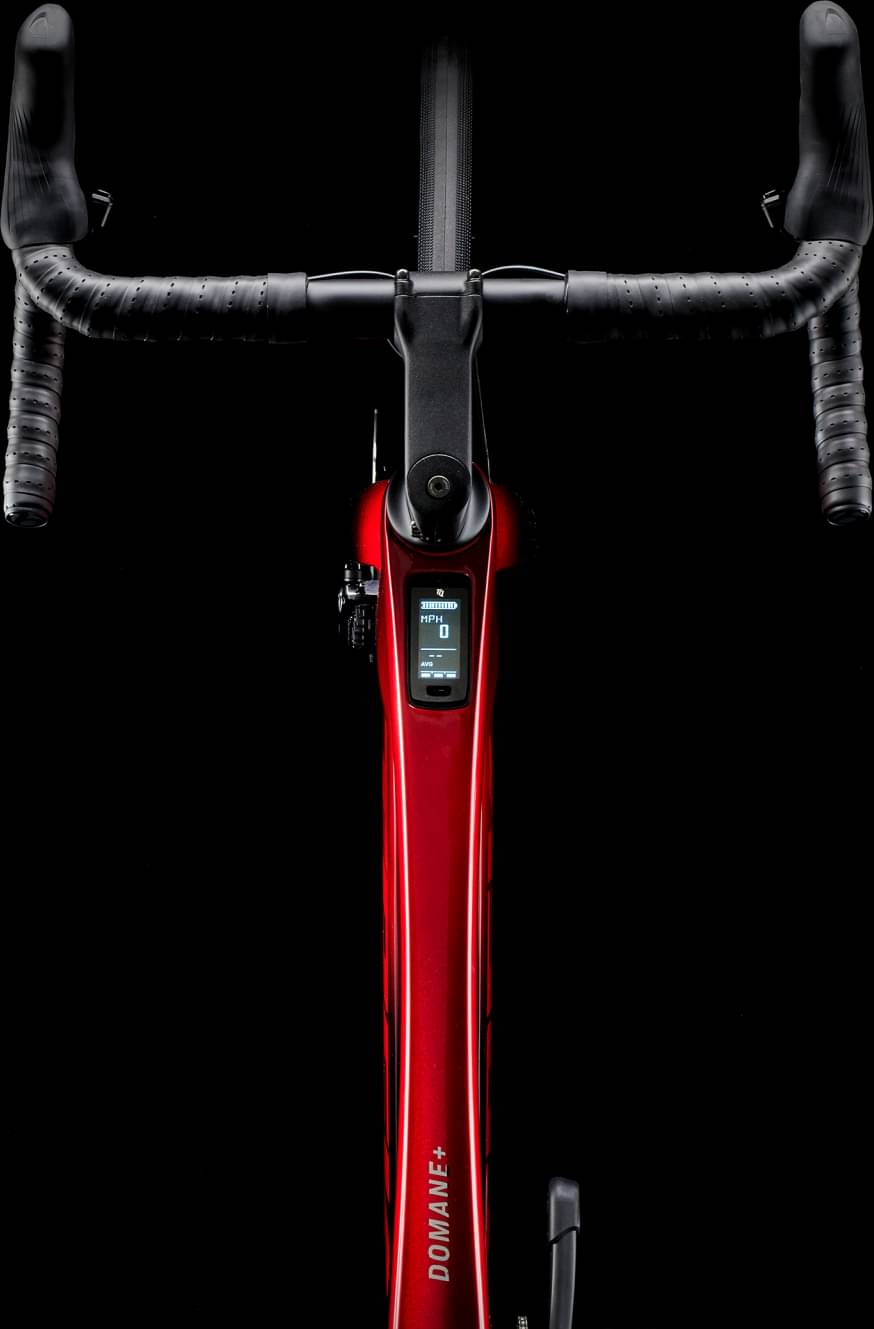

Cockpit

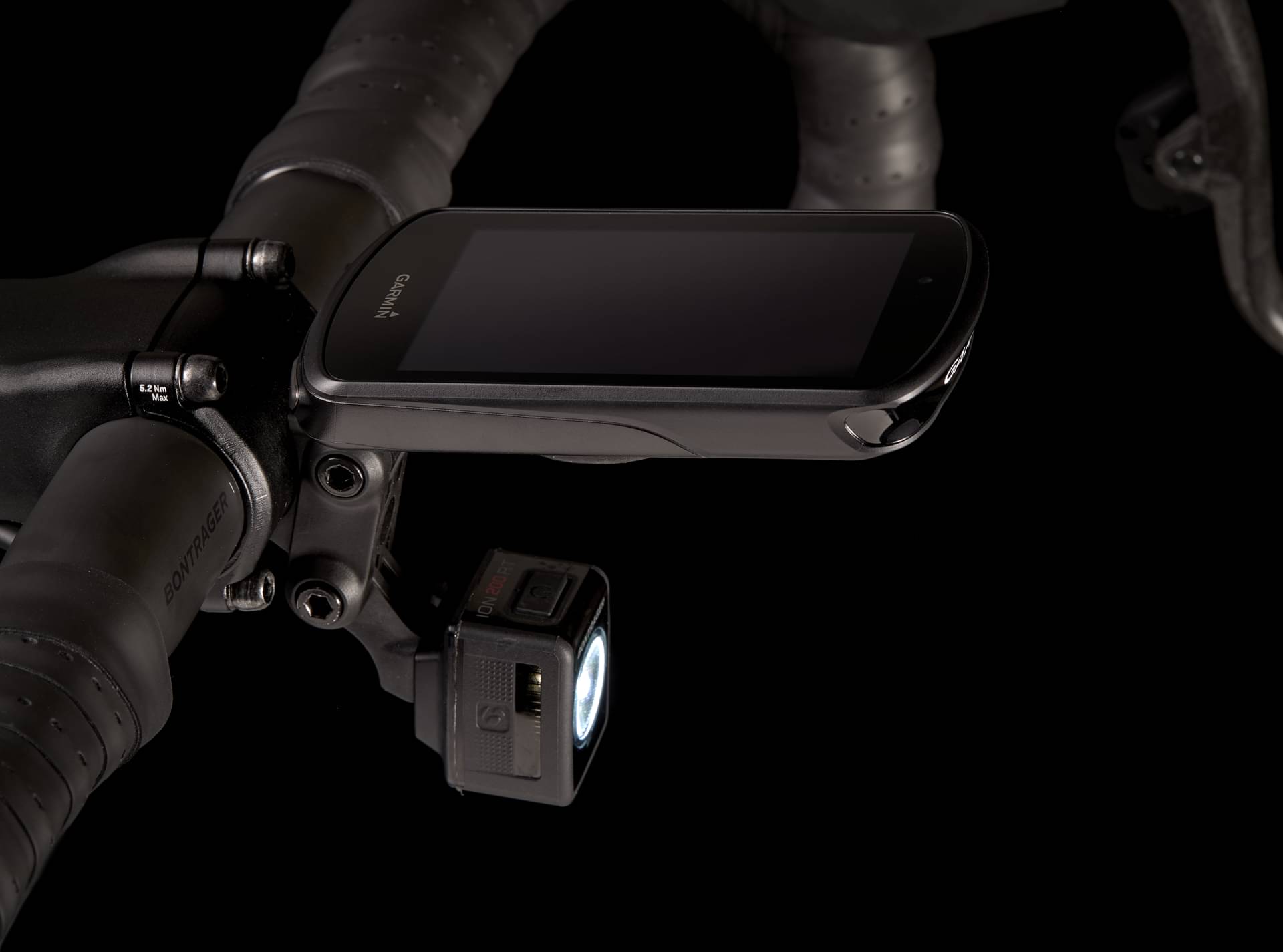

Stem
Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length

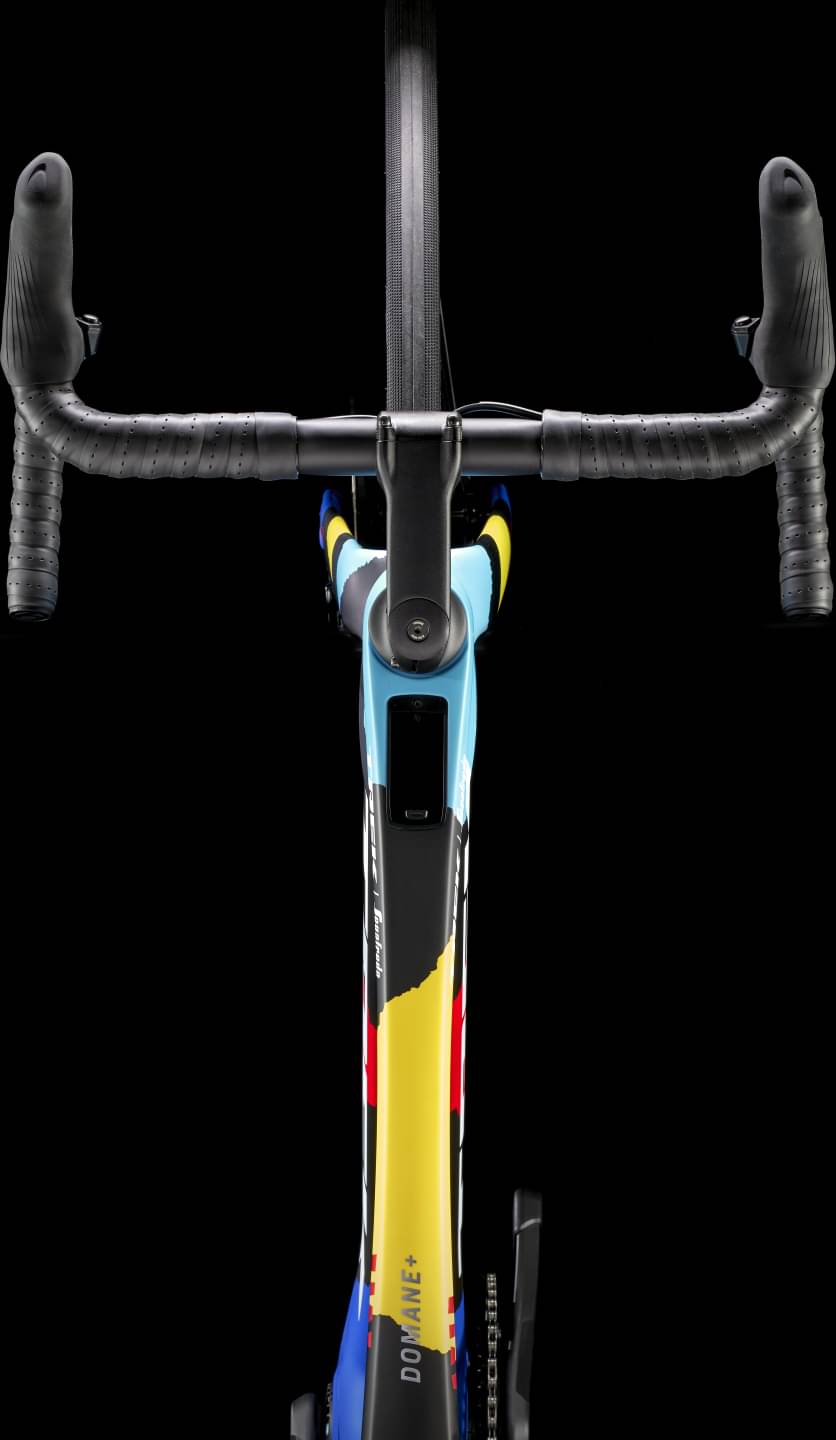

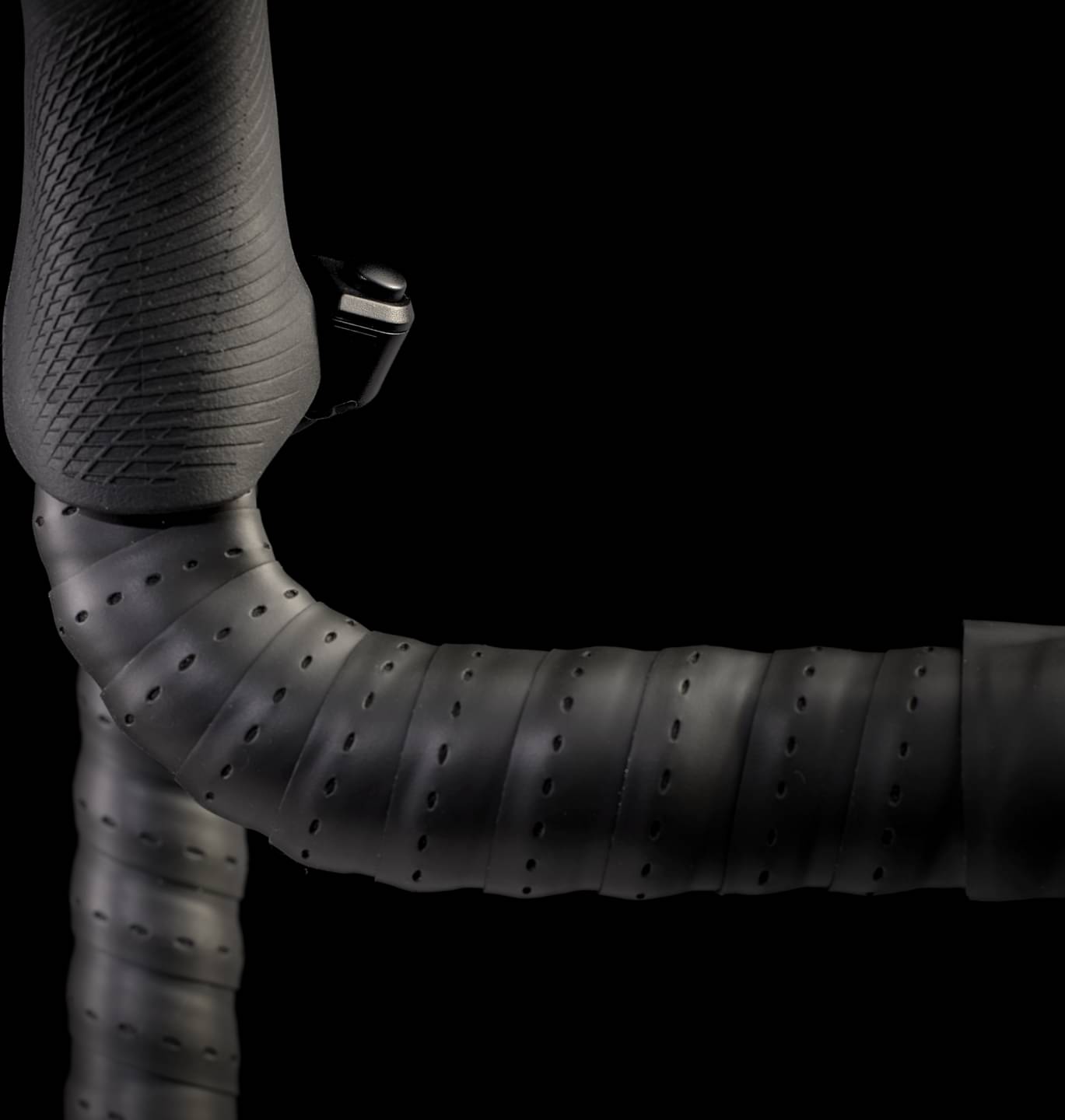

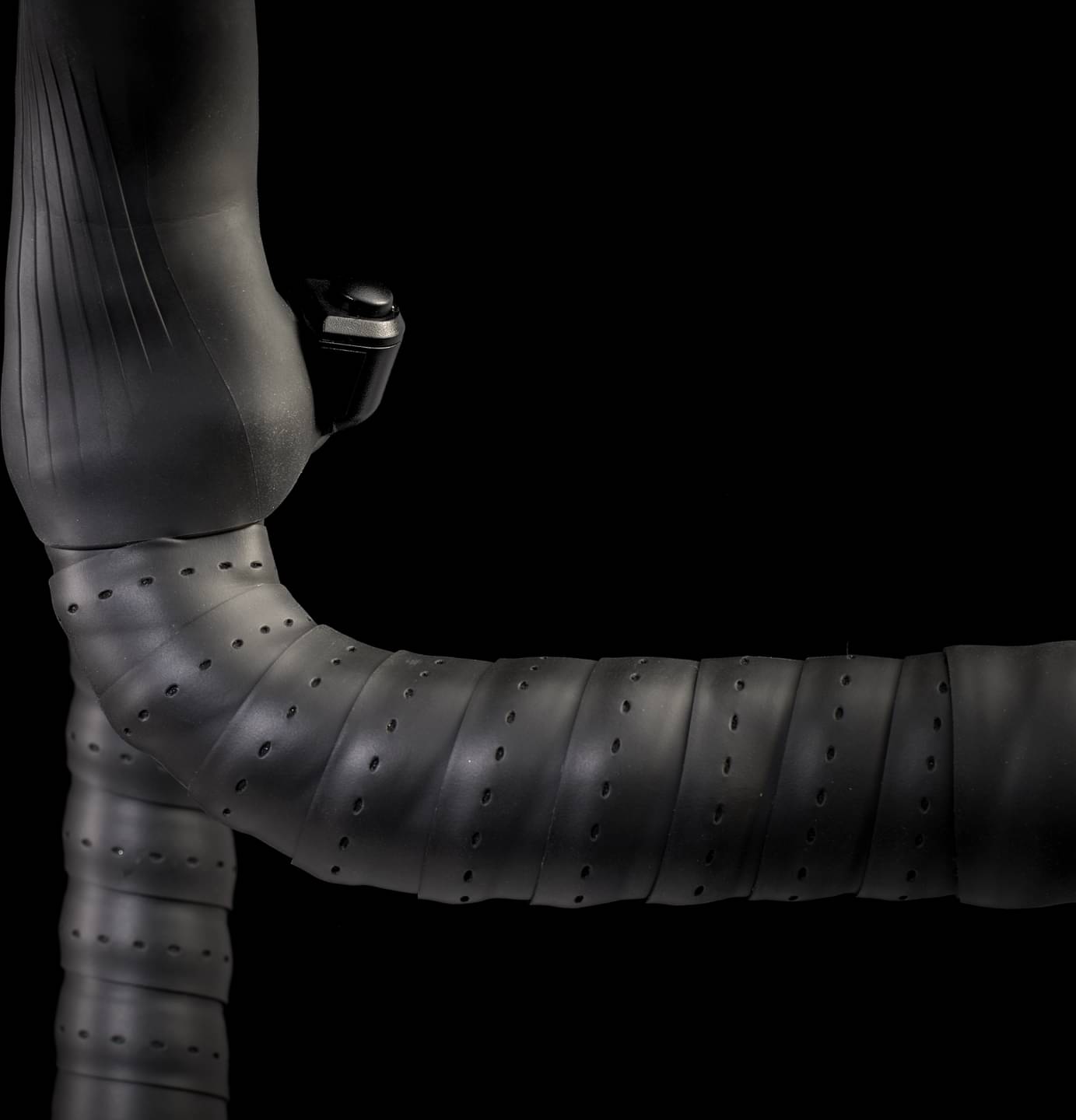

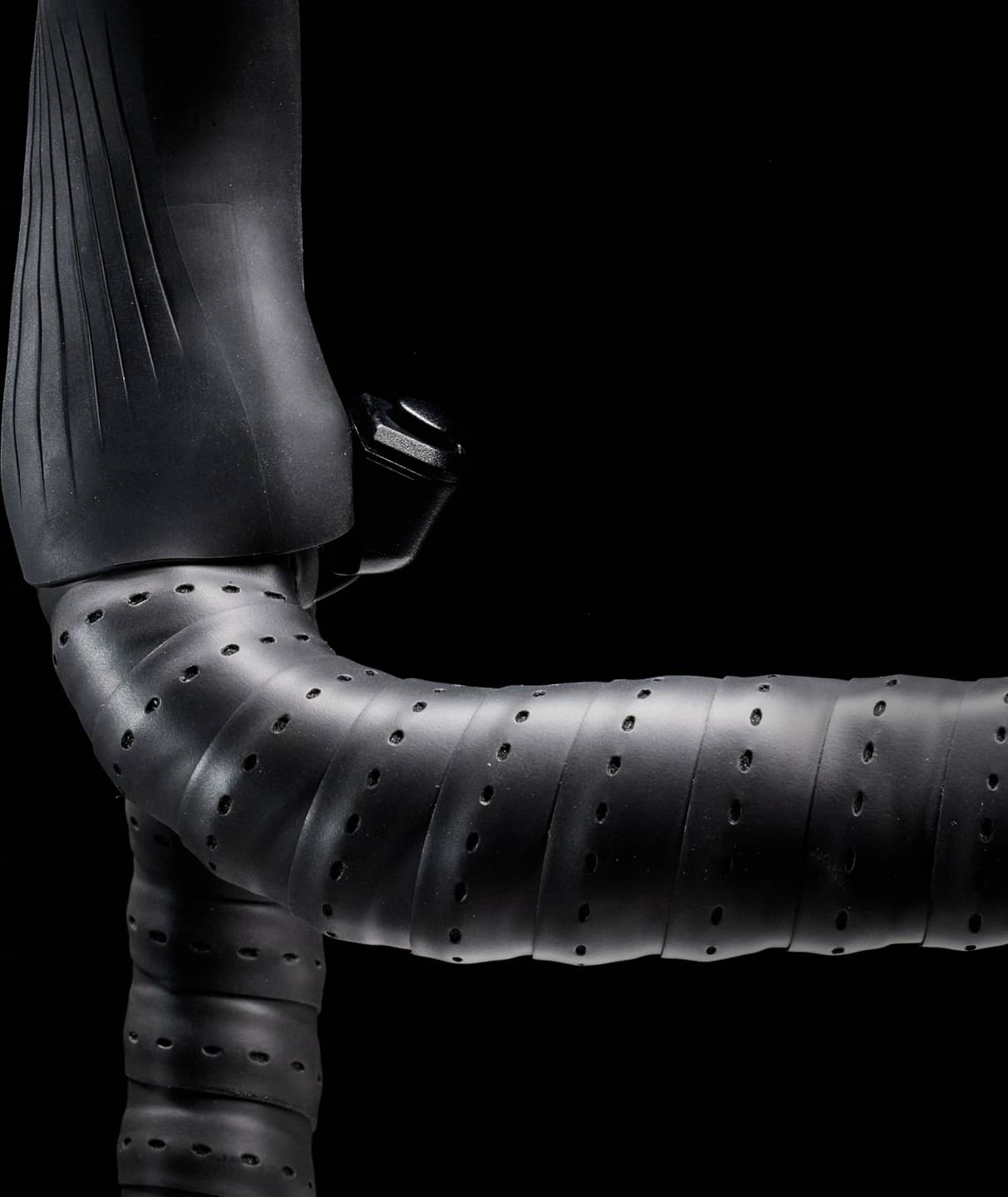

Handlebar
Size: 50, 52, Bontrager Pro IsoCore VR-SF, 40cm; Size: 54, 56, Bontrager Pro IsoCore VR-SF, 42cm; Size: 58, 60, 62, Bontrager Pro IsoCore VR-SF, 44cm
Seat
Saddle
Size: 50, 52, Verse Short Pro, carbon rails, 155mm width; Size: 54, 56, 58, 60, 62, Verse Short Pro, carbon rails, 145mm width
Seatpost
Size: 50, 52, 54, 56, Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length; Size: 58, 60, 62, Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length

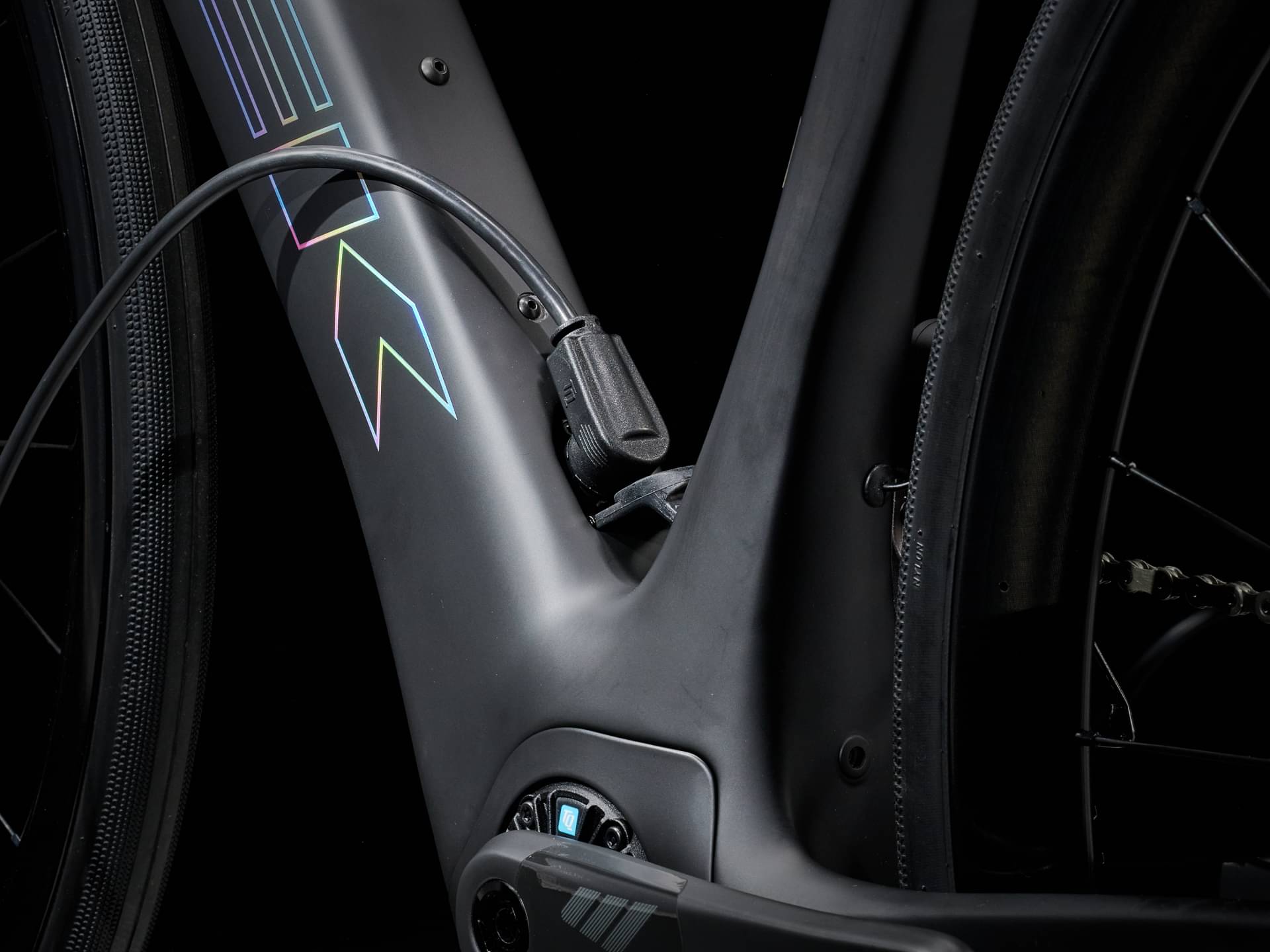

Motor & Battery
Motor

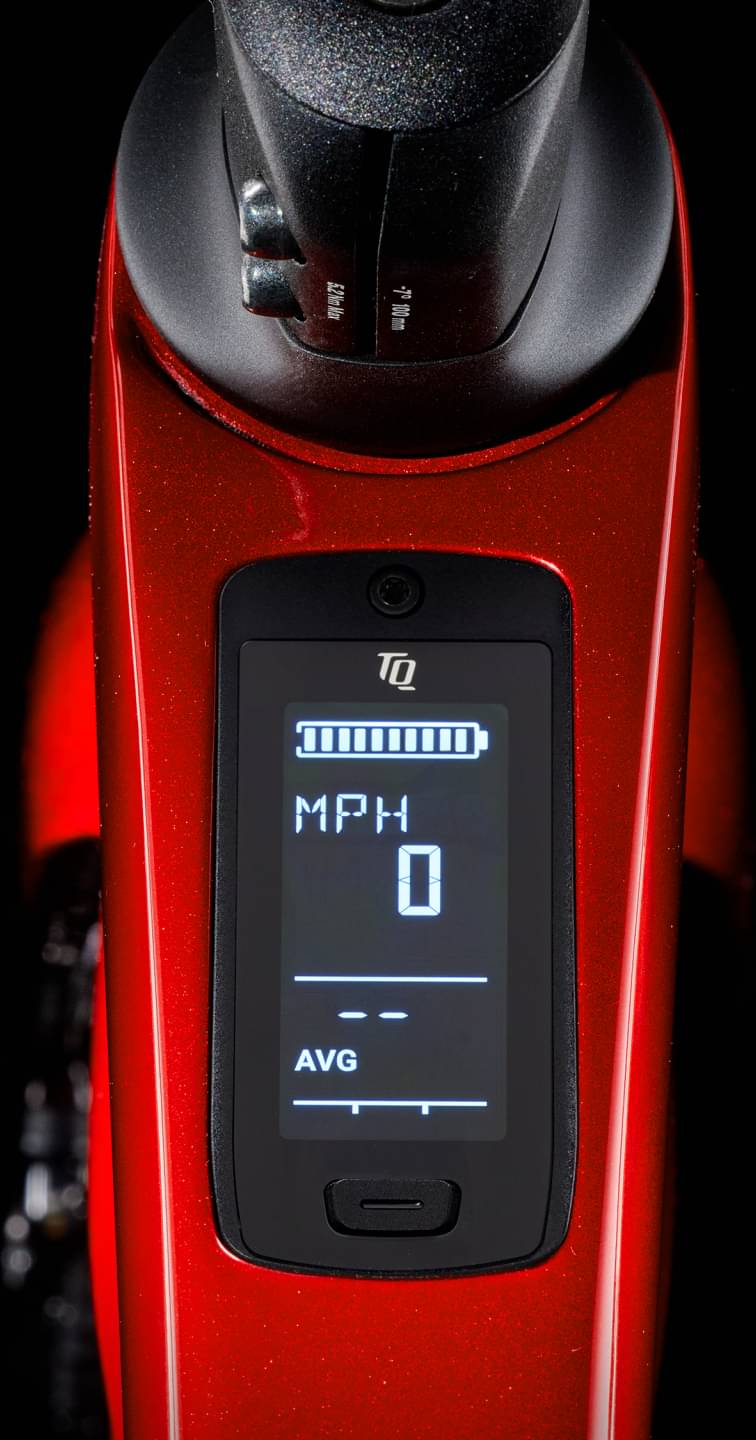

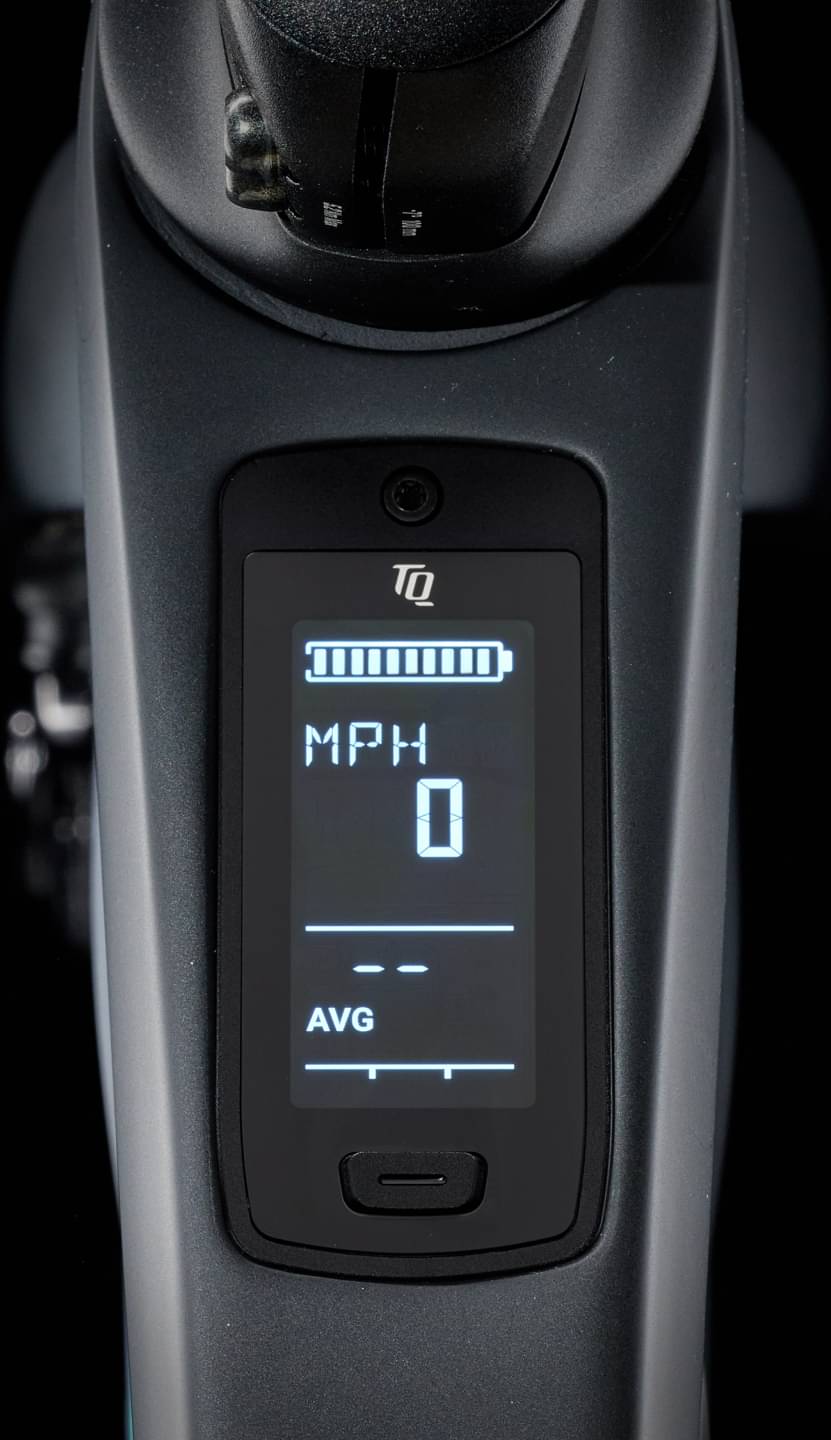

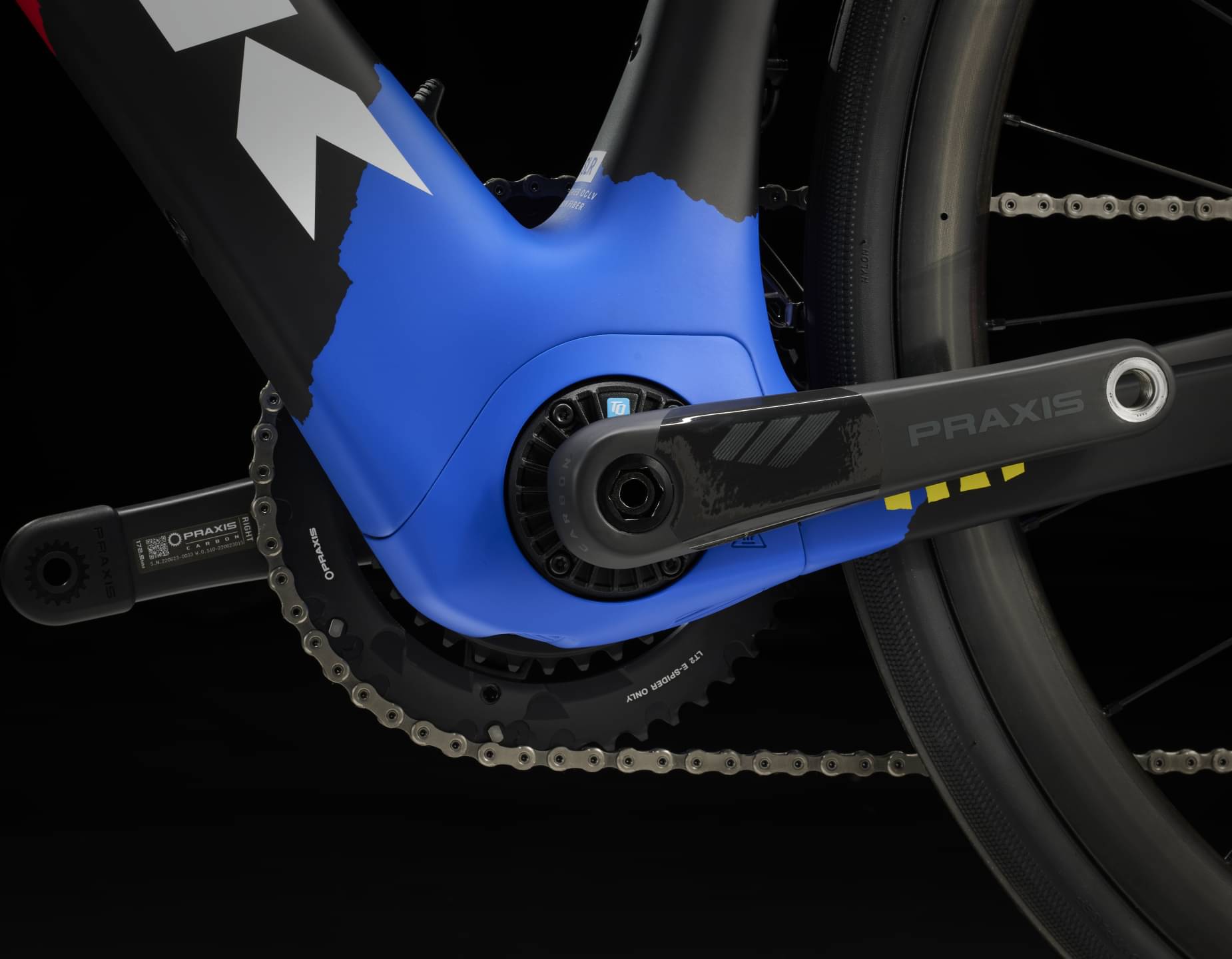

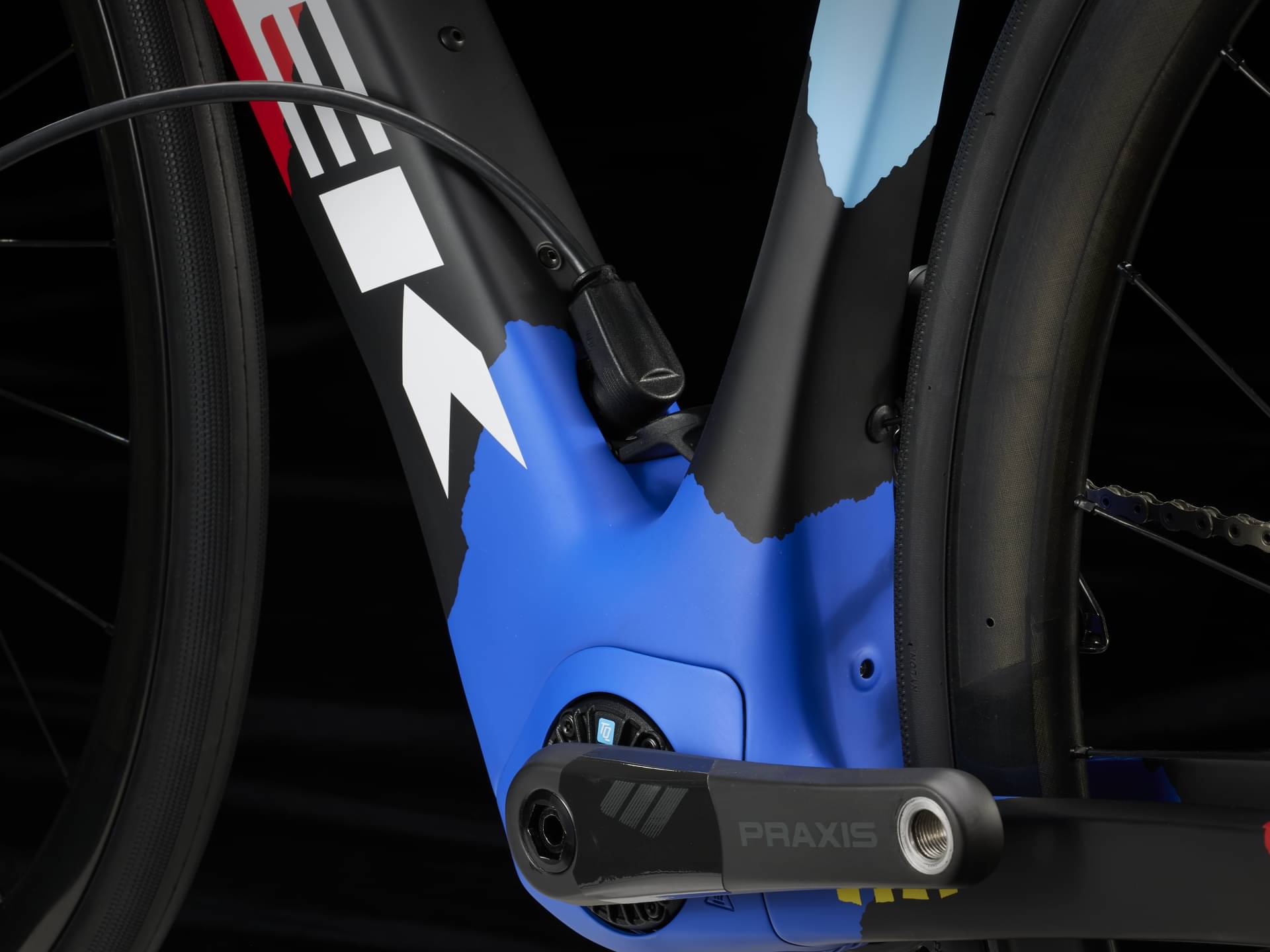

TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Battery
Size: 50, 52, 54, 56, 58, 60, 62, Shimano BT-DN300; Size: 50, 52, 54, 56, 58, 60, 62, TQ 360Wh

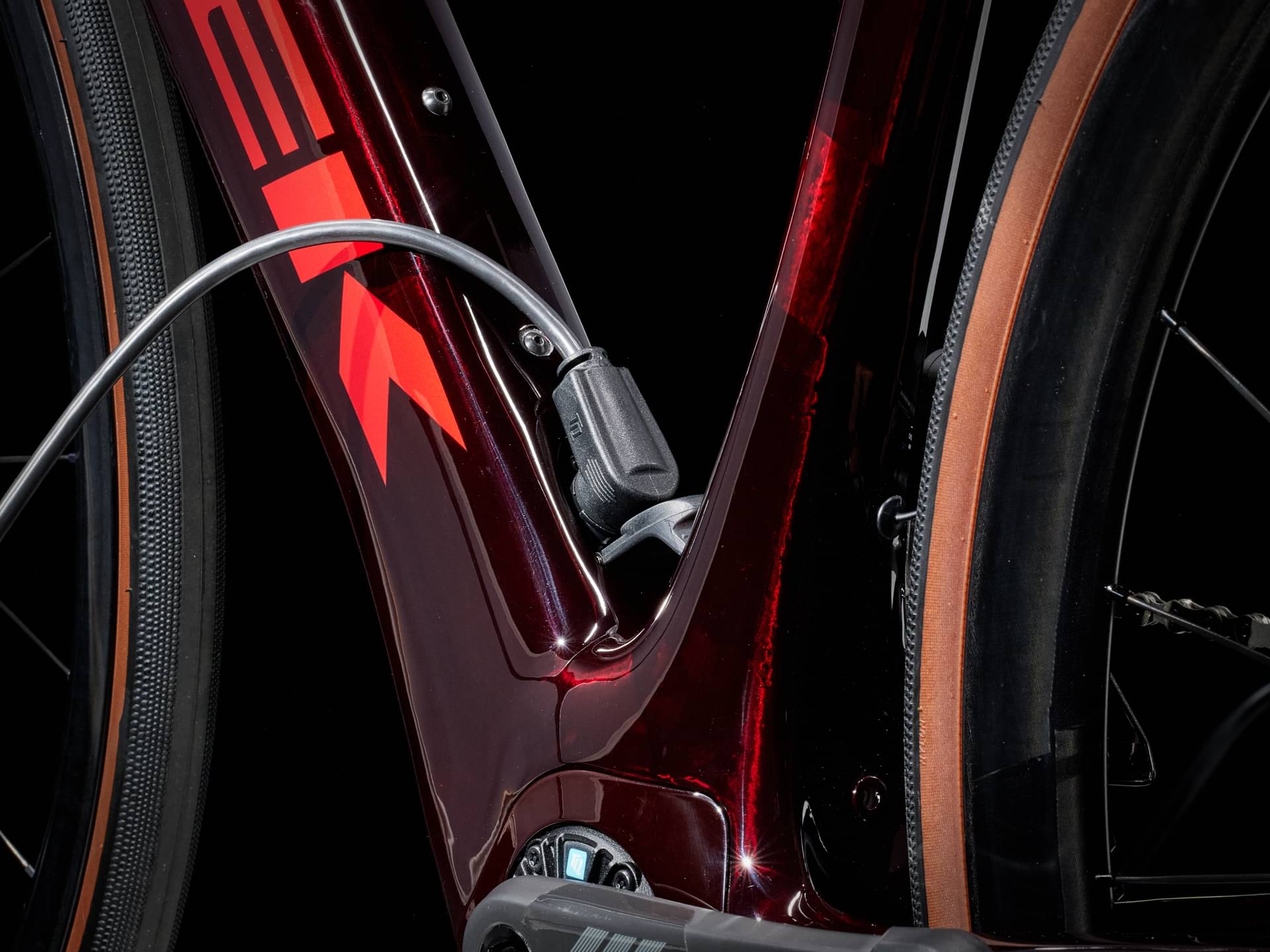

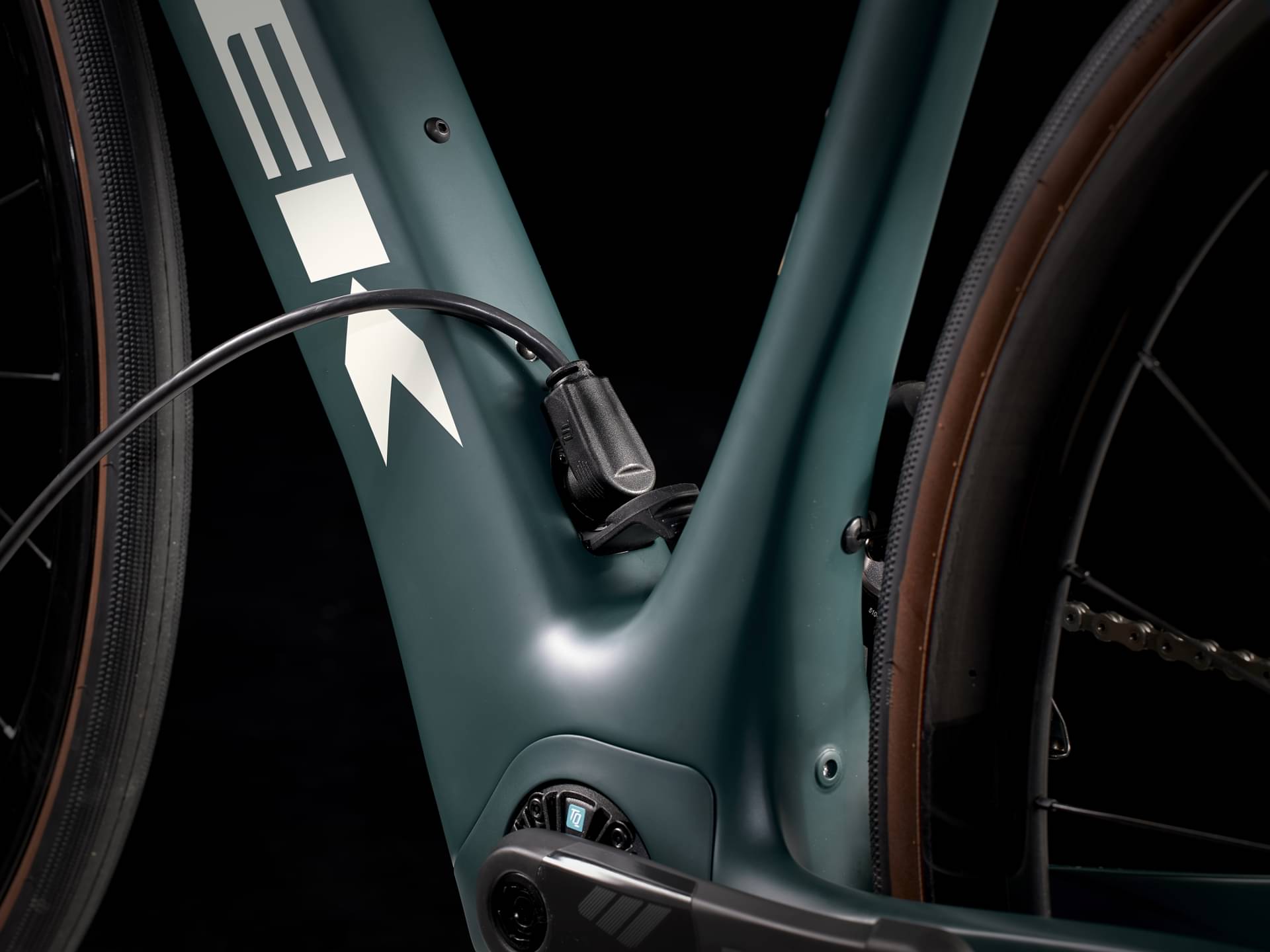

Charger
Charging cable included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.51 mm | 1.54 mm | 1.57 mm | 1.61 mm | 1.65 mm | 1.7 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm | 261 mm |
| Front Center | 590 mm | 596 mm | 604 mm | 600 mm | 609 mm | 618 mm | 628 mm |
| Rake | 54 mm | 54 mm | 54 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 63 mm | 62 mm | 62 mm | 63 mm | 63 mm | 62 mm | 62 mm |
| Stack | 545 mm | 560 mm | 574 mm | 590 mm | 610 mm | 631 mm | 655 mm |
| Reach | 367 mm | 370 mm | 373 mm | 376 mm | 379 mm | 382 mm | 385 mm |
| Top Tube Length | 518 mm | 529 mm | 541 mm | 553 mm | 566 mm | 578 mm | 592 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 500 mm | 525 mm | 548 mm | 567 mm | 586 mm |
| Head Tube Angle | 71.1 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° | 72.1 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm | 220 mm | 245 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1006 mm | 1012 mm | 1020 mm | 1017 mm | 1026 mm | 1036 mm | 1046 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm | 75 mm |
| Standover Height | 727 mm | 746 mm | 765 mm | 787 mm | 807 mm | 828 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Domane+ SLR 9 belongs to the Trek E Domane model. There are 42 e-bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Trek Domane+ AL 5 2024 is the most affordable e-bike of this model and has a price of 3499$. On the other hand, Trek Domane+ SLR 9 2024, is the most expensive and costs 12999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance e-bikes
If you want to purchase a solid Endurance e-bike, it is important to know that the average cost is 3800$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2024 and its price was 12999$. Comparing this to the average Endurance e-bike price, we see that the price is 242.08% more expensive.
Average weight for Endurance e-bikes
The average weight for Endurance e-bikes is 13.82 kg (30.47 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 11.75 kg (25.9 lbs), Trek e-bike is much lighter than average. To sum up, it’s 17.62% lighter than the average weight of Endurance e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Domane+ SLR 9 are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Domane+ SLR 9 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 7 sizes. They vary from 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
