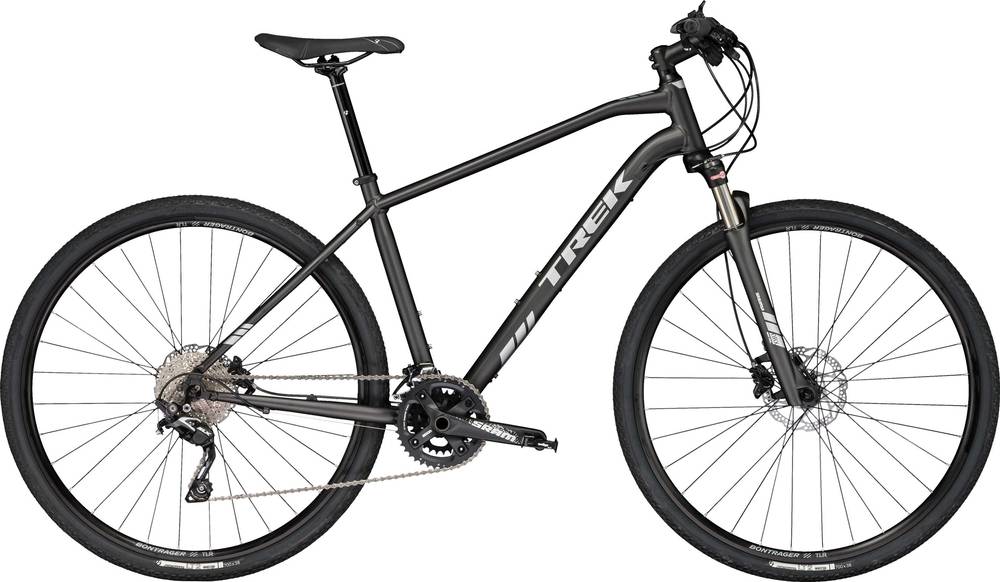

Trek DS 4 2017
2017 Urban
Estimate price |
1,149$
Weight | 12.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NRX
-
Groupset SLX, X5 -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, DuoTrap S compatible, rack & fender mounts
Suspension Fork
SR Suntour NRX, ATB rated, coil spring, preload, hydraulic remote lockout, 63mm travel
Drivetrain
Rear Derailleur
Shimano SLX, Shadow Plus
Front Derailleur
SRAM X5
Shift Levers
Shimano SLX, 10 speed
Cassette
Shimano HG50, 11-36, 10 speed
Crank
SRAM S1000, 42/28
Bottom Bracket
Sealed cartridge
Chain
KMC X10
Pedals
Alloy track-style
Wheels
Front Hub
Shimano M3050 centerlock
Rear Hub
Shimano M3050 centerlock
Rims
Bontrager Tubeless Ready
Tires
Bontrager LT2, Hard-Case Lite, 700x38c
Brakes
Brakes
Shimano M445 hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager alloy
Grips
Bontrager Satellite Elite, lock-on, ergonomic
Headset
1-1/8" threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19" | 21" | 22.5" |
|---|---|---|---|---|---|
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm | 294 mm |
| Trail | 85 mm | 82 mm | 82 mm | 78 mm | 75 mm |
| Top Tube Length | 575 mm | 590 mm | 605 mm | 620 mm | 635 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 366 mm | 417 mm | 467 mm | 505 mm | 543 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 114 mm | 124 mm | 134 mm | 144 mm | 154 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1091 mm | 1095 mm | 1105 mm | 1110 mm | 1112 mm |
| Standover Height | 738 mm | 761 mm | 791 mm | 815 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
DS 4 is part of the Trek Ds model. 8 bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Trek DS 1 2017 is the cheapest bike model and costs 549$. Trek DS 4 2017 is the most expensive one and costs 1149$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2017 for 1149$. Comparing the average cost of a Hybrid bike to this one, you will see that DS 4 price is 104.45% higher.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 12.46 kg (27.47 lbs), Trek bike is considerably lighter than average. In short, the average Hybrid bike weight is 11.16% higher than this one.
Overview of components
Fork
Trek DS 4 2017 bike is equipped with the SunTour NRX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the DS 4 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
