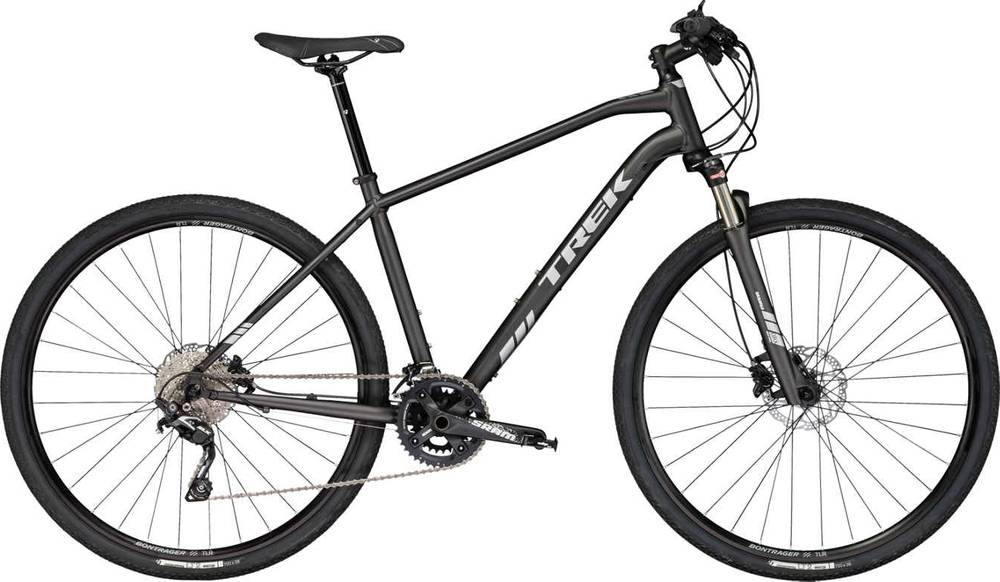

Trek DS 4 2018
2018 Urban
Estimate price |
1,069$
Weight | 12.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NRX
-
Groupset SLX, X5 -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, DuoTrap S compatible, rack & fender mounts
Suspension Fork
SR Suntour NRX, ATB rated, coil spring, preload, hydraulic remote lockout, 63mm travel
Drivetrain
Rear Derailleur
Shimano SLX, M7000 Shadow Plus
Front Derailleur
SRAM X5
Shift Levers
Shimano SLX, 10 speed
Cassette
Shimano HG50, 11-36, 10 speed
Crank
SRAM S1000, 42/28
Bottom Bracket
SRAM GXP, Sealed cartridge
Chain
KMC X10
Pedals
Wellgo track-style alloy
Wheels
Front Hub
Shimano M3050 centerlock
Rear Hub
Shimano M3050 centerlock
Rims
Bontrager Tubeless Ready Disc, 32h
Tires
Bontrager LT2, Hard-Case Lite, 700x38c
Brakes
Brakes
Shimano M365 hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Grips
Bontrager Satellite Elite, lock-on, ergonomic
Headset
1-1/8? threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19" | 21" | 22.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.457 mm | 1.456 mm | 1.465 mm | 1.472 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 643 mm | 647 mm | 657 mm | 662 mm | 664 mm |
| Rake | 33 mm | 38 mm | 37 mm | 39 mm | 37 mm |
| Trail | 85 mm | 82 mm | 82 mm | 78 mm | 75 mm |
| Stack | 595 mm | 606 mm | 616 mm | 627 mm | 639 mm |
| Reach | 410 mm | 416 mm | 423 mm | 428 mm | 434 mm |
| Top Tube Length | 575 mm | 590 mm | 605 mm | 620 mm | 635 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 366 mm | 417 mm | 467 mm | 505 mm | 543 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 114 mm | 124 mm | 134 mm | 144 mm | 154 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1091 mm | 1095 mm | 1105 mm | 1110 mm | 1112 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 738 mm | 761 mm | 791 mm | 815 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
DS 4 completes the Trek Ds model. Trek launched 8 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Trek DS 1 2018 is the most economical model, with a starting price of 489$. Trek DS 4 2018 on the other hand costs 1069$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 1069$. If we compare this with the average Hybrid bike cost we notice that the price is 90.21% more expensive.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
DS 4 weighs 12.46 kg (27.47 lbs) and is considerably lighter than the average. To sum up, it’s 11.16% lighter than the average weight of Hybrid bikes.
Overview of components
Fork
The SunTour NRX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the DS 4 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The DS 4 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
