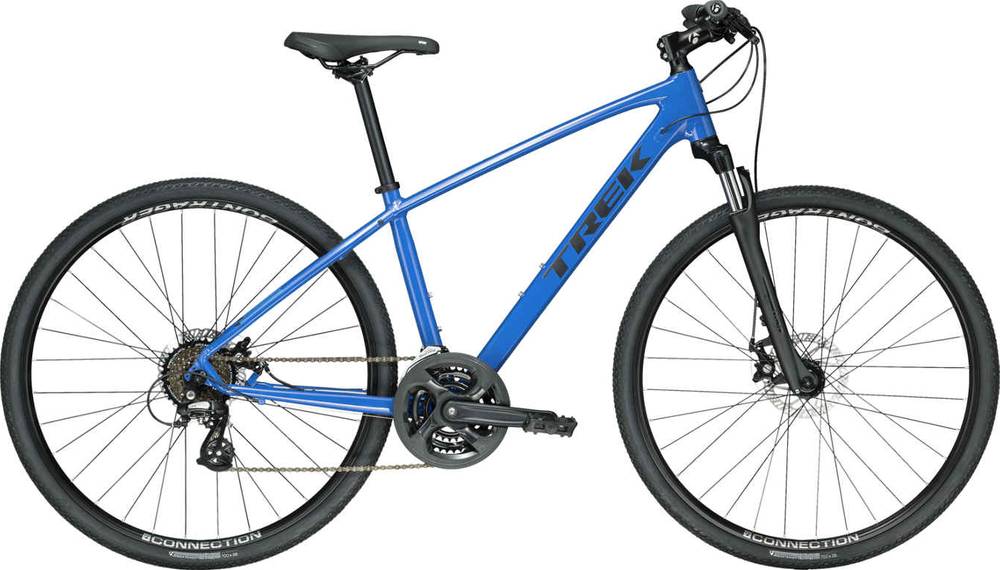

Trek Dual Sport 1 2019
2019 Urban
Estimate price |
549$
Weight | 13.81 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
LG
174cm - 187cm
MD
164cm - 177cm
SM
154cm - 167cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, DuoTrap S compatible, rack & fender mounts
Suspension Fork
SR Suntour NEX, coil spring, preload, 63mm travel
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY51
Shift Levers
Shimano Altus EF500, 7 speed
Cassette
SunRace MFM300 freewheel, 14-34, 7 speed
Crank
Forged alloy, 48/38/28 w/chainguard
Bottom Bracket
Sealed cartridge
Chain
KMC Z51
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula DC20 alloy
Rear Hub
Formula DC31 alloy
Rims
Bontrager Connection alloy, 32h
Tires
Bontrager GR1 Comp, wire bead, 60 tpi, 700x40c
Brakes
Brakes
Tektro M280 mechanical disc
Cockpit
Stem
Bontrager alloy, 25.4mm, 15 degree
Handlebar
Bontrager Riser, 25.4mm, 30mm rise
Grips
Bontrager Satellite, ergonomic
Headset
1-1/8? threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | MD | SM | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 643 mm | 647 mm | 657 mm | 662 mm |
| Rake | 33 mm | 38 mm | 37 mm | 35 mm |
| Trail | 85 mm | 82 mm | 82 mm | 75 mm |
| Stack | 593 mm | 604 mm | 614 mm | 637 mm |
| Reach | 408 mm | 414 mm | 421 mm | 432 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm | 571 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1089 mm | 1093 mm | 1103 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 736 mm | 759 mm | 789 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 174 cm | 164 cm | 154 cm | 185 cm |
| Rider Max Height | 187 cm | 177 cm | 167 cm | 197 cm |
Model Overview
Dual Sport 1 belongs to the Trek Dual Sport model. Trek released 54 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Trek Dual Sport 1 Women’s 2019 is the most economical model, with a starting price of 549$. Trek Dual Sport 4 2019 on the other hand costs 1159$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
Our math shows that the average cost of a dependable Commuter bike is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2019 and its price was 549$. If we compare this with the average Commuter bike cost we notice that the price is 38.8% lower.
Average weight for Commuter bikes
Commuter bikes weigh an average of 14.29 kg (31.5 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Dual Sport 1 weighs 13.81 kg (30.45 lbs) and is slightly lighter than the average. In short, the average Commuter bike weight is 3.48% higher than this one.
Dual Sport 1 components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Dual Sport 1 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 4 sizes. They vary from 174 cm – 197 cm (5.71 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
