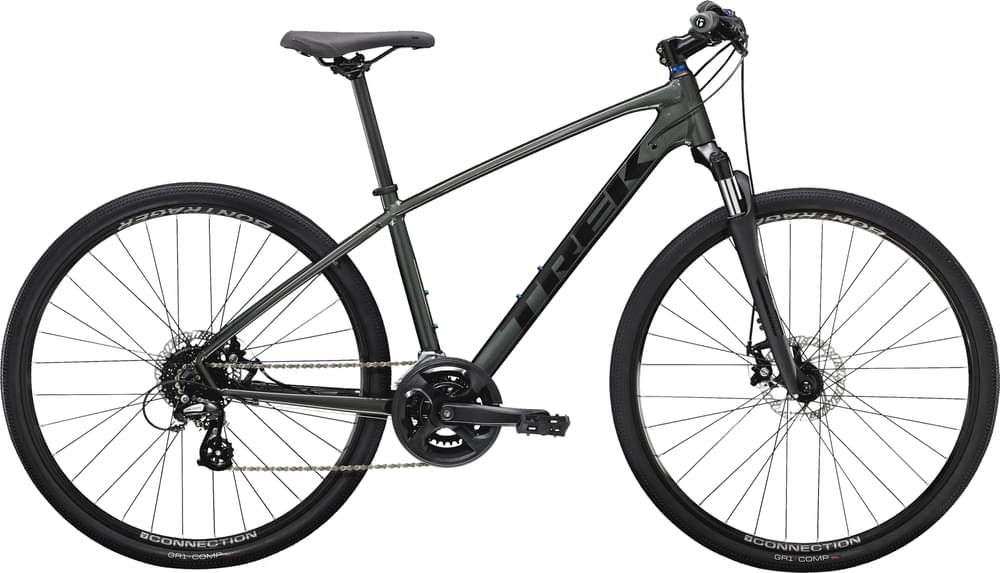

Trek Dual Sport 1 2022
2022 Urban
Estimate price |
649$
Weight | 13.54 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, 100x5mm QR, 63mm travel
Drivetrain
Rear Derailleur
Shimano Altus M310
Front Derailleur
Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull
Shift Levers
Shimano EF500, 8 speed
Cassette
Shimano HG31, 11-32, 8 speed
Crank
Forged alloy, 46/30, chainguard, 170mm length
Chain
KMC Z8.3
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Spokes
14g stainless steel
Tires
Bontrager GR1 Comp, wire bead, 60 tpi, 700x40c
Brakes
Brakes
Tektro MD-M280 mechanical disc, 160mm rotor
Cockpit
Stem
Size: S, M, Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length; Size: L, XL, Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
Handlebar
Size: S, M, Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width; Size: L, XL, Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width
Grips
Bontrager Satellite
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 643 mm | 647 mm | 652 mm | 657 mm |
| Rake | 33 mm | 38 mm | 33 mm | 30 mm |
| Trail | 85 mm | 82 mm | 82 mm | 75 mm |
| Stack | 593 mm | 604 mm | 614 mm | 637 mm |
| Reach | 408 mm | 414 mm | 421 mm | 432 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm | 571 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1094 mm | 1098 mm | 1103 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 665 mm | 763 mm | 806 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
Model Overview
Dual Sport 1 is part of the Trek Dual Sport model. Trek launched 54 bikes of this model so far. Take a sneak peek at all Trek Dual Sport bikes models from 2022, by clicking here.
Model range prices
Trek Dual Sport 1 2022 is the cheapest bike model and costs 649$. Trek Dual Sport 3 Equipped Stagger 2022 is the most expensive one and costs 1156$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter bikes average price
If you want an acceptable Commuter bike you should know that the average price is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek Dual Sport 1 price was 649$. If we compare this with the average Commuter bike cost we notice that the price is 17.41% smaller.
Average weight for Commuter bikes
If we make a quick analysis of the average weight of a Commuter bike, we get 14.29 kg (31.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Dual Sport 1 weighs 13.54 kg (29.85 lbs) and is a bit lighter than the average. To sum up, it’s 5.54% lighter than the average weight of Commuter bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Trek Dual Sport 1 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 4 sizes. They vary from 155 cm – 197 cm (5.09 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
