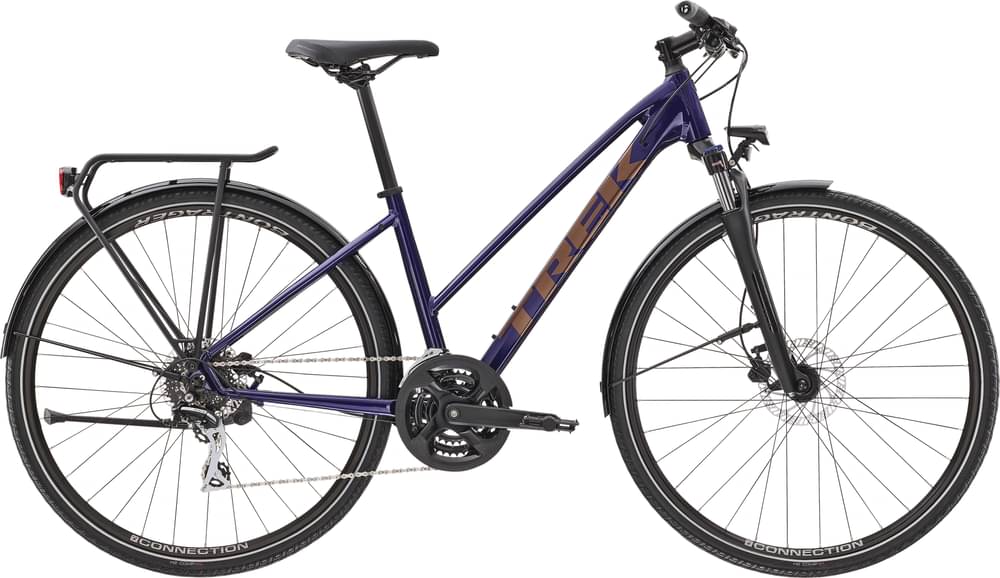

Trek Dual Sport 2 Equipped Stagger 2021
2021 Urban
Estimate price |
882$
Weight | 15.27 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
200 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 130x5 mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel
Drivetrain
Rear Derailleur
Shimano Acera M360, long cage
Front Derailleur
Shimano Tourney TY710, 34.9 mm clamp, top-swing, dual pull
Shift Levers
Size: M, L, XL, Shimano Altus M315, 8-speed; Size: M, L, XL, Shimano Altus M315, 3-speed
Cassette
Shimano HG31, 11-32, 8-speed
Crank
Forged alloy, 48/38/28, chainguard, 170 mm length
Chain
KMC Z8.3
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Spokes
14 g stainless steel
Tires
Bontrager H2 Comp, reflective, wire bead, 30 tpi, 700x40c
Brakes
Brakes
Tektro HD-M275 hydraulic disc
Cockpit
Stem
Size: M, L, Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: XL, Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
Handlebar
Size: M, Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager Satellite
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.63 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm |
| Front Center | 627 mm | 657 mm | 665 mm |
| Rake | 39 mm | 38 mm | 75 mm |
| Trail | 82 mm | 82 mm | 75 mm |
| Stack | 600 mm | 610 mm | 633 mm |
| Reach | 389 mm | 416 mm | 389 mm |
| Top Tube Length | 569 mm | 599 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 445 mm | 482 mm | 572 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1074 mm | 1104 mm | 1112 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 639 mm | 654 mm | 662 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
About this model
Dual Sport 2 Equipped Stagger completes the Trek Dual Sport model. Trek launched 54 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Trek Dual Sport 1 2021 has a starting price of 629$. Trek Dual Sport 4 2021 on the other hand is the most expensive at 1269$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter bikes
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 817$. Comparing this to the average Commuter bike price, we see that the price is 7.22% higher.
Commuter bikes average weight
If we make a quick analysis of the average weight of a Commuter bike, we get 14.29 kg (31.5 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Trek Dual Sport 2 Equipped Stagger it’s weighing 15.27 kg (33.66 lbs). At this weight, is a bit heavier than average. In other words, this model is 6.86% heavier than the average Commuter bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Dual Sport 2 Equipped Stagger components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Dual Sport 2 Equipped Stagger are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Dual Sport 2 Equipped Stagger has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 197 cm (5.41 ft – 6.46 ft). In short, it won’t be difficult to find the right one for you.
