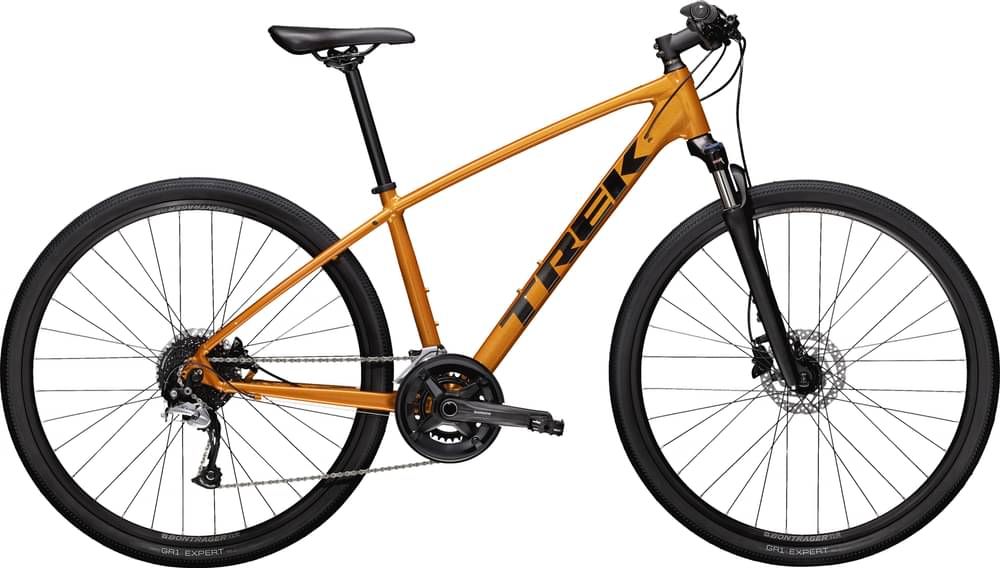

Trek Dual Sport 3 2021
2021 Urban
Estimate price |
929$
Weight | 13.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5mm QR, 63mm travel
Drivetrain
Rear Derailleur
Shimano Alivio M3100, long cage
Front Derailleur
Shimano Acera T3000, 34.9mm clamp, top swing, dual pull
Shift Levers
Size: S, M, L, XL, Shimano Acera M3000, 9 speed; Size: S, M, L, XL, Shimano Acera SL-M3010, 2 speed
Cassette
Shimano HG200, 11-36, 9 speed
Crank
Size: S, M, Shimano MT210, 46/30, chainguard, 170mm length; Size: L, XL, Shimano MT210, 46/30, chainguard, 175mm length
Chain
KMC X9
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rims
Bontrager Tubeless Ready Disc, 32-hole, presta valve
Spokes
14g stainless steel
Tires
Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Shimano RT26, 6-bolt,160mm
Cockpit
Stem
Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: M, L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: S, M, Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width; Size: L, XL, Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width
Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
Headset
1-1/8'' threadless, sealed cartridge bearings
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 643 mm | 647 mm | 652 mm | 657 mm |
| Rake | 33 mm | 38 mm | 33 mm | 30 mm |
| Trail | 85 mm | 82 mm | 82 mm | 75 mm |
| Stack | 593 mm | 604 mm | 614 mm | 637 mm |
| Reach | 408 mm | 414 mm | 421 mm | 432 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 445 mm | 508 mm | 571 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1094 mm | 1098 mm | 1103 mm | 1108 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 665 mm | 763 mm | 806 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 166 cm | 176 cm | 187 cm | 197 cm |
Model Overview
Dual Sport 3 is a Trek Dual Sport model. There are 54 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Trek Dual Sport 1 2021 is the most economical model, with a starting price of 629$. Trek Dual Sport 4 2021 on the other hand costs 1269$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Trek Dual Sport 3 price was 929$. Doing a quick comparison, we notice that Dual Sport 3 price is 21.92% more expensive than the average cost of a Commuter bike.
Commuter bikes average weight
On a deeper look, we notice that the average weight of a Commuter bike is 14.29 kg (31.5 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek Dual Sport 3 it’s weighing 13.45 kg (29.65 lbs). At this weight, is a bit lighter than average. To sum up, it’s 6.25% lighter than the average weight of Commuter bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Dual Sport 3 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Dual Sport 3 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 155 cm – 197 cm (5.09 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
