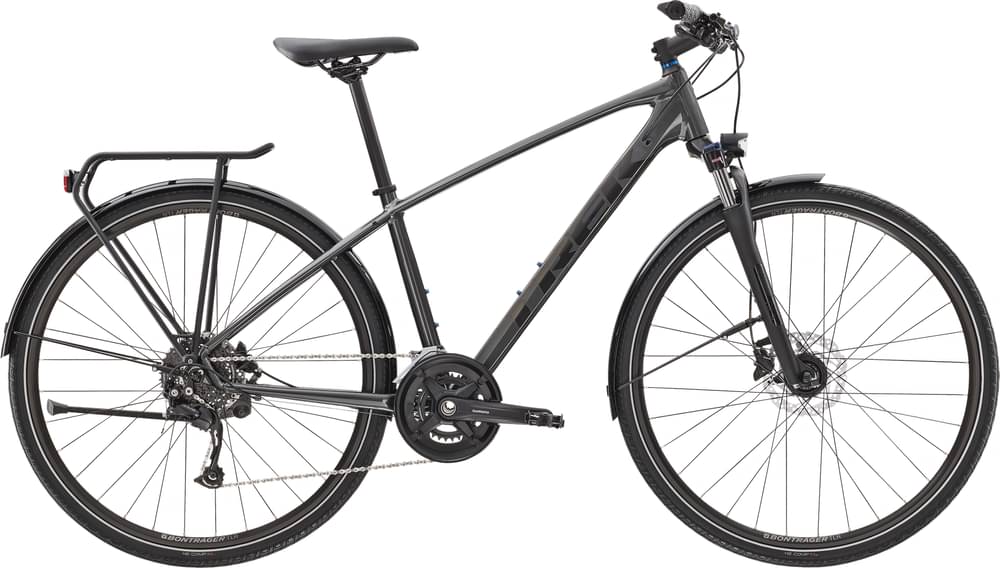

Trek Dual Sport 3 Equipped 2021
2021 Urban
Estimate price |
1,088$
Weight | 15.37 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel
Drivetrain
Rear Derailleur
Shimano Alivio M3100, long cage
Front Derailleur
Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull
Shift Levers
Size: M, L, XL, Shimano Alivio M3100, 9-speed; Size: M, L, XL, Shimano Acera M3000, 2 -speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Size: M, Shimano MT210, 46/30, chain guard, 170 mm length; Size: L, XL, Shimano MT210, 46/30, chain guard, 175 mm length
Chain
KMC X9
Wheels
Front Hub
Size: M, L, XL, Formula DC-20, alloy, 6-bolt, 5x100 mm QR; Size: M, L, XL, Shimano 3.0 watt dynamo hub
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Spokes
14 g stainless steel
Tires
Bontrager H2 Comp, reflective, wire bead, 30 tpi, 700x40c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Size: M, L, XL, Shimano RT26, 6-bolt,160 mm; Size: M, L, XL, Shimano RT10, CenterLock, 160 mm
Cockpit
Stem
Size: M, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: M, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.48 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm |
| Front Center | 647 mm | 652 mm | 657 mm |
| Rake | 38 mm | 33 mm | 30 mm |
| Trail | 82 mm | 82 mm | 75 mm |
| Stack | 600 mm | 610 mm | 633 mm |
| Reach | 410 mm | 417 mm | 428 mm |
| Top Tube Length | 584 mm | 599 mm | 629 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 445 mm | 508 mm | 571 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1094 mm | 1099 mm | 1104 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 759 mm | 802 mm | 844 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
About this model
Dual Sport 3 Equipped is a Trek Dual Sport model. Trek released 54 bikes variations of this model so far. Take a sneak peek at all Trek Dual Sport bikes models from 2021, by clicking here.
Model range prices
Trek Dual Sport 1 2021 is the most economical model, with a starting price of 629$. Trek Dual Sport 4 2021 on the other hand costs 1269$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter bikes
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek Dual Sport 3 Equipped price was 1008$. In conclusion, this bike price is 32.28% more expensive than the price of the average Commuter bike.
Commuter bikes average weight
If we make a quick analysis of the average weight of a Commuter bike, we get 14.29 kg (31.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Dual Sport 3 Equipped has a weight of 15.37 kg (33.89 lbs). In other words, this model is 7.56% heavier than the average Commuter bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Dual Sport 3 Equipped comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Trek Dual Sport 3 Equipped 2021, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Dual Sport 3 Equipped has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
