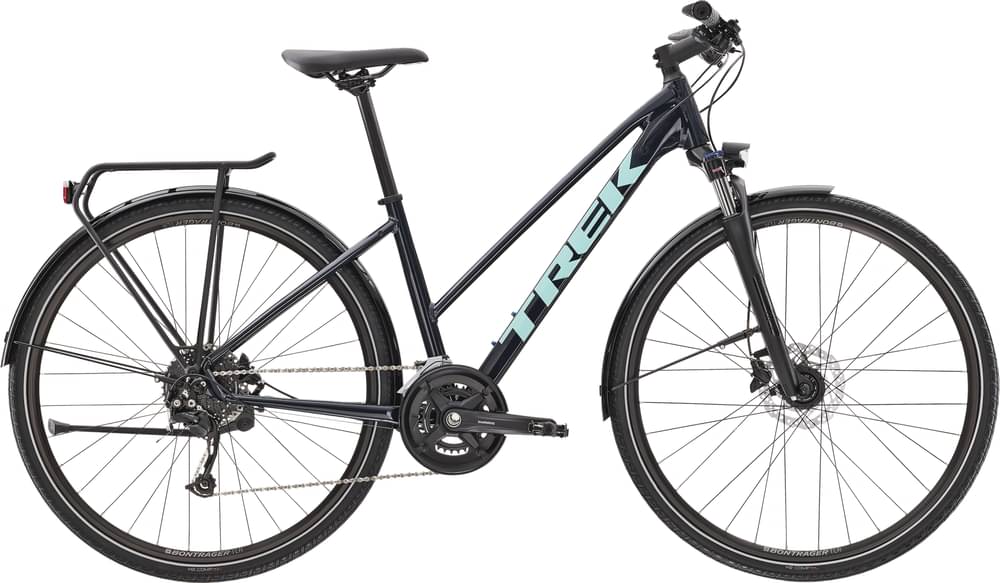

Trek Dual Sport 3 Equipped Stagger 2021
2021 Urban
Estimate price |
1,088$
Weight | 15.57 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
200 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 130x5 mm QR
Suspension Fork
SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5 mm QR, 63 mm travel
Drivetrain
Rear Derailleur
Shimano Alivio M3100, long cage
Front Derailleur
Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull
Shift Levers
Size: M, L, XL, Shimano Alivio M3100, 9-speed; Size: M, L, XL, Shimano Acera M3000, 2 -speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Size: M, Shimano MT210, 46/30, chain guard, 170 mm length; Size: L, XL, Shimano MT210, 46/30, chain guard, 175 mm length
Chain
KMC X9
Wheels
Front Hub
Size: M, L, XL, Formula DC-20, alloy, 6-bolt, 5x100 mm QR; Size: M, L, XL, Shimano 3.0 watt dynamo hub
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Spokes
14 g stainless steel
Tires
Bontrager H2 Comp, reflective, wire bead, 30 tpi, 700x40c
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Size: M, L, XL, Shimano RT26, 6-bolt,160 mm; Size: M, L, XL, Shimano RT10, CenterLock, 160 mm
Cockpit
Stem
Size: M, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: M, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager XR Endurance Elite, lock-on, ergonomic
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.63 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm |
| Front Center | 627 mm | 657 mm | 665 mm |
| Rake | 39 mm | 38 mm | 75 mm |
| Trail | 82 mm | 82 mm | 75 mm |
| Stack | 600 mm | 610 mm | 633 mm |
| Reach | 389 mm | 416 mm | 389 mm |
| Top Tube Length | 569 mm | 599 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 445 mm | 482 mm | 572 mm |
| Head Tube Angle | 71 ° | 71 ° | 72 ° |
| Head Tube Length | 125 mm | 135 mm | 155 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1074 mm | 1104 mm | 1112 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 639 mm | 654 mm | 662 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
About this model
Dual Sport 3 Equipped Stagger is a Trek Dual Sport model. There are 54 bikes that carry this model name. Take a sneak peek at all Trek Dual Sport bikes models from 2021, by clicking here.
Model range prices
Trek Dual Sport 1 2021 is the most economical model, with a starting price of 629$. Trek Dual Sport 4 2021 on the other hand costs 1269$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
According to our math, the average price for a trustworthy Commuter bike is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 1008$. In conclusion, this bike price is 32.28% higher than the price of the average Commuter bike.
Average weight for Commuter bikes
If we make a quick analysis of the average weight of a Commuter bike, we get 14.29 kg (31.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, Dual Sport 3 Equipped Stagger has a weight of 15.57 kg (34.33 lbs). In short, the average Commuter bike weight is 8.96% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Trek Dual Sport 3 Equipped Stagger 2021 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Dual Sport 3 Equipped Stagger 2021 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Dual Sport 3 Equipped Stagger comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Trek Dual Sport 3 Equipped Stagger bike has 3 sizes, in the range of 165 cm – 197 cm (5.41 ft – 6.46 ft). In short, you can easily find one that suits you.
