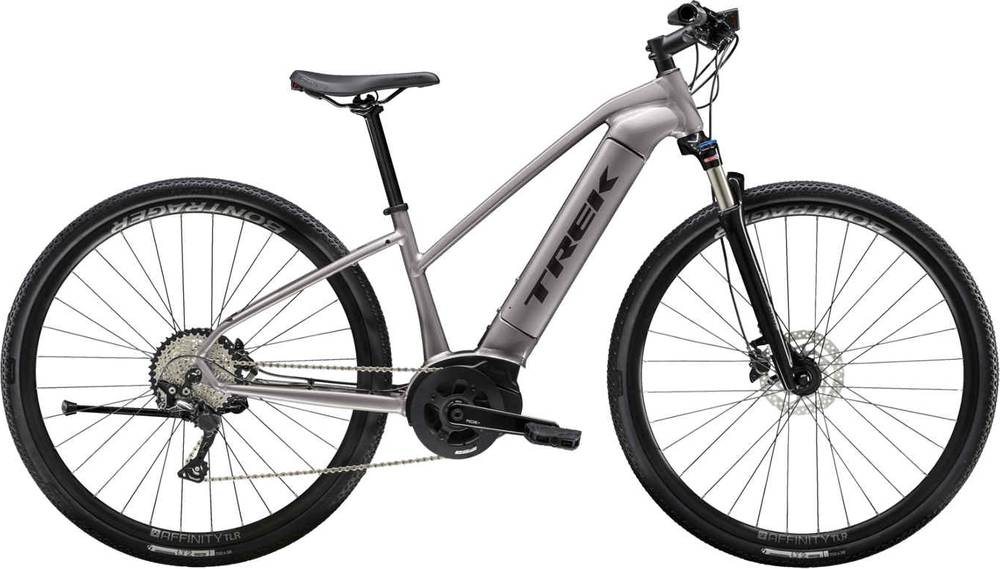

Trek Dual Sport+ Women’s 2019
2019 E-bike
Estimate price |
3,599$
Weight | 20.35 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NRX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 500wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
164cm - 177cm
SM
154cm - 167cm
XS
147cm - 156cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, custom designed for Bosch Active Line system and PowerTube battery, rack & fender mounts, internal cable routing
Suspension Fork
SR Suntour NRX, 63mm travel, w/lock-out
Drivetrain
Rear Derailleur
Shimano Deore M6000, Shadow Plus
Shift Levers
Shimano Deore Rapid-Fire Plus, 10 speed
Cassette
Shimano HG50, 11-42, 10 speed
Crank
Miranda Delta, for Bosch Active Line, 38T steel, w/alloy guard
Bottom Bracket
Bosch, press-fit
Chain
KMC X10E
Pedals
Bontrager Satellite City pedal
Wheels
Front Hub
Bontrager alloy sealed bearing
Rear Hub
Bontrager sealed bearing, alloy axle
Rims
Bontrager Affinity, Tubeless Ready, 32h
Tires
Bontrager LT2 Comp, Hardcase Light, 700x38c
Brakes
Brakes
Shimano MT200 hydraulic disc, 160mm rotor
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Grips
Bontrager XR Trail Elite, alloy lock-on
Headset
VP 1-1/8?, semi-Integrated
Seat
Saddle
Bontrager Commuter Comp, with integrated light mount
Seatpost
Bontrager Approved, alloy, 27.2mm
Motor & Battery
Motor
Bosch Active Line Plus, 250 watt, 50nm, 20mph
Battery
Bosch PowerTube 500wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | SM | XS |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm | 1.54 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm |
| Front Center | 622 mm | 622 mm | 627 mm |
| Rake | 38 mm | 37 mm | 39 mm |
| Trail | 89 mm | 85 mm | 82 mm |
| Stack | 591 mm | 593 mm | 604 mm |
| Reach | 383 mm | 388 mm | 393 mm |
| Top Tube Length | 548 mm | 558 mm | 573 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 330 mm | 381 mm | 445 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 115 mm | 115 mm | 125 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1068 mm | 1068 mm | 1073 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 692 mm | 714 mm | 743 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 164 cm | 154 cm | 147 cm |
| Rider Max Height | 177 cm | 167 cm | 156 cm |
About this model
Dual Sport+ Women’s completes the Trek E Dual Sport model. Trek launched 7 e-bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Trek Dual Sport+ 2019 is the most affordable e-bike of this model and has a price of 3599$. On the other hand, Trek Dual Sport+ Women’s 2019, is the most expensive and costs 3599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2019 and its price was 3599$. Comparing this to the average Hybrid e-bike price, we see that the price is 45.12% more expensive.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much lighter than average, Dual Sport+ Women’s has a weight of 20.35 kg (44.86 lbs). In conclusion, the average Hybrid e-bike weighs 16.9% more than Dual Sport+ Women’s.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Dual Sport+ Women’s components
Fork
The Dual Sport+ Women’s comes factory-installed with the SunTour NRX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Dual Sport+ Women’s are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Dual Sport+ Women’s has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 164 cm – 156 cm (5.38 ft – 5.12 ft). In conclusion, you won’t have a problem finding one that suits you.
