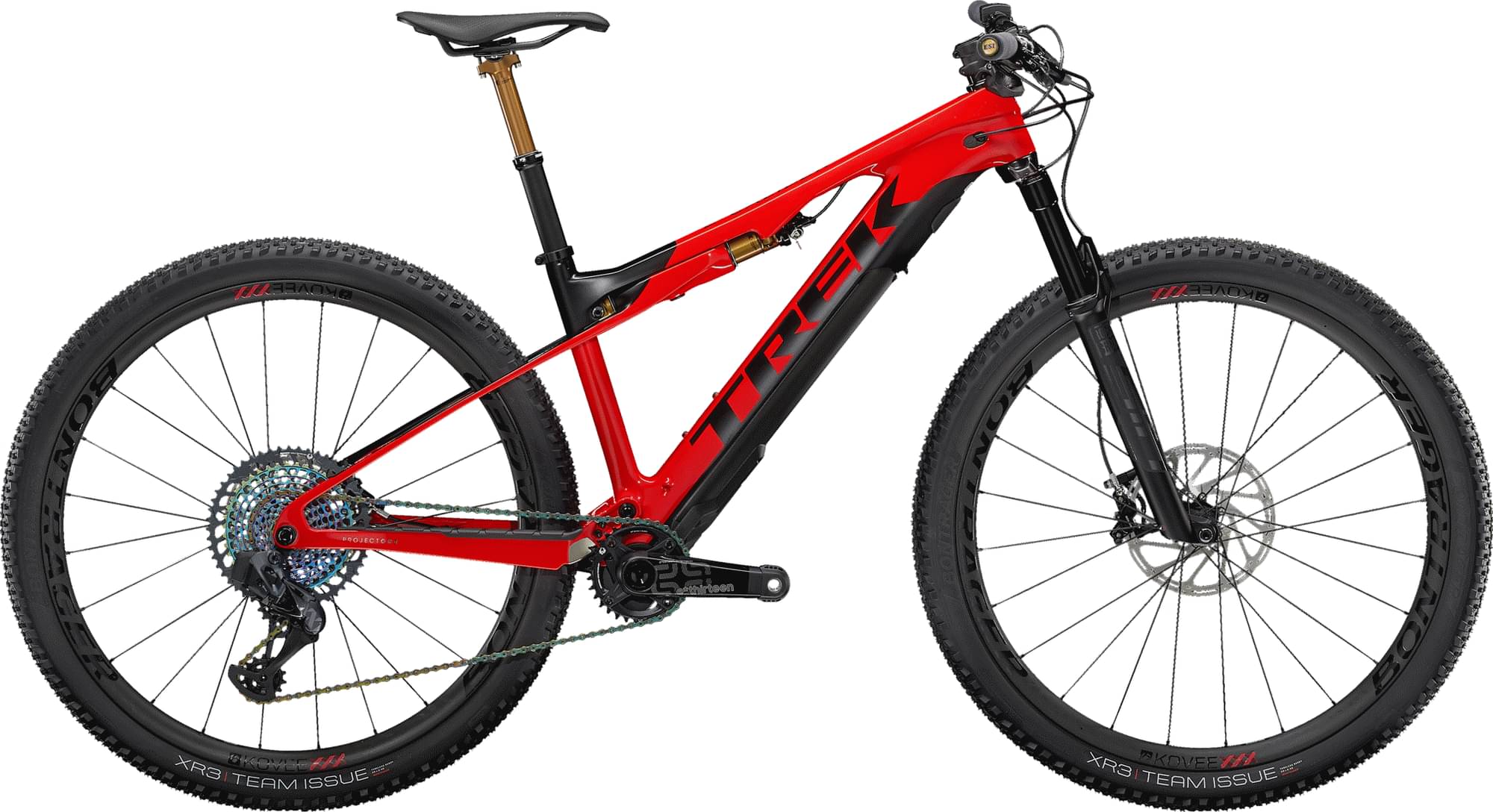

Trek E-Caliber 9.9 XX1 AXS 2022
2022 E-bike
Estimate price |
15,239$
Weight | 16.35 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 60mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS, SRAM -
Suspension Full -
Motor Fazua mid-drive -
Battery Fazua Evation battery, 250Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 176cm
LG
173cm - 188cm
XL
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Suspension Fork
RockShox SID Ultimate, DebonAir spring, Charger Race Day damper, remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Rear Shock
Size: S, Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235x32.5mm; Size: M, L, XL, Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM Eagle AXS, wireless, 12-speed
Cassette
SRAM Eagle XG-1299, 10-52, 12 speed
Crank
Size: S, M, L, E*thirteen E*spec Race Carbon, 32T, 170mm length; Size: XL, E*thirteen E*spec Race Carbon, 32T, 175mm length
Chain
SRAM XX1 Eagle, 12 speed
Wheels
Rims
Front: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle, Rear: Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, DT Swiss 54T engagement, centerlock, SRAM XD driver, Boost148, 12mm thru axle
Tires
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40''
Brakes
Brakes
SRAM G2 Ultimate hydraulic disc, carbon levers
Disk Rotors
Size: S, M, L, XL, SRAM CenterLine, centerlock, round edge, 180mm; Size: S, M, L, XL, SRAM Centerline, centerlock, round edge, 200mm
Cockpit
Stem
Size: S, M, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
Grips
ESI Chunky
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager P3 Verse Pro, carbon rails, 145mm width
Seatpost
Fox Transfer SL, 100mm travel, internal routing, 31.6mm
Motor & Battery
Motor
Fazua Ride Trail 50 motor
Battery
Fazua Evation battery, 250Wh
Charger
Fazua Evation charger, 90-120V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.41 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm |
| Front Center | 684 mm | 723 mm | 754 mm | 776 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 603 mm | 612 mm | 616 mm | 621 mm |
| Reach | 399 mm | 434 mm | 464 mm | 484 mm |
| Top Tube Length | 574 mm | 611 mm | 642 mm | 664 mm |
| Seat Tube Angle | 72.3 ° | 72.6 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 394 mm | 419 mm | 470 mm | 508 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1120 mm | 1159 mm | 1191 mm | 1213 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 762 mm | 762 mm | 762 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 173 cm | 186 cm |
| Rider Max Height | 166 cm | 176 cm | 188 cm | 196 cm |
About this model
E-Caliber 9.9 XX1 AXS is part of the Trek E E Caliber model. There are 26 e-bikes that carry this model name. Take a sneak peek at all Trek E E Caliber e-bikes models from 2022, by clicking here.
Model range prices
Trek E-Caliber 9.6 Gen 2 2022 is the most economical model, with a starting price of 6649$. Trek E-Caliber 9.9 XX1 AXS 2022 on the other hand costs 13908$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 13908$. Doing a quick comparison, we notice that E-Caliber 9.9 XX1 AXS price is 466.98% higher than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
E-Caliber 9.9 XX1 AXS weighs 16.35 kg (36.05 lbs) and is much lighter than the average. In other words, this model is 41.96% lighter than the average Crosscountry e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Trek E-Caliber 9.9 XX1 AXS 2022 e-bike is equipped with the RockShox SID Ultimate fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the Size: S model, with a travel of 60mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the E-Caliber 9.9 XX1 AXS model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Caliber 9.9 XX1 AXS has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 153 cm – 196 cm (5.02 ft – 6.43 ft). In short, you can easily find one that suits you.
Dropper post
The Trek model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
